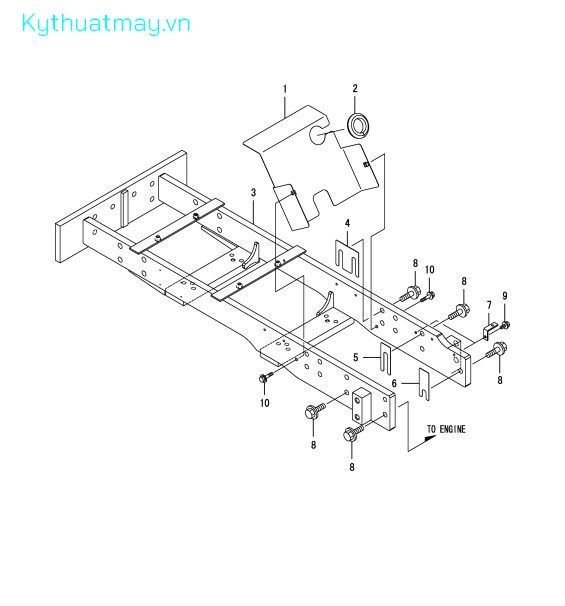

Giá đỡ trước

Giá đỡ trước
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 PLATE ASSY, SHUTTER 1A8296-05100-1
2 GROMMET, 55X1.5 1A8296-05150
3 BRACKET ASSY, FRONT 1A8292-11101 17,555,000
4 SHIM, A FAB 1A8296-11160 17,000
5 SHIM, B FAB 1A8296-11170
6 SHIM, C FAB 1A8296-11180
7 STAY, PST HOSE 1A8296-17990 36,000
8 BOLT, M14X45 1A6680-85980 168,000
9 BOLT, M8X 16 PLATED 26106-080162 6,000
10 BOLT, M8X 35 PLATED 26106-080352 9,000
1 PLATE ASSY, SHUTTER 1A8296-05100-1
2 GROMMET, 55X1.5 1A8296-05150
3 BRACKET ASSY, FRONT 1A8292-11101 17,555,000
4 SHIM, A FAB 1A8296-11160 17,000
5 SHIM, B FAB 1A8296-11170
6 SHIM, C FAB 1A8296-11180
7 STAY, PST HOSE 1A8296-17990 36,000
8 BOLT, M14X45 1A6680-85980 168,000
9 BOLT, M8X 16 PLATED 26106-080162 6,000
10 BOLT, M8X 35 PLATED 26106-080352 9,000

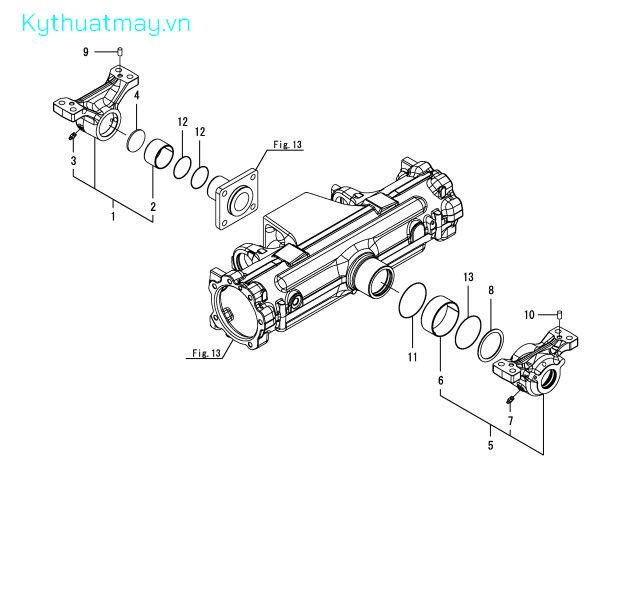

Bộ phận hỗ trợ phía trước (1)

Bộ phận hỗ trợ phía trước (1)
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 SUPPORT ASSY,FRONT F 1A8292-11610-1
2 BUSH, 60X65X40 1A8292-11630 179,000
3 NIPPLE, GREASE PT1/8 24761-020000
4 WASHER, THRUST 60X4 1A8296-11640 167,000
5 SUPPORT ASSY,FRONT R 1A8292-11650-1
6 BUSH, 90X95X40 1A8292-11670 201,000
7 NIPPLE, GREASE PT1/8 24761-020000
8 WASHER, 73X89X2 1A8296-11690
9 PIN, PARALLEL M10X18 22312-100180 34,000
10 PIN, PARALLEL M10X18 22312-100180 34,000
11 O-RING, 1AP95.0 24311-000950 37,000
12 O-RING, 1AG60.0 24321-000600 11,000
13 O-RING, 1AG90.0 24321-000900 22,000
1 SUPPORT ASSY,FRONT F 1A8292-11610-1
2 BUSH, 60X65X40 1A8292-11630 179,000
3 NIPPLE, GREASE PT1/8 24761-020000
4 WASHER, THRUST 60X4 1A8296-11640 167,000
5 SUPPORT ASSY,FRONT R 1A8292-11650-1
6 BUSH, 90X95X40 1A8292-11670 201,000
7 NIPPLE, GREASE PT1/8 24761-020000
8 WASHER, 73X89X2 1A8296-11690
9 PIN, PARALLEL M10X18 22312-100180 34,000
10 PIN, PARALLEL M10X18 22312-100180 34,000
11 O-RING, 1AP95.0 24311-000950 37,000
12 O-RING, 1AG60.0 24321-000600 11,000
13 O-RING, 1AG90.0 24321-000900 22,000

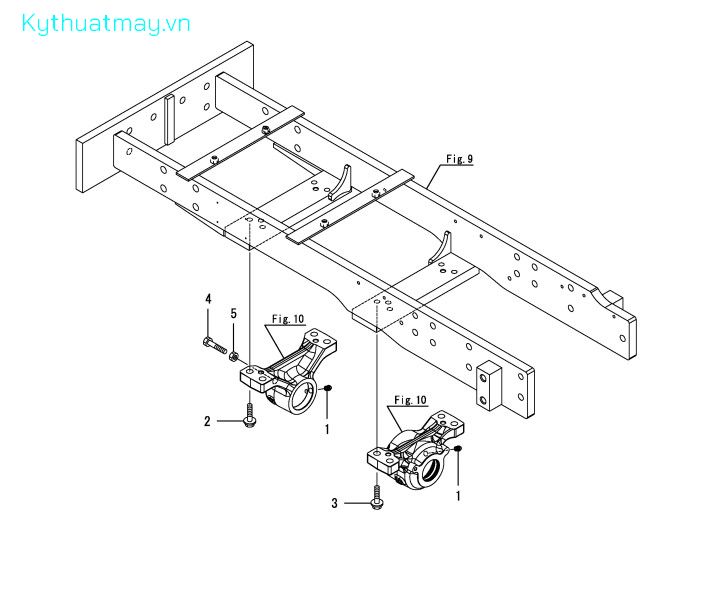

Bộ phận hỗ trợ phía trước (2)

Bộ phận hỗ trợ phía trước (2)
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 BREATHER, GREASE 1A7815-32810
2 BOLT, M14X45 1A6680-85980 168,000
3 BOLT, M14X45 1A6680-85980 168,000
4 BOLT, M16X 50 PLATED 26116-160502 89,000
5 NUT, M16 26716-160002 11,000
1 BREATHER, GREASE 1A7815-32810
2 BOLT, M14X45 1A6680-85980 168,000
3 BOLT, M14X45 1A6680-85980 168,000
4 BOLT, M16X 50 PLATED 26116-160502 89,000
5 NUT, M16 26716-160002 11,000

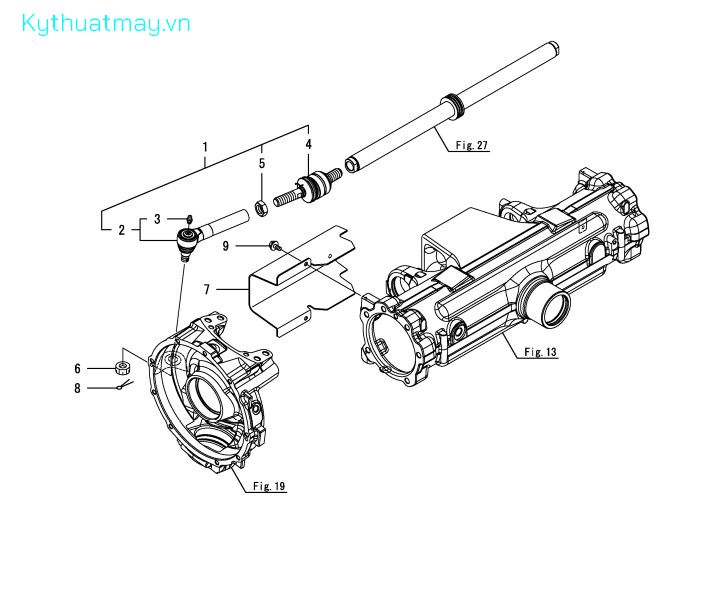

Thanh giằng

Thanh giằng
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 TIE-ROD ASSY, 1A8060-12310-1
2 END ASSY, ROD 1A8060-12330 2,399,000
3 NIPPLE, GREASE MT6X1 24761-060000 47,000
4 END ASSY, RACK 1A8060-12350 4,231,000
5 NUT, LOCK M20 26772-200002
6 NUT, CASTLE M16 194180-12471 134,000
7 COVER, PST CYLINDER 1A8296-17710-1 1,401,000
8 PIN, COTTER 4.0X40 22417-400400
9 BOLT, M8X 16 PLATED 26106-080162 6,000
1 TIE-ROD ASSY, 1A8060-12310-1
2 END ASSY, ROD 1A8060-12330 2,399,000
3 NIPPLE, GREASE MT6X1 24761-060000 47,000
4 END ASSY, RACK 1A8060-12350 4,231,000
5 NUT, LOCK M20 26772-200002
6 NUT, CASTLE M16 194180-12471 134,000
7 COVER, PST CYLINDER 1A8296-17710-1 1,401,000
8 PIN, COTTER 4.0X40 22417-400400
9 BOLT, M8X 16 PLATED 26106-080162 6,000

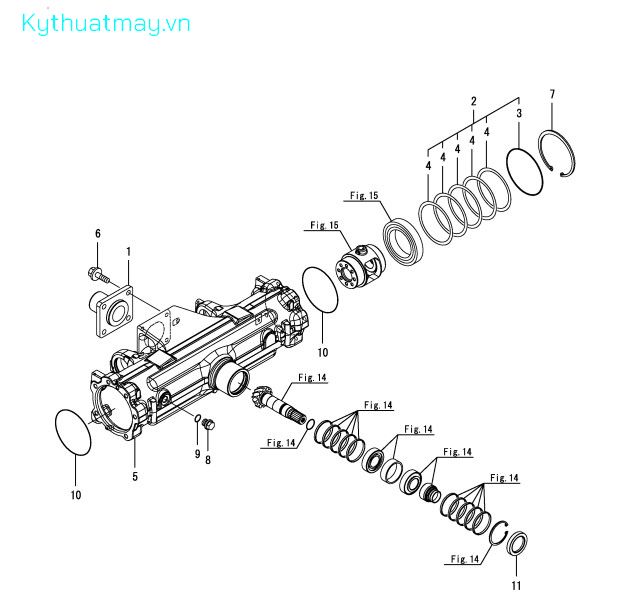

Vỏ cầu xe trước

Vỏ cầu xe trước
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 PIN, CENTER 1A8292-11500 974,000
2 SHIM ASSY, DIFF 1A8060-13250 800,000
3 SHIM, DIFF 2.0 1A8060-13260
4 SHIM, DIFF 0.15 1A8060-13270 187,000
5 HOUSING, FRONT AXLE 1A8292-13610-1
6 BOLT, M14X45 1A6680-85980 168,000
7 RING, 140 22252-001400 362,000
8 PLUG, 20 23491-200002
9 O-RING, 1AP20.0 24311-000200 3,000
10 O-RING, 1AG145.0 24321-001450 53,000
11 SEAL,OIL TC507212 24421-507212 194,000
1 PIN, CENTER 1A8292-11500 974,000
2 SHIM ASSY, DIFF 1A8060-13250 800,000
3 SHIM, DIFF 2.0 1A8060-13260
4 SHIM, DIFF 0.15 1A8060-13270 187,000
5 HOUSING, FRONT AXLE 1A8292-13610-1
6 BOLT, M14X45 1A6680-85980 168,000
7 RING, 140 22252-001400 362,000
8 PLUG, 20 23491-200002
9 O-RING, 1AP20.0 24311-000200 3,000
10 O-RING, 1AG145.0 24321-001450 53,000
11 SEAL,OIL TC507212 24421-507212 194,000

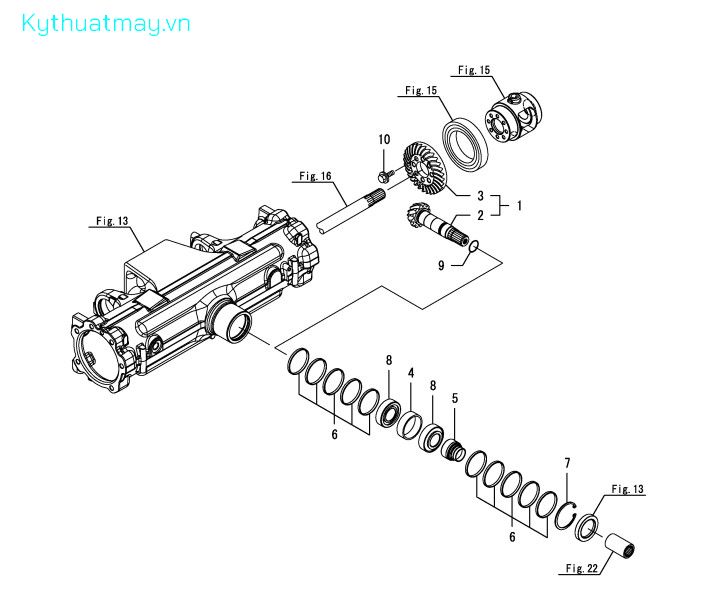

Vòng răng bánh đà

Vòng răng bánh đà
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 GEAR ASSY, RING 1A8292-13100 3,360,000
2 PINION, DRIVE SHAFT 1A8292-13110
3 GEAR, RING 1A8292-13120
4 COLLAR, 62X70X21 1A8292-13170 98,000
5 COLLAR, SEAL DRIVE 1A8292-13180 1,061,000
6 COLLAR ASSY, INPUT 1A8060-13630 2,601,000
7 RING, 72 22252-000720 109,000
8 BEARING, 32207H 24142-322070 328,000
9 O-RING, 1AS31.5 24341-000315 8,000
10 BOLT, M10X 30 PLATED 26106-100302 12,000
1 GEAR ASSY, RING 1A8292-13100 3,360,000
2 PINION, DRIVE SHAFT 1A8292-13110
3 GEAR, RING 1A8292-13120
4 COLLAR, 62X70X21 1A8292-13170 98,000
5 COLLAR, SEAL DRIVE 1A8292-13180 1,061,000
6 COLLAR ASSY, INPUT 1A8060-13630 2,601,000
7 RING, 72 22252-000720 109,000
8 BEARING, 32207H 24142-322070 328,000
9 O-RING, 1AS31.5 24341-000315 8,000
10 BOLT, M10X 30 PLATED 26106-100302 12,000

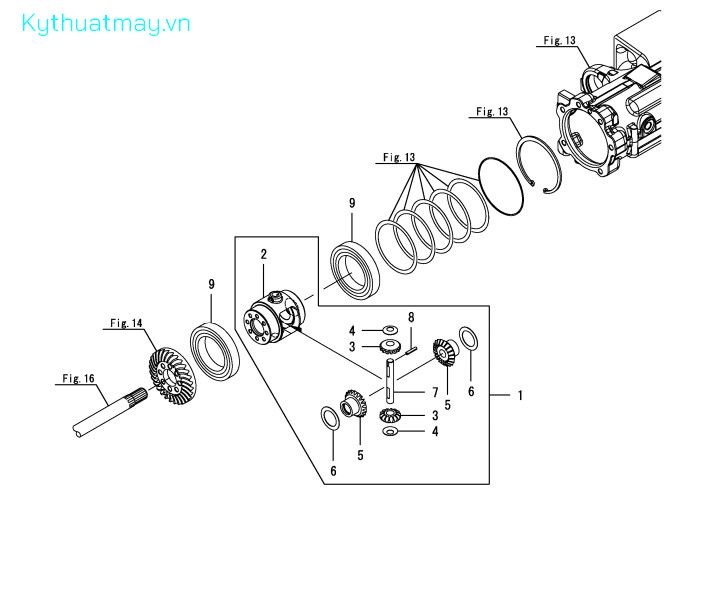

Truyền động vi sai

Truyền động vi sai
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 DIFFERENTIAL ASSY,F 1A8292-13010 4,932,000
2 HOUSING,DIFFERENTIAL 1A8292-13020
3 PINION, DIFFERENTIAL 1A8292-13040 310,000
4 LINER, DIFF. PINION 1A8292-13050 33,000
5 GEAR, DIFFERENTIAL 1A8292-13060 464,000
6 LINER, DIFF. GEAR 1A8292-13070
7 SHAFT, DIFF.PINION 194321-13270 338,000
8 PIN, SPRING 6.0X32 22351-060032 6,000
9 BEARING, BALL 6018 24101-060184 382,000
1 DIFFERENTIAL ASSY,F 1A8292-13010 4,932,000
2 HOUSING,DIFFERENTIAL 1A8292-13020
3 PINION, DIFFERENTIAL 1A8292-13040 310,000
4 LINER, DIFF. PINION 1A8292-13050 33,000
5 GEAR, DIFFERENTIAL 1A8292-13060 464,000
6 LINER, DIFF. GEAR 1A8292-13070
7 SHAFT, DIFF.PINION 194321-13270 338,000
8 PIN, SPRING 6.0X32 22351-060032 6,000
9 BEARING, BALL 6018 24101-060184 382,000

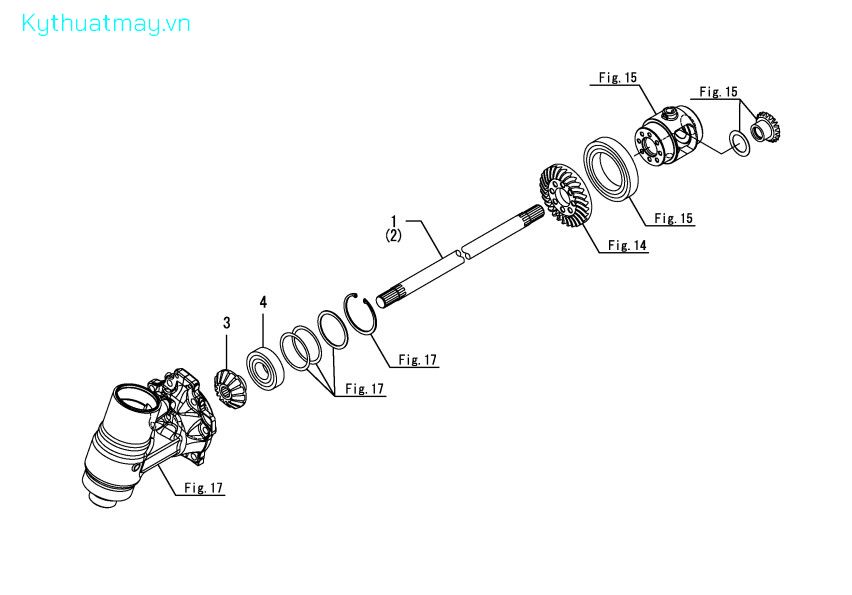

Trục trước (1)

Trục trước (1)
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 SHAFT, FRONT 1ST L 1A8292-13510 749,000
2 SHAFT, FRONT 1ST R 1A8292-13520 573,000
3 PINION, 1ST SHAFT 1A8292-13530 701,000
4 BEARING, BALL 6308 24101-063084
1 SHAFT, FRONT 1ST L 1A8292-13510 749,000
2 SHAFT, FRONT 1ST R 1A8292-13520 573,000
3 PINION, 1ST SHAFT 1A8292-13530 701,000
4 BEARING, BALL 6308 24101-063084

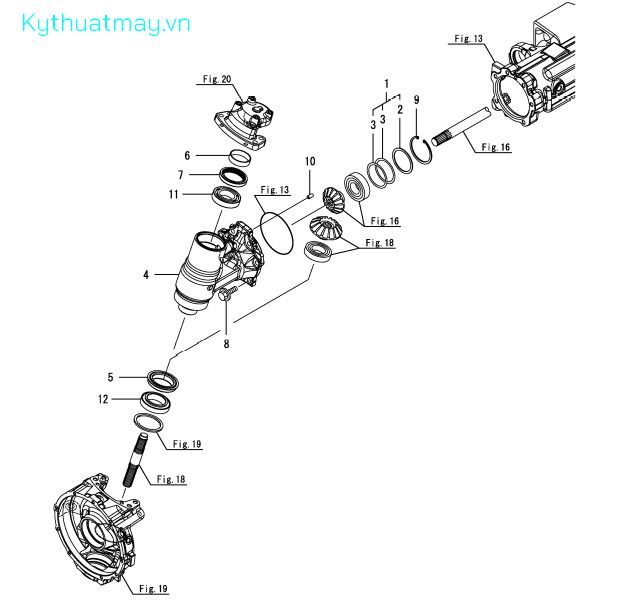

Hộp số trước

Hộp số trước
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 SHIM ASSY,1ST PINION 1A8060-13550 223,000
2 SHIM, 2.0 1ST PINION 1A8060-13560 51,000
3 SHIM, 0.2 1ST PINION 1A8060-13570 30,000
4 HOUSING, FRONT GEAR 1A8292-13710-1
5 SEAL, QLF709521.5 198072-13760 397,000
6 SLEEVE, 63X68X17 198071-13780 643,000
7 SEAL, OIL TC6Y689013 194171-13870 212,000
8 BOLT, M14X45 1A6680-85980 168,000
9 RING, 90 22252-000900 171,000
10 PIN, PARALLEL M10X18 22312-100180 34,000
11 BEARING, BALL 6210 24101-062104
12 BEARING, 32012 24141-320120 702,000
1 SHIM ASSY,1ST PINION 1A8060-13550 223,000
2 SHIM, 2.0 1ST PINION 1A8060-13560 51,000
3 SHIM, 0.2 1ST PINION 1A8060-13570 30,000
4 HOUSING, FRONT GEAR 1A8292-13710-1
5 SEAL, QLF709521.5 198072-13760 397,000
6 SLEEVE, 63X68X17 198071-13780 643,000
7 SEAL, OIL TC6Y689013 194171-13870 212,000
8 BOLT, M14X45 1A6680-85980 168,000
9 RING, 90 22252-000900 171,000
10 PIN, PARALLEL M10X18 22312-100180 34,000
11 BEARING, BALL 6210 24101-062104
12 BEARING, 32012 24141-320120 702,000

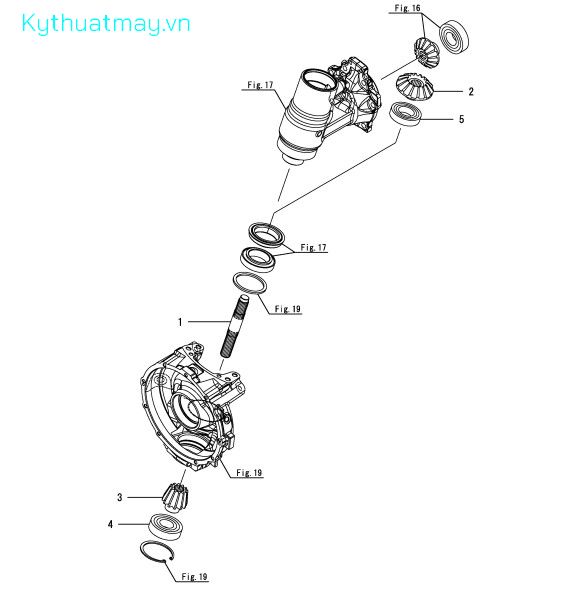

Trục trước (2)

Trục trước (2)
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 SHAFT, FRONT 2ND 1A8292-13810 396,000
2 GEAR, 2ND SHAFT 1A8292-13820 916,000
3 PINION, FRONT FINAL 1A8042-13850
4 BEARING, TM308 1A8296-13930 664,000
5 BEARING, BALL 6209 24101-062094 225,000
1 SHAFT, FRONT 2ND 1A8292-13810 396,000
2 GEAR, 2ND SHAFT 1A8292-13820 916,000
3 PINION, FRONT FINAL 1A8042-13850
4 BEARING, TM308 1A8296-13930 664,000
5 BEARING, BALL 6209 24101-062094 225,000

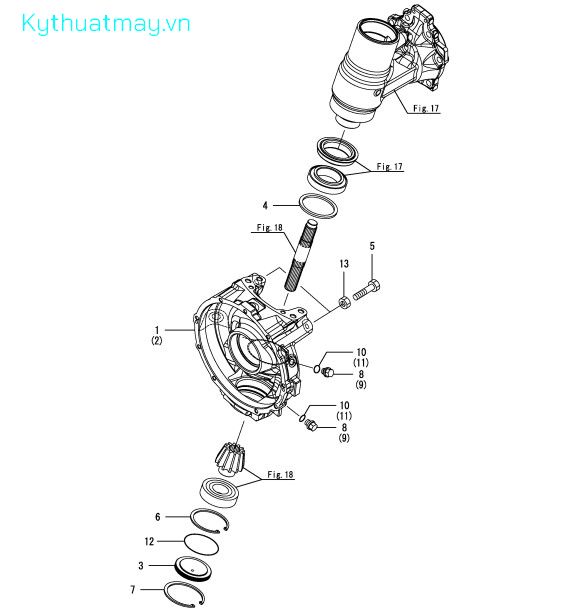

Hộp số trước

Hộp số trước
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 GEARBOX, FRONT L 1A8292-13751
2 GEARBOX, FRONT R 1A8292-13761
3 COVER, GEAR BOX 1A8292-13850-1
4 SPACER, 80X95X4.5 1A8292-13890 90,000
5 BOLT, 14X63 1A8060-13970
6 RING, 90 22252-000900 171,000
7 RING, 95 22252-000950
8 PLUG, 14 23491-140002 64,000
9 PLUG, 14 23491-140002 64,000
10 O-RING, 1AP16.0 24311-000160 3,000
11 O-RING, 1AP16.0 24311-000160 3,000
12 O-RING, 1AG85.0 24321-000850 20,000
13 NUT, M14 26606-140002 50,000
1 GEARBOX, FRONT L 1A8292-13751
2 GEARBOX, FRONT R 1A8292-13761
3 COVER, GEAR BOX 1A8292-13850-1
4 SPACER, 80X95X4.5 1A8292-13890 90,000
5 BOLT, 14X63 1A8060-13970
6 RING, 90 22252-000900 171,000
7 RING, 95 22252-000950
8 PLUG, 14 23491-140002 64,000
9 PLUG, 14 23491-140002 64,000
10 O-RING, 1AP16.0 24311-000160 3,000
11 O-RING, 1AP16.0 24311-000160 3,000
12 O-RING, 1AG85.0 24321-000850 20,000
13 NUT, M14 26606-140002 50,000

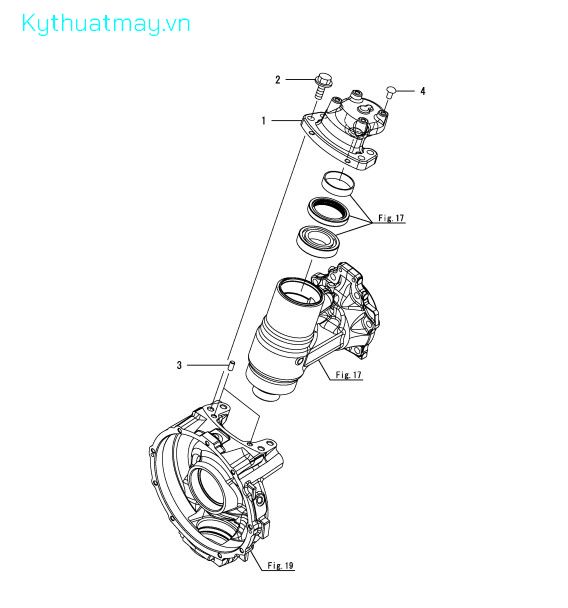

Hỗ trợ trụ quay lái

Hỗ trợ trụ quay lái
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 SUPPORT, KING PIN L 1A8060-11850 1,109,000
2 BOLT, M14X45 1A6680-85980 168,000
3 PIN, PARALLEL M10X18 22312-100180 34,000
4 CAP, BOLT M10 41810-000100 104,000
1 SUPPORT, KING PIN L 1A8060-11850 1,109,000
2 BOLT, M14X45 1A6680-85980 168,000
3 PIN, PARALLEL M10X18 22312-100180 34,000
4 CAP, BOLT M10 41810-000100 104,000

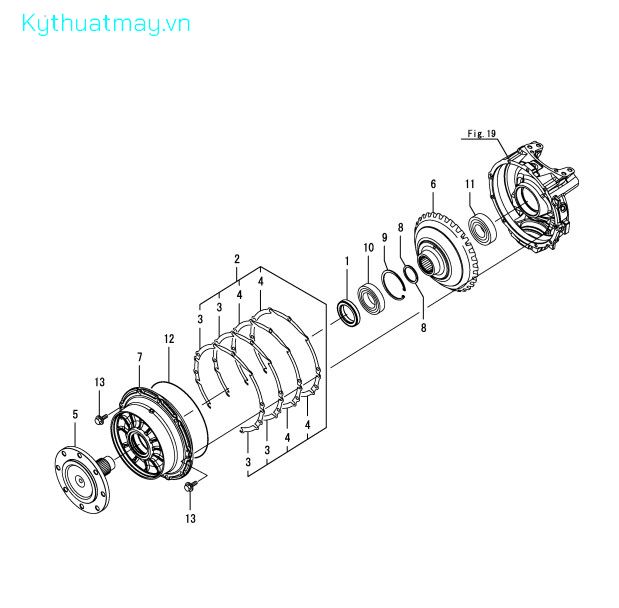

Trục chính trước

Trục chính trước
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 SEAL, QLNY 62 90 16 1A8296-13880 1,171,000
2 SHIM ASSY 1A8060-13910 841,000
3 SHIM,0.2BEARING CASE 1A8060-13920 281,000
4 SHIM,0.3BEARING CASE 1A8060-13930 119,000
5 SPINDLE, FRONT 1A8292-14110-1
6 GEAR, FRONT FINAL 1A8042-14120
7 CASE, FRONT BEARING 1A8060-14140
8 RING, HALF TIMBER 1A8292-14210
9 RING, 100 22252-001000 213,000
10 BEARING, BALL 6211 24101-062114 419,000
11 BEARING, BALL 6309 24101-063094 298,000
12 O-RING, 1AG270.0 24321-002700 148,000
13 BOLT, M10X 30 PLATED 26106-100302 12,000
1 SEAL, QLNY 62 90 16 1A8296-13880 1,171,000
2 SHIM ASSY 1A8060-13910 841,000
3 SHIM,0.2BEARING CASE 1A8060-13920 281,000
4 SHIM,0.3BEARING CASE 1A8060-13930 119,000
5 SPINDLE, FRONT 1A8292-14110-1
6 GEAR, FRONT FINAL 1A8042-14120
7 CASE, FRONT BEARING 1A8060-14140
8 RING, HALF TIMBER 1A8292-14210
9 RING, 100 22252-001000 213,000
10 BEARING, BALL 6211 24101-062114 419,000
11 BEARING, BALL 6309 24101-063094 298,000
12 O-RING, 1AG270.0 24321-002700 148,000
13 BOLT, M10X 30 PLATED 26106-100302 12,000

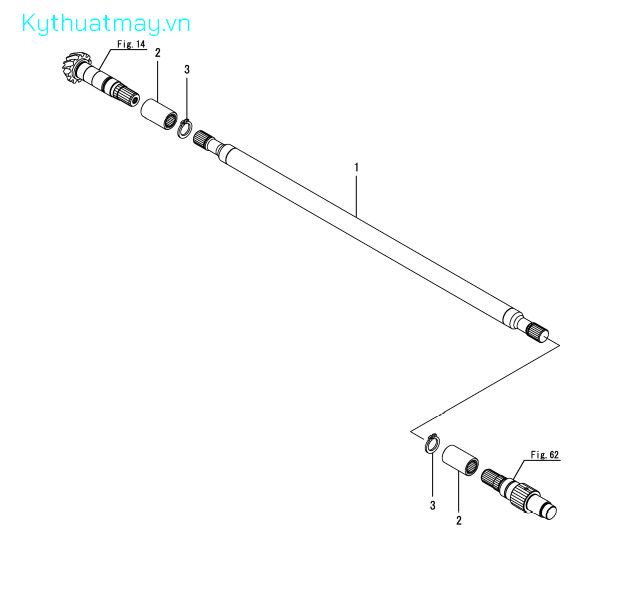

Trục truyền động

Trục truyền động
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 SHAFT, PROPELLER 1A8292-13300 2,180,000
2 COUPLING, 1A8296-13540 264,000
3 RING, 30 22242-000300 12,000
1 SHAFT, PROPELLER 1A8292-13300 2,180,000
2 COUPLING, 1A8296-13540 264,000
3 RING, 30 22242-000300 12,000

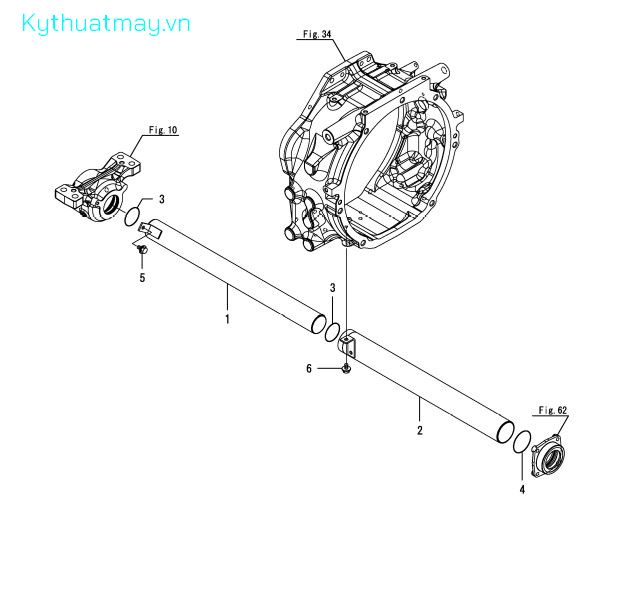

Vỏ trục

Vỏ trục
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 COVER ASSY, SHAFT F 1A8296-13400-2
2 COVER ASSY, SHAFT R 1A8296-13410-2
3 O-RING, 1AG50.0 24321-000500 19,000
4 O-RING, 1AG60.0 24321-000600 11,000
5 BOLT, M8X 16 PLATED 26106-080162 6,000
6 BOLT, M8X 16 PLATED 26106-080162 6,000
1 COVER ASSY, SHAFT F 1A8296-13400-2
2 COVER ASSY, SHAFT R 1A8296-13410-2
3 O-RING, 1AG50.0 24321-000500 19,000
4 O-RING, 1AG60.0 24321-000600 11,000
5 BOLT, M8X 16 PLATED 26106-080162 6,000
6 BOLT, M8X 16 PLATED 26106-080162 6,000

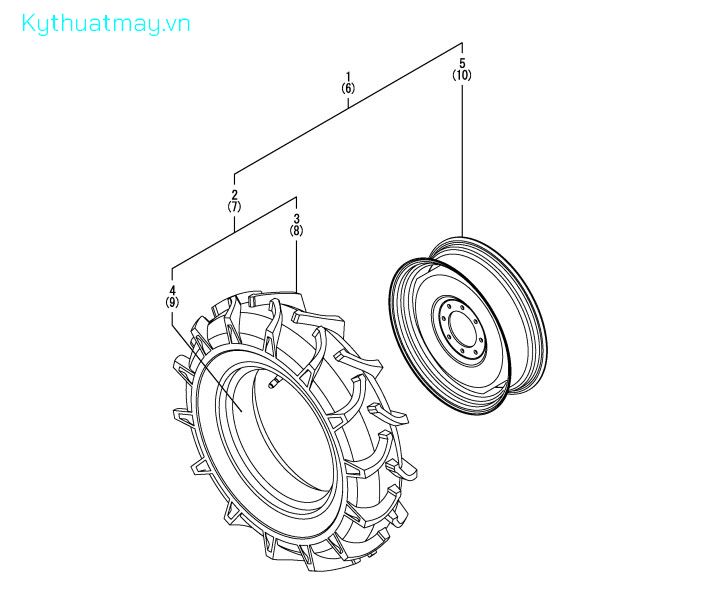

Lốp xe trước

Lốp xe trước
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 TIRE KIT, 9.5-24 L 1A8294-14500 23,302,000
2 TIRE, 9.5-24 R1 1A8294-14560 12,511,000
3 TIRE,9.5-24 1A8294-14570 10,804,000
4 TUBE,9.5-24 1A8294-14580
5 WHEEL ASSY, W7X24 1A8294-14650 4,164,000
6 TIRE KIT, 9.5-24 R 1A8294-14600 23,302,000
7 TIRE, 9.5-24 R1 1A8294-14560 12,511,000
8 TIRE,9.5-24 1A8294-14570 10,804,000
9 TUBE,9.5-24 1A8294-14580
10 WHEEL ASSY, W7X24 1A8294-14650 4,164,000
1 TIRE KIT, 9.5-24 L 1A8294-14500 23,302,000
2 TIRE, 9.5-24 R1 1A8294-14560 12,511,000
3 TIRE,9.5-24 1A8294-14570 10,804,000
4 TUBE,9.5-24 1A8294-14580
5 WHEEL ASSY, W7X24 1A8294-14650 4,164,000
6 TIRE KIT, 9.5-24 R 1A8294-14600 23,302,000
7 TIRE, 9.5-24 R1 1A8294-14560 12,511,000
8 TIRE,9.5-24 1A8294-14570 10,804,000
9 TUBE,9.5-24 1A8294-14580
10 WHEEL ASSY, W7X24 1A8294-14650 4,164,000

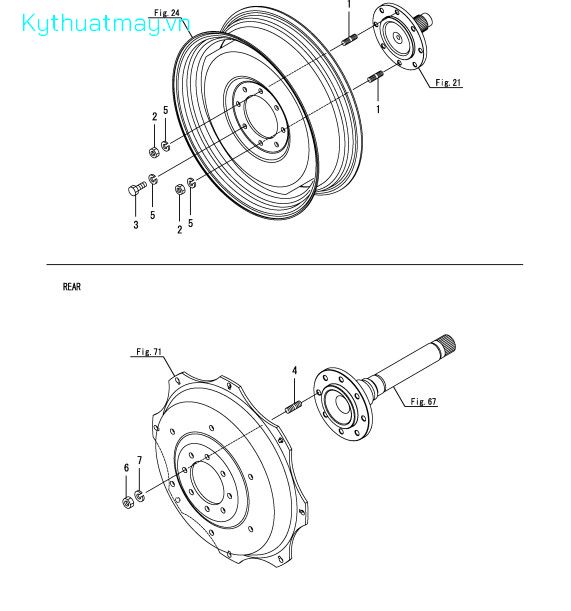

Bulông mayơ

Bulông mayơ
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 STUD, 16X30 194181-14160 199,000
2 NUT, M16 194181-14180 129,000
3 BOLT, M16X35 194181-14250 262,000
4 STUD, M18X35 198269-34140 348,000
5 WASHER, LOCK 16 194065-34170 70,000
6 NUT, M8 194180-34951 173,000
7 WASHER, LOCK 18 194180-34960
1 STUD, 16X30 194181-14160 199,000
2 NUT, M16 194181-14180 129,000
3 BOLT, M16X35 194181-14250 262,000
4 STUD, M18X35 198269-34140 348,000
5 WASHER, LOCK 16 194065-34170 70,000
6 NUT, M8 194180-34951 173,000
7 WASHER, LOCK 18 194180-34960

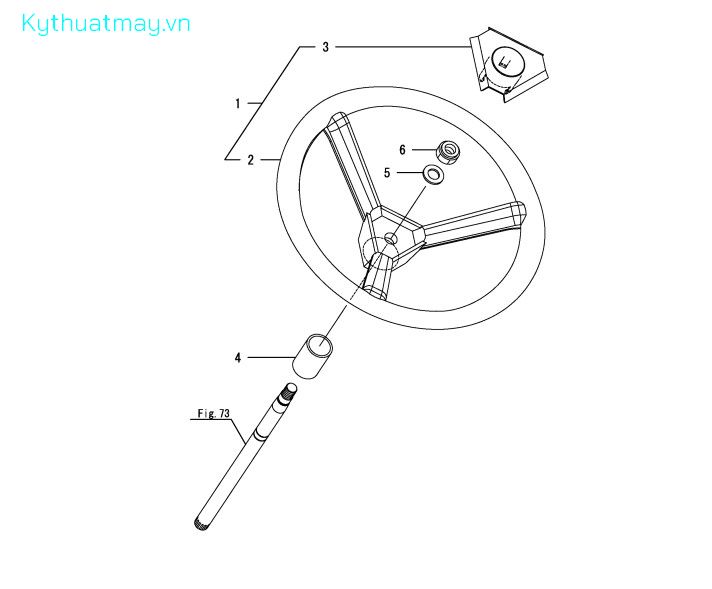

Bánh lái

Bánh lái
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 WHEEL ASSY, STEERING 1A8296-15700 1,265,000
2 WHEEL, STEERING 1A8296-15710
3 CAP, STEERING 1A8296-15720
4 BOOT, STEERING 1A8296-15750
5 WASHER, 16 22137-160000 6,000
6 NUT, M16 26356-160002 129,000
1 WHEEL ASSY, STEERING 1A8296-15700 1,265,000
2 WHEEL, STEERING 1A8296-15710
3 CAP, STEERING 1A8296-15720
4 BOOT, STEERING 1A8296-15750
5 WASHER, 16 22137-160000 6,000
6 NUT, M16 26356-160002 129,000

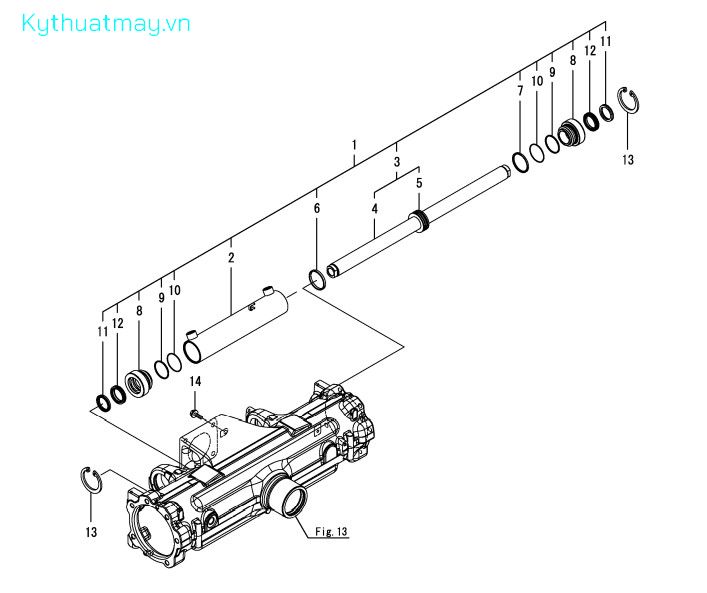

Xylanh P.S.T

Xylanh P.S.T
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 CYLINDER ASSY, PST 1A8292-17200 6,817,000
2 TUBE, CYLINDER 1A8042-17111
3 ROD ASSY, PST 1A8296-17320
4 ROD 1A8296-17330
5 PISTON 1A8296-17340
6 RING, WEAR 1A8296-17350 329,000
7 SEAL 1A8296-17360 329,000
8 CAP, CYLINDER 1A8296-17371 1,673,000
9 RING, BACK UP 1A8296-17380 315,000
10 O-RING 1A8296-17390 315,000
11 SCRAPER 1A8296-17410 315,000
12 SEAL 1A8296-17420 194,000
13 RING, 68 22252-000680
14 BOLT, M8X 25 PLATED 26106-080252 11,000
1 CYLINDER ASSY, PST 1A8292-17200 6,817,000
2 TUBE, CYLINDER 1A8042-17111
3 ROD ASSY, PST 1A8296-17320
4 ROD 1A8296-17330
5 PISTON 1A8296-17340
6 RING, WEAR 1A8296-17350 329,000
7 SEAL 1A8296-17360 329,000
8 CAP, CYLINDER 1A8296-17371 1,673,000
9 RING, BACK UP 1A8296-17380 315,000
10 O-RING 1A8296-17390 315,000
11 SCRAPER 1A8296-17410 315,000
12 SEAL 1A8296-17420 194,000
13 RING, 68 22252-000680
14 BOLT, M8X 25 PLATED 26106-080252 11,000

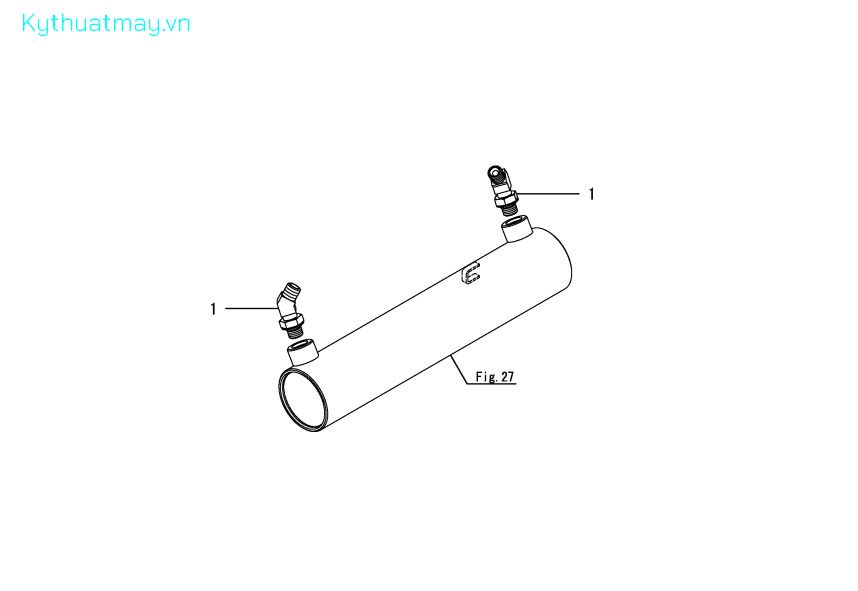

Mối nối P.S.T

Mối nối P.S.T
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 ELBOW, 45 198165-17711
1 ELBOW, 45 198165-17711

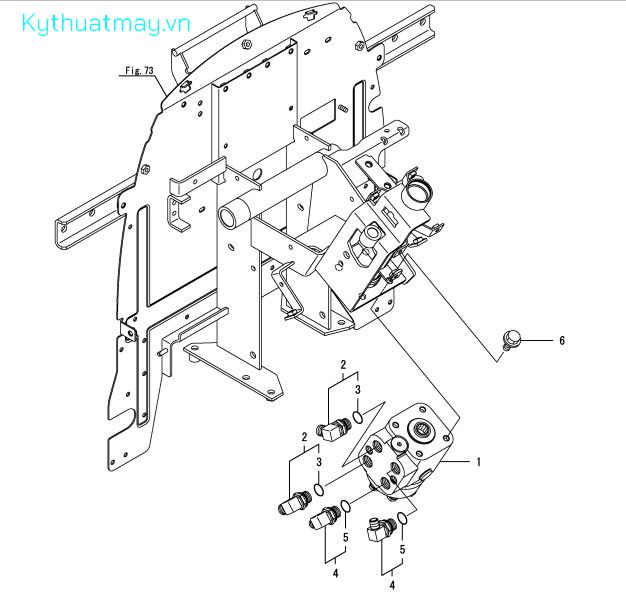

Van P.S.T

Van P.S.T
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 VALVE ASSY, PST 1A8296-17500-2
2 ELBOW ASSY, M18-G3/8 1A8296-17750 257,000
3 O-RING, 1BP16.0 24315-000160
4 ELBOW ASSY, M18-G1/4 1A8296-17770 257,000
5 O-RING, 1BP16.0 24315-000160
6 BOLT, M10X 20 PLATED 26106-100202 11,000
1 VALVE ASSY, PST 1A8296-17500-2
2 ELBOW ASSY, M18-G3/8 1A8296-17750 257,000
3 O-RING, 1BP16.0 24315-000160
4 ELBOW ASSY, M18-G1/4 1A8296-17770 257,000
5 O-RING, 1BP16.0 24315-000160
6 BOLT, M10X 20 PLATED 26106-100202 11,000

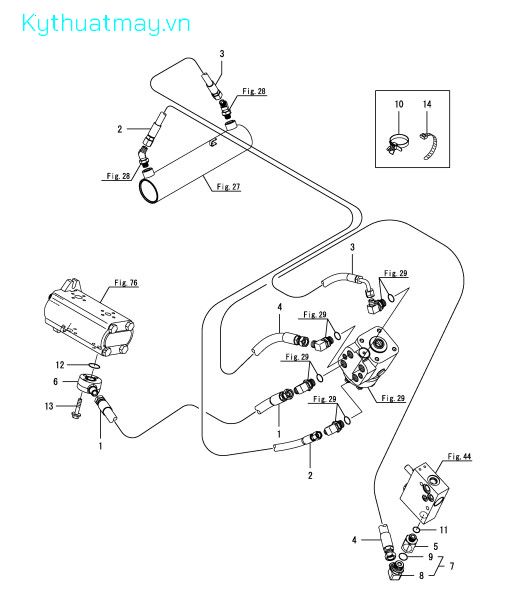

Ống P.S.T

Ống P.S.T
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 HOSE, 1A8296-17851 758,000
2 HOSE, 1A8296-17861 974,000
3 HOSE, 1A8296-17871 477,000
4 HOSE, 1A8296-17881
5 JOINT ASSY, STRAINER 1A8296-17900
6 FLANGE, PUMP 1A8296-49160 399,000
7 ELBOW ASSY 172157-76300 1,756,000
8 ELBOW 172157-76310 1,532,000
9 O-RING, 1BP18.0 24315-000180 11,000
10 CLIP, BAND 1E9265-84300 84,000
11 O-RING, 1BP14.0 24315-000140 3,000
12 O-RING, 1BP22.0 24315-000220 6,000
13 BOLT, M8X 40 PLATED 26106-080402 30,000
14 BAND, RF140 29622-140001 6,000
1 HOSE, 1A8296-17851 758,000
2 HOSE, 1A8296-17861 974,000
3 HOSE, 1A8296-17871 477,000
4 HOSE, 1A8296-17881
5 JOINT ASSY, STRAINER 1A8296-17900
6 FLANGE, PUMP 1A8296-49160 399,000
7 ELBOW ASSY 172157-76300 1,756,000
8 ELBOW 172157-76310 1,532,000
9 O-RING, 1BP18.0 24315-000180 11,000
10 CLIP, BAND 1E9265-84300 84,000
11 O-RING, 1BP14.0 24315-000140 3,000
12 O-RING, 1BP22.0 24315-000220 6,000
13 BOLT, M8X 40 PLATED 26106-080402 30,000
14 BAND, RF140 29622-140001 6,000
messenger
zalo
