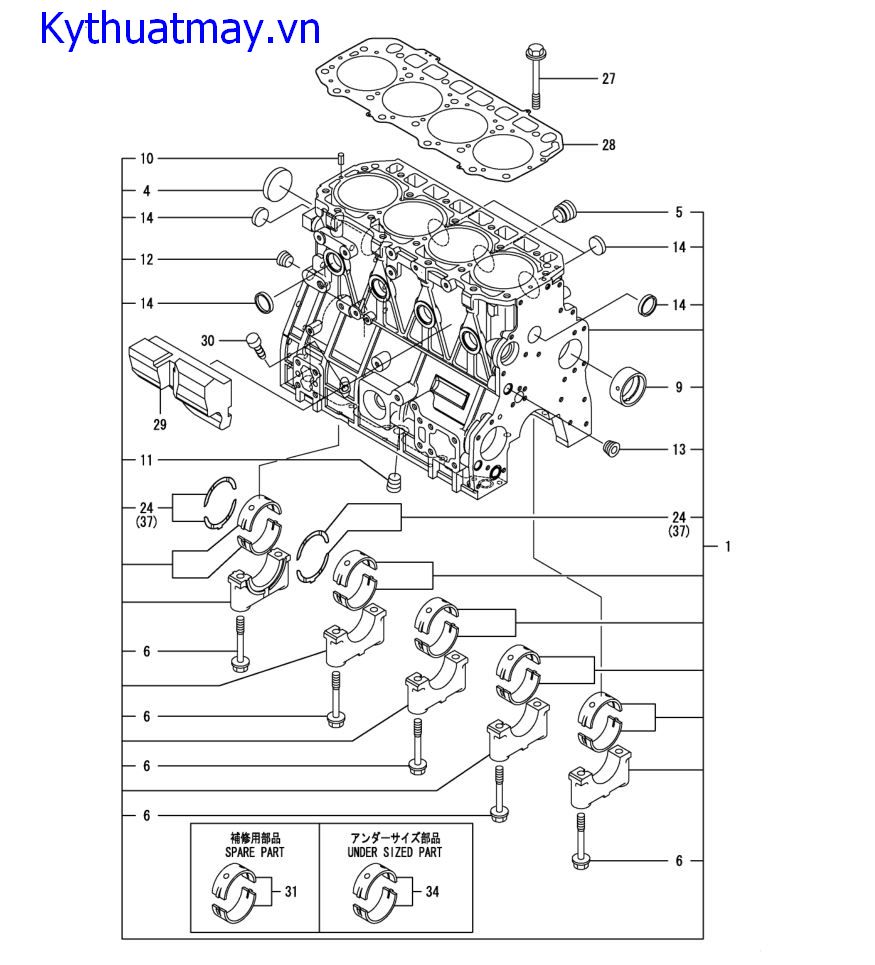

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | BLOCKASSY, CYLINDER | 729908-01560 | 103,198,000 | |
| 4 | PLUG, DISH TYPE 55 | 129900-01250 | 223,000 | |
| 5 | PLUG, NPTF1 | 171051-01921 | 216,000 | |
| 6 | BOLT, METAL CAP | 129900-02020 | 80,000 | |
| 9 | BUSH, CAMSHAFT | 129900-02410 | 247,000 | |
| 10 | PIN, SPRING 6.0X12 | 22351-060012 | ||
| 11 | PLUG, R03 | 23876-030000 | 109,000 | |
| 12 | PLUG, R03 | 23876-030000 | 109,000 | |
| 13 | PLUG, R03 | 23876-030000 | 109,000 | |
| 14 | PLUG 30 | 27241-300000 | 183,000 | |
| 24 | BEARINGASSY, THRUST | 129900-02931 | 344,000 | |
| 27 | BOLT, CYLINDER HEAD | 129900-01200 | 209,000 | |
| 28 | GASKET, HEAD | 129907-01331 | 2,392,000 | |
| 29 | SPACER | 129907-01190 | 1,047,000 | |
| 30 | PLUG | 124976-34850 | 114,000 | |
| 31 | BEARING, MAIN | 729900-02801 | ||
| 34 | BEARING ASSY, MAIN | 129900-02341 | 1,196,000 | |
| 37 | BEARING, THRUST 0.25 | 129900-02941 | 449,000 |

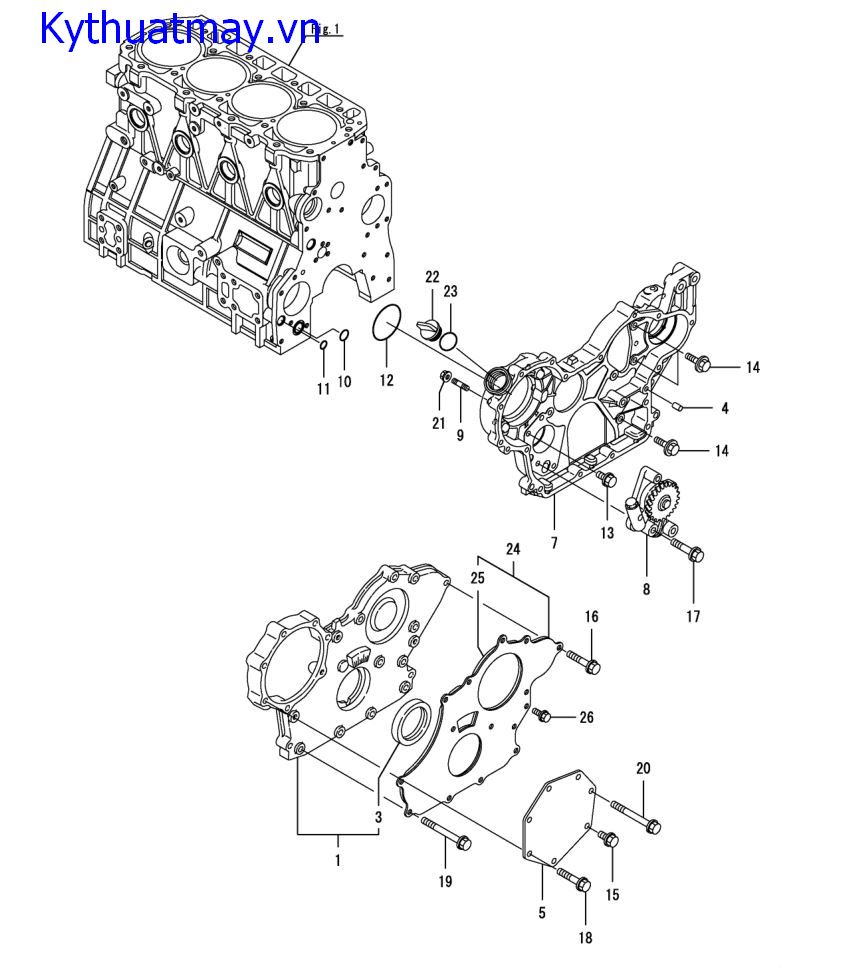

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | COVERASSY,GEAR CASE | 729906-01550 | 9,820,000 | |
| 3 | SEAL, OIL | 129916-01800 | 449,000 | |
| 4 | PIN, PARALLEL 8X16 | 129100-01580 | 44,000 | |
| 5 | COVER | 129951-01740 | 411,000 | |
| 7 | CASE, GEAR | 129908-01520 | 9,070,000 | |
| 8 | PUMPASSY, OIL | 129908-32060 | 3,429,000 | |
| 9 | STUD, M10X 30 | 26216-100302 | 50,000 | |
| 10 | O-RING, P20 | 129900-32030 | ||
| 11 | O-RING, P14 | 129900-32040 | ||
| 12 | O-RING, 1A3075 | 24351-030750 | ||
| 13 | BOLT, M8X 16 PLATED | 26106-080162 | 6,000 | |
| 14 | BOLT, M8X 20 PLATED | 26106-080202 | 6,000 | |
| 15 | BOLT, M8X 20 PLATED | 26106-080202 | 6,000 | |
| 16 | BOLT, M8X 40 PLATED | 26106-080402 | 30,000 | |
| 17 | BOLT, M8X 45 PLATED | 26106-080452 | 11,000 | |
| 18 | BOLT, M8X 45 PLATED | 26106-080452 | 11,000 | |
| 19 | BOLT, M8X 70 PLATED | 26106-080702 | 34,000 | |
| 20 | BOLT, M8X 75 PLATED | 26106-080752 | 14,000 | |
| 21 | NUT, M10 | 26306-100002 | 20,000 | |
| 22 | CAP, FILLER | 124160-01751 | 209,000 | |
| 23 | O-RING, 1AP32.0 | 24311-000320 | 6,000 | |
| 24 | COVERASSY,GEAR CASE | 129900-01850 | 5,678,000 | |
| 25 | SPONGE, GEAR CASE | 129900-01870 | 709,000 | |
| 26 | BOLT, M8X 16 PLATED | 26106-080162 | 6,000 |
| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|

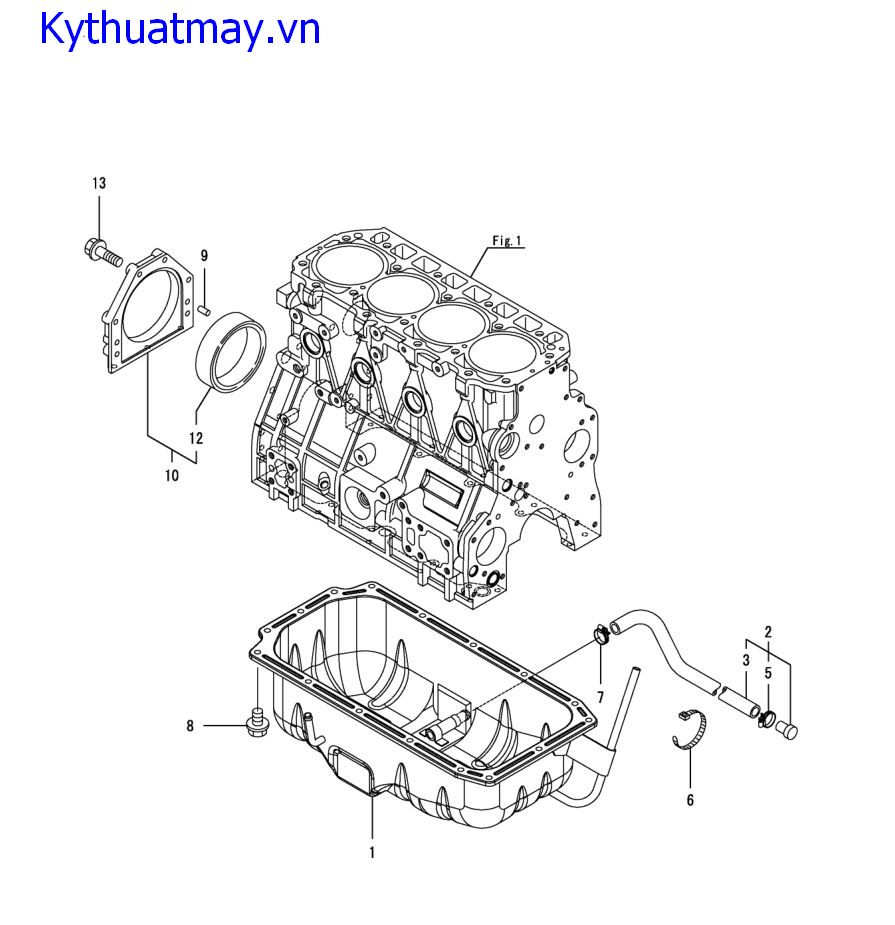

| 1 | OIL PANASSY | 129974-01860 | 17,176,000 | |
| 2 | HOSEASSY, OIL DRAIN | 129960-39910 | 859,000 | |
| 3 | HOSE, DRAIN | 129960-39920 | 634,000 | |
| 5 | CLAMP, HOSE 22 | 23001-022000 | 176,000 | |
| 6 | BAND, NYLON | 121750-59890 | 59,000 | |
| 7 | CLAMP, HOSE 22 | 23001-022000 | 176,000 | |
| 8 | BOLT, M8X 12 PLATED | 26106-080122 | 3,000 | |
| 9 | PIN, PARALLEL 8X16 | 129100-01580 | 44,000 | |
| 10 | CASEASSY, OIL SEAL | 129966-01650 | 3,499,000 | |
| 12 | SEAL, D115/95XT11 | 129916-01790 | 1,158,000 | |
| 13 | BOLT, M8X30 | 129486-01670 | 41,000 |

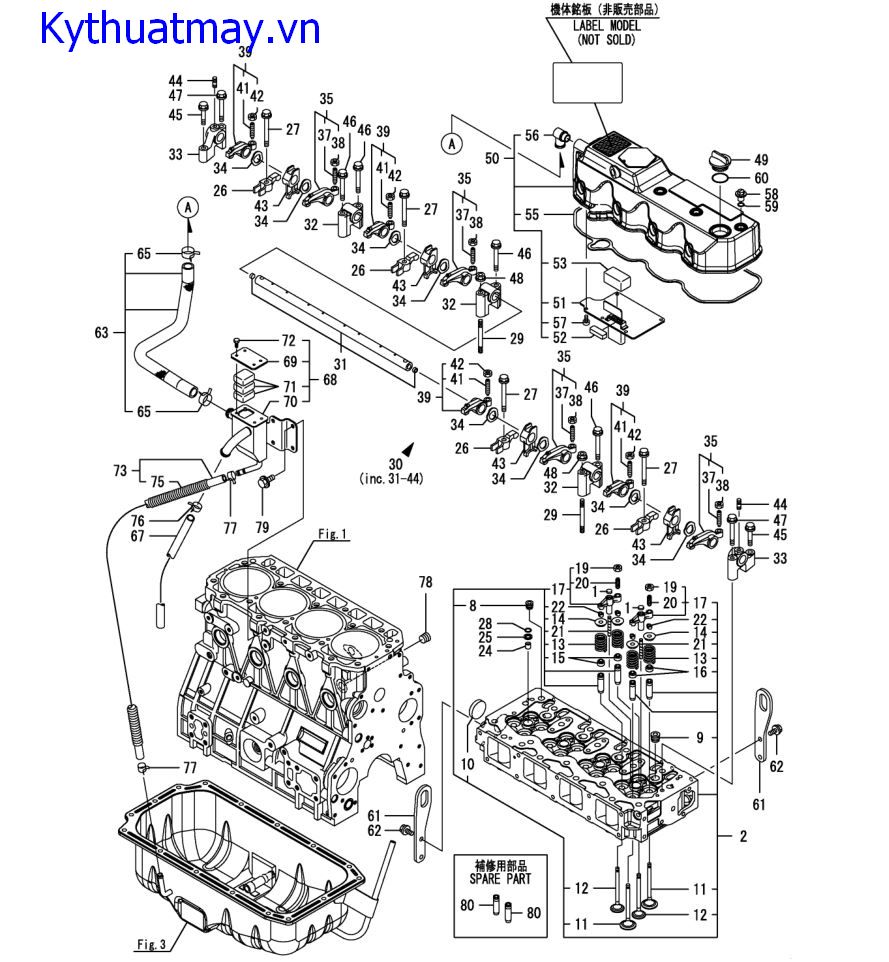

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | SEAT, VALVE BRIDGE | 123907-11550 | ||
| 2 | HEADASSY, CYLINDER | 129908-11700 | 41,065,000 | |
| 8 | PLUG, R02 | 23876-020000 | 64,000 | |
| 9 | PLUG, R03 | 23876-030000 | 109,000 | |
| 10 | PLUG, 40 | 27241-400000 | ||
| 11 | VALVE, SUCTION | 129907-11100 | 709,000 | |
| 12 | VALVE, EXHAUST | 129907-11110 | 673,000 | |
| 13 | SPRING, VALVE | 129907-11120 | 155,000 | |
| 14 | RETAINER, SPRING | 119620-11180 | ||
| 15 | SEAL, VALVE STEM | 119803-11340 | 148,000 | |
| 16 | SEAL, VALVE STEM | 124160-11340 | 134,000 | |
| 17 | BRIDGEASSY, VALVE | 129907-11510 | 1,083,000 | |
| 19 | NUT, M8 | 129150-11750 | ||
| 20 | ADJUSTER | 123907-11830 | 218,000 | |
| 21 | GUIDE, BRIDGE | 123907-11820 | 269,000 | |
| 22 | COTTER, 7 | 27310-070001 | 49,000 | |
| 24 | PROTECTOR, NOZZLE | 119802-11870 | 206,000 | |
| 25 | SEAT, NOZZLE | 119625-11880 | ||
| 26 | RETAINER, NOZZLE | 129907-11910 | ||
| 27 | BOLT, M8X75 | 129907-11950 | 75,000 | |
| 28 | O-RING, 1AP12.0 | 24311-000120 | 2,000 | |
| 29 | BOLT, STUD M8X80 | 119593-11301 | 95,000 | |
| 30 | SHAFTASSY, ROCKER | 129907-11341 | 13,427,000 | |
| 31 | SHAFT, ROCKERARM | 129907-11250 | 8,070,000 | |
| 32 | SUPPORT, ROCKERARM | 129907-11260 | 1,681,000 | |
| 33 | SUPPORT, ROCKERARM | 129907-11270 | 1,121,000 | |
| 34 | WASHER | 123907-11280 | 41,000 | |
| 35 | ARMASSY, ROCKER | 129907-11650 | 2,242,000 | |
| 37 | SCREW, VALVEADJUST | 129150-11230 | ||
| 38 | NUT, M8 | 129150-11750 | ||
| 39 | ARMASSY, ROCKER | 129907-11660 | 1,794,000 | |
| 41 | SCREW, VALVEADJUST | 129150-11230 | ||
| 42 | NUT, M8 | 129150-11750 | ||
| 43 | RETAINER, NOZZLE | 129907-11920 | 634,000 | |
| 44 | STUD, M8X 22 | 26226-080222 | 41,000 | |
| 45 | BOLT, M8X 40 PLATED | 26106-080402 | 30,000 | |
| 46 | BOLT, M8X 60 PLATED | 26106-080602 | 34,000 | |
| 47 | BOLT, M8X 60 PLATED | 26106-080602 | 34,000 | |
| 48 | NUT, M8 | 26306-080002 | 20,000 | |
| 49 | CAP, FILLER | 124160-01751 | 209,000 | |
| 50 | BONNETASSY, HEAD | 129933-11300 | 7,678,000 | |
| 51 | PLATE, BAFFLE | 129907-03011 | 2,092,000 | |
| 52 | BAFFLE, BREATHER | 129907-03061 | 209,000 | |
| 53 | BAFFLE, BREATHER | 129907-03070 | 209,000 | |
| 55 | GASKET, BONNET | 129933-11310 | 673,000 | |
| 56 | ELBOW, BREATHER | 119100-11330 | 231,000 | |
| 57 | SCREW, 5X10 | 22857-500100 | 25,000 | |
| 58 | KNOB | 124160-11360 | 114,000 | |
| 59 | O-RING, 1AP12.0 | 24311-000120 | 2,000 | |
| 60 | O-RING, 1AP32.0 | 24311-000320 | 6,000 | |
| 61 | LIFTER, ENGINE | 129907-07900 | 1,345,000 | |
| 62 | BOLT, M8X 16 PLATED | 26106-080162 | 6,000 | |
| 63 | HOSEASSY, BREATHER | 129933-03010 | 1,158,000 | |
| 65 | CLAMP, HOSE 21.5 | 129410-03990 | 55,000 | |
| 67 | HOSE, ID16X2T | 129150-03090 | 154,000 | |
| 68 | SEPARATOR ASSY, MIST | 129933-03240 | 6,856,000 | |
| 69 | COVER, SEPARATOR | 129972-03220 | 934,000 | |
| 70 | SEPARATOR, MIST | 129933-03230 | 5,214,000 | |
| 71 | FILTER | 123901-03240 | 281,000 | |
| 72 | BOLT, M5X 10 PLATED | 26116-050102 | 25,000 | |
| 73 | HOSEASSY, RETURN | 129928-03300 | 523,000 | |
| 75 | TUBE, CORRUGATED 19 | 129928-59130 | 125,000 | |
| 76 | CLAMP, HOSE 19.8 | 129960-03990 | 59,000 | |
| 77 | CLAMP, 22 | 23000-022000 | 143,000 | |
| 78 | PLUG, R03 | 23876-030000 | 109,000 | |
| 79 | BOLT, M8X 14 PLATED | 26106-080142 | 25,000 | |
| 80 | GUIDE, VALVE | 129907-11800 | 145,000 |
| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|

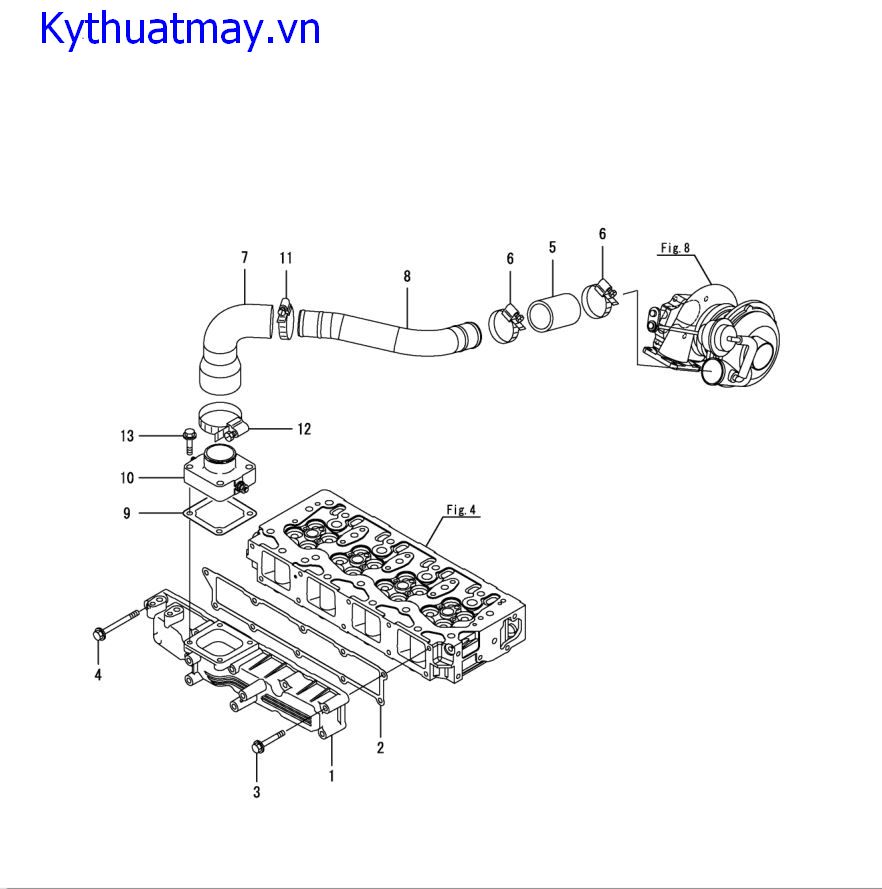

| 1 | MANIFOLD,AIR INTAKE | 129907-12100 | 6,392,000 | |
| 2 | GASKET, MANIFOLD | 129907-12110 | 359,000 | |
| 3 | BOLT, M8X 55 PLATED | 26106-080552 | 34,000 | |
| 4 | BOLT, M8X 85 PLATED | 26106-080852 | 34,000 | |
| 5 | JOINT, RUBBER | 123951-18220 | ||
| 6 | CLAMP, 54 | 23000-054000 | 189,000 | |
| 7 | JOINT, RUBBER | 129974-18210 | 1,121,000 | |
| 8 | DUCT, AIR | 129974-18230 | 3,321,000 | |
| 9 | GASKET,AIR HEATER | 121850-77021 | 198,000 | |
| 10 | HEATER,AIR 12V | 129915-77051 | 1,831,000 | |
| 11 | CLAMP, 54 | 23000-054000 | 189,000 | |
| 12 | CLAMP, 70 | 23000-070000 | 73,000 | |
| 13 | BOLT, M8X 35 PLATED | 26106-080352 | 9,000 |

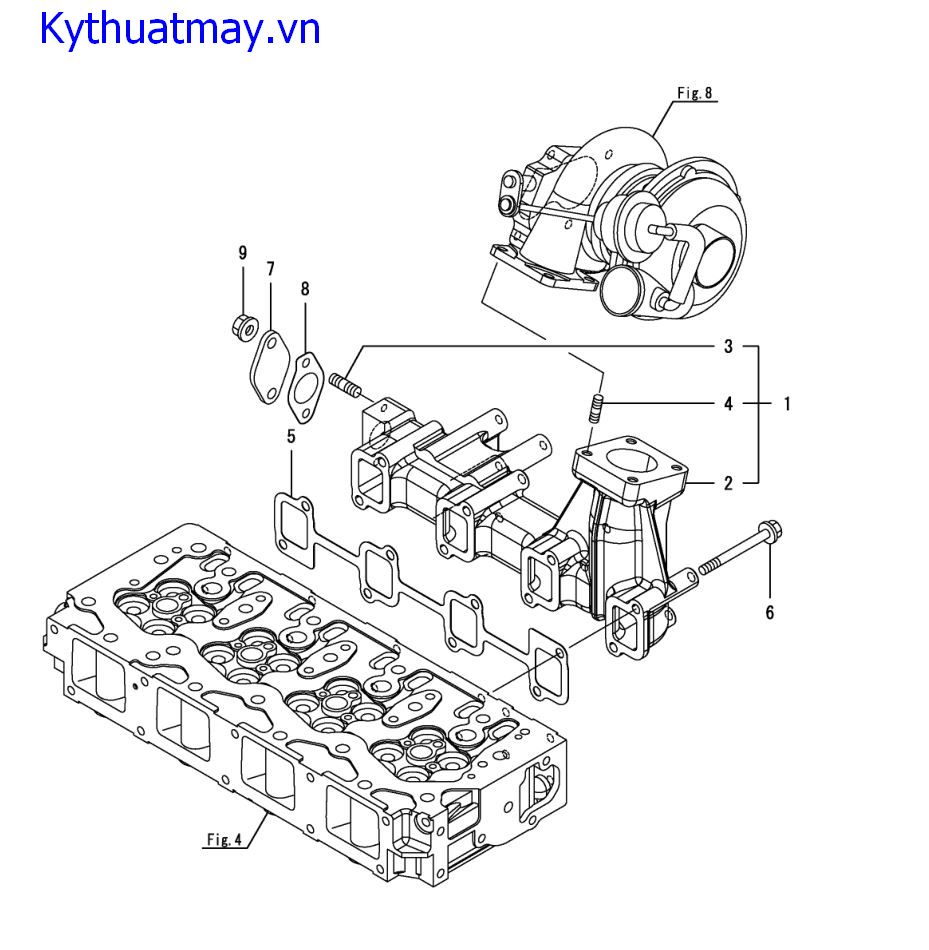

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | MANIFOLDASSY, EXH. | 129974-13170 | 9,784,000 | |
| 2 | MANIFOLD, EXHAUST | 129974-13120 | 9,784,000 | |
| 3 | BOLT, STUD M8X20 | 129418-18320 | 75,000 | |
| 4 | BOLT, STUD M8X20 | 129418-18320 | 75,000 | |
| 5 | GASKET, EXH.MANIFOLD | 129900-13251 | 206,000 | |
| 6 | BOLT, M8X80 10.9T | 129E00-13640 | 164,000 | |
| 7 | COVER, EGR | 129558-13420 | 934,000 | |
| 8 | GASKET | 129927-13810 | 98,000 | |
| 9 | NUT, M8 | 26306-080002 | 20,000 |

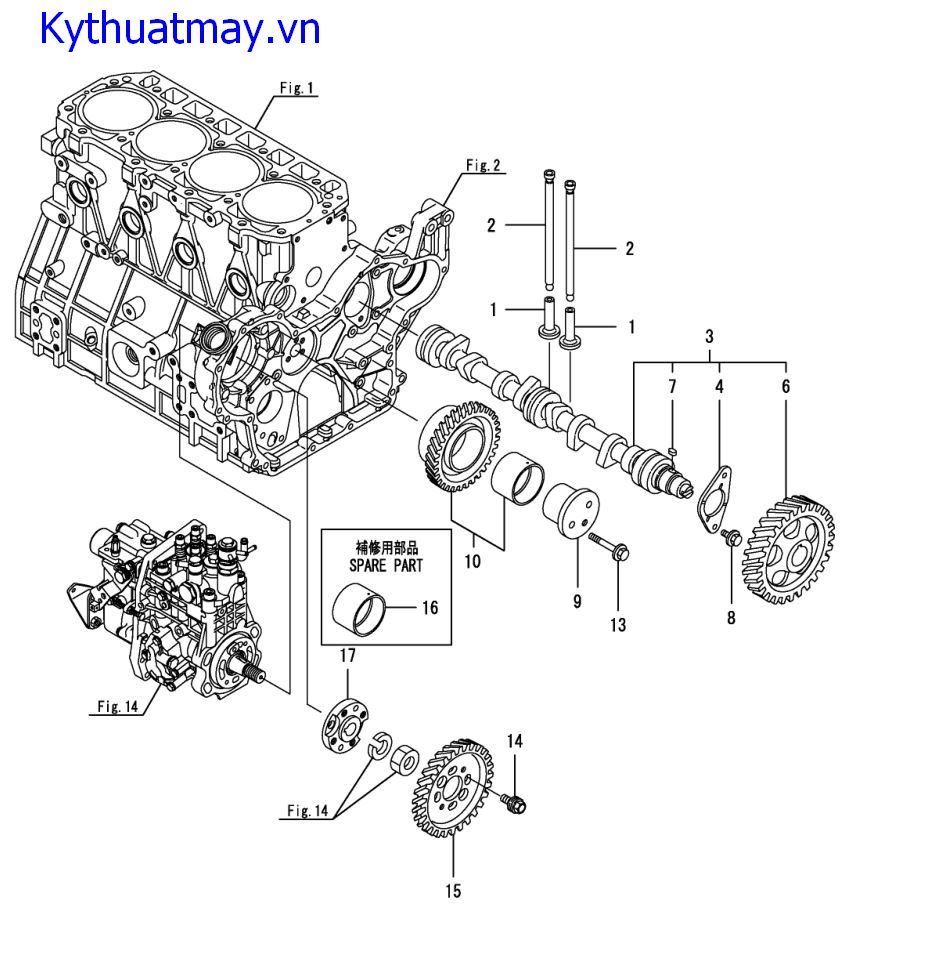

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | TAPPET | 129150-14200 | 310,000 | |
| 2 | PUSH-ROD | 129907-14400 | 218,000 | |
| 3 | CAMSHAFTASSY | 129908-14581 | 7,820,000 | |
| 4 | BEARING, THRUST | 129150-02450 | 411,000 | |
| 6 | GEAR, CAMSHAFT | 129900-14100 | 6,070,000 | |
| 7 | KEY, 7X 14 | 22512-070140 | 44,000 | |
| 8 | BOLT, M8X 14 PLATED | 26106-080142 | 25,000 | |
| 9 | SHAFT, IDLE GEAR | 123900-25060 | 896,000 | |
| 10 | GEARASSY, IDLE | 129900-25100 | 3,357,000 | |
| 13 | BOLT, M8X 55 PLATED | 26106-080552 | 34,000 | |
| 14 | BOLT | 129953-25300 | 109,000 | |
| 15 | GEAR, PUMP | 129907-25900 | 3,784,000 | |
| 16 | BUSH, IDLE GEAR | 129150-25920 | 187,000 | |
| 17 | FLANGE | 158563-51150 | 1,607,000 |
| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|

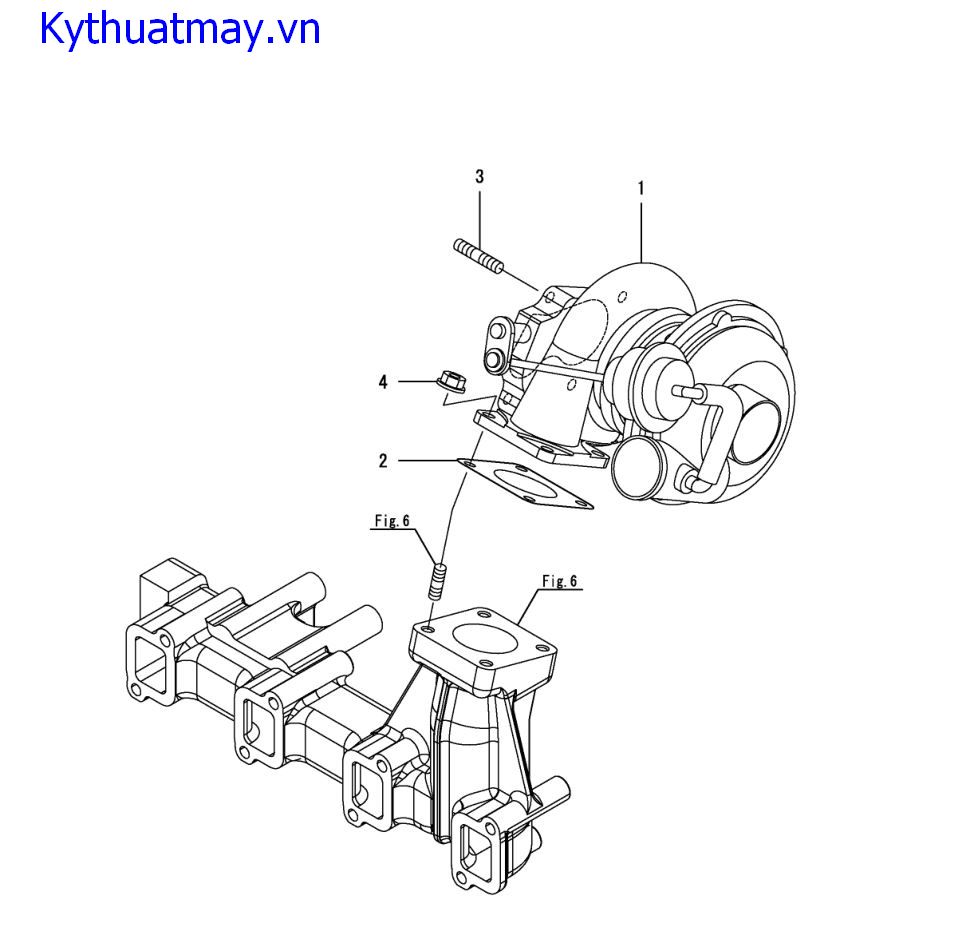

| 1 | TURBOCHARGER, RHF5 | 129908-18010 | ||
| 2 | GASKET | 129472-18090 | 318,000 | |
| 3 | BOLT, STUD M8X22 | 119131-18320 | 70,000 | |
| 4 | NUT, M8 | 26306-080002 | 20,000 |
| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|

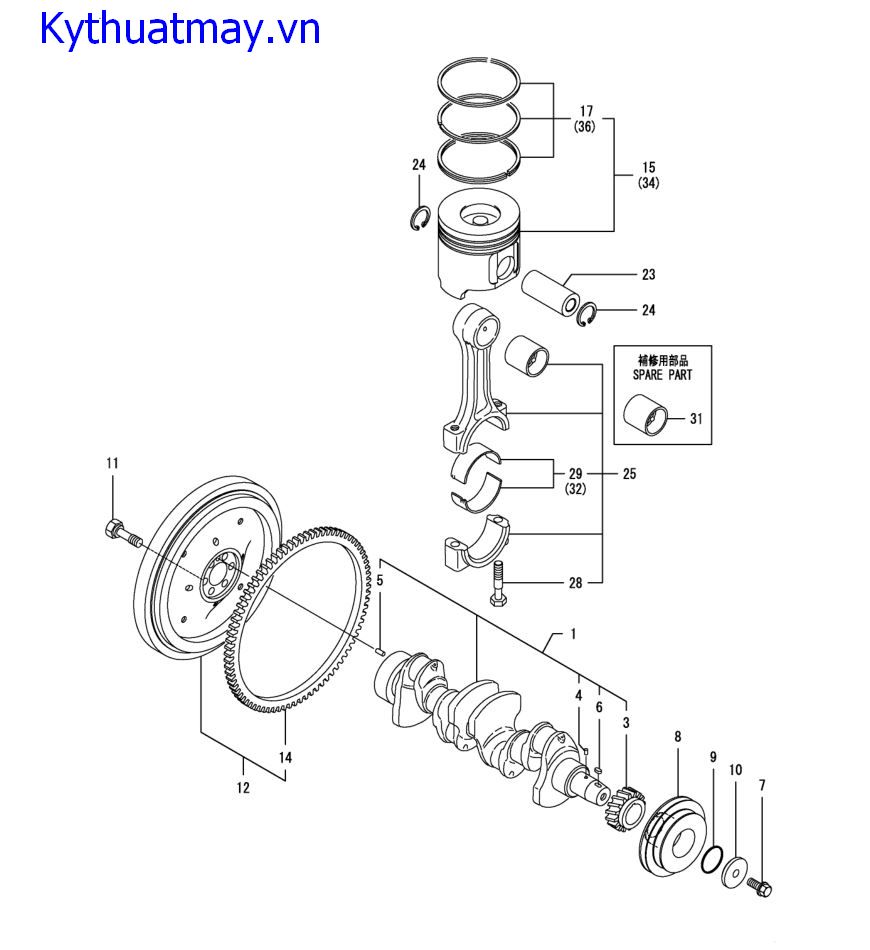

| 1 | CRANKSHAFTASSY | 129908-21000 | 33,709,000 | |
| 3 | GEAR, CRANKSHAFT | 129900-21200 | 3,101,000 | |
| 4 | PIN | 121850-21290 | 44,000 | |
| 5 | PIN, PARALLEL 10X22 | 121850-21920 | 50,000 | |
| 6 | KEY, 7X 14 | 22512-070140 | 44,000 | |
| 7 | BOLT | 129916-21610 | 218,000 | |
| 8 | V-PULLEY, CRANKSHAFT | 129974-21680 | 7,749,000 | |
| 9 | GASKET, WASHER | 129960-21930 | 70,000 | |
| 10 | WASHER, V-PULLEY | 129960-21940 | 355,000 | |
| 11 | BOLT, FLYWHEEL | 121850-21130 | 255,000 | |
| 12 | FLYWHEELASSY | 129960-21590 | 19,890,000 | |
| 14 | GEAR, RING | 129900-21600 | 1,868,000 | |
| 15 | PISTON ASSY | 129928-22080 | 5,142,000 | |
| 17 | RING SET, PISTON | 129927-22050 | 1,532,000 | |
| 23 | PIN, PISTON | 120130-22301 | 1,271,000 | |
| 24 | RING, 30 | 22252-000300 | 34,000 | |
| 25 | RODASSY, CONNECTING | 129900-23001 | 7,713,000 | |
| 28 | BOLT, CONNECTING ROD | 129900-23200 | 75,000 | |
| 29 | BEARING, CRANK PIN | 129900-23601 | ||
| 31 | BEARING, PISTON PIN | 129900-23911 | 359,000 | |
| 32 | BEARING ASSY, 0.25US | 129900-23611 | 934,000 | |
| 34 | PISTON ASSY, 0.25 OS | 729928-22900 | 5,392,000 | |
| 36 | RING SET, 0.25 OS | 729927-22950 | 1,681,000 |
| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|

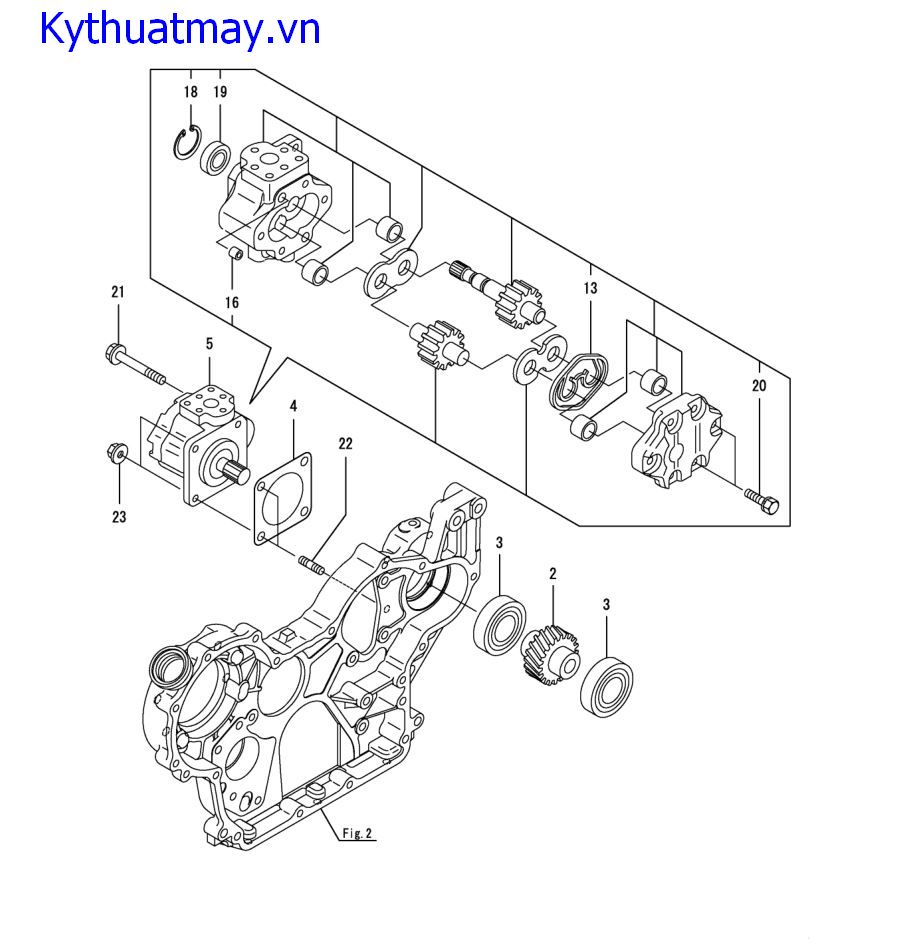

| 2 | GEAR, PUMP | 129900-26210 | 3,250,000 | |
| 3 | BEARING, BALL 6206C3 | 129900-26250 | 224,000 | |
| 4 | GASKET, HO-P | 129C26-01890 | 55,000 | |
| 5 | PUMP, HYDRAULIC | 129974-26010 | 11,569,000 | |
| 13 | RING | 178070-10401 | 1,233,000 | |
| 16 | PIN, 11X7 | 194521-41570 | 164,000 | |
| 18 | RING, 32 | 22252-000320 | 12,000 | |
| 19 | SEAL, OIL TC153207 | 24421-153207 | 64,000 | |
| 20 | BOLT, M8X 35 | 26016-080352 | 30,000 | |
| 21 | BOLT, M8X 75 PLATED | 26106-080752 | 14,000 | |
| 22 | STUD, M8X 22 | 26216-080222 | ||
| 23 | NUT, M8 | 26306-080002 | 20,000 |

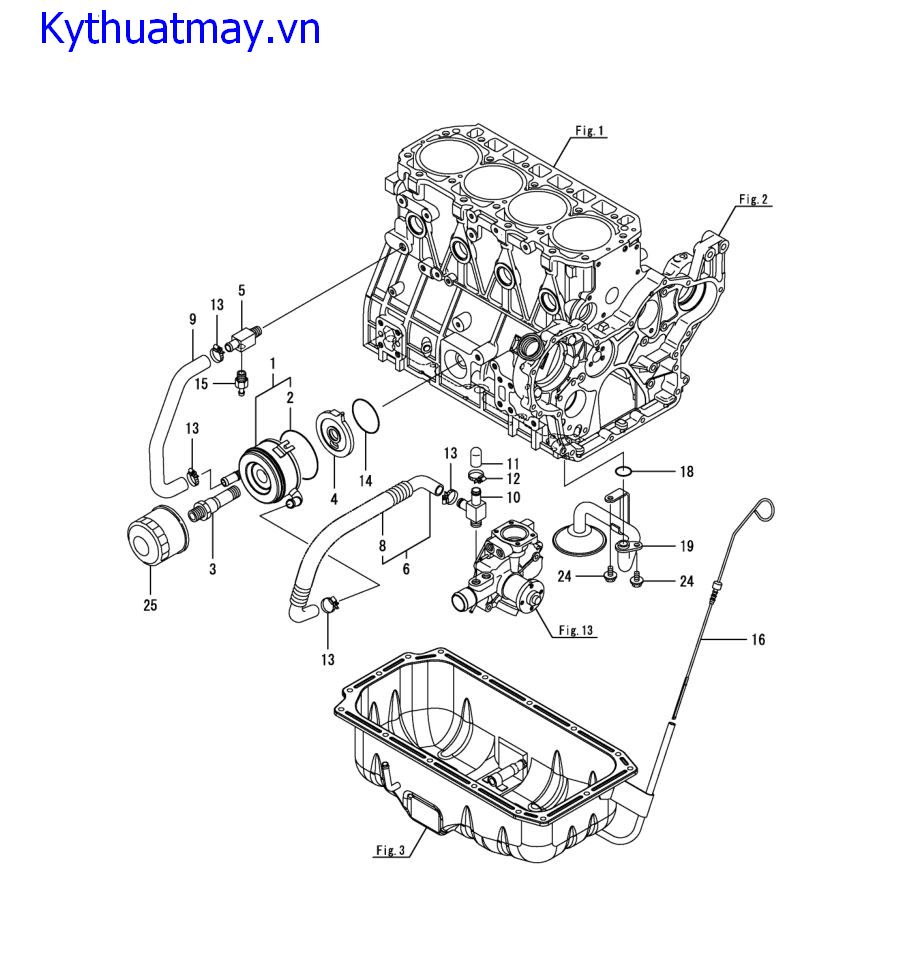

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | COOLERASSY, OIL | 129908-33010 | 16,283,000 | |
| 2 | O-RING | 123912-33050 | 173,000 | |
| 3 | BOLT, COOLER | 123912-33100 | 1,419,000 | |
| 4 | BRACKET, OIL COOLER | 129908-33101 | 1,121,000 | |
| 5 | JOINT | 129006-44480 | 1,009,000 | |
| 6 | HOSEASSY, WATER | 123946-49040 | 673,000 | |
| 8 | TUBE, CORRUGATED | 123946-49660 | 281,000 | |
| 9 | HOSE, WATER | 129908-49060 | 673,000 | |
| 10 | JOINT, 3-WAY | 129974-49300 | 2,054,000 | |
| 11 | CAP, JOINT | 129055-49320 | 109,000 | |
| 12 | CLAMP, 22 | 23000-022000 | 143,000 | |
| 13 | CLAMP, 25 | 23000-025000 | 28,000 | |
| 14 | O-RING, 1AG60.0 | 24321-000600 | 11,000 | |
| 15 | JOINT, PT1/4 | 121550-49111 | 362,000 | |
| 16 | DIPSTICK | 129953-34800 | 355,000 | |
| 18 | O-RING, P20 | 129900-32030 | ||
| 19 | PIPEASSY, OIL INLET | 129900-35000 | 1,047,000 | |
| 24 | BOLT, M8X 12 PLATED | 26106-080122 | 3,000 | |
| 25 | FILTER,LO | 129150-35170 | 216,000 |

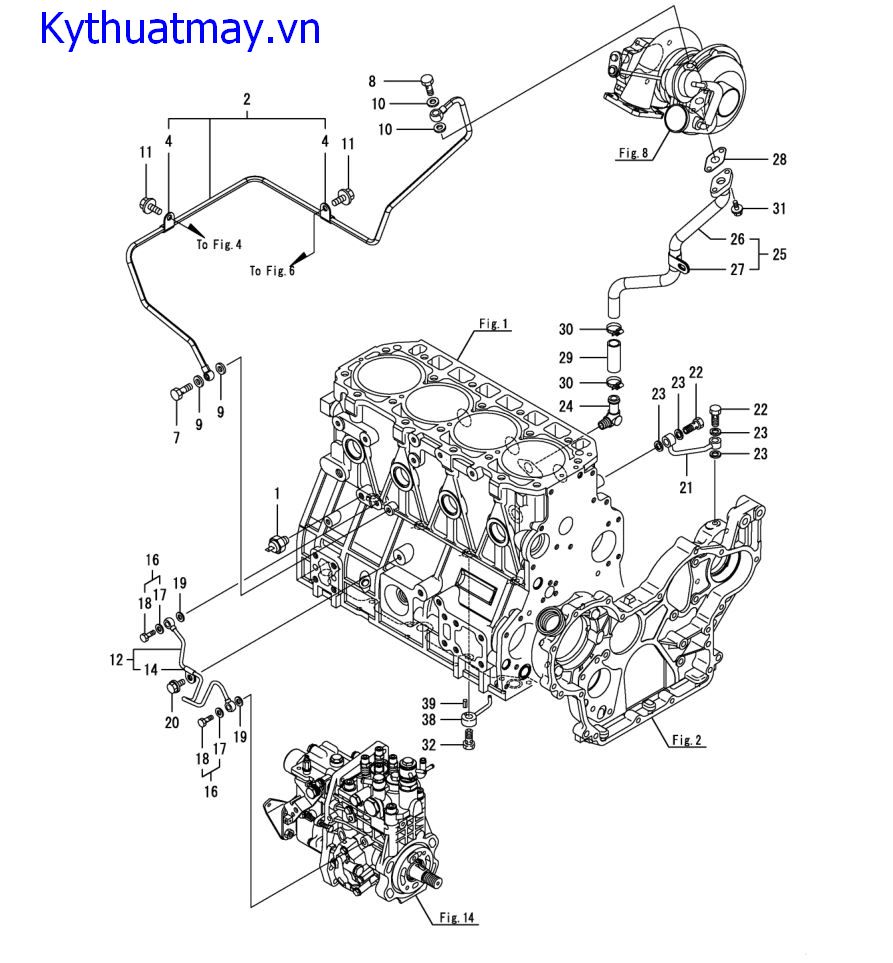

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | SWITCH, HYDRAULIC | 119761-39450 | 240,000 | |
| 2 | PIPEASSY, LUB.OIL | 129974-39080 | 3,027,000 | |
| 4 | RETAINER | 124223-39900 | 75,000 | |
| 7 | BOLT, PIPE JOINT | 105010-39140 | 134,000 | |
| 8 | BOLT, JOINT M10X1.5 | 121252-39150 | 154,000 | |
| 9 | WASHER, SEAL 8 | 22190-080002 | 44,000 | |
| 10 | GASKET, 10X1.0 | 23414-100000 | 9,000 | |
| 11 | BOLT, M8X 12 PLATED | 26106-080122 | 3,000 | |
| 12 | PIPEASSY, OIL | 129907-39061 | 859,000 | |
| 14 | RETAINER, PIPE | 123907-39500 | 411,000 | |
| 16 | BOLTASSY, JOINT M8 | 129005-59830 | 89,000 | |
| 17 | WASHER, SEAL 8 | 22190-080002 | 44,000 | |
| 18 | BOLT, JOINT 3 | 23857-030000 | 50,000 | |
| 19 | WASHER, SEAL 8 | 22190-080002 | 44,000 | |
| 20 | BOLT, M8X 12 PLATED | 26106-080122 | 3,000 | |
| 21 | PIPE, OIL | 129930-39050 | 281,000 | |
| 22 | BOLT, PIPE JOINT | 105010-39140 | 134,000 | |
| 23 | WASHER, SEAL 8 | 22190-080002 | 44,000 | |
| 24 | ELBOW, PT3/8 | 124070-13300 | 486,000 | |
| 25 | PIPEASSY,LO RETURN | 129974-39650 | 2,952,000 | |
| 26 | PIPE, OIL | 129974-39610 | ||
| 27 | RETAINER | 123910-39850 | 198,000 | |
| 28 | GASKET | 129908-39690 | 168,000 | |
| 29 | HOSE, LO RETURN | 123901-39820 | 223,000 | |
| 30 | CLAMP, 25 | 23000-025000 | 28,000 | |
| 31 | BOLT, M6X 16 PLATED | 26106-060162 | 25,000 | |
| 32 | VALVEASSY, CHECK | 129908-39410 | 560,000 | |
| 38 | NOZZLE, COOLING | 119000-39650 | 411,000 | |
| 39 | PIN, SPRING 3.0X10 | 22351-030010 | 25,000 |

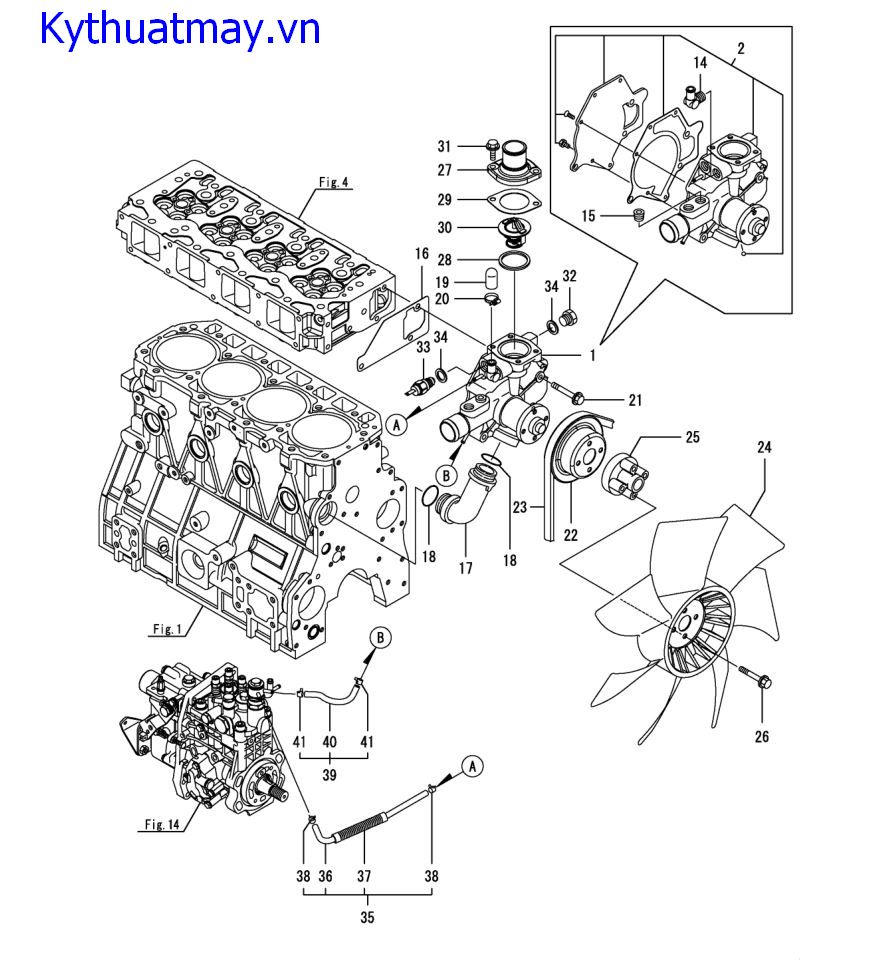

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | PUMPASSY, CW HIGH | 129974-42002 | 14,498,000 | |
| 2 | PUMPASSY, CW HIGH | 129907-42030 | 12,962,000 | |
| 14 | ELBOW, PT3/8 | 129466-49300 | 411,000 | |
| 15 | PLUG, R3/8 | 129916-49740 | 189,000 | |
| 16 | GASKET, WATER PUMP | 129900-42061 | 80,000 | |
| 17 | PIPE, WATER | 129900-42070 | 1,419,000 | |
| 18 | O-RING, P36 | 129900-42140 | 159,000 | |
| 19 | CAP, JOINT | 129055-49320 | 109,000 | |
| 20 | CLAMP, 22 | 23000-022000 | 143,000 | |
| 21 | BOLT, M8X 55 PLATED | 26106-080552 | 34,000 | |
| 22 | V-PULLEY, C.W.PUMP | 129907-42450 | 523,000 | |
| 23 | V-BELT, A47.0 | 129972-42290 | 217,000 | |
| 24 | FAN, COOLING D430X7 | 129907-44740 | 1,643,000 | |
| 25 | SPACER, FAN | 119141-44760 | 1,494,000 | |
| 26 | BOLT, M8X 55 PLATED | 26106-080552 | 34,000 | |
| 27 | COVER, THERMOSTAT | 129981-49531 | 2,354,000 | |
| 28 | GASKET, THERMOSTAT | 121850-49550 | ||
| 29 | GASKET | 129900-49560 | 139,000 | |
| 30 | THERMOSTAT, 71C | 121850-49811 | 822,000 | |
| 31 | BOLT, M8X 25 PLATED | 26106-080252 | 11,000 | |
| 32 | PLUG, M16 | 121450-42450 | 134,000 | |
| 33 | SWITCH, THERMO 110 | 119761-44901 | 1,158,000 | |
| 34 | GASKET, 16 | 124465-44950 | 50,000 | |
| 35 | HOSEASSY, WATER | 129907-49610 | 1,643,000 | |
| 36 | HOSE, WATER | 129907-49710 | 673,000 | |
| 37 | TUBE, CORRUGATED | 129907-49750 | 231,000 | |
| 38 | CLAMP, HOSE 9 | 124722-59050 | 50,000 | |
| 39 | HOSEASSY, WATER | 129962-49620 | 673,000 | |
| 40 | HOSEASSY, WATER | 129962-49720 | 673,000 | |
| 41 | CLAMP, HOSE 9 | 124722-59050 | 50,000 |

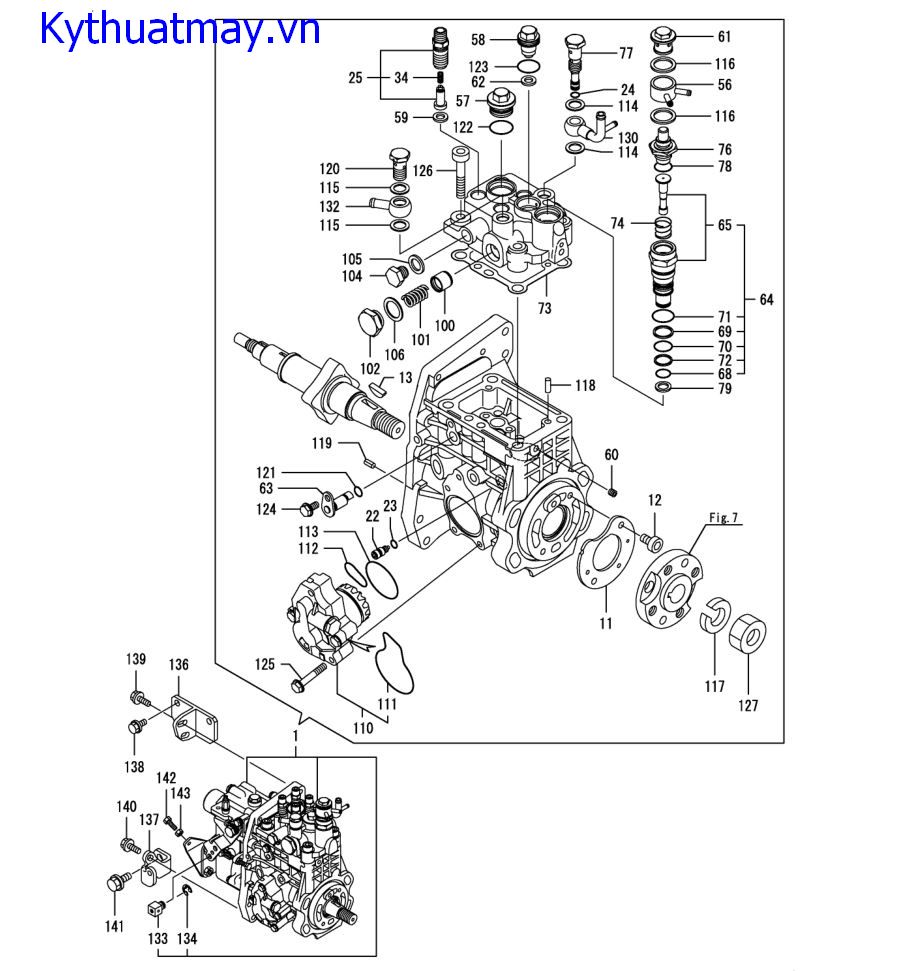

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | FIEASSY | 729974-51400 | 49,278,000 | |
| 11 | COVER | 129928-51900 | 55,000 | |
| 12 | BOLT, SOCKET M6X10 | 129008-51920 | 25,000 | |
| 13 | FEATHER KEY, 5X19 | 144626-51090 | 41,000 | |
| 22 | STOPPER, TAPPET | 158600-51270 | 89,000 | |
| 23 | O-RING, 4D S6 | 158563-51281 | 27,000 | |
| 24 | O-RING, 4D S6 | 158563-51281 | 27,000 | |
| 25 | VALVEASSY, DELIVERY | 129509-51390 | ||
| 34 | SPRING, DELIVERY | 158563-51330 | 89,000 | |
| 56 | JOINT, COOLING WATER | 158553-51551 | 276,000 | |
| 57 | PLUG, M22 | 158601-51550 | 228,000 | |
| 58 | PLUG, M16 | 129907-51560 | 411,000 | |
| 59 | GASKET, PLUG | 158552-51571 | ||
| 60 | PLUG, RACK | 158557-51570 | 59,000 | |
| 61 | PLUG | 158601-51570 | 180,000 | |
| 62 | GASKET, PLUG | 129906-51580 | 89,000 | |
| 63 | LIFTER, LINK | 158552-51580 | 231,000 | |
| 64 | TIMERASSY | 119802-51590 | 2,092,000 | |
| 65 | TIMERASSY | 119802-51600 | 2,092,000 | |
| 68 | O-RING | 158553-51670 | ||
| 69 | RING, BACKUP | 119802-51680 | 59,000 | |
| 70 | O-RING | 119802-51690 | ||
| 71 | O-RING, 4D19020 | 24356-190200 | ||
| 72 | RING, BACK UP T2P15 | 24372-000150 | 104,000 | |
| 73 | GASKET | 158560-51600 | 411,000 | |
| 74 | SPRING, TIMER | 158553-51630 | ||
| 76 | THERMOELEMENT | 158553-51640 | 1,047,000 | |
| 77 | JOINT, OVER FLOW | 158601-51650 | 303,000 | |
| 78 | O-RING, P14 | 158553-51660 | ||
| 79 | GASKET, TIMER | 158553-51680 | 50,000 | |
| 100 | PISTON,ACCUMLATOR | 158601-51770 | 257,000 | |
| 101 | SPRING, ACCUMULATOR | 158552-51781 | 189,000 | |
| 102 | PLUG | 158601-51790 | 159,000 | |
| 104 | PLUG, M12 | 158553-51930 | 70,000 | |
| 105 | WASHER, SEAL 12 | 22190-120002 | ||
| 106 | WASHER, SEAL 18 | 22190-180002 | 55,000 | |
| 110 | PUMPASSY, FUEL FEED | 158552-52100 | 4,107,000 | |
| 111 | O-RING | 158552-52500 | ||
| 112 | O-RING | 158552-52311 | 29,000 | |
| 113 | O-RING, 4E S42 | 158552-52400 | 21,000 | |
| 114 | WASHER, SEAL 12 | 22190-120002 | ||
| 115 | WASHER, SEAL 12 | 22190-120002 | ||
| 116 | WASHER, SEAL 18 | 22190-180002 | 55,000 | |
| 117 | WASHER, SPRING 18 | 22217-180000 | 25,000 | |
| 118 | PIN, PARALLEL 5X14 | 22312-050140 | 30,000 | |
| 119 | PIN, SPRING 5.0X10 | 22351-050010 | 30,000 | |
| 120 | BOLT, JOINT 6 | 23857-060000 | 41,000 | |
| 121 | O-RING, 1AP7.0 | 24311-000070 | 6,000 | |
| 122 | O-RING, 4D19020 | 24356-190200 | ||
| 123 | O-RING, 4D24021 | 24356-240210 | ||
| 124 | BOLT, M6X 10 PLATED | 26106-060102 | 25,000 | |
| 125 | BOLT, M6X 35 PLATED | 26106-060352 | 30,000 | |
| 126 | BOLT, M10X 45 | 26450-100452 | 41,000 | |
| 127 | NUT, LOCK M18 | 26776-180002 | 50,000 | |
| 130 | JOINT, OVER FLOW | 158552-51670 | ||
| 132 | JOINT, PIPE 12 | 129916-59020 | 336,000 | |
| 133 | RETAINER | 124756-67510 | 216,000 | |
| 134 | RING, 7 | 22276-000070 | 25,000 | |
| 136 | RETAINER, PUMP | 129907-01950 | 785,000 | |
| 137 | RETAINER, PUMP | 129907-01960 | 634,000 | |
| 138 | BOLT, M8X 16 PLATED | 26106-080162 | 6,000 | |
| 139 | BOLT, M8X 22 PLATED | 26106-080222 | 8,000 | |
| 140 | BOLT, M8X 22 PLATED | 26106-080222 | 8,000 | |
| 141 | BOLT, M10X 20 PLATED | 26106-100202 | 11,000 | |
| 142 | BOLT,ADJUST | 102100-67080 | 70,000 | |
| 143 | NUT, LOCK M6 | 26756-060002 |

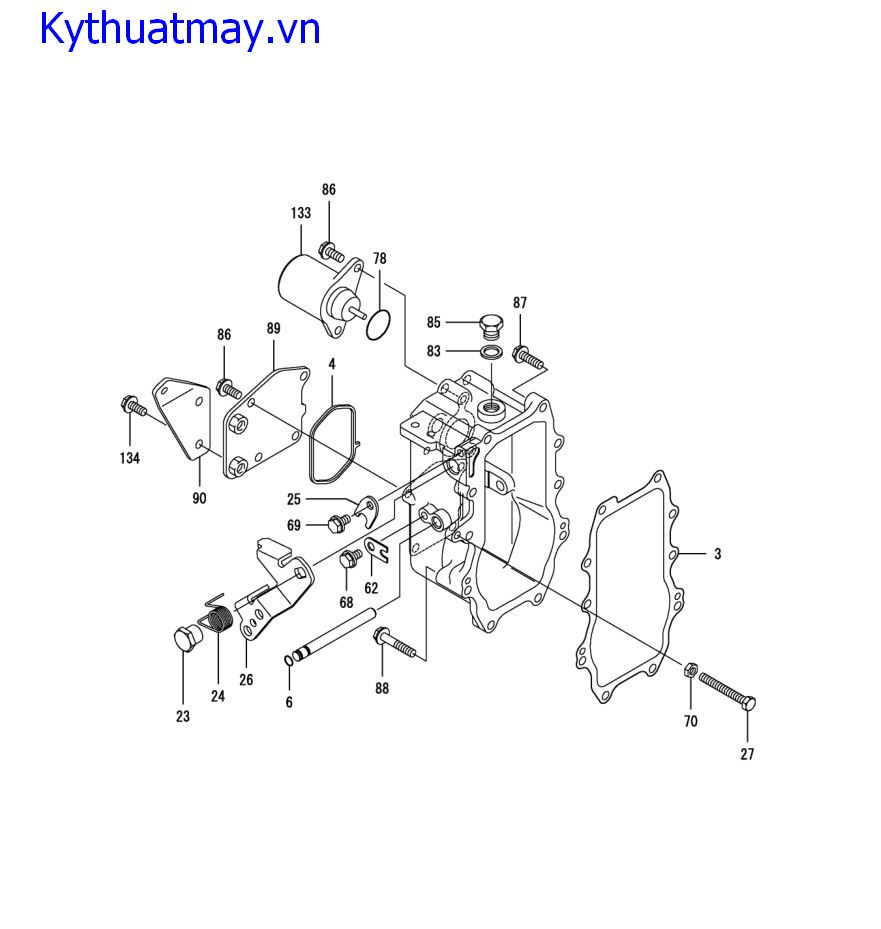

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 3 | GASKET | 158560-61050 | 189,000 | |
| 4 | GASKET | 158560-61071 | 89,000 | |
| 6 | O-RING, S6 | 129155-51280 | ||
| 23 | NUT, M8 | 129255-61410 | 80,000 | |
| 24 | SPRING, RETURN | 119807-61420 | ||
| 25 | STOPPER, SHAFT | 158560-61430 | 84,000 | |
| 26 | LEVER, REGULATOR | 158560-61442 | 896,000 | |
| 27 | BOLT, LIMITING | 129155-61460 | 235,000 | |
| 62 | STOPPER, SHAFT | 119660-61901 | 55,000 | |
| 68 | BOLT, M6X 10 PLATED | 26106-060102 | 25,000 | |
| 69 | BOLT, M6X 10 PLATED | 26106-060102 | 25,000 | |
| 70 | NUT, LOCK M6 | 26756-060002 | ||
| 78 | O-RING | 158552-61900 | 12,000 | |
| 83 | WASHER, SEAL 16 | 22190-160002 | 50,000 | |
| 85 | PLUG, 16 | 23887-160002 | 59,000 | |
| 86 | BOLT, M6X 14 PLATED | 26106-060142 | 3,000 | |
| 87 | BOLT, M6X 25 PLATED | 26106-060252 | 5,000 | |
| 88 | BOLT, M6X 40 PLATED | 26106-060402 | 30,000 | |
| 89 | COVER, GOVERNOR CASE | 123945-61060 | 449,000 | |
| 90 | SUPPORT, WIRE | 129966-61080 | 183,000 | |
| 133 | SOLENOID, STOP | 119653-77950 | 2,952,000 | |
| 134 | BOLT, M6X 14 PLATED | 26106-060142 | 3,000 |

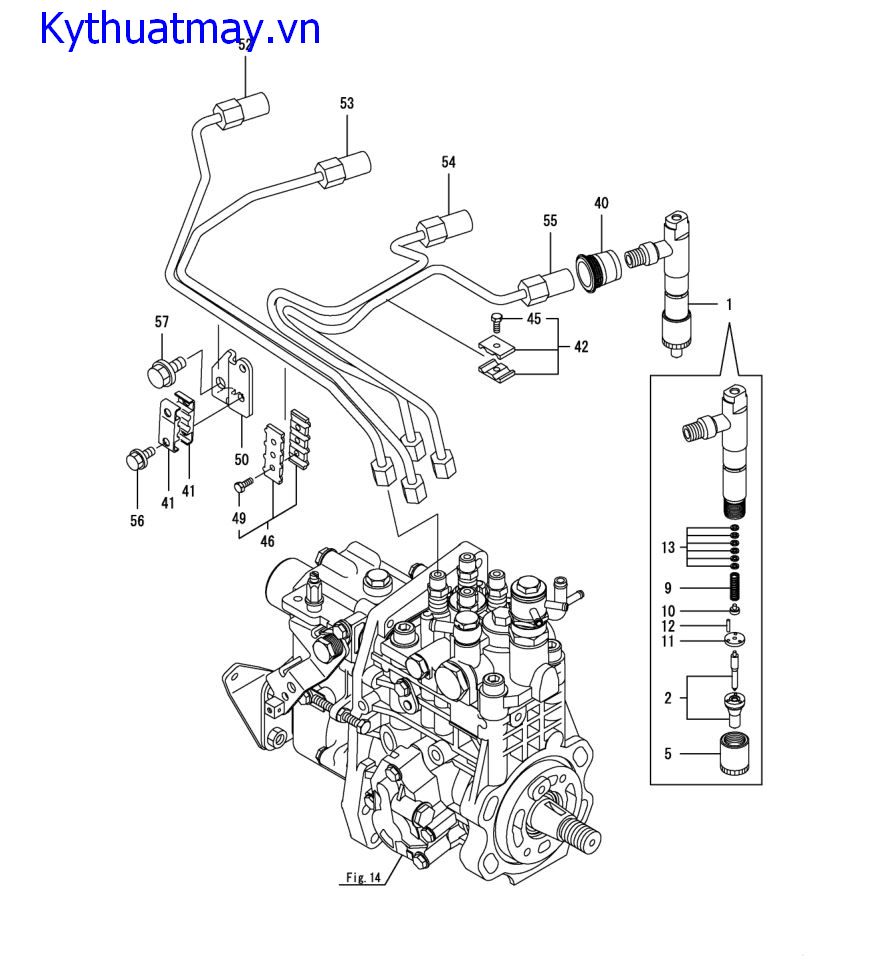

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | FUEL INJECTOR ASSY | 729908-53100 | 4,928,000 | |
| 2 | NOZZLEASSY, F.I. | 129908-53000 | 2,092,000 | |
| 5 | NUT, NOZZLE | 114250-53080 | 251,000 | |
| 9 | SPRING, NOZZLE | 114250-53120 | ||
| 10 | SEAT, SPRING | 114250-53130 | 59,000 | |
| 11 | SPACER | 114250-53140 | 199,000 | |
| 12 | PIN | 114250-53210 | 41,000 | |
| 13 | SHIM SET | 119803-53400 | 523,000 | |
| 40 | SEAL, PIPE | 123907-11601 | 307,000 | |
| 41 | RETAINER | 122780-59100 | 179,000 | |
| 42 | RETAINER, PIPE | 119305-59120 | 164,000 | |
| 45 | BOLT, M4X14 | 129150-59131 | 34,000 | |
| 46 | RETAINER, PIPE | 129550-59120 | 269,000 | |
| 49 | BOLT, M4X14 | 129150-59131 | 34,000 | |
| 50 | SUPPORT | 129907-59710 | 673,000 | |
| 52 | PIPEASSY, INJECTION | 129908-59810 | 859,000 | |
| 53 | PIPEASSY, INJECTION | 129908-59820 | 859,000 | |
| 54 | PIPEASSY, INJECTION | 129908-59830 | 859,000 | |
| 55 | PIPEASSY, INJECTION | 129908-59840 | 859,000 | |
| 56 | BOLT, M6X 16 PLATED | 26106-060162 | 25,000 | |
| 57 | BOLT, M8X 18 PLATED | 26106-080182 | 25,000 |

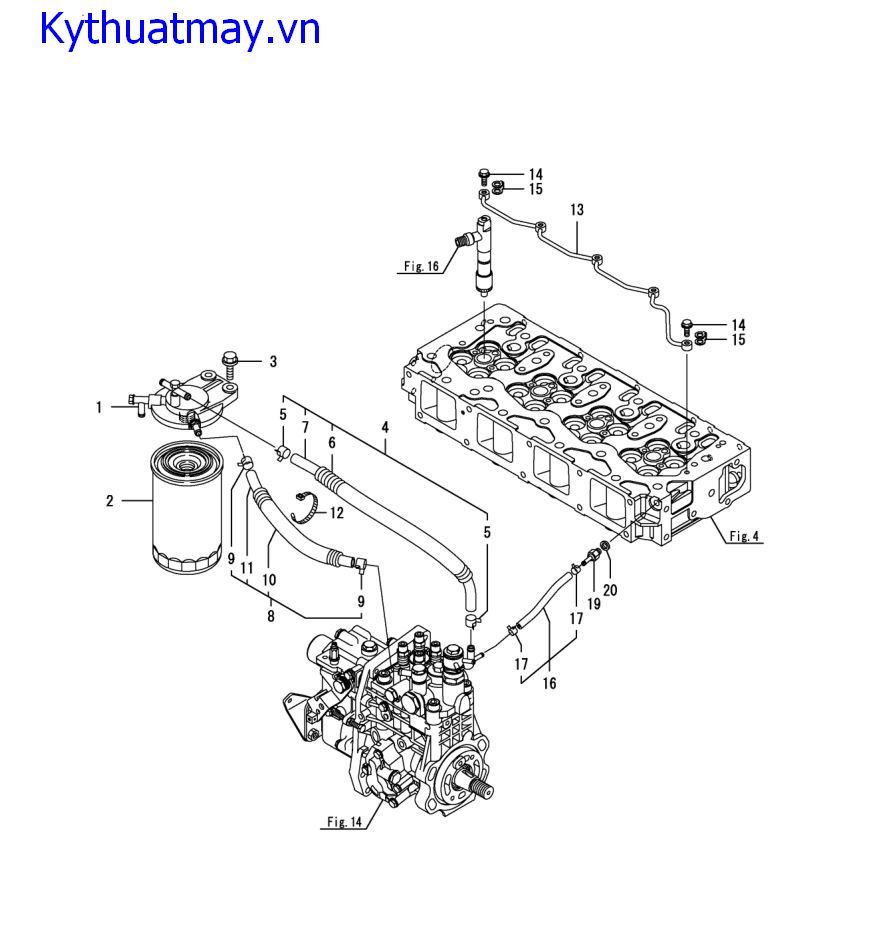

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | BRACKET, FILTER | 129004-55612 | 1,718,000 | |
| 2 | FILTER, FUEL | 129907-55810 | 569,000 | |
| 3 | BOLT, M8X 30 PLATED | 26106-080302 | 9,000 | |
| 4 | HOSEASSY, FUEL | 129457-59010 | ||
| 5 | CLAMP, HOSE 11.5 | 124766-59050 | 51,000 | |
| 6 | TUBE, CORRUGATED 15 | 129957-59120 | 173,000 | |
| 7 | HOSE, FUEL | 105025-59750 | 114,000 | |
| 8 | HOSEASSY, FUEL | 129981-59010 | 411,000 | |
| 9 | CLAMP, HOSE 11.5 | 124766-59050 | 51,000 | |
| 10 | TUBE, CORRUGATED 15 | 129950-59221 | 281,000 | |
| 11 | HOSE, FUEL | 129980-59510 | 183,000 | |
| 12 | BAND, NYLON | 121750-59890 | 59,000 | |
| 13 | PIPEASSY, RETURN | 129907-59140 | 1,794,000 | |
| 14 | BOLT, PIPE JOINT M6 | 123907-59540 | 114,000 | |
| 15 | GASKET | 123907-59550 | 139,000 | |
| 16 | HOSEASSY, RETURN | 129486-59551 | ||
| 17 | CLAMP, HOSE 9 | 124722-59050 | 50,000 | |
| 19 | JOINT, HOSE | 123907-59560 | ||
| 20 | WASHER, SEAL 8 | 22190-080002 | 44,000 |

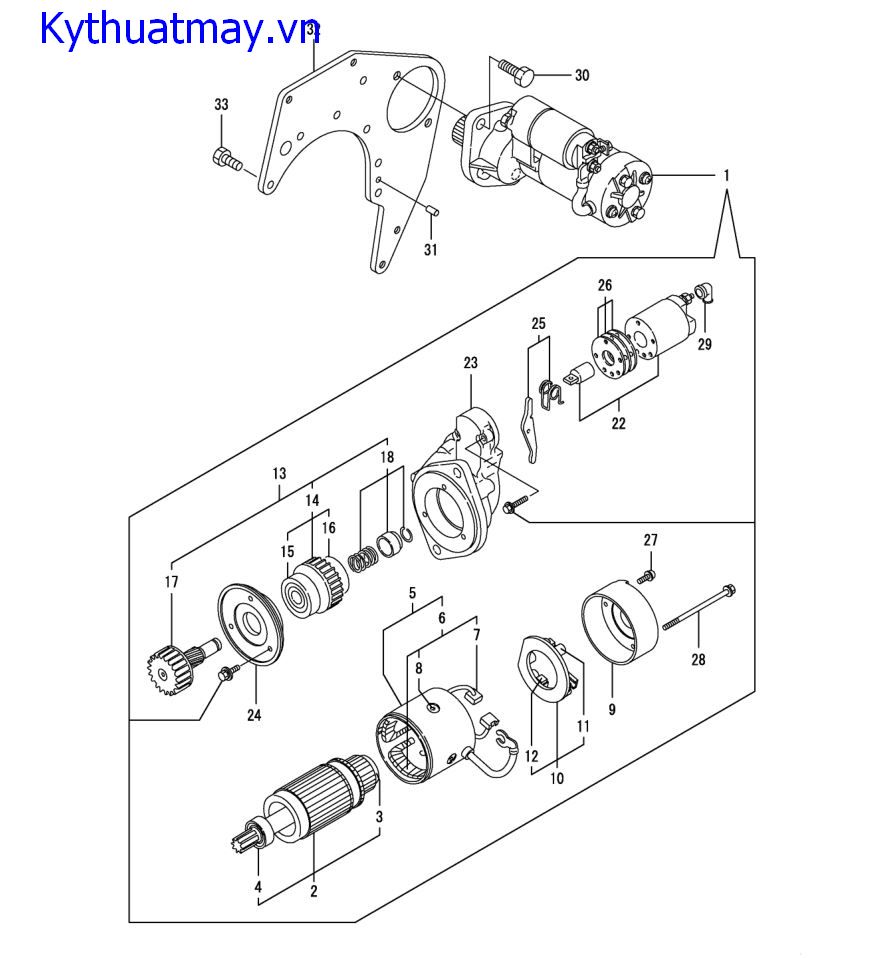

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | STARTERASSY | 129900-77040 | 22,175,000 | |
| 2 | ARMATUREASSY | 129900-77120 | 13,997,000 | |
| 3 | BEARING, BALL | 171008-77410 | 370,000 | |
| 4 | BEARING, BALL | 171008-77420 | 896,000 | |
| 5 | YOKEASSY | 129900-77130 | 5,214,000 | |
| 6 | COILASSY, FIELD | 129900-77140 | 2,952,000 | |
| 7 | BRUSH | 129900-77450 | ||
| 8 | SCREW, CORE SET | 171008-77450 | 41,000 | |
| 9 | COVER | 129900-77150 | 634,000 | |
| 10 | HOLDERASSY, BRUSH | 129900-77160 | 822,000 | |
| 11 | SPRING, BRUSH | X2130631300 | 89,000 | |
| 12 | BRUSH | 129900-77450 | ||
| 13 | CLUTCHASSY | 129900-77170 | 4,071,000 | |
| 14 | CLUTCHASSY | 129900-77180 | 5,892,000 | |
| 15 | BEARING, BALL | X2114955020 | 1,233,000 | |
| 16 | BEARING, BALL | 129900-77190 | 634,000 | |
| 17 | SHAFT, PINION | 129900-77270 | 2,952,000 | |
| 18 | STOPPER SET, PINION | 171008-77670 | 180,000 | |
| 22 | SWITCHASSY, MAGNET | 129900-77280 | 4,714,000 | |
| 23 | CASE, GEAR | 129900-77290 | 3,571,000 | |
| 24 | RETAINER, BEARING | 129900-77380 | 411,000 | |
| 25 | LEVERASSY, SHIFT | 129900-77390 | 449,000 | |
| 26 | COVER KIT, DUST | 129900-77420 | 411,000 | |
| 27 | SCREW, M4X10 | 129900-77430 | 41,000 | |
| 28 | BOLT, THROUGH | 129685-77640 | 59,000 | |
| 29 | COVER, TERMINAL | 171008-77750 | 148,000 | |
| 30 | BOLT, M12X 20 PLATED | 26116-120202 | 34,000 | |
| 31 | PIN, PARALLEL 8X16 | 129100-01580 | 44,000 | |
| 32 | BRACKET, STARTER | 129966-77400 | 1,643,000 | |
| 33 | BOLT, M10X 20 PLATED | 26206-100202 | 34,000 |

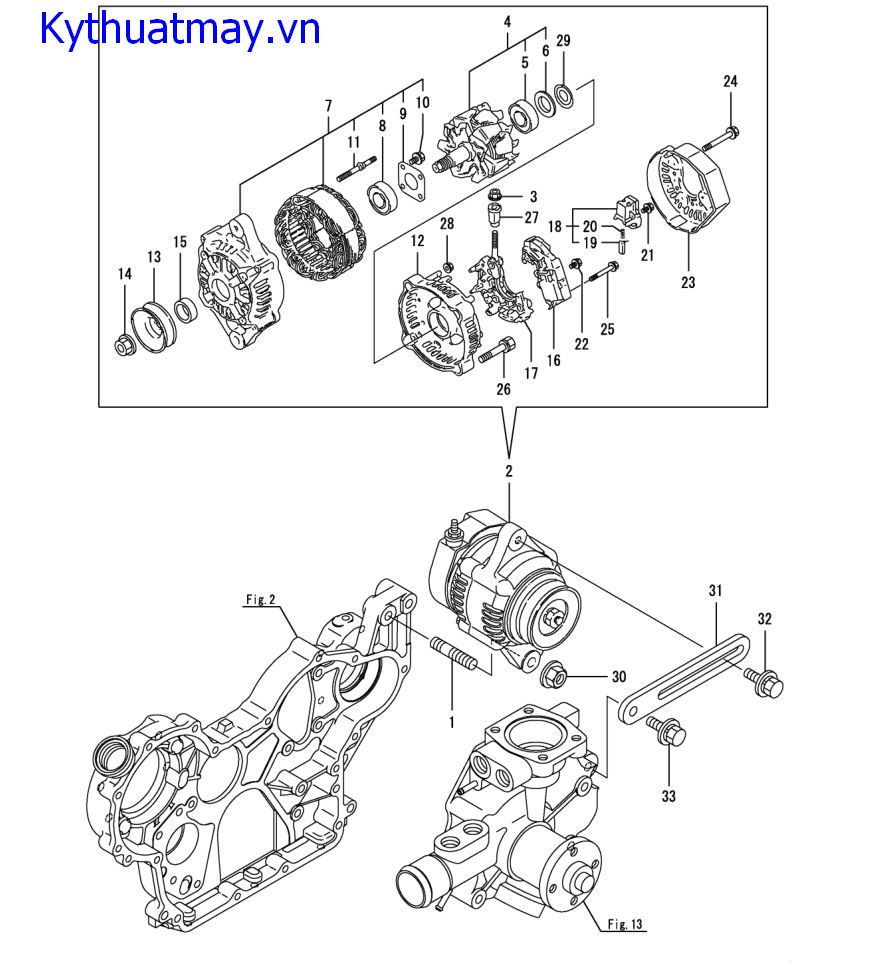

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | BOLT, STUD M10X33 | 129795-01900 | 59,000 | |
| 2 | GENERATORASSY, 40A | 129423-77200 | 16,283,000 | |
| 3 | NUT | X9490561001 | 41,000 | |
| 4 | ROTORASSY | 119620-77380 | 4,285,000 | |
| 5 | BEARING, BALL | 123501-79240 | 310,000 | |
| 6 | COVER, BEARING | 119620-79250 | 75,000 | |
| 7 | FRAMEASSY,GENERATOR | 119620-77421 | 6,392,000 | |
| 8 | BEARING, BALL | 119620-79200 | 318,000 | |
| 9 | RETAINER | 119620-79210 | 154,000 | |
| 10 | SCREW | 119620-79220 | 50,000 | |
| 11 | BOLT, STUD | 119620-79230 | 173,000 | |
| 12 | FRAMEASSY | 119620-77440 | 1,607,000 | |
| 13 | PULLEY, GENERATOR | 119620-77461 | 896,000 | |
| 14 | NUT | 119620-77471 | 84,000 | |
| 15 | COLLAR | 119620-77490 | 187,000 | |
| 16 | REGULATORASSY | 129423-77710 | 8,677,000 | |
| 17 | HOLDER | 119620-79260 | 3,571,000 | |
| 18 | HOLDER, BRUSH | 129052-79270 | 1,121,000 | |
| 19 | BRUSH | 119620-77480 | 159,000 | |
| 20 | SPRING | 119620-79280 | ||
| 21 | SCREW | 119620-79290 | 44,000 | |
| 22 | SCREW | 119620-79300 | 44,000 | |
| 23 | COVER | 129240-79300 | 359,000 | |
| 24 | BOLT | 119620-79310 | 50,000 | |
| 25 | SCREW | 119620-79320 | 41,000 | |
| 26 | BOLT | 119620-79330 | 59,000 | |
| 27 | BUSH, INSULATION | 119620-79340 | 218,000 | |
| 28 | NUT | 119620-79350 | 50,000 | |
| 29 | WASHER, THRUST | 119620-79360 | 209,000 | |
| 30 | NUT, M10 | 26306-100002 | 20,000 | |
| 31 | ADJUSTER, BELT | 129988-77330 | 1,009,000 | |
| 32 | BOLT,ADJUST L=30 | 119810-77340 | 50,000 | |
| 33 | BOLT, M8X 25 | 26014-080252 | 30,000 |
