Điều khiển thủy lực

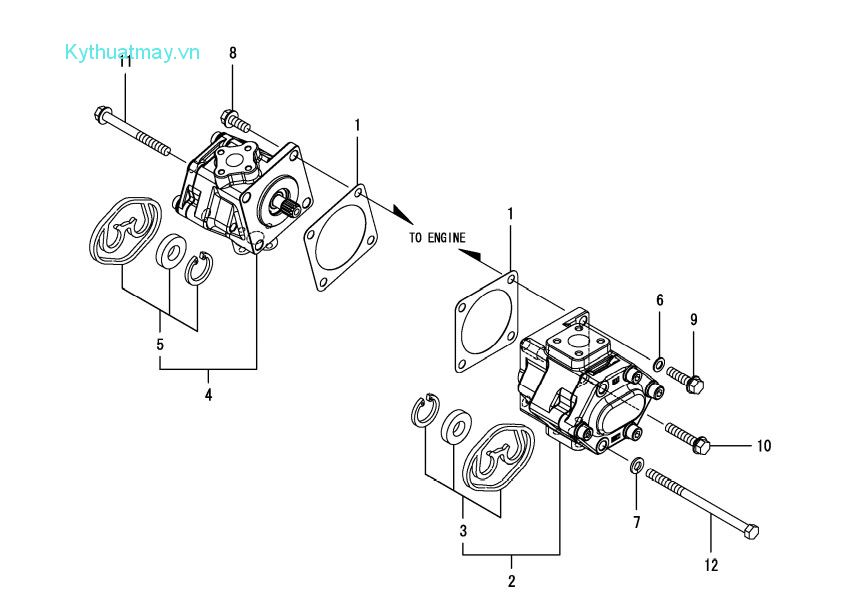

Bơm thủy lực (1-2)

STT	Tên sản phẩm	Mã số	Giá bán

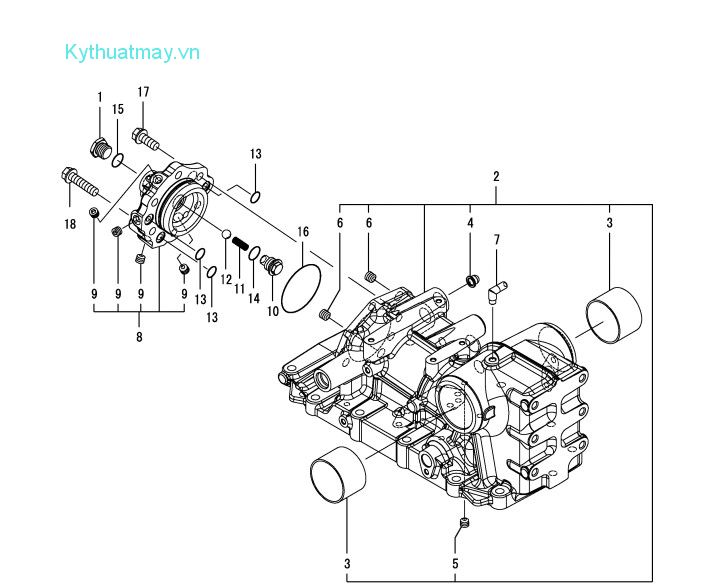

2	O-RING, 1AG85.0	24321-000850	20,000
3	BOLT, M10X 30 PLATED	26106-100302	12,000
1	PLUG, G1/2	1A8252-24600	41,000

STT	Tên sản phẩm	Mã số	Giá bán
2	HOUSING ASSY, HYD	1A8252-42100	15,423,000
3	BUSH, 65X70X45	194640-42140	654,000
4	STRAINER, A	194556-42220	157,000
5	PLUG, R01	23871-010000	44,000
6	PLUG, R02	23871-020000	59,000
7	PIPE, BREATHER	1A8252-42280
8	HEAD ASSY,CYLINDER	1A8252-43100	1,277,000
9	PLUG, R01	23871-010000	44,000
10	PLUG, CHECK VALVE	1A7640-43450	601,000
11	SPRING, CHECK	1A8252-46380	8,000
12	BALL, STEEL 13/32	24190-130003	5,000
13	O-RING, 1BP14.0	24315-000140	3,000
14	O-RING, 1BP18.0	24315-000180	11,000
15	O-RING, 1BP18.0	24315-000180	11,000
16	O-RING, 1BG80.0	24325-000800	27,000
17	BOLT, M12X 30 PLATED	26106-120302	19,000
18	BOLT, M12X 50 PLATED	26106-120502	55,000

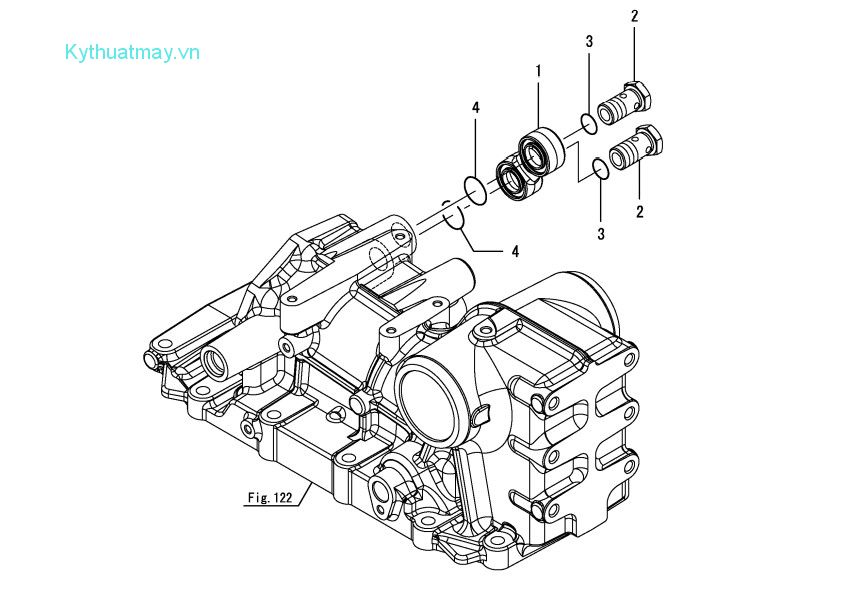

1	JOINT, BYPASS	1A8060-48270	440,000

STT	Tên sản phẩm	Mã số	Giá bán
2	BOLT, PIPE JOINT 1/2	1A8060-48300	81,000
3	O-RING, 1BP20.0	24315-000200	30,000
4	O-RING, 1BP28.0	24315-000280	44,000

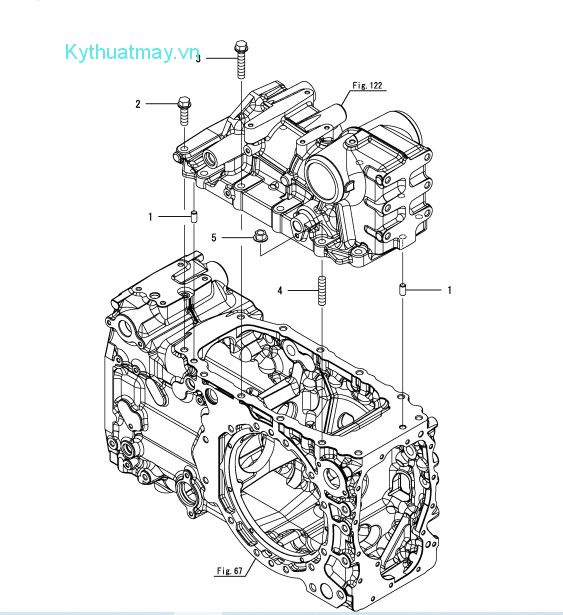

1	PIN, PARALLEL M10X18	22312-100180	34,000

STT	Tên sản phẩm	Mã số	Giá bán
2	BOLT, M12X 40 PLATED	26106-120402	22,000
3	BOLT, M12X 60 PLATED	26106-120602	36,000
4	STUD, M12X 40	26216-120402	44,000
5	NUT, FLANGE M12	41571-120000

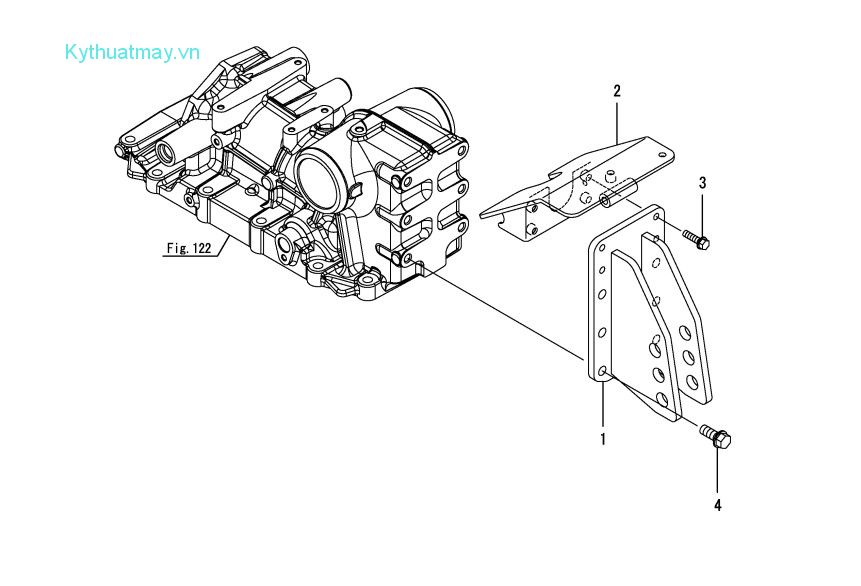

1	HINGE ASSY, TOP LINK	1A8253-42810	1,250,000

STT	Tên sản phẩm	Mã số	Giá bán
2	SUPPORT ASSY, TANK	1A8253-49760	431,000
3	BOLT, M8X 30 PLATED	26106-080302	9,000
4	BOLT, M12X 30 PLATED	26106-120302	19,000

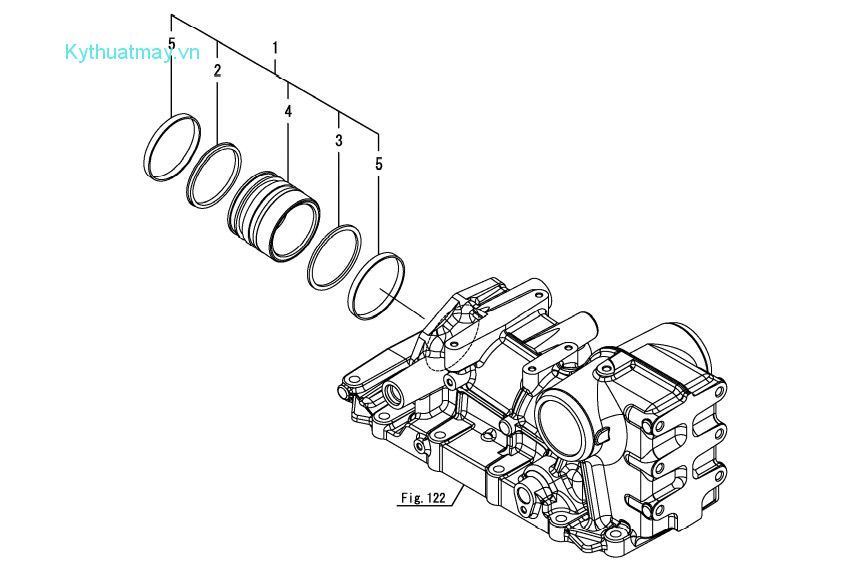

1	PISTON ASSY, HYD.	1A7180-43280	7,678,000

STT	Tên sản phẩm	Mã số	Giá bán
2	PACKING, 85	198448-43260	332,000
3	RING, BACK UP 85	198448-43270	1,192,000
4	PISTON, HYDRAULIC	1A7180-43290	2,308,000
5	WEAR RING, 85	198390-43360	961,000

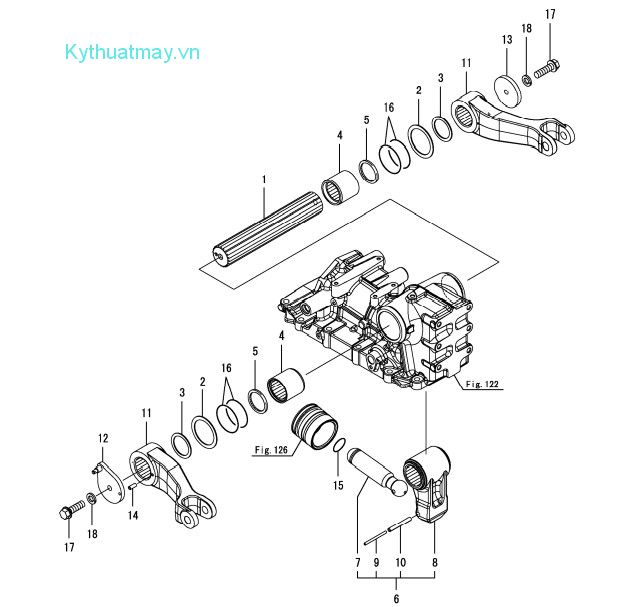

1	SHAFT, LIFT	1A8252-44211	1,804,000

STT	Tên sản phẩm	Mã số	Giá bán
2	WASHER, 65X82X2	1A7640-44230	164,000
3	PLATE, SEAL 50X64X2	1A7640-44240	95,000
4	SLEEVE, LIFT SHAFT	194640-44250	1,401,000
4-1	SLEEVE,LIFTSHAFT	1A8252-44250	382,000
5	SEAL, SPLINE	194640-44261	98,000
6	CRANK ASSY, LIFT	1A8252-44310	2,428,000
7	ROD, PISTON	1A7180-43410	2,839,000
8	CRANK, LIFT	1A8252-44110	1,676,000
9	PIN, SPRING 5.0X70	22351-050070	34,000
10	PIN, SPRING 8.0X70	22351-080070	50,000
11	ARM, LIFT	1A8252-44410	1,940,000
12	PLATE ASSY, LIFT ARM	1A8252-44510	173,000
13	PLATE, LIFT ARM R	1A8252-44540	139,000
14	PIN, SPRING 6.0X16	22351-060016	30,000
15	O-RING, 1AP36.0	24311-000360	8,000
16	O-RING, 1AG65.0	24321-000650	12,000
17	BOLT, M12X 40 PLATED	26106-120402	22,000
18	WASHER, SPRING 12	22217-120000	3,000

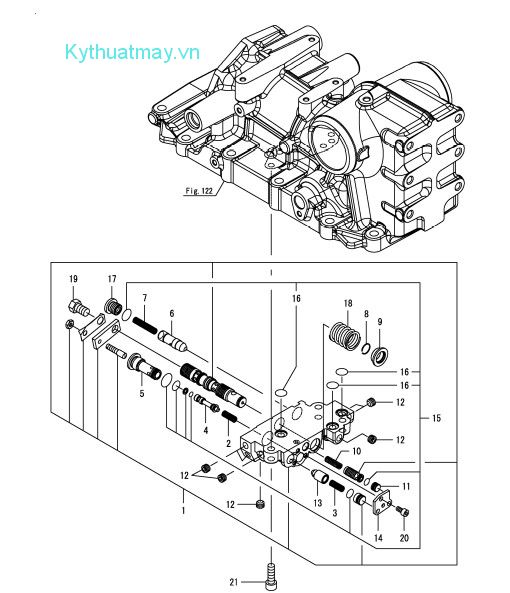

1	VALVE ASSY, CONTROL	1A8252-45100

STT	Tên sản phẩm	Mã số	Giá bán
1-1	VALVE ASSY, CONTROL	1A8252-45150	31,264,000
2	SPRING	1A8275-45230
3	SPRING	1A8275-45240
4	SPOOL, MECHANICAL	1A8296-45250	773,000
4-1	SPOOL, MECHANICAL	1A8275-45250
5	SLEEVE, MECHANICAL	1A8296-45260	1,282,000
5-1	SLEEVE, MECHANICAL	1A8275-45260
6	VALVE, POPPET	1A8275-45310	2,040,000
7	SPRING	1A8275-45320	449,000
8	CIRCLIP	1A8275-45330	273,000
9	SEAT, SPRING	1A8275-45340	1,921,000
10	SPRING	1A8275-45360
11	PLUG	1A8275-45370	841,000
12	PLUG, R01	1A8292-45400
13	VALVE, POPPET	1A8275-45420	2,522,000
14	PLATE	1A8275-45440	643,000
15	SEAL KIT, VALVE	1A8275-45500	4,071,000
16	O-RING, 1BP11.0	24315-000110	30,000
17	PLUG, LIFT VALVE	1A7880-45640	1,401,000
18	SPRING	1A8275-45980	449,000
19	BOLT M10X 16	26111-100162	30,000
19-1	BOLT, 10 X 16	26117-100162
20	BOLT, M5X 10	26450-050102	25,000
21	BOLT, M8X 25	26450-080252	12,000

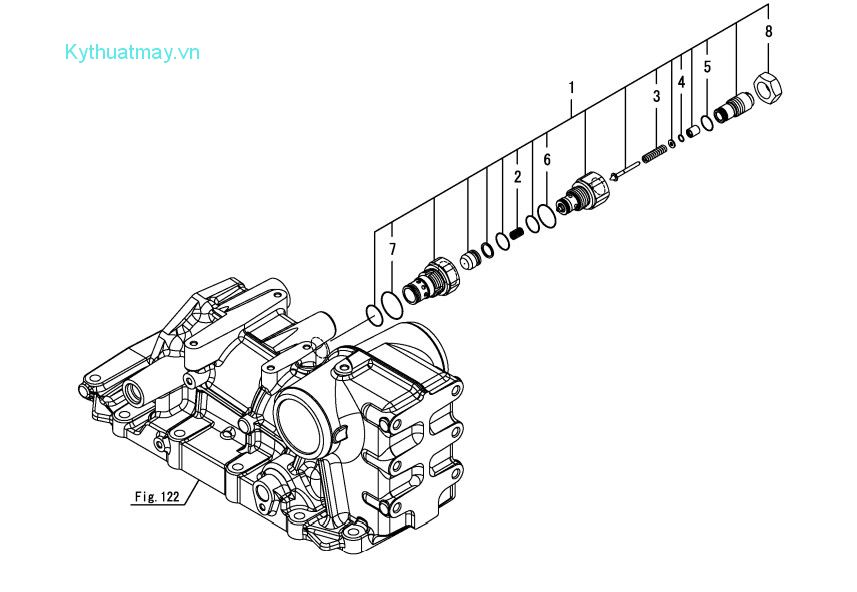

1	VALVE ASSY, RELIFE 3	1682B3-00040	5,356,000

STT	Tên sản phẩm	Mã số	Giá bán
2	SPRING, MAIN RELIEF	1682B3-01130	223,000
3	SPRING, PILOT	1682B3-01310	183,000
4	O-RING, 1AP3.0	24311-000030	25,000
5	O-RING, 1BP10.0	24315-000100	30,000
6	O-RING, 1BP18.0	24315-000180	11,000
7	O-RING, 1BP22.0	24315-000220	6,000
8	NUT, LOCK M16	26776-160002	36,000

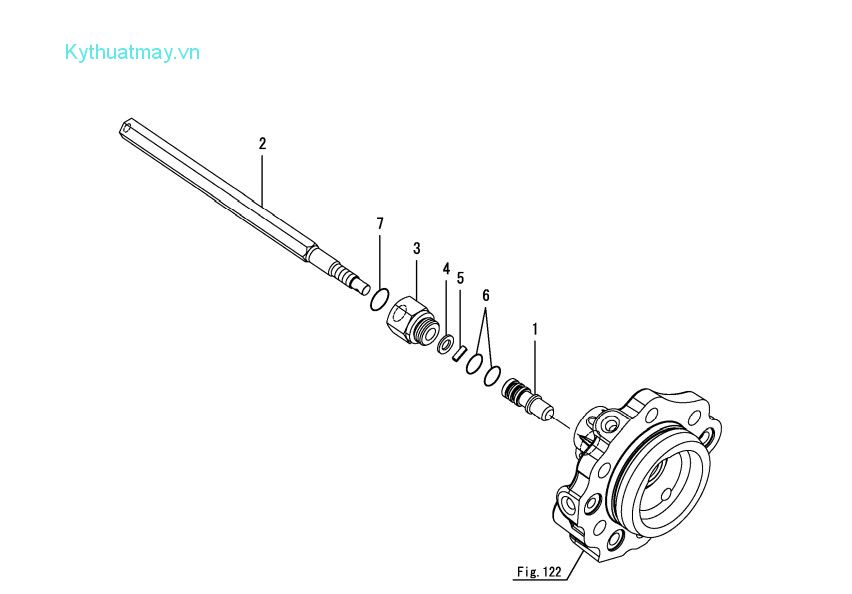

1	VALVE, STOP	194555-46300	523,000

STT	Tên sản phẩm	Mã số	Giá bán
2	BOLT, STOP	1A8252-46620	145,000
3	HOLDER, VALVE	194312-46630	643,000
4	WASHER, 8	22117-080001	5,000
5	PIN, SPRING 4.0X12	22351-040012	25,000
6	O-RING, 1AP11.0	24311-000110	3,000
7	O-RING, 1AP12.0	24311-000120	2,000

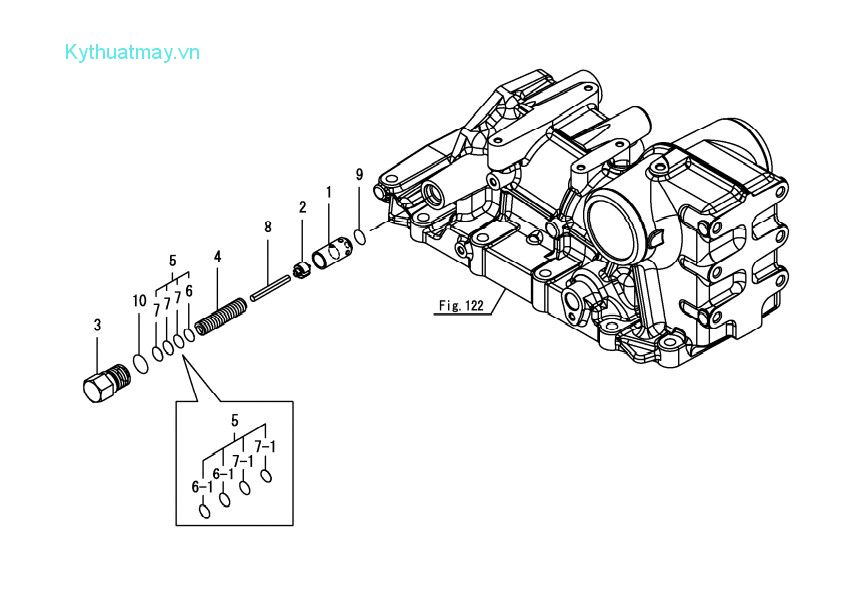

1	SEAT, VALVE	1A8060-46411	841,000

STT	Tên sản phẩm	Mã số	Giá bán
2	VALVE, POPPET	1A8060-46420	560,000
2-1	VALVE, POPPET	1A8252-46420	287,000
3	PLUG, VALVE	1A8042-46430	75,000
4	SPRING, VALVE	1A8060-46441	214,000
5	SHIM ASSY, RELIEF	1A8060-46460	224,000
6	SHIM, T=0.2	194250-46470	34,000
6-1	SHIM, T=0.2	194250-46470	34,000
7	SHIM, 0.5	1A8060-46470	75,000
7-1	SHIM, 0.5	1A8060-46470	75,000
8	PIN, SPRING 6.0X50	22351-060050	34,000
9	O-RING, 1BP15.0	24315-000150	30,000
10	O-RING, 1BP20.0	24315-000200	30,000

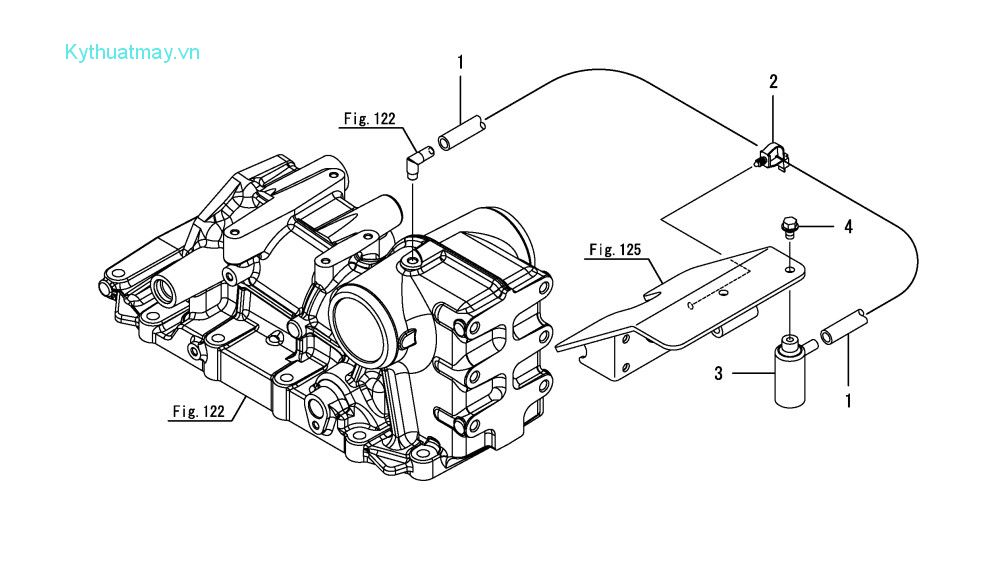

1	HOSE, LP	1A8252-48481	344,000

STT	Tên sản phẩm	Mã số	Giá bán
2	CLIP, M8 HOLE	1A8275-51670	129,000
3	BREATHER, AIR	194205-63550	36,000
4	BOLT, M8X 16 PLATED	26106-080162	6,000

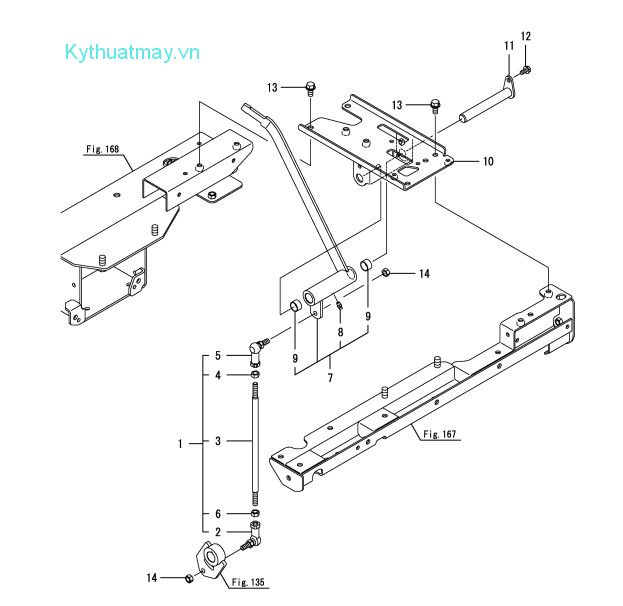

1	ROD ASSY, PC	1A8252-47190	438,000

STT	Tên sản phẩm	Mã số	Giá bán
2	BALL, LINK BL8D	1E4760-43090
3	ROD, PC	1A8252-47200	70,000
4	NUT, 8 L	1E6460-63240	148,000
5	BALL, LINK BL8DL	1E6740-64200	374,000
6	NUT, M8	26717-080002	30,000
7	LEVER UNIT, POSITION	1A8252-47290	216,000
8	NIPPLE, GREASE	1A8252-47950	11,000
9	BUSH, 16X10	24550-016100	84,000
10	BRACKET ASSY, LEVER	1A8252-47600	275,000
11	SHAFT ASSY	1A8252-47650	103,000
12	BOLT, M6X 12 PLATED	26106-060122	3,000
13	BOLT, M8X 16 PLATED	26106-080162	6,000
14	NUT, M8	26717-080002	30,000
1	KNOB, BLACK	1A8115-47810	58,000

STT	Tên sản phẩm	Mã số	Giá bán	Đặt hàng

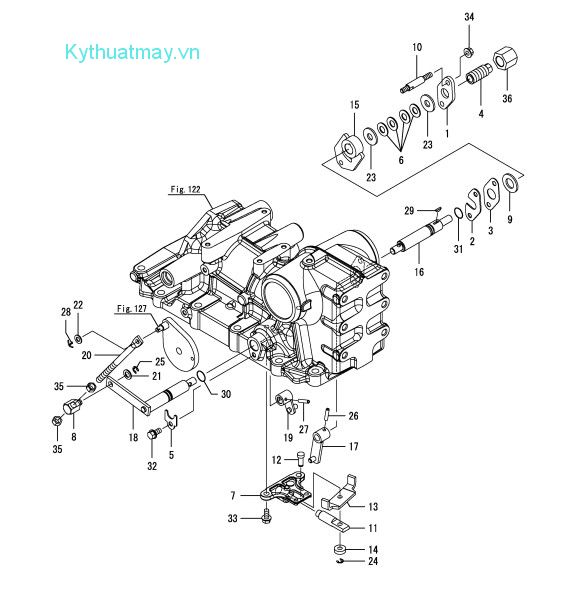

1	PLATE	1A8253-47161	37,000

STT	Tên sản phẩm	Mã số	Giá bán
2	PLATE, A	1A8253-47340	17,000
3	PLATE, B	1A8253-47350	14,000
4	BOLT, FRICTION	1A8253-47300	58,000
5	PLATE, KEEP	1A8296-47360	55,000
6	SPRING,DISK	1A8296-47380
7	PLATE, CONTROL	1A8252-47390	190,000
8	ADJUSTER	1A8292-47410	165,000
9	PLATE, FRICTION	1A8253-47330
10	BOLT, STUD	1A8253-47320	56,000
11	ROD, CONTROL	1A8252-49010	67,000
12	PIN, CONTROL	1A8252-49020	19,000
13	LINK,P CONTROL	1A8252-49030	41,000
14	WASHER, 8X20X6	1A8253-49060	8,000
15	LINK ASSY, P LEVER	1A8253-49101	111,000
16	SHAFT, P LEVER	1A8253-49141	182,000
17	ARM ASSY, P LEVER	1A8252-49150	112,000
18	LINK ASSY, P-FB	1A8253-49200	223,000
19	ARM ASSY, P-FB	1A8252-49250	126,000
20	ROD, P-FB	1A8252-49290	70,000
21	WASHER, 10	22117-100001	6,000
22	WASHER, 8	22137-080001	9,000
23	WASHER, 12	1A8253-47290	8,000
24	RING, E- 6	22272-000060	9,000
25	RING, E- 7	22272-000070
26	PIN, SPRING 5.0X25	22351-050025	30,000
27	PIN, SPRING 5.0X25	22351-050025	30,000
28	PIN, COTTER 2.0X20	22417-200200	8,000
29	KEY, WOODRUFF 3X13	22522-030130	11,000
30	O-RING, 1AP15.0	24311-000150	3,000
31	O-RING, 1AP15.0	24311-000150	3,000
32	BOLT, M8X 16 PLATED	26106-080162	6,000
33	BOLT, M8X 16 PLATED	26106-080162	6,000
34	NUT, FLANGE M8	41571-080000
35	NUT, M10	26716-100002	30,000
36	NUT, 20	1A8253-47310	55,000

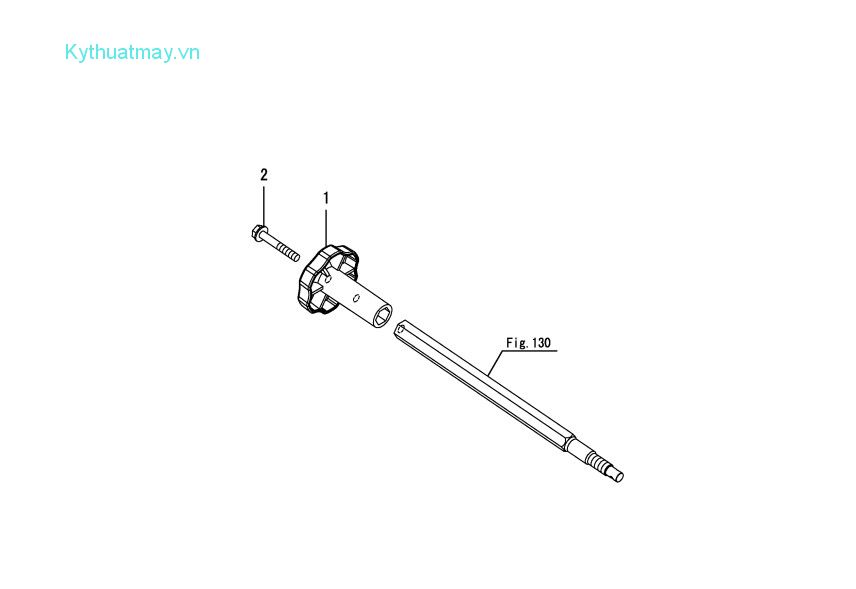

1	KNOB, STOP VALVE	1A8250-46640	70,000

STT	Tên sản phẩm	Mã số	Giá bán	Đặt hàng
2	BOLT, M6X 40 PLATED	26106-060402	30,000

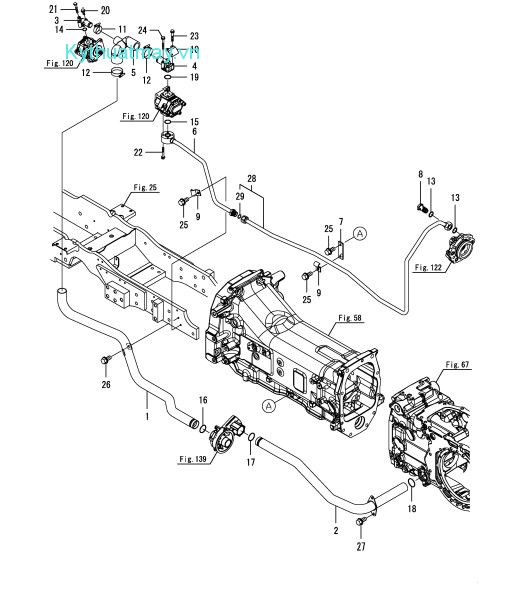

1	PIPE ASSY, LP FRONT	1A8263-48001	421,000

STT	Tên sản phẩm	Mã số	Giá bán
2	PIPE ASSY, LP REAR	1A8252-48050
3	CONNECTOR, G1/2-1/2	1A8263-48150	95,000
4	HOSE	1A8263-48340	148,000
5	JOINT, G1	1A8263-48350	139,000
6	PIPE ASSY, FRONT	1A8266-48800	384,000
7	BRACKET ASSY, CLAMP	1A8252-48670	25,000
8	BOLT ASSY, JOINT	198361-48750	1,001,000
9	CLAMP, D	194450-48830	104,000
10	CLAMP, 48	23000-048000	187,000
11	GASKET, 20X1.0	23414-200026	17,000
12	O-RING, 1AP29.0	24311-000290	41,000
13	O-RING, 1AP32.0	24311-000320	6,000
14	O-RING, 1AP32.0	24311-000320	6,000
15	O-RING, 1AP36.0	24311-000360	8,000
16	O-RING, 1BP18.0	24315-000180	11,000
17	BOLT, M8X 16 PLATED	26106-080162	6,000
18	BOLT, M8X 16 PLATED	26106-080162	6,000
19	BOLT, M8X 16 PLATED	26106-080162	6,000
20	PLATE, CLAMP	1A8263-48540	47,000
21	BOLT, M8X 16 PLATED	26106-080162	6,000
22	PIPE ASSY, REAR	1A8252-48850	345,000
23	O-RING	1A8252-48900	3,000

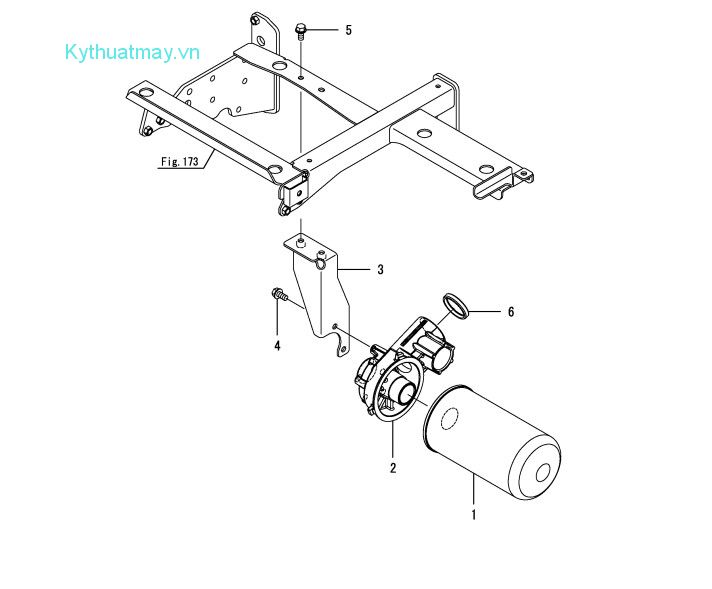

1	FILTER, HYDRAULIC	1A7640-48310	1,107,000

STT	Tên sản phẩm	Mã số	Giá bán
2	COVER, FILTER	1A8250-48430
3	BRACKET ASSY, FILTER	1A8252-48450	153,000
4	BOLT, M8X 16 PLATED	26106-080162	6,000
5	BOLT, M8X 16 PLATED	26106-080162	6,000
6	PLUG, 47	27260-470000	70,000
1	CONTROLLER,SA-R,3G	1RF001-00114
