| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|

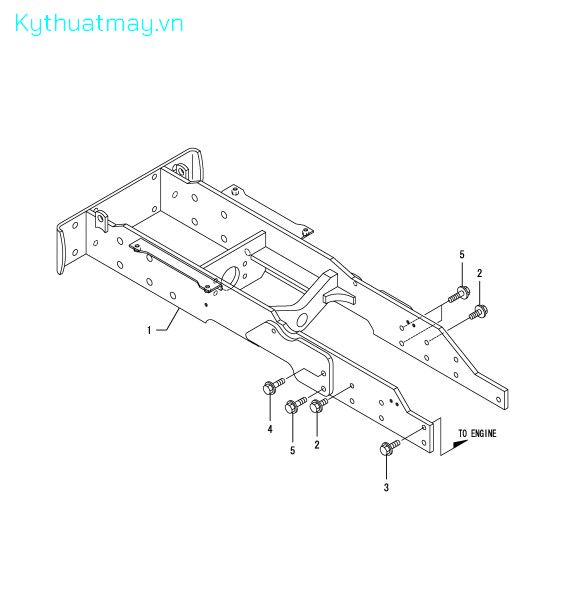

| 1 | BRACKET M ASSY, AXLE | 1A7781-11090 | 9,627,000 | |
| 2 | BOLT, M12X30 | 1A7780-11510 | 119,000 | |
| 3 | BOLT, M12X34 | 198240-11620 | 202,000 | |
| 4 | BOLT, M12X46 | 198240-11640 | 235,000 | |
| 5 | BOLT, M12X45 | 198240-11650 | 129,000 |

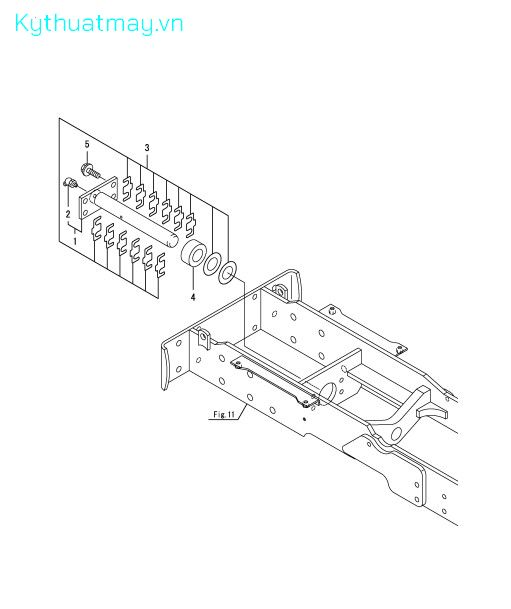

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | PIN ASSY, CENTER | 198240-11500 | 2,794,000 | |
| 2 | NIPPLE, GREASE B | 24761-040000 | 31,000 | |
| 3 | SHIM SET | 198240-11540 | 114,000 | |
| 4 | SPACER, 36X62X27 | 198240-11550 | ||
| 5 | BOLT, M12X 35 PLATED | 26106-120352 | 44,000 | |
| 5-1 | BOLT, M12X30 | 1A6770-85920 | 64,000 |

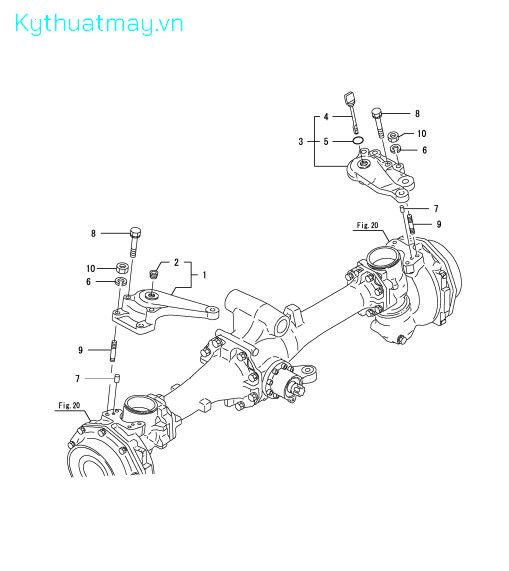

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | ARM ASSY, KNUCKLE L | 198251-11800-2 | 9,427,000 | |
| 2 | PLUG, R04 | 23876-040000 | 125,000 | |
| 2-1 | PLUG, R04 | 23871-040000 | 173,000 | |
| 3 | ARM ASSY, KNUCKLE R | 198251-11820-2 | 9,427,000 | |
| 4 | GAUGE, OIL LEVEL | 198251-13630 | 255,000 | |
| 5 | O-RING, 1AP18.0 | 24311-000180 | 3,000 | |
| 6 | WASHER, SPRING 12 | 22217-120000 | 3,000 | |
| 7 | PIN, PARALLEL M10X18 | 22312-100180 | 34,000 | |
| 8 | BOLT, M12X 80 | 26013-120802 | 50,000 | |
| 9 | STUD, M12X 35 | 26216-120352 | 64,000 | |
| 10 | NUT, M12 | 26716-120002 | 11,000 |

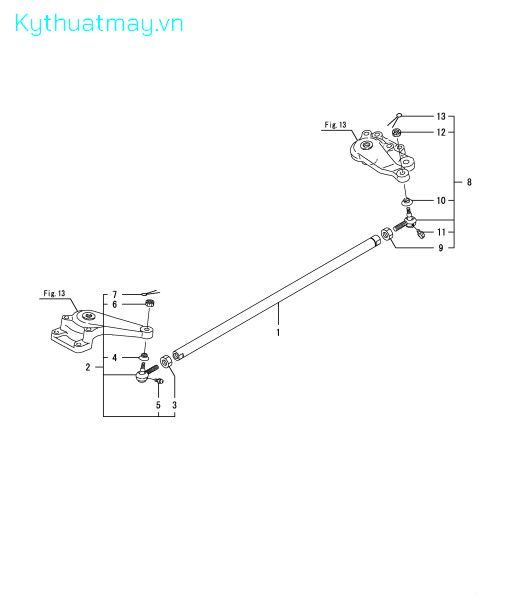

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | TIE-ROD | 198251-12310-2 | 3,571,000 | |
| 2 | END KIT, TIE-ROD LR | 198240-18120-1 | ||
| 3 | NUT, LOCK M17 L | 194990-22831 | 214,000 | |
| 4 | COVER, DUCT | 194730-57220 | ||
| 5 | NIPPLE, GREASE MT6X1 | 24761-060000 | 47,000 | |
| 6 | NUT, M12 | 198240-12590 | 64,000 | |
| 7 | PIN, COTTER 3.0X25 | 22417-300250 | 25,000 | |
| 8 | END KIT, TIE-ROD RL | 198240-18130-1 | ||
| 9 | NUT, M17 | 194990-22841 | 243,000 | |
| 10 | COVER, DUCT | 194730-57220 | ||
| 11 | NIPPLE, GREASE MT6X1 | 24761-060000 | 47,000 | |
| 12 | NUT, M12 | 198240-12590 | 64,000 | |
| 13 | PIN, COTTER 3.0X25 | 22417-300250 | 25,000 |

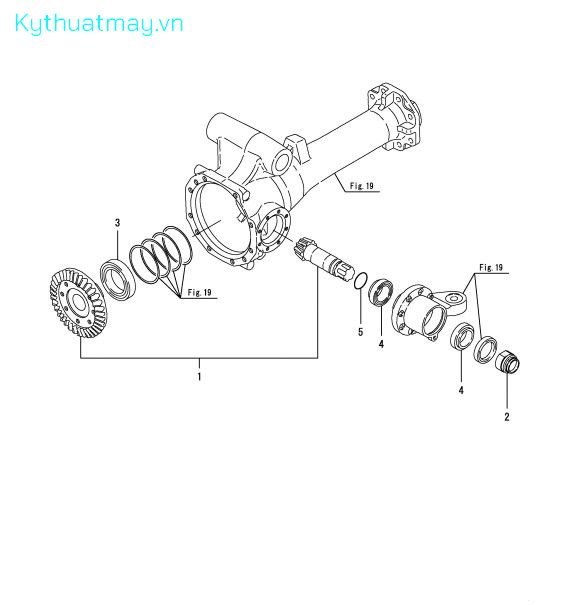

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | GEAR ASSY, RING | 198251-13100 | 9,046,000 | |
| 2 | COLLAR, SEAL | 1A7780-13670 | 578,000 | |
| 3 | BEARING, BALL 6012 | 24101-060124 | 223,000 | |
| 4 | BEARING, 32007 | 24141-320070 | 526,000 | |
| 4-1 | BEARING, ET-32007XST | 198133-13810 | 292,000 | |
| 5 | O-RING, 1AS31.5 | 24341-000315 | 8,000 |

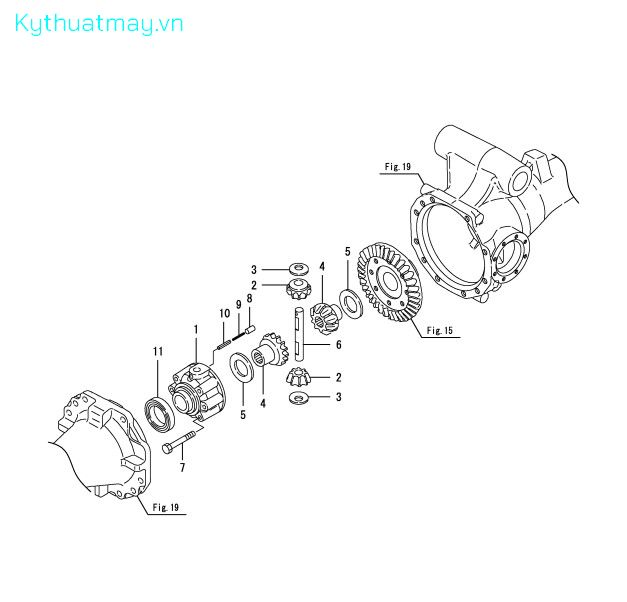

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | CASE, DIFFERENTIAL | 194641-13210 | 2,750,000 | |
| 2 | PINION, DIFFERENTIAL | 194321-13230 | 745,000 | |
| 3 | LINER, DIFFERENTIAL | 194465-13240 | 106,000 | |
| 4 | GEAR, DIFFERENTIAL | 194321-13250 | 847,000 | |
| 5 | WASHER, DIFFERENTIAL | 194465-13260 | 156,000 | |
| 6 | SHAFT, DIFFERENTIAL | 194321-13270 | 338,000 | |
| 7 | BOLT, M10X70 | 194323-13290 | 209,000 | |
| 7-1 | BOLT, M10X70 | 194480-33550 | 30,000 | |
| 8 | PIN, PARALLEL M10X18 | 22312-100180 | 34,000 | |
| 9 | PIN, SPRING 3.5X32 | 22351-035032 | 5,000 | |
| 10 | PIN, SPRING 6.0X32 | 22351-060032 | 6,000 | |
| 11 | BEARING, BALL 6010 | 24101-060104 | 195,000 |

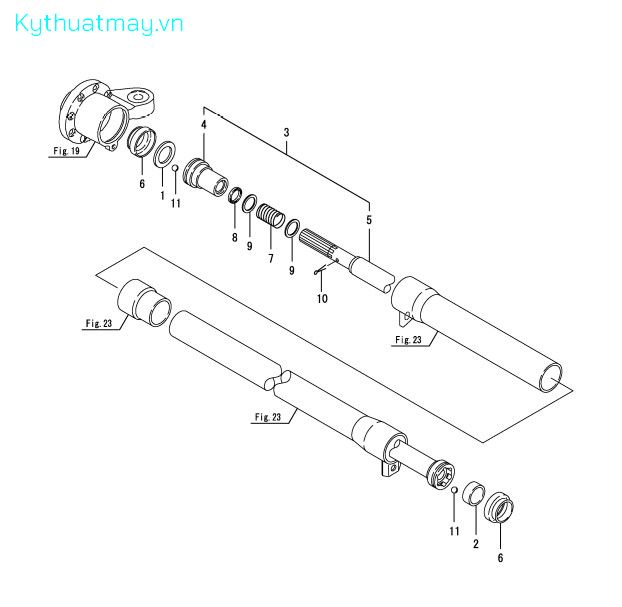

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | SPACER, 33X48X 2 | 198251-13270 | 310,000 | |
| 2 | SPACER, 33X40X15.5 | 198241-13280 | 523,000 | |
| 3 | SHAFT ASSY,PROPELLER | 198137-13300 | ||
| 4 | COUPLING, B | 198133-13340 | ||
| 5 | SHAFT, PROPELLER | 198137-13350 | 3,591,000 | |
| 6 | BOOT, RUBBER | 194274-13350 | 19,000 | |
| 7 | SPRING, RETAINER | 198441-13370 | 75,000 | |
| 8 | SEAL, SPLINE SHAFT | 194321-13380 | 61,000 | |
| 9 | SPACER | 1A7260-43650 | 30,000 | |
| 10 | PIN, COTTER 4.0X50 | 22417-400500 | 6,000 | |
| 11 | BALL, STEEL 11/32 | 24190-110001 | 5,000 |
_result.jpg)

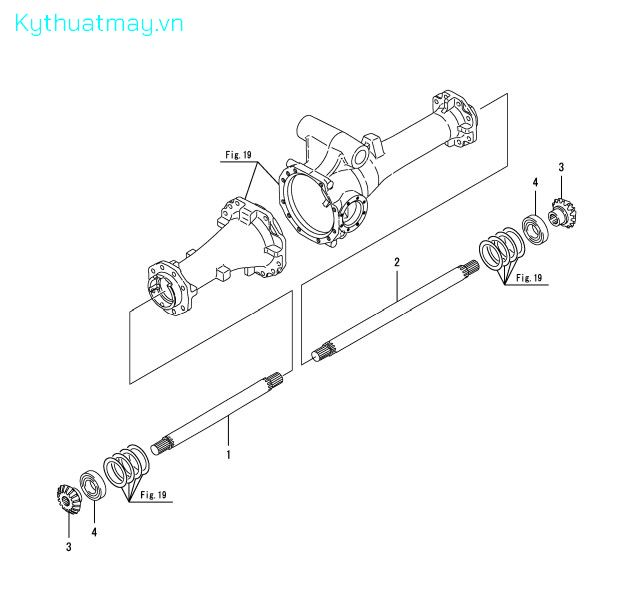

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | SHAFT, FRONT 1ST L | 198251-13510 | 2,040,000 | |
| 2 | SHAFT, FRONT 1ST R | 198251-13520 | 2,160,000 | |
| 3 | PINION, SHAFT | 1A7780-13520 | 1,407,000 | |
| 4 | BEARING, BALL 6208 | 24101-062084 | 184,000 | |
| 4-1 | BEARING, BALL TMB208 | 194641-13840 | 282,000 |
| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|

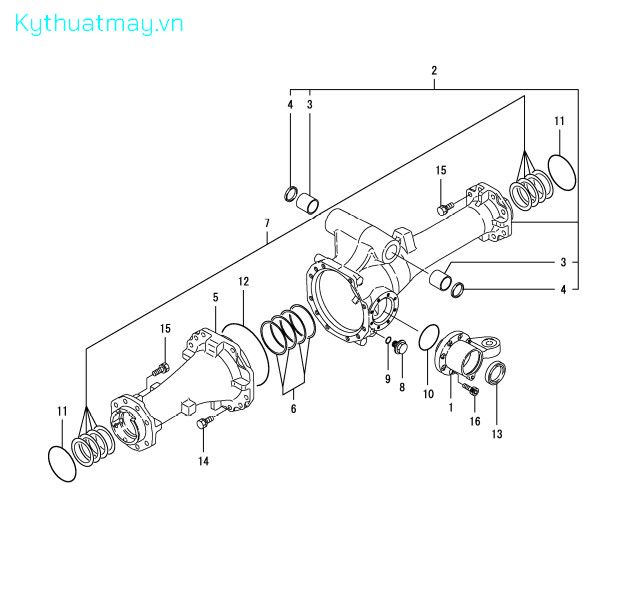

| 1 | RETAINER, BEARING | 198251-13450-2 | 7,320,000 | |
| 2 | HOUSING ASSY, AXLE R | 198251-13600-2 | 33,638,000 | |
| 3 | BUSH, 35X41X40 | 198251-11220 | 216,000 | |
| 4 | SEAL, OIL VB354105 | 194321-11940 | 41,000 | |
| 5 | HOUSING, FRONT AXLE | 198251-13610-2 | ||
| 6 | SHIM SET | 794321-13660 | 189,000 | |
| 7 | SHIM SET, PINION | 194641-13670 | 348,000 | |
| 8 | PLUG, 14 | 23491-140002 | 64,000 | |
| 9 | O-RING, 1AP16.0 | 24311-000160 | 3,000 | |
| 10 | O-RING, 1AG70.0 | 24321-000700 | 12,000 | |
| 11 | O-RING, 1AG100.0 | 24321-001000 | 25,000 | |
| 12 | O-RING, 1AG170.0 | 24321-001700 | 73,000 | |
| 13 | SEAL, OIL TC456209 | 24421-456209 | 69,000 | |
| 14 | BOLT, M12X 30 | 26013-120302 | 19,000 | |
| 15 | BOLT, M12X 30 | 26013-120302 | 19,000 | |
| 16 | BOLT, M8X 25 | 26450-080252 | 12,000 |
| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|

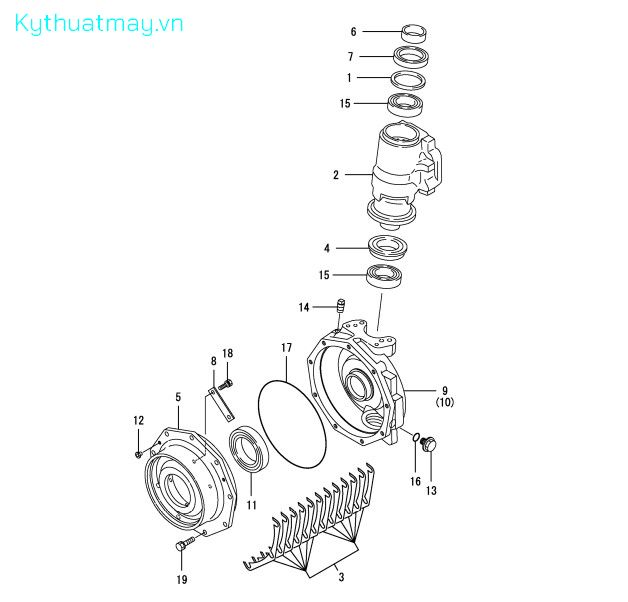

| 1 | SPACER, 85X1 | 194321-13680 | 64,000 | |
| 2 | CASE, FRONT GEAR | 198251-13710-2 | 24,425,000 | |
| 3 | SHIM SET | 198401-13720 | 202,000 | |
| 4 | SEAL, OIL 55X85 | 194641-13760 | 430,000 | |
| 5 | CASE, FRONT BEARING | 198401-13770-3 | ||
| 6 | SLEEVE, SI 50X55X18 | 194641-13780 | 207,000 | |
| 7 | SEAL, OIL TC6Y558514 | 194641-13790 | 176,000 | |
| 8 | RETAINER, BEARING | 198401-13790 | 785,000 | |
| 9 | BOX, GEAR L | 198401-13750-3 | 11,177,000 | |
| 10 | BOX, GEAR R | 198401-13850-3 | 11,177,000 | |
| 11 | SEAL, TC6Y8010515 | 194180-32670 | 245,000 | |
| 12 | CAP, SCREW 6.8 | 1A1120-68070 | ||
| 12-1 | PLUG, 7.8 | 194275-27750 | 44,000 | |
| 13 | PLUG, 14 | 23491-140002 | 64,000 | |
| 14 | PLUG, R01 | 23876-010000 | 55,000 | |
| 14-1 | PLUG, PF02 | 194151-36670 | ||
| 15 | BEARING, BALL 6209 | 24101-062094 | 225,000 | |
| 16 | O-RING, 1AP16.0 | 24311-000160 | 3,000 | |
| 17 | O-RING, 1AG220.0 | 24321-002200 | 117,000 | |
| 18 | BOLT, M8X 25 | 26013-080252 | 6,000 | |
| 19 | BOLT, M10X 25 | 26013-100252 | 11,000 |
_result.jpg)

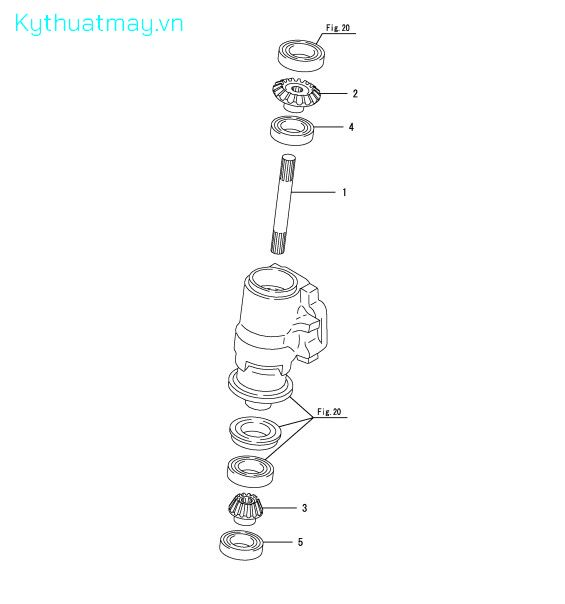

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | SHAFT, FRONT 2ND | 198251-13810 | 1,159,000 | |
| 2 | GEAR, FRONT SHAFT | 1A7780-13820 | 1,770,000 | |
| 3 | PINION, FRONT FINAL | 1A7780-13830 | 1,590,000 | |
| 4 | BEARING, BALL TMB208 | 194641-13840 | 282,000 | |
| 5 | BALL BEARING | 192160-34150 | 397,000 |
| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|

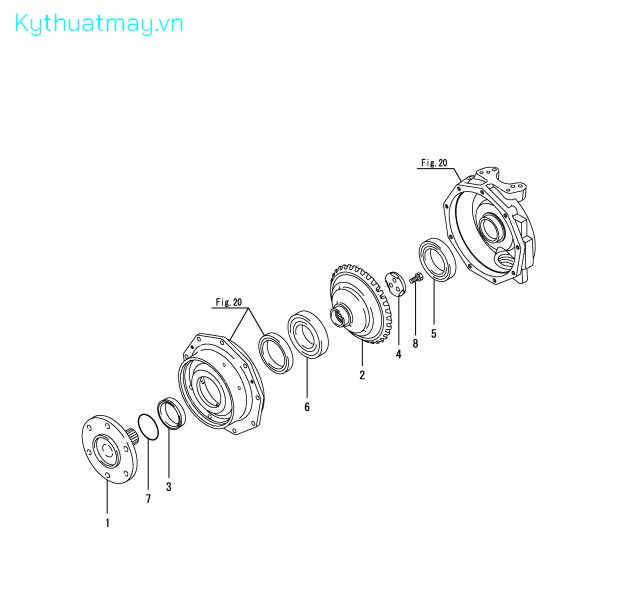

| 1 | SPINDLE, FRONT | 198401-14110-3 | ||
| 2 | GEAR, FRONT SHAFT | 198401-14120 | 8,024,000 | |
| 3 | COLLAR, SEAL | 198401-14130 | 728,000 | |
| 4 | WASHER | 1A7780-14180 | 199,000 | |
| 5 | BEARING, BALL 6014 | 24101-060144 | 308,000 | |
| 6 | BEARING, BALL 6213 | 24101-062134 | 484,000 | |
| 7 | O-RING, 1BG65.0 | 24325-000650 | 19,000 | |
| 8 | BOLT, M10X 25 PLATED | 26106-100252 | 12,000 | |
| 8-1 | BOLT, M10X 25 | 198208-11310 | 28,000 |

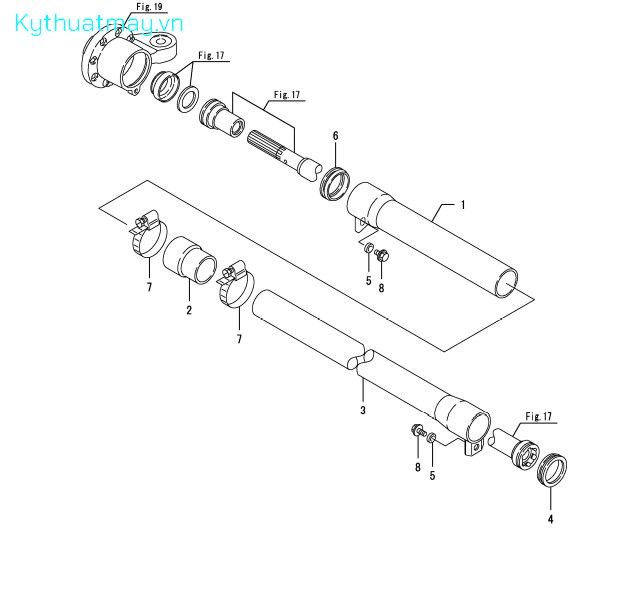

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | COVER, SHAFT FRONT | 1A7780-14600-1 | 1,760,000 | |
| 2 | BOOT, SHAFT COVER | 1A7781-14650 | 196,000 | |
| 3 | COVER, SHAFT | 1A7780-14700-1 | 2,040,000 | |
| 4 | SEAL, COVER 62 | 198255-14740 | 179,000 | |
| 5 | COLLAR, 8.1X10.5X4 | 1A7780-14740 | 58,000 | |
| 6 | SEAL, COVER 65 | 198255-14760 | 190,000 | |
| 7 | CLAMP, 70 | 23000-070000 | 73,000 | |
| 8 | BOLT, M8X 12 PLATED | 26106-080122 | 3,000 |
| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|

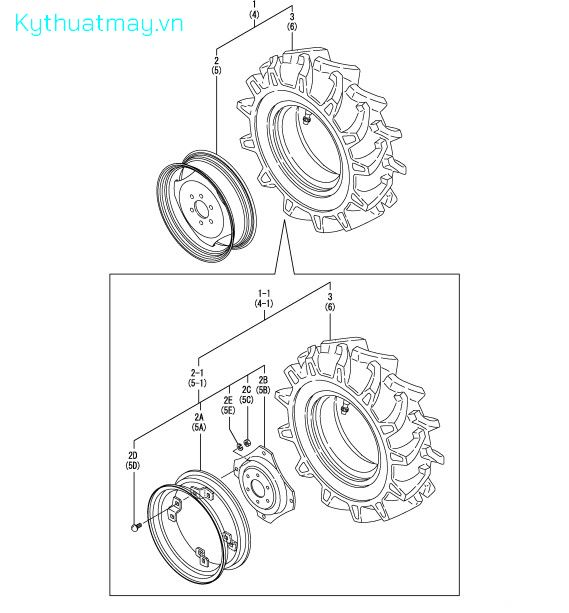

| 1 | TIRE&WHEEL KIT, L.H. | 1A7781-14300 | ||
| 1-1 | TIRE KIT, 8-18-6 LH | 1A7780-14301 | 5,809,000 | |
| 2 | WHEEL ASSY, W6X18 | 1A7780-14170 | ||
| 2-1 | WHEEL ASSY, W6X18 | 1A7780-14140 | 5,255,000 | |
| 2A | RIM, W6X18 | 1A7780-14110 | 10,712,000 | |
| 2B | DISK | 1A7780-14120 | ||
| 2C | NUT, M16 | 1A7780-14770 | 129,000 | |
| 2D | BOLT, M16X37 | 1A7780-14790 | 139,000 | |
| 2E | WASHER, 16 | 194065-34170 | 70,000 | |
| 3 | TIRE ASSY, 8-18-6 | 1A7780-14310 | 5,570,000 | |
| 4 | TIRE&WHEEL KIT, R.H. | 1A7781-14350 | ||
| 4-1 | TIRE KIT, 8-18-6 LR | 1A7780-14351 | 5,809,000 | |
| 5 | WHEEL ASSY, W6X18 | 1A7780-14170 | ||
| 5-1 | WHEEL ASSY, W6X18 | 1A7780-14140 | 5,255,000 | |
| 5A | RIM, W6X18 | 1A7780-14110 | 10,712,000 | |
| 5B | DISK | 1A7780-14120 | ||
| 5C | NUT, M16 | 1A7780-14770 | 129,000 | |
| 5D | BOLT, M16X37 | 1A7780-14790 | 139,000 | |
| 5E | WASHER, 16 | 194065-34170 | 70,000 | |
| 6 | TIRE ASSY, 8-18-6 | 1A7780-14310 | 5,570,000 |
| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|

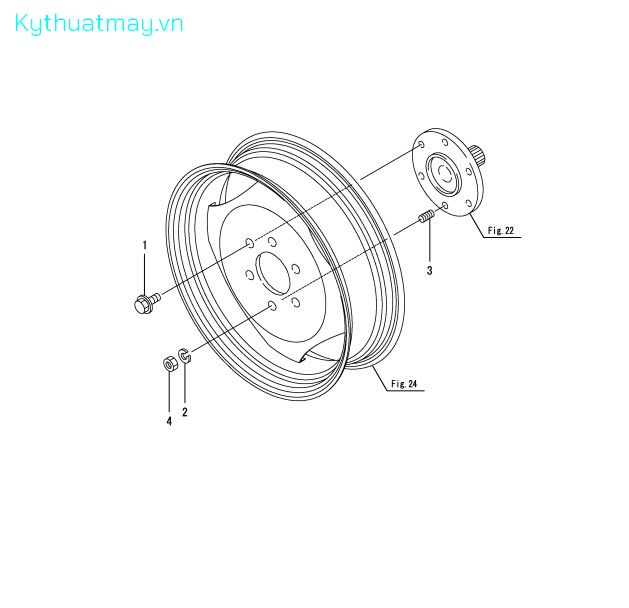

| 1 | BOLT, M14X24 | 194881-12650 | 45,000 | |
| 2 | WASHER, 14 | 194279-14220 | 50,000 | |
| 3 | STUD, M14X31 | 198200-34130 | 58,000 | |
| 4 | NUT, M14 | 198200-34190 | 95,000 |

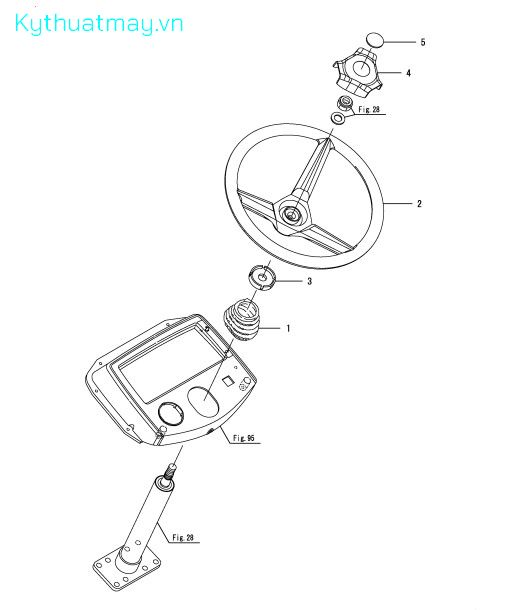

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | COVER, COLUMN | 198220-15650 | ||
| 2 | WHEEL, STEERING | 198133-15710 | 1,401,000 | |
| 3 | COVER, STEERING | 1A8115-15720 | 27,000 | |
| 4 | CAP, STEERING | 198133-15750 | 134,000 | |
| 5 | NAMEPLATE,HANDLE | 198133-15780 | 224,000 |
| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|

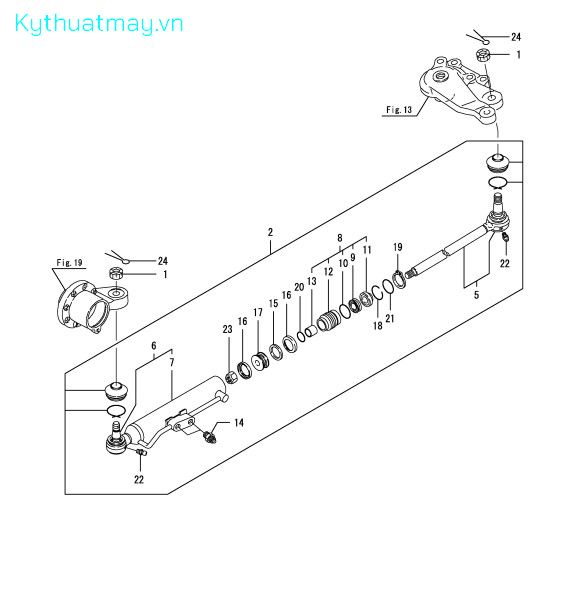

| 1 | NUT, CASTLE M16 | 194180-12471 | 134,000 | |
| 2 | CYLINDER ASSY | 7A7780-17501 | ||
| 5 | ROD ASSY, STEERING | 1A7780-17511 | 15,497,000 | |
| 6 | TUBE ASSY, CYLINDER | 1A7780-17530-1 | 14,855,000 | |
| 7 | TUBE, CYLINDER | 1A7780-17540 | 9,784,000 | |
| 8 | CAP ASSY, CYLINDER | 1A7780-17551 | 3,321,000 | |
| 9 | PACKING, 22 | 1A7780-17560 | 281,000 | |
| 10 | PACKING, 34 | 1A7780-17570 | 218,000 | |
| 11 | SCRAPER, 22 | 1A7780-17581 | 560,000 | |
| 12 | CAP, CYLINDER | 1A7780-17591 | ||
| 13 | BUSH, 22X20 | 24550-022200 | 139,000 | |
| 14 | ADAPTER, 1/4 | 194065-38380 | 190,000 | |
| 15 | PACKING | 172156-72330 | 307,000 | |
| 16 | BEARING | 172156-72340 | 634,000 | |
| 17 | PISTON, CYLINDER | 198071-72750 | 4,213,000 | |
| 18 | RING, 40X3.2 | 22207-040320 | 223,000 | |
| 19 | RING, 36 | 22242-000360 | 41,000 | |
| 20 | O-RING, 1BP18.0 | 24315-000180 | 11,000 | |
| 21 | O-RING, 1A24035 | 24351-240350 | 95,000 | |
| 22 | NIPPLE, GREASE MT6X1 | 24761-060000 | 47,000 | |
| 23 | NUT, LOCK M14 | 26996-140002 | ||
| 23-1 | NUT, M14 | 26356-140002 | 114,000 | |
| 24 | PIN, COTTER 4.0X25 | 22417-400250 |

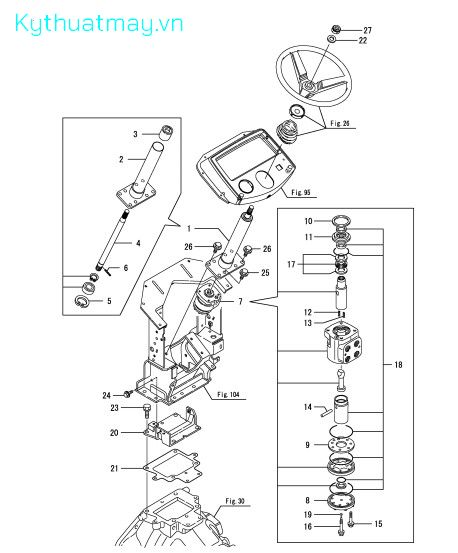

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | COLUMN ASSY,STEERING | 1A7780-17300 | 6,964,000 | |
| 2 | COLUMN ASSY,STEERING | 198230-17311 | 4,285,000 | |
| 3 | BUSH, COLUMN | 194640-17340 | 680,000 | |
| 4 | SHAFT, STEERING 1 | 1A7780-17370 | ||
| 5 | RING, 42 | 22252-000420 | 17,000 | |
| 6 | PIN, SPRING 4.0X25 | 22351-040025 | 12,000 | |
| 7 | VALVE ASSY, STEERING | 198251-17500 | ||
| 8 | CAP, END | 194337-17220 | 6,784,000 | |
| 9 | PLATE, SPACER | 194337-17251 | 1,641,000 | |
| 10 | RING, RETAINING | 194337-17390 | 164,000 | |
| 11 | BUSH, SEAL GRAND | 194337-17400 | 1,600,000 | |
| 12 | SPRING | 194337-17520 | ||
| 13 | SPRING | 194337-17530 | ||
| 14 | PIN | 194337-17540 | 255,000 | |
| 15 | SCREW | 198220-17610 | 59,000 | |
| 16 | SCREW ASSY, RETAINER | 198220-17620 | 64,000 | |
| 17 | BEARING ASSY, NEEDLE | 198153-17630 | ||
| 18 | SEAL KIT | 198220-17642 | 3,275,000 | |
| 19 | BALL, STEEL 7/32 | 24190-070001 | 25,000 | |
| 20 | COVER, HOUSING | 198240-17870 | 523,000 | |
| 21 | PACKING, CLUTCH | 198327-21150 | 322,000 | |
| 22 | WASHER, 16 | 22137-160000 | 6,000 | |
| 23 | BOLT, M12X 20 | 26013-120202 | 41,000 | |
| 24 | BOLT, M8X 16 PLATED | 26106-080162 | 6,000 | |
| 25 | BOLT, M10X 20 PLATED | 26106-100202 | 11,000 | |
| 26 | BOLT, M10X 20 PLATED | 26106-100202 | 11,000 | |
| 27 | NUT, M16 | 26356-160002 | 129,000 |
| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | PIPE, PRESSURE L | 198253-17700-1 | 1,641,000 | |
| 2 | PIPE, PRESSURE T | 198253-17750-1 | 2,081,000 | |
| 3 | PIPE, PRESSURE R | 1A7780-17780-1 | 1,999,000 | |
| 4 | BRACKET | 198240-17840 | 148,000 | |
| 5 | HOSE, HYDRAULIC 450 | 1A7781-17850 | 873,000 | |
| 6 | HOSE, HYDRAULIC 350 | 1A7781-17860 | 838,000 | |
| 7 | HOSE, RETURN RUBBER | 194556-17870 | ||
| 8 | CLAMP, PIPE 12 | 198220-46560 | 198,000 | |
| 9 | BOLT, M3/4-16 | 198245-46680 | ||
| 10 | FLANGE, PIPE P | 198220-48140 | 721,000 | |
| 11 | CLAMP | 194450-48830 | 104,000 | |
| 12 | RUBBER, ABSORBER | 194464-48850 | ||
| 13 | CLAMP, 18 | 23010-018000 | 55,000 | |
| 14 | GASKET, 19X1.0 | 23414-190000 | 17,000 | |
| 15 | O-RING, 1AP20.0 | 24311-000200 | 3,000 | |
| 16 | O-RING, 1AP20.0 | 24311-000200 | 3,000 | |
| 17 | BOLT, M6X 35 | 26018-060352 | 30,000 | |
| 18 | BOLT, M6X 20 PLATED | 26106-060202 | 5,000 | |
| 19 | BOLT, M6X 40 PLATED | 26106-060402 | 30,000 | |
| 20 | BOLT, M8X 16 PLATED | 26106-080162 | 6,000 | |
| 21 | BOLT, M8X 16 PLATED | 26106-080162 | 6,000 | |
| 22 | BOLT, M8X 20 PLATED | 26106-080202 | 6,000 | |
| 23 | BOLT, M8X 20 PLATED | 26106-080202 | 6,000 |
