Kỹ thuật, phụ tùng máy cơ giới

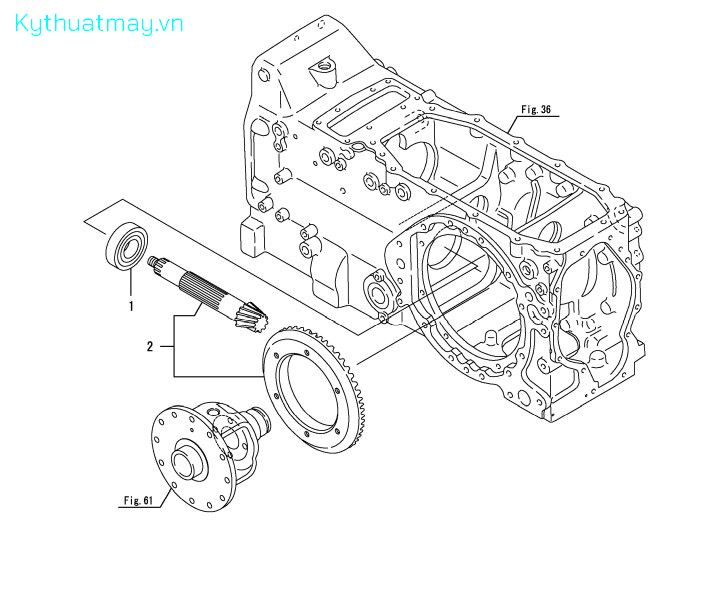

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | BEARING, 6307R SH2 | 198390-25790 | 413,000 | |
| 2 | GEAR ASSY, RING | 198149-31400 | 14,282,000 |

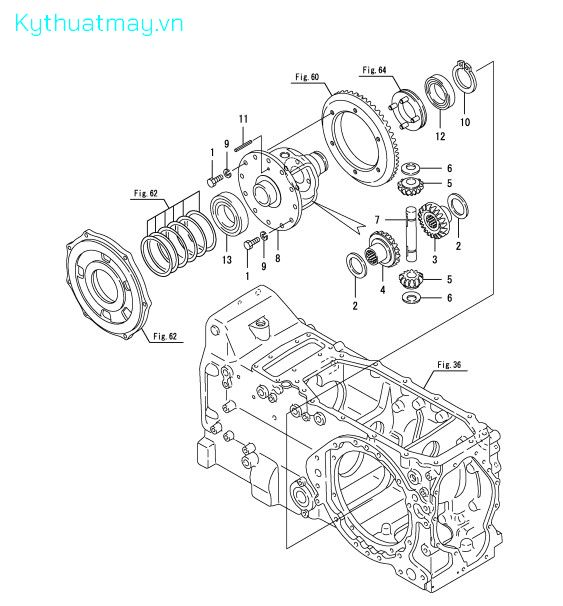

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | BOLT, M10X25 | 194066-13130 | 64,000 | |
| 2 | WASHER, DIFFERENTIAL | 198320-31530 | 53,000 | |
| 3 | GEAR, DIFFERENTIAL | 198320-31550 | 2,027,000 | |
| 4 | GEAR, DIFFERENTIAL | 194320-31560 | 1,395,000 | |
| 5 | PINION, DIFFERENTIAL | 198320-31570 | 915,000 | |
| 6 | WASHER, DIFFERENTIAL | 198320-31630 | 53,000 | |
| 7 | SHAFT, DIFFERENTIAL | 198320-31820 | 923,000 | |
| 8 | CASE, DIFFERENTIAL | 198320-32111 | 6,620,000 | |
| 9 | WASHER, SPRING 10 | 22217-100000 | 2,000 | |
| 10 | RING, 50 | 22242-000500 | 12,000 | |
| 11 | PIN, SPRING 6.0X50 | 22351-060050 | 34,000 | |
| 12 | BEARING, BALL 6010 | 24101-060104 | 195,000 | |
| 13 | BEARING, BALL 6211 | 24101-062114 | 419,000 |

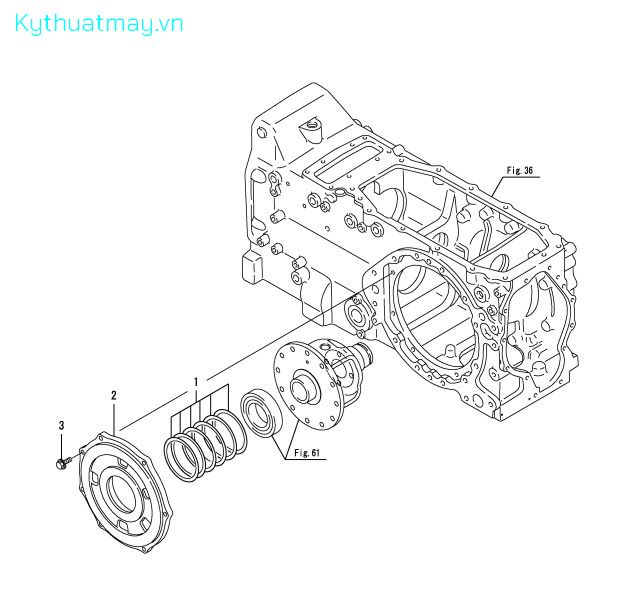

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | SHIM SET | 794251-13910 | 213,000 | |
| 2 | CARRIER | 198250-32310 | ||
| 2-1 | CARRIER, DIFF. | 1A7601-32310 | 1,599,000 | |
| 3 | BOLT, M8X 25 PLATED | 26106-080252 | 11,000 |

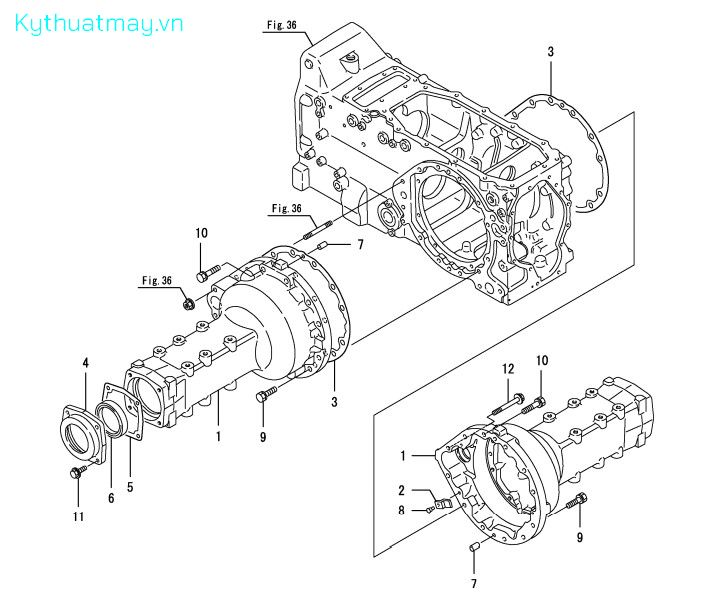

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | HOUSING, REAR AXLE | 198212-32611-X | ||
| 2 | PLATE, PUSH | 194180-32640 | 75,000 | |
| 3 | PACKING, AXLE | 198240-32640 | 258,000 | |
| 4 | CASE, OIL SEAL | 194640-32650-3 | 1,199,000 | |
| 5 | GASKET, SEAL CASE | 198320-32660 | 64,000 | |
| 6 | SEAL, QLNY7210016 | 198535-32660 | 796,000 | |
| 7 | PIN, PARALLEL M10X18 | 22312-100180 | 34,000 | |
| 8 | RIVET, 6.0X12 | 22635-600120 | 25,000 | |
| 9 | BOLT, M12X 40 | 26013-120402 | 23,000 | |
| 10 | BOLT, M12X 50 | 26013-120502 | 44,000 | |
| 11 | BOLT, M10X 30 PLATED | 26106-100302 | 12,000 | |
| 12 | BOLT, M10X 85 PLATED | 26106-100852 | 27,000 |

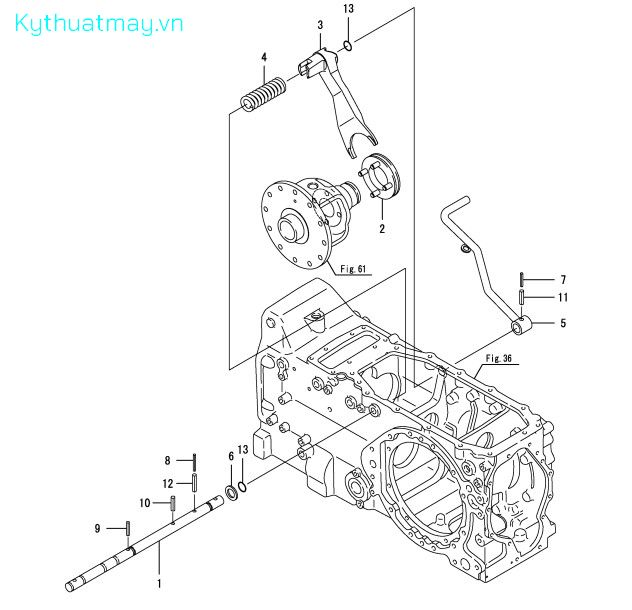

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | SHAFT, LOCK | 198254-33110 | 598,000 | |
| 2 | SLIDER, DIFFERENTIAL | 194464-33130 | 1,017,000 | |
| 3 | FORK, SHIFT | 1A7350-33140 | 896,000 | |
| 4 | SPRING, RETURN | 194150-33150 | ||
| 5 | PEDAL, LOCK | 198240-33151 | ||
| 6 | SPACER, 20X32X3.2 | 194300-33200 | 70,000 | |
| 7 | PIN, SPRING 5.0X32 | 22351-050032 | 30,000 | |
| 8 | PIN, SPRING 5.0X40 | 22351-050040 | 12,000 | |
| 9 | PIN, SPRING 6.0X32 | 22351-060032 | 6,000 | |
| 10 | PIN, SPRING 8.0X32 | 22351-080032 | 34,000 | |
| 11 | PIN, SPRING 8.0X32 | 22351-080032 | 34,000 | |
| 12 | PIN, SPRING 8.0X40 | 22351-080040 | 14,000 | |
| 13 | O-RING, 1AP15.0 | 24311-000150 | 3,000 |

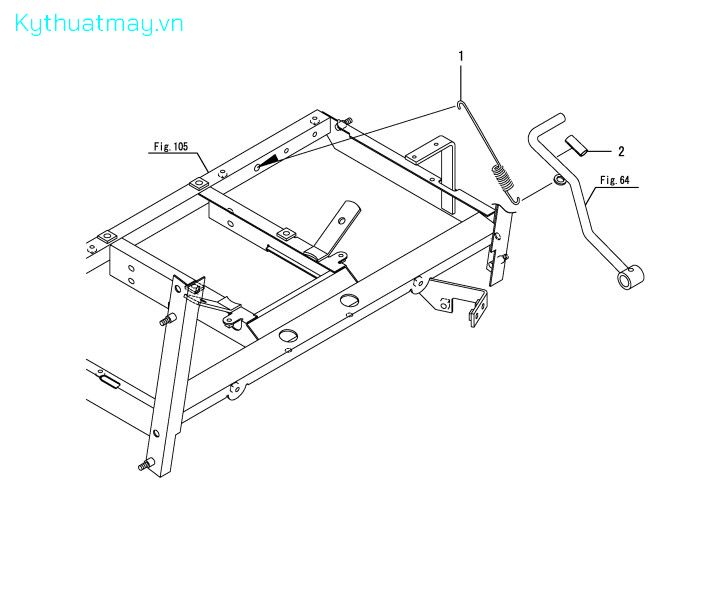

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | SPRING, PEDAL | 1A7781-33170 | 33,000 | |
| 2 | PIPE, LEVER PROTECT | 1A7781-33180 | 37,000 |

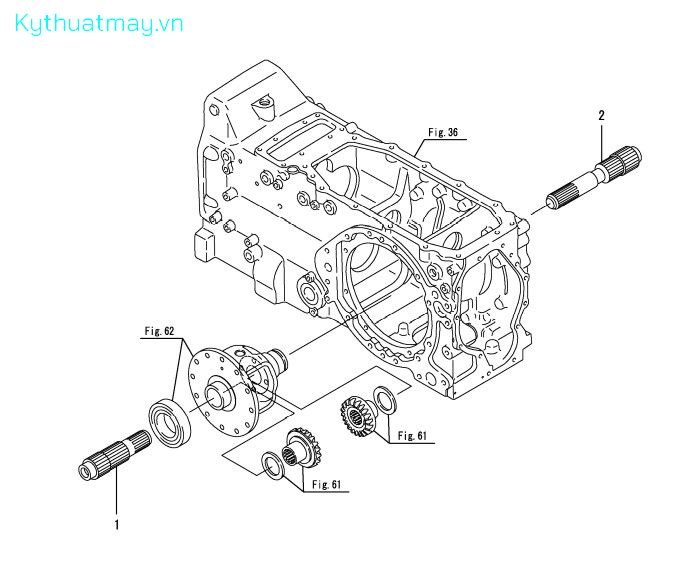

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | PINION, FINAL L | 198320-33412 | 3,784,000 | |
| 2 | PINION, FINAL R | 198320-33422 | 3,457,000 |

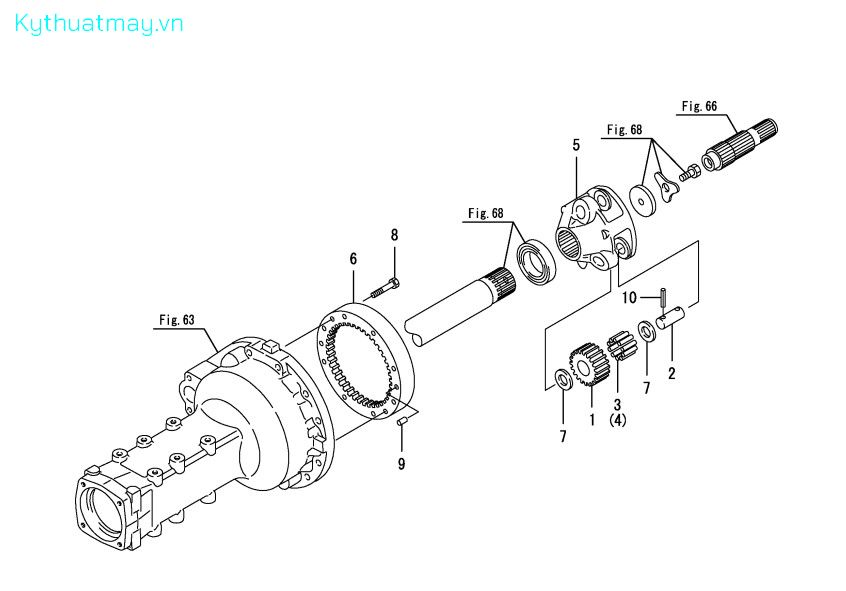

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | PINION, PLANETARY | 198320-33540 | 1,114,000 | |
| 2 | SHAFT, PLANETARY | 198320-33550 | 241,000 | |
| 3 | NEEDLE, 4.5X31.8 | 198320-33560 | 9,000 | |
| 4 | NEEDLE, 4.5X31.8 | 198320-33560 | 9,000 | |
| 5 | CARRIER, PLANETARY | 198320-33570 | 4,745,000 | |
| 6 | GEAR, INTERNAL | 198320-33610 | 9,674,000 | |
| 7 | WASHER, 26X42X1 | 198320-33620 | 98,000 | |
| 8 | BOLT, M10X55 | 198217-33650 | 22,000 | |
| 9 | PIN, PARALLEL M10X18 | 22312-100180 | 34,000 | |
| 10 | PIN, SPRING 8.0X40 | 22351-080040 | 14,000 |

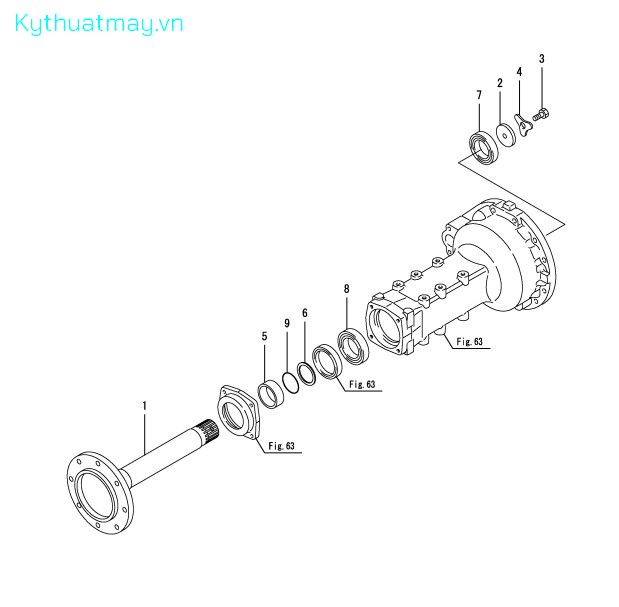

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | SHAFT, REAR AXLE | 1A7781-34130 | 8,698,000 | |
| 2 | WASHER, 13X64X9 | 194640-34130 | 228,000 | |
| 3 | BOLT, M12X30 | 194640-34140 | 23,000 | |
| 4 | WASHER, THRUST | 194640-34150 | 62,000 | |
| 5 | COLLAR, 60X72X26 | 198535-34360 | 675,000 | |
| 6 | SPACER, O-RING | 194145-34390 | 70,000 | |
| 7 | BEARING, BALL 6011 | 24101-060114 | 199,000 | |
| 8 | BEARING, BALL 6212 | 24101-062124 | 383,000 | |
| 9 | O-RING, 1AG60.0 | 24321-000600 | 11,000 |

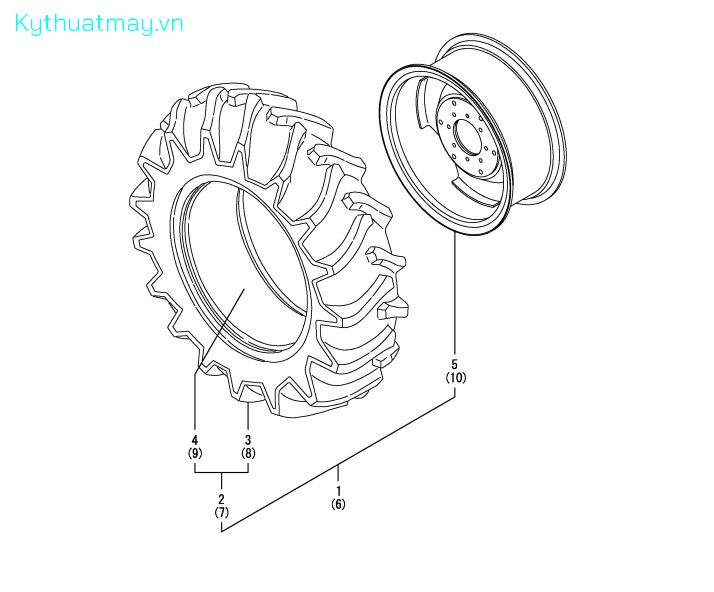

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | TIRE&WHEEL KIT, L.H. | 1A7781-34550 | 25,482,000 | |
| 2 | TIRE ASSY, 13.6-26-6 | 1A7781-34630 | 16,706,000 | |
| 3 | TIRE, 13.6-26-6 | 1A7781-34640 | 20,860,000 | |
| 4 | TUBE, 13.6-26 | 1A7780-34740 | 3,681,000 | |
| 5 | WHEEL ASSY, W11-26W | 1A7781-34750 | 8,229,000 | |
| 6 | TIRE&WHEEL KIT, R.H. | 1A7781-34560 | 25,482,000 | |
| 7 | TIRE ASSY, 13.6-26-6 | 1A7781-34630 | 16,706,000 | |
| 8 | TIRE, 13.6-26-6 | 1A7781-34640 | 20,860,000 | |
| 9 | TUBE, 13.6-26 | 1A7780-34740 | 3,681,000 | |
| 10 | WHEEL ASSY, W11-26W | 1A7781-34750 | 8,229,000 |

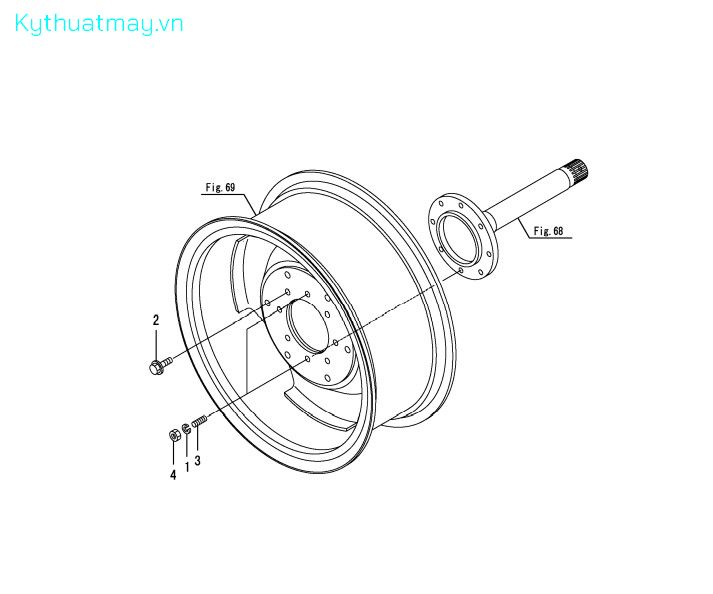

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | WASHER, 14 | 194279-14220 | 50,000 | |
| 2 | BOLT, M14X45 | 198146-34120 | 53,000 | |
| 3 | STUD, M14X40 | 198282-34160 | 318,000 | |
| 4 | NUT, M14 | 198200-34190 | 95,000 |

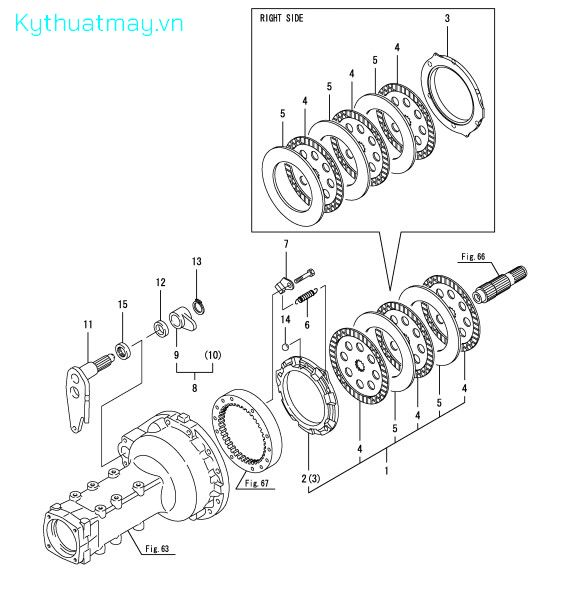

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | BRAKE ASSY | 198320-36200 | 15,816,000 | |
| 1-1 | BRAKE ASSY | 1A7601-36200 | ||
| 2 | ACTUATOR | 198240-36310 | 4,857,000 | |
| 2-1 | ACTUATOR, L | 1A7601-36310 | 1,411,000 | |
| 3 | ACTUATOR | 198240-36320 | 8,213,000 | |
| 3-1 | ACTUATOR, R | 1A7601-36320 | 1,411,000 | |
| 4 | PLATE, FRICTION 226 | 198240-36351 | 1,999,000 | |
| 4-1 | PLATE, FRICTION 226 | 1A7601-36350 | 950,000 | |
| 5 | PLATE, STEEL 3.2 | 198240-36520 | 1,271,000 | |
| 5-1 | PLATE, STEEL 3.2 | 1A8275-36520 | 886,000 | |
| 6 | SPRING, ACTUATOR | 194205-36320 | 22,000 | |
| 7 | HOOK, RETURN SPRING | 198240-36380 | 98,000 | |
| 8 | LEVER ASSY, CAM | 198240-36700 | 3,249,000 | |
| 9 | CAMSHAFT, BRAKE L | 198240-36710 | 1,718,000 | |
| 10 | CAMSHAFT, BRAKE R | 198240-36720 | 1,718,000 | |
| 11 | SHAFT, CAM LEVER | 198240-36730-2 | 1,562,000 | |
| 12 | SLEEVE, CAM LEVER | 198320-36790 | ||
| 13 | RING, 29 | 22242-000290 | 30,000 | |
| 14 | BALL, STEEL 9/16 | 24190-180001 | 9,000 | |
| 15 | SEAL, OIL TC304208 | 24421-304208 | 59,000 |

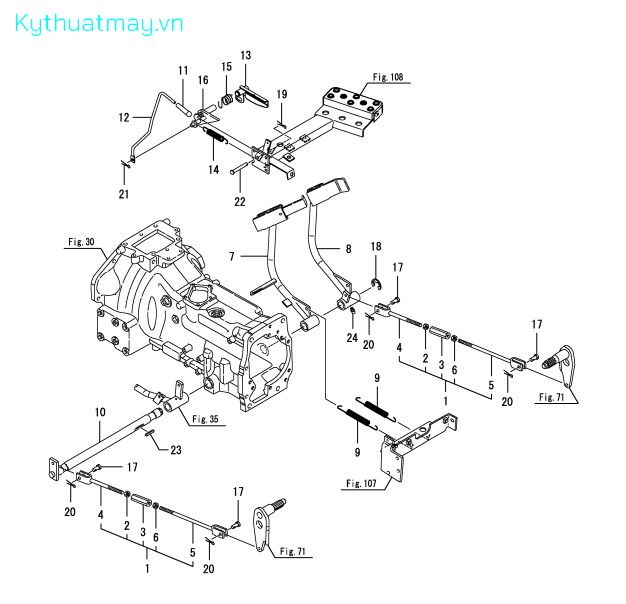

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | ROD ASSY, BRAKE | 794525-37000 | 500,000 | |
| 2 | NUT, M10 L | 194150-22480 | ||
| 3 | TURNBUCKLE | 194130-37730 | 214,000 | |
| 4 | ROD, BRAKE L | 194310-37741 | ||
| 5 | ROD, BRAKE R | 194134-37771 | ||
| 6 | NUT, M10 | 26716-100002 | 30,000 | |
| 7 | PEDAL, L.H. BRAKE | 1A7781-37420 | ||
| 8 | PEDAL, R.H. BRAKE | 1A7781-37470 | 1,232,000 | |
| 9 | SPRING, RETURN | 198240-37510 | 73,000 | |
| 10 | SHAFT, BRAKE PEDAL | 198240-37550-1 | 1,521,000 | |
| 11 | KNOB, PARKING BRAKE | 198253-37610 | 98,000 | |
| 12 | ROD, PARKING | 1A7781-37640 | ||
| 13 | LEVER, BRAKE LOCK | 198254-37660 | 1,083,000 | |
| 14 | SPRING, RETURN | 198220-37700 | 20,000 | |
| 15 | SPRING, | 1A7781-37720 | 9,000 | |
| 16 | LEVER, PARKING B | 198240-37850 | 5,749,000 | |
| 17 | PIN, 8X24 | 198220-37900 | 70,000 | |
| 18 | RING, E-19 | 22272-000190 | 34,000 | |
| 19 | PIN, COTTER 2.0X30 | 22417-200300 | 25,000 | |
| 20 | PIN, COTTER 2.5X30 | 22417-250300 | ||
| 21 | PIN, COTTER 2.5X30 | 22417-250300 | ||
| 22 | PIN, H10X 70 | 22487-100700 | 48,000 | |
| 23 | KEY, 7X 40 | 22512-070400 | 55,000 | |
| 24 | NIPPLE, GREASE M6F | 24761-010000 | 14,000 |
