Kỹ thuật, phụ tùng máy cơ giới
| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | BOLT, M12X30 | 198133-13780 | 114,000 | |
| 2 | SHIM SET | 1A6650-31350 | 325,000 | |
| 3 | GEAR ASSY, RING | 1A8292-31410 | 7,915,000 | |
| 4 | SHAFT, COUNTER | 1A8292-31420 | ||
| 5 | GEAR, RING | 1A8292-31430 | ||
| 6 | RETAINER, BEARING | 1A8296-31440 | ||
| 7 | NUT, LOCK | 1A6650-31450 | ||
| 8 | COUPLING, | 1A8296-31460 | ||
| 9 | BEARING ASSY | 1A8296-31481 | ||
| 10 | GEAR,DIFF,SIDE | 192180-31510 | 2,657,000 | |
| 11 | GEAR, DIFF. SIDE | 1N3590-31510 | 3,079,000 | |
| 12 | WASHER,DIFF SIDE | 192180-31550 | 269,000 | |
| 13 | CASE, DIFFERENTIAL | 1A8292-31640 | 3,882,000 | |
| 1 | BOLT, M12X30 | 198133-13780 | 114,000 | |
| 14 | SHAFT, DIFF PINION | 1A8060-31800 | 1,962,000 | |
| 15 | SHAFT, DIFF PINION | 1A8060-31810 | 2,272,000 | |
| 2 | SHIM SET | 1A6650-31350 | 325,000 | |
| 3 | GEAR ASSY, RING | 1A8292-31410 | 7,915,000 | |
| 16 | WASHER,DIFF PINION | 192180-31850 | 80,000 | |
| 4 | SHAFT, COUNTER | 1A8292-31420 | ||
| 17 | PINION, DIFFERENTIAL | 1A7090-31850 | 374,000 | |
| 5 | GEAR, RING | 1A8292-31430 | ||
| 6 | RETAINER, BEARING | 1A8296-31440 | ||
| 18 | PIN, SPRING 6.0X56 | 22351-060056 | 34,000 | |
| 7 | NUT, LOCK | 1A6650-31450 | ||
| 19 | BEARING, BALL 6207 | 24101-062074 | ||
| 8 | COUPLING, | 1A8296-31460 | ||
| 20 | BEARING, BALL 6210 | 24101-062104 | ||
| 9 | BEARING ASSY | 1A8296-31481 | ||
| 10 | GEAR,DIFF,SIDE | 192180-31510 | 2,657,000 | |
| 21 | BEARING, BALL 6212 | 24101-062124 | 383,000 | |
| 22 | BOLT, M10X 30 PLATED | 26106-100302 | 12,000 | |
| 11 | GEAR, DIFF. SIDE | 1N3590-31510 | 3,079,000 | |
| 12 | WASHER,DIFF SIDE | 192180-31550 | 269,000 | |
| 13 | CASE, DIFFERENTIAL | 1A8292-31640 | 3,882,000 | |
| 14 | SHAFT, DIFF PINION | 1A8060-31800 | 1,962,000 | |
| 15 | SHAFT, DIFF PINION | 1A8060-31810 | 2,272,000 | |
| 16 | WASHER,DIFF PINION | 192180-31850 | 80,000 | |
| 17 | PINION, DIFFERENTIAL | 1A7090-31850 | 374,000 | |
| 18 | PIN, SPRING 6.0X56 | 22351-060056 | 34,000 | |
| 19 | BEARING, BALL 6207 | 24101-062074 | ||
| 20 | BEARING, BALL 6210 | 24101-062104 | ||
| 21 | BEARING, BALL 6212 | 24101-062124 | 383,000 | |
| 22 | BOLT, M10X 30 PLATED | 26106-100302 | 12,000 |

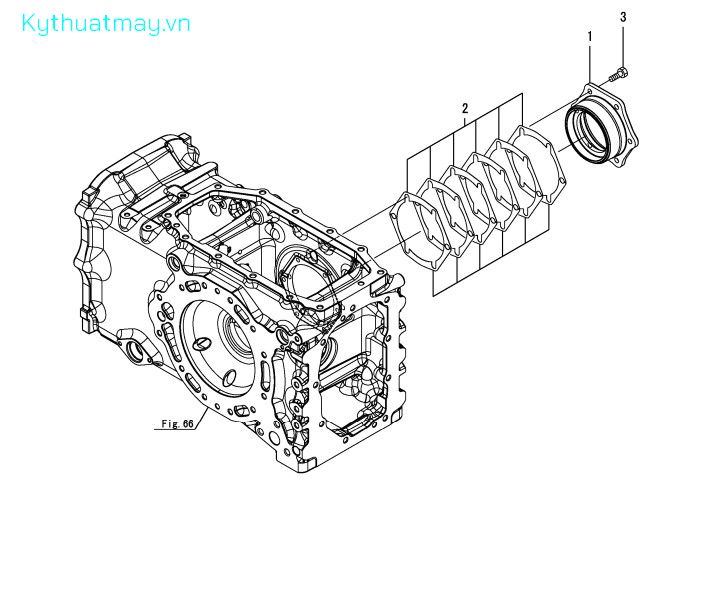

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | CARRIER,DIFFERENTIAL | 1A8292-32310 | 1,679,000 | |
| 2 | SHIM CMP | 192180-32360 | 721,000 | |
| 3 | BOLT, M10X 25 PLATED | 26116-100252 | ||
| 1 | CARRIER,DIFFERENTIAL | 1A8292-32310 | 1,679,000 | |
| 2 | SHIM CMP | 192180-32360 | 721,000 | |
| 3 | BOLT, M10X 25 PLATED | 26116-100252 |

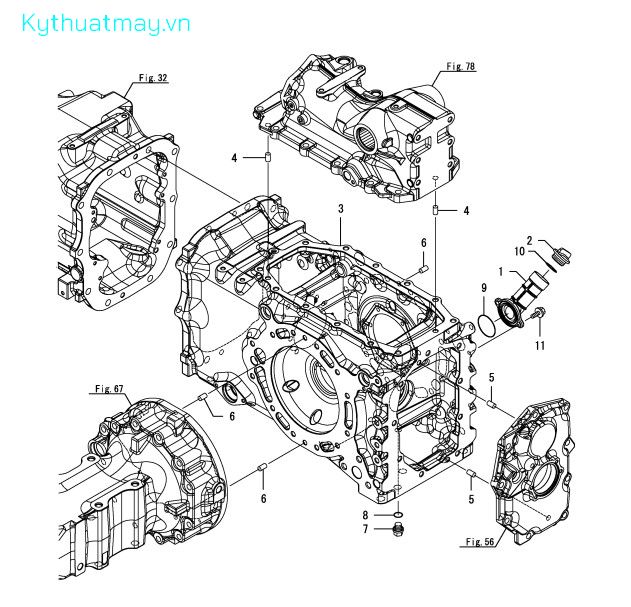

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | NECK, FILLER | 198240-24690 | ||
| 2 | CAP, OIL | 1A7870-24910 | 173,000 | |
| 3 | HOUSING, DIFF. | 1A8292-32410-1 | ||
| 4 | PIN, PARALLEL M10X18 | 22312-100180 | 34,000 | |
| 5 | PIN, PARALLEL M10X18 | 22312-100180 | 34,000 | |
| 6 | PIN, PARALLEL M10X18 | 22312-100180 | 34,000 | |
| 7 | PLUG, 14 | 23491-140002 | 64,000 | |
| 8 | O-RING, 1AP16.0 | 24311-000160 | 3,000 | |
| 9 | O-RING, 1AP50.0 | 24311-000500 | 17,000 | |
| 10 | O-RING, 1A24030 | 24351-240300 | 9,000 | |
| 1 | NECK, FILLER | 198240-24690 | ||
| 2 | CAP, OIL | 1A7870-24910 | 173,000 | |
| 11 | BOLT, M8X 20 PLATED | 26106-080202 | 6,000 | |
| 3 | HOUSING, DIFF. | 1A8292-32410-1 | ||
| 4 | PIN, PARALLEL M10X18 | 22312-100180 | 34,000 | |
| 5 | PIN, PARALLEL M10X18 | 22312-100180 | 34,000 | |
| 6 | PIN, PARALLEL M10X18 | 22312-100180 | 34,000 | |
| 7 | PLUG, 14 | 23491-140002 | 64,000 | |
| 8 | O-RING, 1AP16.0 | 24311-000160 | 3,000 | |
| 9 | O-RING, 1AP50.0 | 24311-000500 | 17,000 | |
| 10 | O-RING, 1A24030 | 24351-240300 | 9,000 | |
| 11 | BOLT, M8X 20 PLATED | 26106-080202 | 6,000 |
_result.jpg)

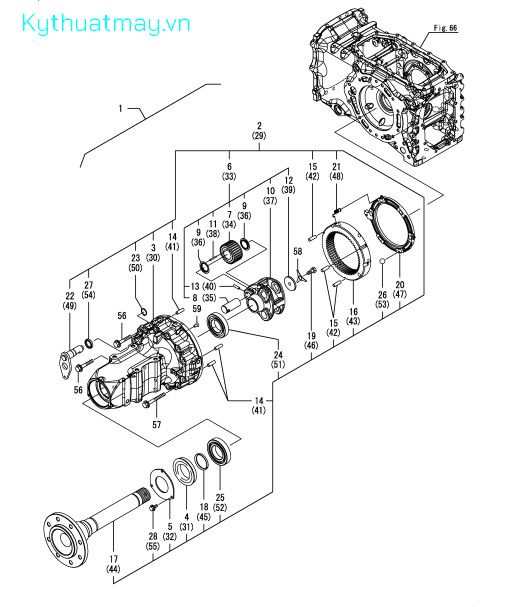

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | AXLE ASSY, REAR | 1A8296-32101 | ||
| 2 | AXLE ASSY, REAR L | 1A8296-32111-1 | ||
| 3 | HOUSING, REAR AXLE | 1A8296-32600-1 | ||
| 4 | SEAL, QLFY7512019.5 | 1A8296-32690 | 1,141,000 | |
| 5 | PLATE, SEAL | 1A8296-32700 | ||
| 6 | CARRIER ASSY,PLANETA | 1A8296-33421 | ||
| 7 | PINION, PLANETARY | 1A8296-33430 | 956,000 | |
| 8 | SHAFT, PLANETARY | 1A8296-33440 | 291,000 | |
| 9 | WASHER, THRUST | 1A8296-33450 | 30,000 | |
| 10 | CARRIER, PLANETARY | 1A8296-33460 | ||
| 1 | AXLE ASSY, REAR | 1A8296-32101 | ||
| 11 | NEEDLE, 5X39.8 | 1A8296-33470 | 23,000 | |
| 2 | AXLE ASSY, REAR L | 1A8296-32111-1 | ||
| 12 | PLATE, | 1A8296-34131 | 134,000 | |
| 3 | HOUSING, REAR AXLE | 1A8296-32600-1 | ||
| 13 | PIN, SPRING 8.0X32 | 22351-080032 | 34,000 | |
| 4 | SEAL, QLFY7512019.5 | 1A8296-32690 | 1,141,000 | |
| 14 | PIN, R/H | 1A8296-33491 | 27,000 | |
| 5 | PLATE, SEAL | 1A8296-32700 | ||
| 6 | CARRIER ASSY,PLANETA | 1A8296-33421 | ||
| 15 | PIN, R/H | 1A8296-33491 | 27,000 | |
| 7 | PINION, PLANETARY | 1A8296-33430 | 956,000 | |
| 16 | GEAR, INTERNAL | 1A8296-33510 | 3,220,000 | |
| 17 | SHAFT, REAR AXLE | 1A8296-34100-1 | ||
| 8 | SHAFT, PLANETARY | 1A8296-33440 | 291,000 | |
| 18 | COLLAR, 65X75X8 | 1A8296-34110 | 193,000 | |
| 9 | WASHER, THRUST | 1A8296-33450 | 30,000 | |
| 19 | BOLT, M12X30 | 1A8296-34140 | 41,000 | |
| 10 | CARRIER, PLANETARY | 1A8296-33460 | ||
| 11 | NEEDLE, 5X39.8 | 1A8296-33470 | 23,000 | |
| 20 | ACTUATOR, L | 1A8296-36351 | 1,063,000 | |
| 21 | SPRING, RETURN | 1A8296-36370 | ||
| 12 | PLATE, | 1A8296-34131 | 134,000 | |
| 22 | LEVER ASSY, CAM | 1A8296-36711-1 | ||
| 23 | RING, 29 | 1A8296-36750 | 17,000 | |
| 13 | PIN, SPRING 8.0X32 | 22351-080032 | 34,000 | |
| 24 | BEARING, BALL 6212 | 24101-062124 | 383,000 | |
| 14 | PIN, R/H | 1A8296-33491 | 27,000 | |
| 25 | BEARING, BALL 6213 | 24101-062134 | 484,000 | |
| 15 | PIN, R/H | 1A8296-33491 | 27,000 | |
| 26 | BALL, STEEL 9/16 | 24190-180001 | 9,000 | |
| 27 | SEAL, OIL TC304208 | 24421-304208 | 59,000 | |
| 16 | GEAR, INTERNAL | 1A8296-33510 | 3,220,000 | |
| 28 | BOLT, M8X 16 PLATED | 26106-080162 | 6,000 | |
| 17 | SHAFT, REAR AXLE | 1A8296-34100-1 | ||
| 29 | AXLE ASSY, REAR R | 1A8296-32121-1 | ||
| 18 | COLLAR, 65X75X8 | 1A8296-34110 | 193,000 | |
| 30 | HOUSING, REAR AXLE | 1A8296-32600-1 | ||
| 19 | BOLT, M12X30 | 1A8296-34140 | 41,000 | |
| 31 | SEAL, QLFY7512019.5 | 1A8296-32690 | 1,141,000 | |
| 20 | ACTUATOR, L | 1A8296-36351 | 1,063,000 | |
| 21 | SPRING, RETURN | 1A8296-36370 | ||
| 32 | PLATE, SEAL | 1A8296-32700 | ||
| 22 | LEVER ASSY, CAM | 1A8296-36711-1 | ||
| 33 | CARRIER ASSY,PLANETA | 1A8296-33421 | ||
| 23 | RING, 29 | 1A8296-36750 | 17,000 | |
| 34 | PINION, PLANETARY | 1A8296-33430 | 956,000 | |
| 35 | SHAFT, PLANETARY | 1A8296-33440 | 291,000 | |
| 24 | BEARING, BALL 6212 | 24101-062124 | 383,000 | |
| 36 | WASHER, THRUST | 1A8296-33450 | 30,000 | |
| 25 | BEARING, BALL 6213 | 24101-062134 | 484,000 | |
| 26 | BALL, STEEL 9/16 | 24190-180001 | 9,000 | |
| 37 | CARRIER, PLANETARY | 1A8296-33460 | ||
| 38 | NEEDLE, 5X39.8 | 1A8296-33470 | 23,000 | |
| 27 | SEAL, OIL TC304208 | 24421-304208 | 59,000 | |
| 39 | PLATE, | 1A8296-34131 | 134,000 | |
| 28 | BOLT, M8X 16 PLATED | 26106-080162 | 6,000 | |
| 40 | PIN, SPRING 8.0X32 | 22351-080032 | 34,000 | |
| 29 | AXLE ASSY, REAR R | 1A8296-32121-1 | ||
| 41 | PIN, R/H | 1A8296-33491 | 27,000 | |
| 30 | HOUSING, REAR AXLE | 1A8296-32600-1 | ||
| 31 | SEAL, QLFY7512019.5 | 1A8296-32690 | 1,141,000 | |
| 42 | PIN, R/H | 1A8296-33491 | 27,000 | |
| 32 | PLATE, SEAL | 1A8296-32700 | ||
| 43 | GEAR, INTERNAL | 1A8296-33510 | 3,220,000 | |
| 33 | CARRIER ASSY,PLANETA | 1A8296-33421 | ||
| 44 | SHAFT, REAR AXLE | 1A8296-34100-1 | ||
| 34 | PINION, PLANETARY | 1A8296-33430 | 956,000 | |
| 45 | COLLAR, 65X75X8 | 1A8296-34110 | 193,000 | |
| 46 | BOLT, M12X30 | 1A8296-34140 | 41,000 | |
| 35 | SHAFT, PLANETARY | 1A8296-33440 | 291,000 | |
| 47 | ACTUATOR, R | 1A8296-36361 | 1,063,000 | |
| 36 | WASHER, THRUST | 1A8296-33450 | 30,000 | |
| 37 | CARRIER, PLANETARY | 1A8296-33460 | ||
| 48 | SPRING, RETURN | 1A8296-36370 | ||
| 38 | NEEDLE, 5X39.8 | 1A8296-33470 | 23,000 | |
| 49 | LEVER ASSY, CAM | 1A8296-36711-1 | ||
| 39 | PLATE, | 1A8296-34131 | 134,000 | |
| 50 | RING, 29 | 1A8296-36750 | 17,000 | |
| 40 | PIN, SPRING 8.0X32 | 22351-080032 | 34,000 | |
| 51 | BEARING, BALL 6212 | 24101-062124 | 383,000 | |
| 41 | PIN, R/H | 1A8296-33491 | 27,000 | |
| 42 | PIN, R/H | 1A8296-33491 | 27,000 | |
| 43 | GEAR, INTERNAL | 1A8296-33510 | 3,220,000 | |
| 44 | SHAFT, REAR AXLE | 1A8296-34100-1 | ||
| 45 | COLLAR, 65X75X8 | 1A8296-34110 | 193,000 | |
| 46 | BOLT, M12X30 | 1A8296-34140 | 41,000 | |
| 47 | ACTUATOR, R | 1A8296-36361 | 1,063,000 | |
| 48 | SPRING, RETURN | 1A8296-36370 | ||
| 49 | LEVER ASSY, CAM | 1A8296-36711-1 | ||
| 50 | RING, 29 | 1A8296-36750 | 17,000 | |
| 51 | BEARING, BALL 6212 | 24101-062124 | 383,000 |
_result.jpg)

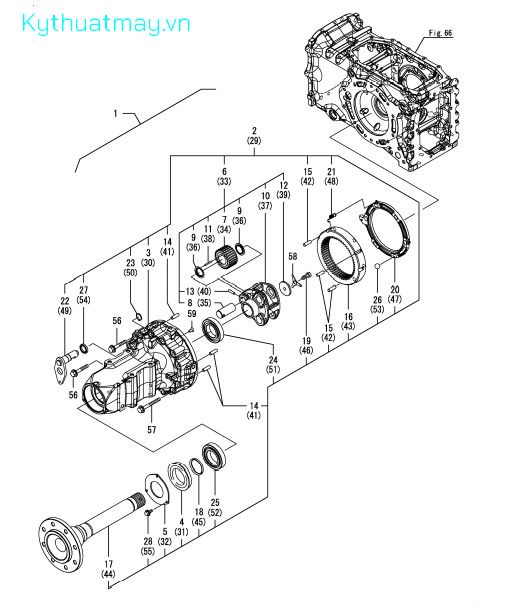

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 52 | BEARING, BALL 6213 | 24101-062134 | 484,000 | |
| 53 | BALL, STEEL 9/16 | 24190-180001 | 9,000 | |
| 54 | SEAL, OIL TC304208 | 24421-304208 | 59,000 | |
| 55 | BOLT, M8X 16 PLATED | 26106-080162 | 6,000 | |
| 56 | BOLT, 12X80 | 1A8296-32350 | ||
| 57 | BOLT, 12X110 | 1A8296-32460 | 117,000 | |
| 58 | WASHER, REAR AXLE | 1A8296-34150 | 70,000 | |
| 59 | RIVET, 6.0X12 | 22635-600120 | 25,000 | |
| 52 | BEARING, BALL 6213 | 24101-062134 | 484,000 | |
| 53 | BALL, STEEL 9/16 | 24190-180001 | 9,000 | |
| 54 | SEAL, OIL TC304208 | 24421-304208 | 59,000 | |
| 55 | BOLT, M8X 16 PLATED | 26106-080162 | 6,000 | |
| 56 | BOLT, 12X80 | 1A8296-32350 | ||
| 57 | BOLT, 12X110 | 1A8296-32460 | 117,000 | |
| 58 | WASHER, REAR AXLE | 1A8296-34150 | 70,000 | |
| 59 | RIVET, 6.0X12 | 22635-600120 | 25,000 |

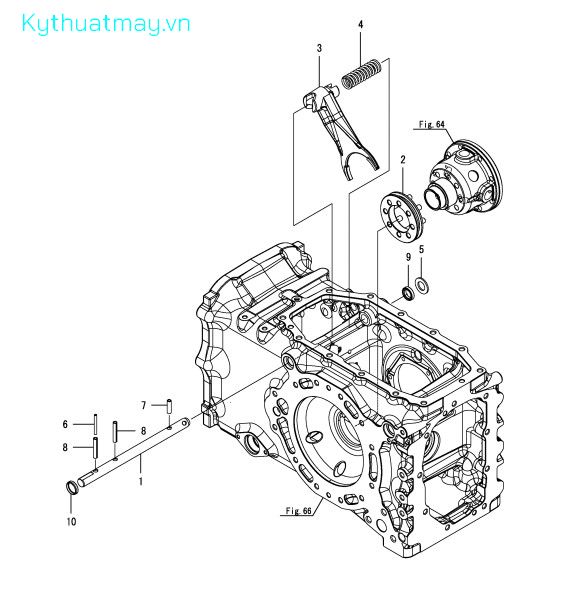

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | SHAFT, DIFF.LOCK | 1A8292-33060 | ||
| 2 | SLIDER, DIFF LOCK 8 | 1A8292-33070 | ||
| 3 | FORK, DIFF LOCK | 1A8296-33122 | 1,398,000 | |
| 4 | SPRING, DIFF LOCK | 1A8296-33140 | ||
| 5 | WASHER, 20 | 22137-200000 | 44,000 | |
| 6 | PIN, SPRING 5.0X50 | 22351-050050 | 6,000 | |
| 7 | PIN, SPRING 8.0X32 | 22351-080032 | 34,000 | |
| 8 | PIN, SPRING 8.0X50 | 22351-080050 | 12,000 | |
| 9 | SEAL, OIL TC203007 | 24421-203007 | 33,000 | |
| 1 | SHAFT, DIFF.LOCK | 1A8292-33060 | ||
| 2 | SLIDER, DIFF LOCK 8 | 1A8292-33070 | ||
| 10 | PLUG, 30 | 27260-300000 | ||
| 3 | FORK, DIFF LOCK | 1A8296-33122 | 1,398,000 | |
| 4 | SPRING, DIFF LOCK | 1A8296-33140 | ||
| 5 | WASHER, 20 | 22137-200000 | 44,000 | |
| 6 | PIN, SPRING 5.0X50 | 22351-050050 | 6,000 | |
| 7 | PIN, SPRING 8.0X32 | 22351-080032 | 34,000 | |
| 8 | PIN, SPRING 8.0X50 | 22351-080050 | 12,000 | |
| 9 | SEAL, OIL TC203007 | 24421-203007 | 33,000 | |
| 10 | PLUG, 30 | 27260-300000 |

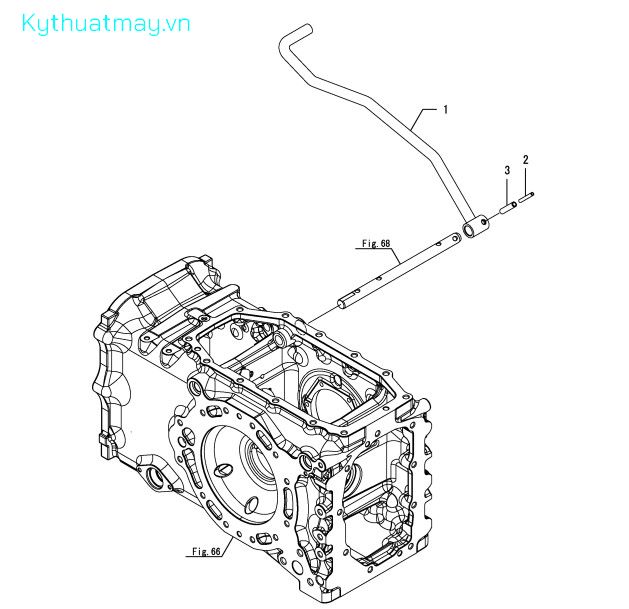

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | PEDAL, DIFF LOCK | 1A8296-33150-1 | ||
| 2 | PIN, SPRING 5.0X40 | 22351-050040 | 12,000 | |
| 3 | PIN, SPRING 8.0X40 | 22351-080040 | 14,000 | |
| 1 | PEDAL, DIFF LOCK | 1A8296-33150-1 | ||
| 2 | PIN, SPRING 5.0X40 | 22351-050040 | 12,000 | |
| 3 | PIN, SPRING 8.0X40 | 22351-080040 | 14,000 |

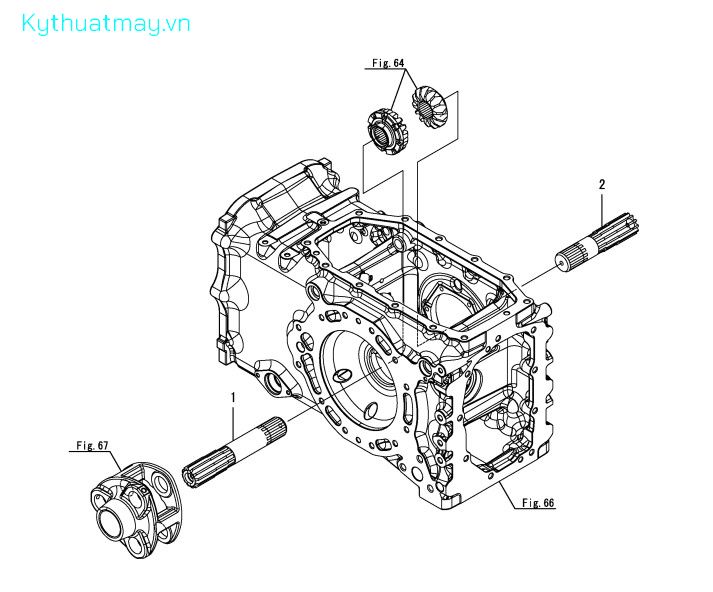

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | PINION, FINAL L | 1A8294-33400 | 7,249,000 | |
| 2 | PINION, FINAL R | 1A8294-33410 | 6,253,000 | |
| 1 | PINION, FINAL L | 1A8294-33400 | 7,249,000 | |
| 2 | PINION, FINAL R | 1A8294-33410 | 6,253,000 |

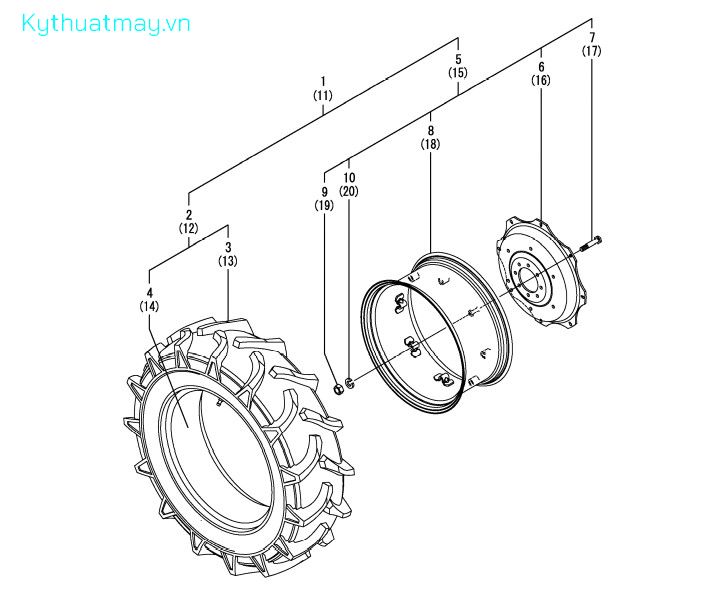

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | TIRE KIT, 16.9-30 L | 1A8294-34500 | 47,618,000 | |
| 2 | TIRE, 16.9-30 R1 | 1A8294-34560 | ||
| 3 | TIRE,16.9-30 | 1A8294-34570 | ||
| 4 | TUBE,16.9-30 | 1A8294-34580 | ||
| 5 | WHEEL ASSY, W14LX30 | 1A8294-34650 | 9,104,000 | |
| 6 | DISK, 30 | 1A8294-34640 | ||
| 7 | BOLT, M16X85 | 1A8296-34650 | 133,000 | |
| 8 | RIM ASSY, W14LX30 | 1A8294-34660 | ||
| 9 | NUT, M16 | 1A8296-34660 | 44,000 | |
| 10 | WASHER, SPRING M16 | 1A8296-34670 | 17,000 | |
| 11 | TIRE KIT, 16.9-30 R | 1A8294-34600 | 47,618,000 | |
| 1 | TIRE KIT, 16.9-30 L | 1A8294-34500 | 47,618,000 | |
| 12 | TIRE, 16.9-30 R1 | 1A8294-34560 | ||
| 2 | TIRE, 16.9-30 R1 | 1A8294-34560 | ||
| 13 | TIRE,16.9-30 | 1A8294-34570 | ||
| 3 | TIRE,16.9-30 | 1A8294-34570 | ||
| 14 | TUBE,16.9-30 | 1A8294-34580 | ||
| 4 | TUBE,16.9-30 | 1A8294-34580 | ||
| 15 | WHEEL ASSY, W14LX30 | 1A8294-34650 | 9,104,000 | |
| 5 | WHEEL ASSY, W14LX30 | 1A8294-34650 | 9,104,000 | |
| 16 | DISK, 30 | 1A8294-34640 | ||
| 17 | BOLT, M16X85 | 1A8296-34650 | 133,000 | |
| 6 | DISK, 30 | 1A8294-34640 | ||
| 7 | BOLT, M16X85 | 1A8296-34650 | 133,000 | |
| 18 | RIM ASSY, W14LX30 | 1A8294-34660 | ||
| 8 | RIM ASSY, W14LX30 | 1A8294-34660 | ||
| 9 | NUT, M16 | 1A8296-34660 | 44,000 | |
| 19 | NUT, M16 | 1A8296-34660 | 44,000 | |
| 10 | WASHER, SPRING M16 | 1A8296-34670 | 17,000 | |
| 20 | WASHER, SPRING M16 | 1A8296-34670 | 17,000 | |
| 11 | TIRE KIT, 16.9-30 R | 1A8294-34600 | 47,618,000 | |
| 12 | TIRE, 16.9-30 R1 | 1A8294-34560 | ||
| 13 | TIRE,16.9-30 | 1A8294-34570 | ||
| 14 | TUBE,16.9-30 | 1A8294-34580 | ||
| 15 | WHEEL ASSY, W14LX30 | 1A8294-34650 | 9,104,000 | |
| 16 | DISK, 30 | 1A8294-34640 | ||
| 17 | BOLT, M16X85 | 1A8296-34650 | 133,000 | |
| 18 | RIM ASSY, W14LX30 | 1A8294-34660 | ||
| 19 | NUT, M16 | 1A8296-34660 | 44,000 | |
| 20 | WASHER, SPRING M16 | 1A8296-34670 | 17,000 |

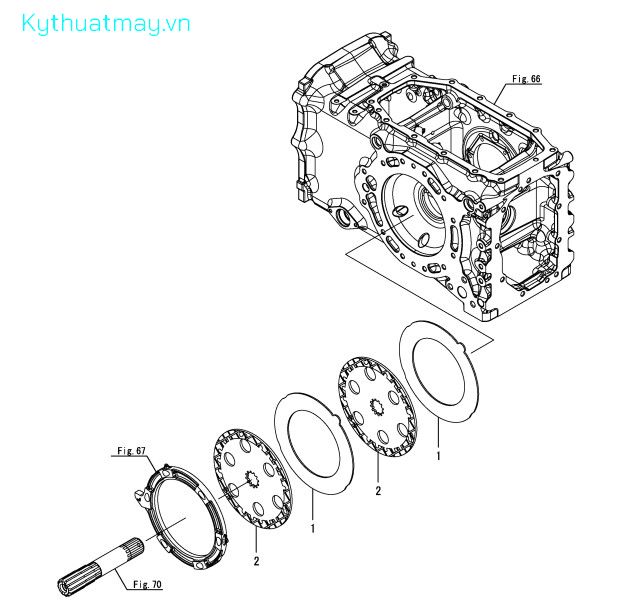

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | PLATE, BRAKE | 1A8296-36210 | 349,000 | |
| 2 | PLATE, FRICTION | 1A7451-36350 | 1,601,000 | |
| 1 | PLATE, BRAKE | 1A8296-36210 | 349,000 | |
| 2 | PLATE, FRICTION | 1A7451-36350 | 1,601,000 |
_result.jpg)

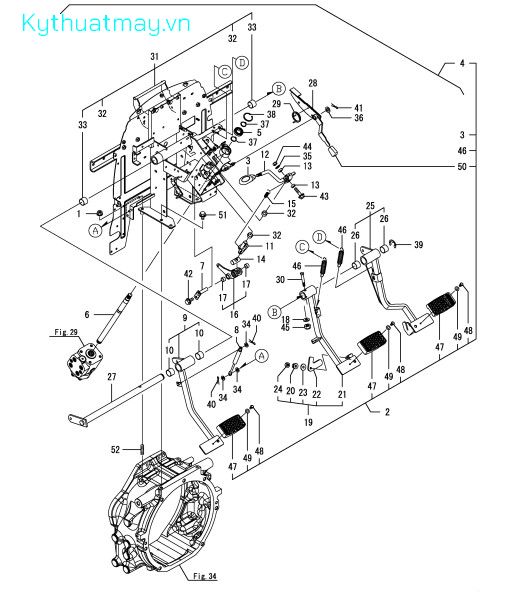

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | NUT, M10 | 194990-22150 | 55,000 | |
| 2 | PEDAL UNIT | 1A8292-37200 | ||
| 3 | KNOB, ORENGE | 1A8296-27780 | 78,000 | |
| 4 | PEDAL UNIT, SUB | 1A8292-37210 | ||
| 5 | BEARING, 6904LLU | 1A8296-15240 | ||
| 6 | SHAFT, STEERING | 1A8296-15320 | 799,000 | |
| 7 | SHAFT ASSY,R-ARM | 1A8296-15400 | 111,000 | |
| 8 | SPRING, GAS 300 | 1A8296-22500 | ||
| 9 | PEDAL UNIT, CLUTCH | 1A8296-22830-1 | ||
| 10 | BUSH, 25X20 | 24550-025200 | ||
| 1 | NUT, M10 | 194990-22150 | 55,000 | |
| 11 | SHAFT ASSY, REVERSER | 1A8296-27001 | 208,000 | |
| 2 | PEDAL UNIT | 1A8292-37200 | ||
| 12 | LEVER ASSY, REVERSER | 1A8296-27040 | 267,000 | |
| 3 | KNOB, ORENGE | 1A8296-27780 | 78,000 | |
| 13 | COLLAR, 8.2X14X5.3 | 1A8296-27070 | 44,000 | |
| 4 | PEDAL UNIT, SUB | 1A8292-37210 | ||
| 14 | PIN, CONNECT | 1A8296-27081 | 143,000 | |
| 5 | BEARING, 6904LLU | 1A8296-15240 | ||
| 15 | SPRING, RETURN | 1A8292-27090 | 143,000 | |
| 6 | SHAFT, STEERING | 1A8296-15320 | 799,000 | |
| 16 | ARM UNIT, REVERSER | 1A8292-27440 | 574,000 | |
| 7 | SHAFT ASSY,R-ARM | 1A8296-15400 | 111,000 | |
| 17 | BUSH, 12X 8 | 24550-012080 | ||
| 8 | SPRING, GAS 300 | 1A8296-22500 | ||
| 18 | WASHER, 8.5X20X3 | 1C727C-32020 | 12,000 | |
| 9 | PEDAL UNIT, CLUTCH | 1A8296-22830-1 | ||
| 19 | PEDAL UNIT, BRAKE L | 1A8296-37310-1 | ||
| 10 | BUSH, 25X20 | 24550-025200 | ||
| 20 | NUT, M8 | 194990-22140 | 44,000 | |
| 11 | SHAFT ASSY, REVERSER | 1A8296-27001 | 208,000 | |
| 21 | PEDAL ASSY, BRAKE L | 1A8296-37300-1 | ||
| 12 | LEVER ASSY, REVERSER | 1A8296-27040 | 267,000 | |
| 22 | CONNECTOR, | 1A8296-37620-1 | ||
| 13 | COLLAR, 8.2X14X5.3 | 1A8296-27070 | 44,000 | |
| 23 | WASHER, 8 | 22157-080000 | 2,000 | |
| 14 | PIN, CONNECT | 1A8296-27081 | 143,000 | |
| 24 | NUT, M8 | 26716-080002 | 5,000 | |
| 15 | SPRING, RETURN | 1A8292-27090 | 143,000 | |
| 25 | PEDAL UNIT, BRAKE R | 1A8296-37400-1 | ||
| 26 | BUSH, 25X20 | 24550-025200 | ||
| 16 | ARM UNIT, REVERSER | 1A8292-27440 | 574,000 | |
| 17 | BUSH, 12X 8 | 24550-012080 | ||
| 27 | SHAFT ASSY, BRAKE | 1A8296-37550-1 | ||
| 28 | LEVER ASSY, PARKING | 1A8296-37650 | 193,000 | |
| 18 | WASHER, 8.5X20X3 | 1C727C-32020 | 12,000 | |
| 29 | SPRING, LOCK | 1A8296-37700 | 53,000 | |
| 19 | PEDAL UNIT, BRAKE L | 1A8296-37310-1 | ||
| 20 | NUT, M8 | 194990-22140 | 44,000 | |
| 30 | BOLT, REAMER 8X55 | 1A8292-37990 | 208,000 | |
| 21 | PEDAL ASSY, BRAKE L | 1A8296-37300-1 | ||
| 31 | FRAME UNIT, PEDAL | 1A8292-61690 | ||
| 32 | BUSH, 15X 8 | 24550-015080 | ||
| 22 | CONNECTOR, | 1A8296-37620-1 | ||
| 23 | WASHER, 8 | 22157-080000 | 2,000 | |
| 33 | BUSH, 25X20 | 24550-025200 | ||
| 34 | WASHER, 6 | 22137-060000 | 2,000 | |
| 24 | NUT, M8 | 26716-080002 | 5,000 | |
| 25 | PEDAL UNIT, BRAKE R | 1A8296-37400-1 | ||
| 35 | WASHER, 8 | 22137-080000 | 6,000 | |
| 36 | WASHER, 12 | 22137-120000 | 5,000 | |
| 26 | BUSH, 25X20 | 24550-025200 | ||
| 37 | RING, 20 | 22242-000200 | 3,000 | |
| 27 | SHAFT ASSY, BRAKE | 1A8296-37550-1 | ||
| 28 | LEVER ASSY, PARKING | 1A8296-37650 | 193,000 | |
| 38 | RING, 37 | 22252-000370 | 41,000 | |
| 29 | SPRING, LOCK | 1A8296-37700 | 53,000 | |
| 39 | RING, E-19 | 22272-000190 | 34,000 | |
| 30 | BOLT, REAMER 8X55 | 1A8292-37990 | 208,000 | |
| 40 | PIN, COTTER 1.6X18 | 22417-160180 | ||
| 41 | PIN, COTTER 2.5X32 | 22417-250320 | 34,000 | |
| 31 | FRAME UNIT, PEDAL | 1A8292-61690 | ||
| 42 | BOLT, M8X 16 PLATED | 26106-080162 | 6,000 | |
| 43 | BOLT, M8X 35 PLATED | 26106-080352 | 9,000 | |
| 32 | BUSH, 15X 8 | 24550-015080 | ||
| 33 | BUSH, 25X20 | 24550-025200 | ||
| 44 | NUT, M8 | 26346-080002 | 36,000 | |
| 34 | WASHER, 6 | 22137-060000 | 2,000 | |
| 45 | NUT, M8 | 26346-080002 | 36,000 | |
| 35 | WASHER, 8 | 22137-080000 | 6,000 | |
| 46 | SPRING, RETURN | 1A8292-37940 | 198,000 | |
| 36 | WASHER, 12 | 22137-120000 | 5,000 | |
| 47 | COVER, PEDAL HEAD | 1A8296-37950 | 86,000 | |
| 37 | RING, 20 | 22242-000200 | 3,000 | |
| 48 | RIVET, PEDAL HEAD | 1A8296-37960 | ||
| 38 | RING, 37 | 22252-000370 | 41,000 | |
| 49 | WASHER, RIVET | 1A8292-37970 | 33,000 | |
| 39 | RING, E-19 | 22272-000190 | 34,000 | |
| 50 | KNOB, | 1A8296-37980 | 75,000 | |
| 40 | PIN, COTTER 1.6X18 | 22417-160180 | ||
| 41 | PIN, COTTER 2.5X32 | 22417-250320 | 34,000 | |
| 51 | BOLT, M10X 20 PLATED | 26106-100202 | 11,000 | |
| 42 | BOLT, M8X 16 PLATED | 26106-080162 | 6,000 | |
| 43 | BOLT, M8X 35 PLATED | 26106-080352 | 9,000 | |
| 44 | NUT, M8 | 26346-080002 | 36,000 | |
| 45 | NUT, M8 | 26346-080002 | 36,000 | |
| 46 | SPRING, RETURN | 1A8292-37940 | 198,000 | |
| 47 | COVER, PEDAL HEAD | 1A8296-37950 | 86,000 | |
| 48 | RIVET, PEDAL HEAD | 1A8296-37960 | ||
| 49 | WASHER, RIVET | 1A8292-37970 | 33,000 | |
| 50 | KNOB, | 1A8296-37980 | 75,000 | |
| 51 | BOLT, M10X 20 PLATED | 26106-100202 | 11,000 |
_result.jpg)

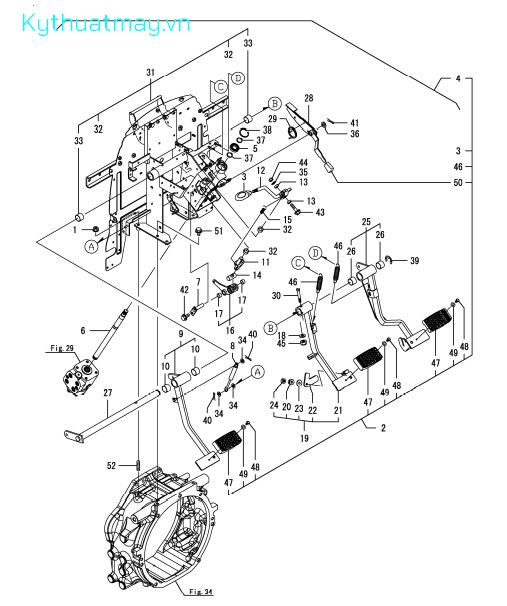

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 52 | STUD, M10X 35 | 26216-100352 | 41,000 | |
| 52 | STUD, M10X 35 | 26216-100352 | 41,000 |

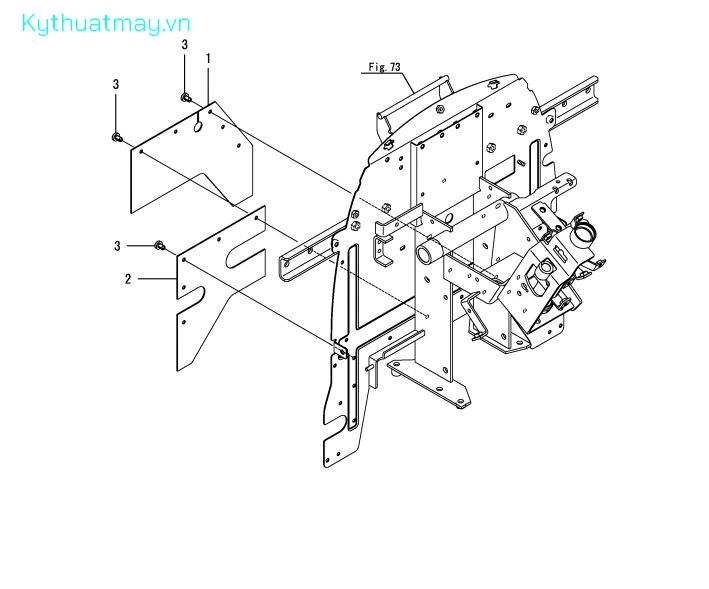

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | PLATE, RUBBER R | 1A8292-37910 | ||
| 2 | PLATE, RUBBER L | 1A8292-37920 | ||
| 3 | RIVET, NYLON | 1A8296-62970 | 17,000 | |
| 1 | PLATE, RUBBER R | 1A8292-37910 | ||
| 2 | PLATE, RUBBER L | 1A8292-37920 | ||
| 3 | RIVET, NYLON | 1A8296-62970 | 17,000 |

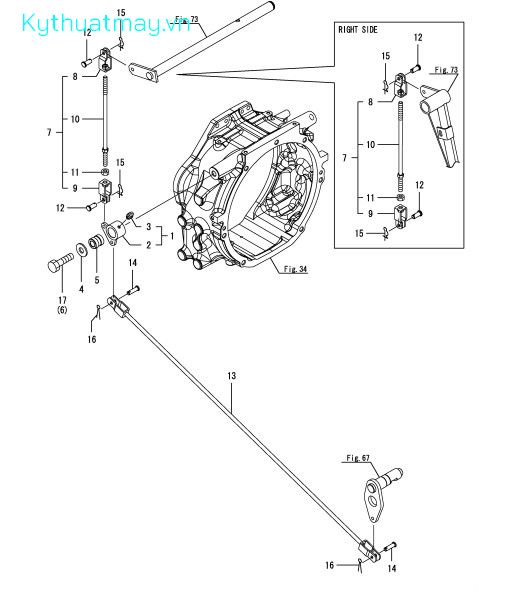

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | ARM UNIT, BRAKE | 1A8296-35300 | ||
| 2 | ARM ASSY, BRAKE | 1A8296-35310 | 233,000 | |
| 3 | NIPPLE, GREASE M6F | 24761-010000 | 14,000 | |
| 4 | WASHER, 16.2X38X3.5 | 1A8296-35340 | ||
| 5 | COLLAR, | 1A8296-35350 | 117,000 | |
| 6 | BOLT, M16X60 L | 1A8296-35360 | ||
| 7 | ROD UNIT, BRAKE F | 1A8296-37000 | ||
| 8 | JOINT ASSY, SCREW L | 1A8296-37010 | 143,000 | |
| 9 | JOINT ASSY, SCREW R | 1A8296-37040 | 143,000 | |
| 10 | ROD ASSY, BRAKE | 1A8296-37050 | 192,000 | |
| 11 | NUT, M10 | 26716-100002 | 30,000 | |
| 12 | PIN,FLAT HEAD 8.9X16 | 1A8296-37070 | 53,000 | |
| 13 | ROD ASSY, BRAKE | 1A8296-37100 | 308,000 | |
| 1 | ARM UNIT, BRAKE | 1A8296-35300 | ||
| 14 | PIN, 8X24 | 198220-37900 | 70,000 | |
| 2 | ARM ASSY, BRAKE | 1A8296-35310 | 233,000 | |
| 15 | PIN, SNAP 8 | 1C730C-52320 | ||
| 3 | NIPPLE, GREASE M6F | 24761-010000 | 14,000 | |
| 16 | PIN, COTTER 2.5X30 | 22417-250300 | ||
| 4 | WASHER, 16.2X38X3.5 | 1A8296-35340 | ||
| 5 | COLLAR, | 1A8296-35350 | 117,000 | |
| 17 | BOLT, M16X 60 PLATED | 26116-160602 | 95,000 | |
| 6 | BOLT, M16X60 L | 1A8296-35360 | ||
| 7 | ROD UNIT, BRAKE F | 1A8296-37000 | ||
| 8 | JOINT ASSY, SCREW L | 1A8296-37010 | 143,000 | |
| 9 | JOINT ASSY, SCREW R | 1A8296-37040 | 143,000 | |
| 10 | ROD ASSY, BRAKE | 1A8296-37050 | 192,000 | |
| 11 | NUT, M10 | 26716-100002 | 30,000 | |
| 12 | PIN,FLAT HEAD 8.9X16 | 1A8296-37070 | 53,000 | |
| 13 | ROD ASSY, BRAKE | 1A8296-37100 | 308,000 | |
| 14 | PIN, 8X24 | 198220-37900 | 70,000 | |
| 15 | PIN, SNAP 8 | 1C730C-52320 | ||
| 16 | PIN, COTTER 2.5X30 | 22417-250300 | ||
| 17 | BOLT, M16X 60 PLATED | 26116-160602 | 95,000 |
