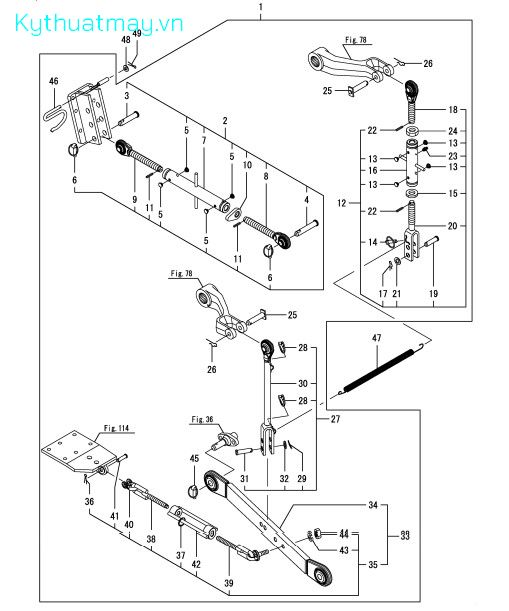

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | LINK KIT, 3-POINT | 1A7781-71000 | 16,536,000 | |
| 2 | LINK KIT, TOP | 198254-71100 | 2,366,000 | |
| 3 | PIN, LINK | 1A7335-71230 | 523,000 | |
| 4 | PIN, HITCH | 1A7335-71240 | 351,000 | |
| 5 | CAP | 1A7335-71250 | 34,000 | |
| 6 | PIN ASSY, BALL | 1A7335-71410 | 109,000 | |
| 7 | TURNBUCKLE ASSY | 198254-71500 | 1,980,000 | |
| 8 | LINK ASSY, TOP R | 198254-71600 | 1,521,000 | |
| 9 | LINK ASSY, TOP L | 198254-71700 | 1,868,000 | |
| 10 | NUT, LOCK M24 | 1A7335-71750 | 295,000 | |
| 11 | PIN, SPRING 5.0X25 | 1A7335-71760 | 30,000 | |
| 12 | LINK KIT, LIFT R | 1A7781-72100 | 2,093,000 | |
| 13 | CAP | 1A7335-71250 | 34,000 | |
| 14 | PIN ASSY, BALL | 1A7335-71410 | 109,000 | |
| 15 | NUT, LOCK M24 L | 1A8170-72110 | 89,000 | |
| 16 | TURNBUCKLE ASSY | 198254-72150 | 1,521,000 | |
| 17 | SNAP PIN 13-19 | 1A8275-72180 | 14,000 | |
| 18 | BOLT ASSY, EYE | 198254-72200 | 2,160,000 | |
| 19 | PIN, 16X53 | 198253-72550 | 281,000 | |
| 20 | YOKE ASSY, LINK R | 1A8170-72800 | 482,000 | |
| 21 | WASHER, 16 | 22137-160000 | 6,000 | |
| 22 | PIN, SPRING 5.0X22 | 22351-050022 | 30,000 | |
| 23 | NIPPLE, GREASE MT6X1 | 24761-060000 | 47,000 | |
| 24 | NUT, LOCK M24 | 26756-240002 | 109,000 | |
| 25 | PIN,LIFT ARM | 1A8275-72150 | 206,000 | |
| 26 | SNAP PIN 13-19 | 1A8275-72180 | 14,000 | |
| 27 | LINK KIT, LIFT L | 1A7781-72500 | 1,431,000 | |
| 28 | PIN ASSY, BALL | 1A7335-71410 | 109,000 | |
| 29 | SNAP PIN 13-19 | 1A8275-72180 | 14,000 | |
| 30 | LINK ASSY, LIFT L | 1A8170-72530 | 1,162,000 | |
| 31 | PIN, 16X53 | 198253-72550 | 281,000 | |
| 32 | WASHER, 16 | 22137-160000 | 6,000 | |
| 33 | LINK & CHAIN KIT, | 1A7781-73400 | 5,422,000 | |
| 34 | LINK ASSY, LOWER | 1A7781-73100 | ||
| 35 | STABILLZER KIT, | 1A7781-74500 | 922,000 | |
| 36 | PIN, COTTER | 1A7500-72180 | 14,000 | |
| 37 | RING | 198283-74370 | 55,000 | |
| 38 | CHAIN ASSY, CHECK F | 1A8170-74510 | 194,000 | |
| 39 | CHAIN ASSY, CHECK R | 1A8170-74550 | 297,000 | |
| 40 | SHACKLE | 198254-74620 | 281,000 | |
| 41 | PIN, CHAIN | 198181-74630 | 104,000 | |
| 42 | TURNBUCKLE, M16 | 1A8170-74700 | 257,000 | |
| 43 | WASHER, SPRING 16 | 22217-160000 | 6,000 | |
| 44 | NUT, M16 | 26736-160002 | 50,000 | |
| 45 | PIN ASSY, BALL | 1A7335-71410 | 109,000 | |
| 46 | SPRING | 1A7880-71550 | 114,000 | |
| 47 | SPRING, 3POINT LOCK | 1A7781-73150 | ||
| 48 | WASHER, 8 | 22137-080000 | 6,000 | |
| 49 | PIN, COTTER 3.0X25 | 22417-300250 | 25,000 |

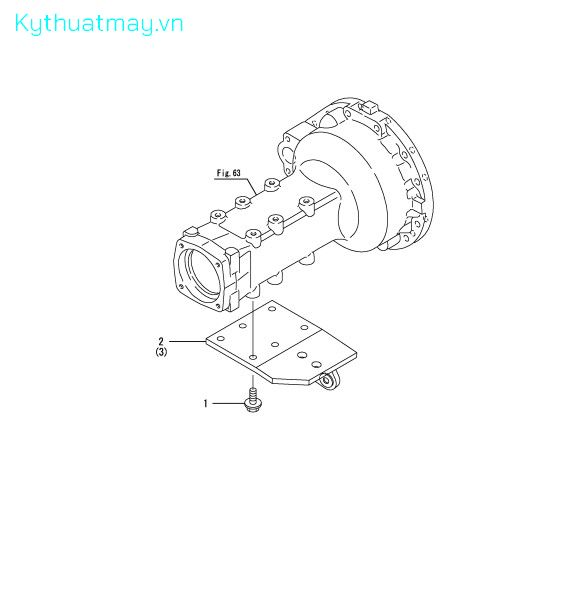

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | BOLT, M12X27 | 198220-11510 | 44,000 | |
| 2 | PLATE ASSY, BASE L | 1A7780-85300-1 | 3,161,000 | |
| 3 | PLATE ASSY, BASE R | 1A7780-85350-1 | 3,161,000 |

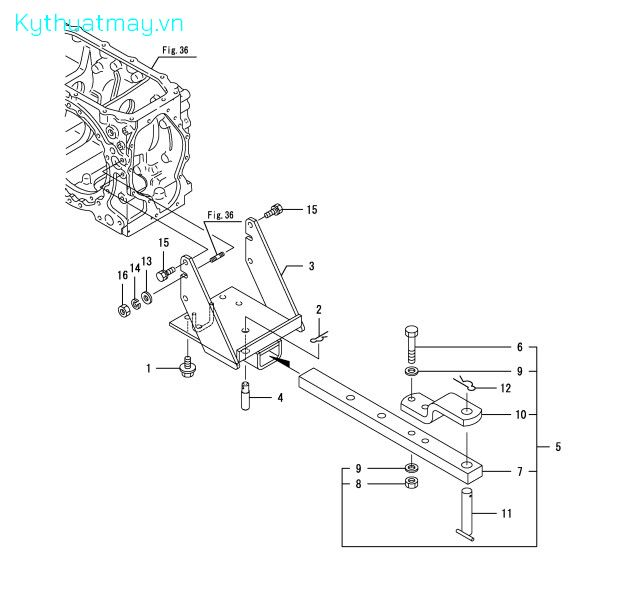

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | BOLT, M14X28 | 198240-12650 | 44,000 | |
| 2 | PIN, SNAP 22S | 195230-17260 | ||
| 3 | BRACKET, DRAWBAR | 1A7780-75130 | 2,568,000 | |
| 4 | PIN, HITCH | 198253-75430 | ||
| 5 | HITCH KIT, DRAWBAR | 1A7781-75710 | 2,791,000 | |
| 6 | BOLT, 16X85 | 1A7781-75100 | ||
| 7 | HITCH, DRAWBAR | 1A7780-75111 | 7,999,000 | |
| 8 | NUT, 16 | 1A7781-75110 | ||
| 9 | WASHER, 16 | 1A7781-75120 | ||
| 10 | BRACKET | 194180-75810-2 | ||
| 11 | PIN ASSY, HITCH 25 | 1A7780-75750 | ||
| 12 | PIN, SNAP 28 | 194080-75790 | 182,000 | |
| 13 | WASHER, 12 | 22137-120000 | 5,000 | |
| 14 | WASHER, SPRING 12 | 22217-120000 | 3,000 | |
| 15 | BOLT, M12X 30 | 26013-120302 | 19,000 | |
| 16 | NUT, M12 | 26716-120002 | 11,000 |
