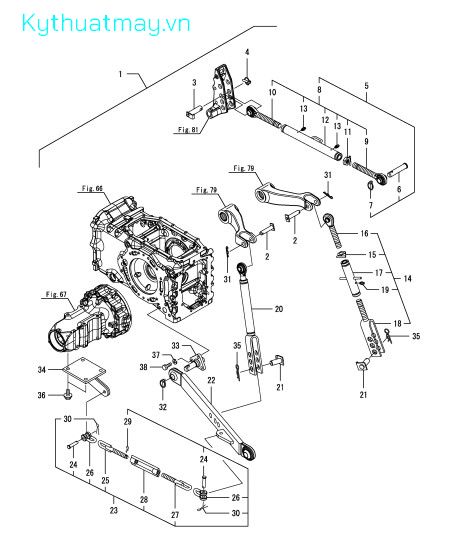

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | LINK KIT, 3P | 1A8294-71000 | ||
| 2 | PIN, LIFT ARM | 1A8296-44550 | 201,000 | |
| 3 | PIN ASSY, TOP LINK | 1A8292-71240 | 176,000 | |
| 4 | PIN ASSY, LOCK | 1A8296-71410 | ||
| 5 | LINK KIT, TOP | 1A8294-71800 | ||
| 6 | PIN, TOP LINK | 1A8296-71230 | 220,000 | |
| 7 | PIN ASSY, LOCK | 1A8296-71410 | ||
| 8 | LINK, TOP | 1A8294-71810 | ||
| 9 | EYE-BOLT ASSY, R | 1A8296-71590 | 491,000 | |
| 10 | EYE-BOLT ASSY, L | 1A8296-71640 | 682,000 | |
| 1 | LINK KIT, 3P | 1A8294-71000 | ||
| 11 | NUT, LOCK 27 | 1A8296-71680 | 98,000 | |
| 2 | PIN, LIFT ARM | 1A8296-44550 | 201,000 | |
| 12 | TURNBUCKLE | 1A8294-71850 | ||
| 3 | PIN ASSY, TOP LINK | 1A8292-71240 | 176,000 | |
| 13 | NIPPLE, GREASE M6F | 24761-010000 | 14,000 | |
| 4 | PIN ASSY, LOCK | 1A8296-71410 | ||
| 14 | LINK ASSY, LIFT R | 1A8294-72610 | ||
| 5 | LINK KIT, TOP | 1A8294-71800 | ||
| 15 | NUT, LOCK 27 | 1A8296-71680 | 98,000 | |
| 6 | PIN, TOP LINK | 1A8296-71230 | 220,000 | |
| 7 | PIN ASSY, LOCK | 1A8296-71410 | ||
| 16 | LINK ASSY, LIFT R UP | 1A8294-72620 | ||
| 8 | LINK, TOP | 1A8294-71810 | ||
| 17 | TURNBUCKLE | 1A8294-72650 | ||
| 9 | EYE-BOLT ASSY, R | 1A8296-71590 | 491,000 | |
| 10 | EYE-BOLT ASSY, L | 1A8296-71640 | 682,000 | |
| 18 | YOKE ASSY, LIFTLINK | 1A8294-72700 | ||
| 11 | NUT, LOCK 27 | 1A8296-71680 | 98,000 | |
| 19 | NIPPLE, GREASE M6F | 24761-010000 | 14,000 | |
| 12 | TURNBUCKLE | 1A8294-71850 | ||
| 20 | LINK, LIFT L | 1A8294-72750 | ||
| 13 | NIPPLE, GREASE M6F | 24761-010000 | 14,000 | |
| 21 | PIN ASSY | 1A8294-72850 | 592,000 | |
| 22 | LINK ASSY, LOWER | 1A8294-73500 | ||
| 14 | LINK ASSY, LIFT R | 1A8294-72610 | ||
| 15 | NUT, LOCK 27 | 1A8296-71680 | 98,000 | |
| 23 | CHAIN ASSY, CHECK | 1A8292-74600 | 836,000 | |
| 16 | LINK ASSY, LIFT R UP | 1A8294-72620 | ||
| 24 | PIN | 1A8296-74170 | 89,000 | |
| 17 | TURNBUCKLE | 1A8294-72650 | ||
| 25 | CHAIN ASSY, CHECK | 1A8292-74610 | 300,000 | |
| 18 | YOKE ASSY, LIFTLINK | 1A8294-72700 | ||
| 26 | SHACKLE | 1A8296-74630 | 78,000 | |
| 19 | NIPPLE, GREASE M6F | 24761-010000 | 14,000 | |
| 27 | CHAIN ASSY, R | 1A8292-74700 | 300,000 | |
| 28 | TURNBUCKLE | 1A8296-74750 | 249,000 | |
| 20 | LINK, LIFT L | 1A8294-72750 | ||
| 29 | PIN, SNAP 16 | 22372-160000 | 6,000 | |
| 21 | PIN ASSY | 1A8294-72850 | 592,000 | |
| 30 | PIN, COTTER 4.0X40 | 22417-400400 | ||
| 22 | LINK ASSY, LOWER | 1A8294-73500 | ||
| 31 | PIN, SNAP 20 | 22360-200000 | 34,000 | |
| 23 | CHAIN ASSY, CHECK | 1A8292-74600 | 836,000 | |
| 24 | PIN | 1A8296-74170 | 89,000 | |
| 32 | PIN ASSY, LOCK | 1A8296-71410 | ||
| 25 | CHAIN ASSY, CHECK | 1A8292-74610 | 300,000 | |
| 33 | PIN, LOWER LINK | 1A8294-73180 | ||
| 26 | SHACKLE | 1A8296-74630 | 78,000 | |
| 34 | BRACKET, CHECK CHAIN | 1A8296-74100-1 | ||
| 35 | PIN, SNAP 28 | 194080-75790 | 182,000 | |
| 27 | CHAIN ASSY, R | 1A8292-74700 | 300,000 | |
| 36 | BOLT, M16X40 10.9 | 1A8296-85100 | 109,000 | |
| 28 | TURNBUCKLE | 1A8296-74750 | 249,000 | |
| 37 | WASHER, SPRING 14 | 22217-140000 | 5,000 | |
| 29 | PIN, SNAP 16 | 22372-160000 | 6,000 | |
| 38 | BOLT, M14X 35 PLATED | 26116-140352 | 129,000 | |
| 30 | PIN, COTTER 4.0X40 | 22417-400400 | ||
| 31 | PIN, SNAP 20 | 22360-200000 | 34,000 | |
| 32 | PIN ASSY, LOCK | 1A8296-71410 | ||
| 33 | PIN, LOWER LINK | 1A8294-73180 | ||
| 34 | BRACKET, CHECK CHAIN | 1A8296-74100-1 | ||
| 35 | PIN, SNAP 28 | 194080-75790 | 182,000 | |
| 36 | BOLT, M16X40 10.9 | 1A8296-85100 | 109,000 | |
| 37 | WASHER, SPRING 14 | 22217-140000 | 5,000 | |
| 38 | BOLT, M14X 35 PLATED | 26116-140352 | 129,000 |

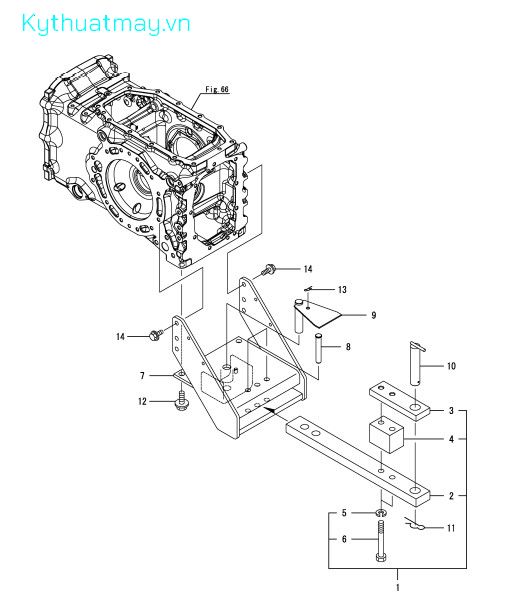

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | DRAWBAR KIT | 1A8292-75100 | ||
| 2 | DRAWBAR | 1A8292-75110 | ||
| 3 | HITCH, LOWER | 1A8292-75120 | ||
| 4 | SPACER, DRAWBAR | 1A8292-75130 | ||
| 5 | WASHER, SPRING 16 | 22217-160000 | 6,000 | |
| 6 | BOLT, M16X130 PLATED | 26116-161302 | 255,000 | |
| 1 | DRAWBAR KIT | 1A8292-75100 | ||
| 7 | BRACKET, DRAWBAR | 1A8292-75200 | ||
| 2 | DRAWBAR | 1A8292-75110 | ||
| 8 | PIN, STOPPER | 1A8292-75340 | ||
| 3 | HITCH, LOWER | 1A8292-75120 | ||
| 9 | PIN,DRAWBAR | 1A8292-75360 | ||
| 4 | SPACER, DRAWBAR | 1A8292-75130 | ||
| 10 | PIN ASSY, HITCH | 1A8292-75750 | ||
| 5 | WASHER, SPRING 16 | 22217-160000 | 6,000 | |
| 11 | PIN, SNAP 30 | 1A8292-75810 | ||
| 12 | BOLT, M16X40 10.9 | 1A8296-85100 | 109,000 | |
| 6 | BOLT, M16X130 PLATED | 26116-161302 | 255,000 | |
| 7 | BRACKET, DRAWBAR | 1A8292-75200 | ||
| 13 | PIN, SNAP 10 | 22372-100000 | ||
| 14 | BOLT, M12X 30 PLATED | 26106-120302 | 19,000 | |
| 8 | PIN, STOPPER | 1A8292-75340 | ||
| 9 | PIN,DRAWBAR | 1A8292-75360 | ||
| 10 | PIN ASSY, HITCH | 1A8292-75750 | ||
| 11 | PIN, SNAP 30 | 1A8292-75810 | ||
| 12 | BOLT, M16X40 10.9 | 1A8296-85100 | 109,000 | |
| 13 | PIN, SNAP 10 | 22372-100000 | ||
| 14 | BOLT, M12X 30 PLATED | 26106-120302 | 19,000 |
