Động cơ

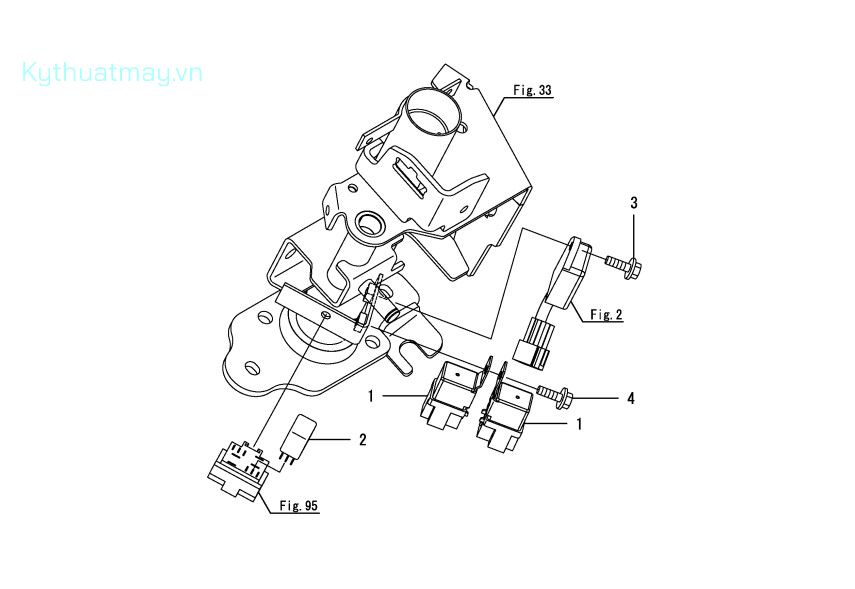

Rơ le

STT	Tên sản phẩm	Mã số	Giá bán
1	RELAY, CB	1A7870-52950	482,000
2	RELAY, ISO 20A	1E9256-82600	680,000
3	BOLT, M6X 16 PLATED	26106-060162	25,000
4	BOLT, M6X 16 PLATED	26106-060162	25,000

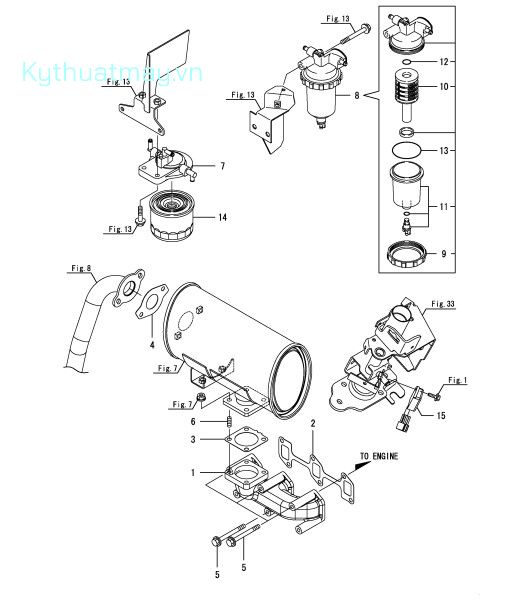

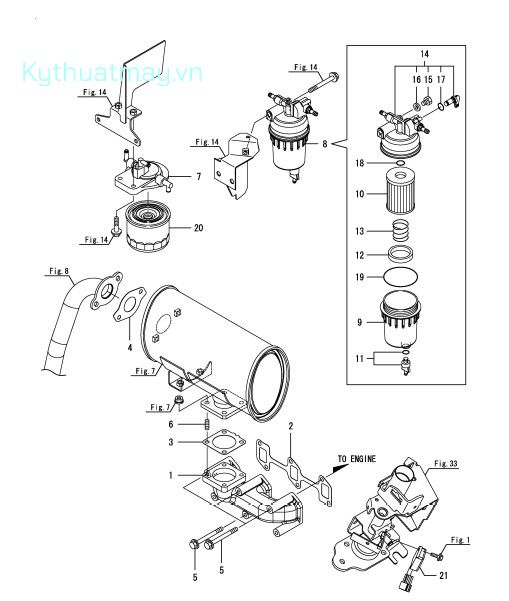

STT	Tên sản phẩm	Mã số	Giá bán
1	MANIFOLD, EXHAUST	171350-13100
2	GASKET, MANIFOLD	129150-13110
3	GASKET, SILENCER	129004-13200
4	GASKET, EXHAUST PIPE	129052-13550	143,000
5	BOLT, M8X80 10.9T	129E00-13640	164,000
6	STUD, M8X22	119131-18320	70,000
7	BRACKET ASSY, FILTER	119852-55612
8	SEPARATOR ASSY,WATER	119802-55700	2,436,000
9	NUT, RETAINING	129100-55690
10	ELEMENT, FUEL	119802-55710
11	CUP ASSY, SEPARATOR	119802-55730	598,000
12	O-RING, 1AP16.0	24311-000160	3,000
13	O-RING, 1AG65.0	24321-000650	12,000
14	FILTER, FUEL	129004-55801
15	TIMER, SECTION 1	129211-77920	1,419,000

STT	Tên sản phẩm	Mã số	Giá bán
1	MANIFOLD, EXHAUST	171350-13100
2	GASKET, MANIFOLD	129150-13110
3	GASKET, SILENCER	129004-13200
4	GASKET, EXHAUST PIPE	129052-13550	143,000
5	BOLT, M8X80 10.9T	129E00-13640	164,000
6	STUD, M8X22	119131-18320	70,000
7	BRACKET ASSY, FILTER	119852-55612
8	FILTER ASSY,FUEL PRE	129659-55700	3,385,000
9	CUP, SEPARATOR	129242-55720	1,494,000
10	ELEMENT, FUEL FILTER	129630-55731	608,000
11	PLUG ASSY	129E32-55740	314,000
12	FLOAT	129242-55770	134,000
13	SPRING	129630-55780	83,000
14	BODY ASSY	129659-55800
15	VALVE, AIR VENT	129242-55750	34,000
16	GASKET, PLUG	129242-55760	41,000
17	PACKING, P 11.0	24316-000110	218,000
18	O-RING, 4DP16.0	24316-000160	114,000
19	O-RING, 4DG75.0	24326-000750	214,000
20	FILTER, FUEL	129004-55801
21	TIMER, SECTION 1	129211-77920	1,419,000

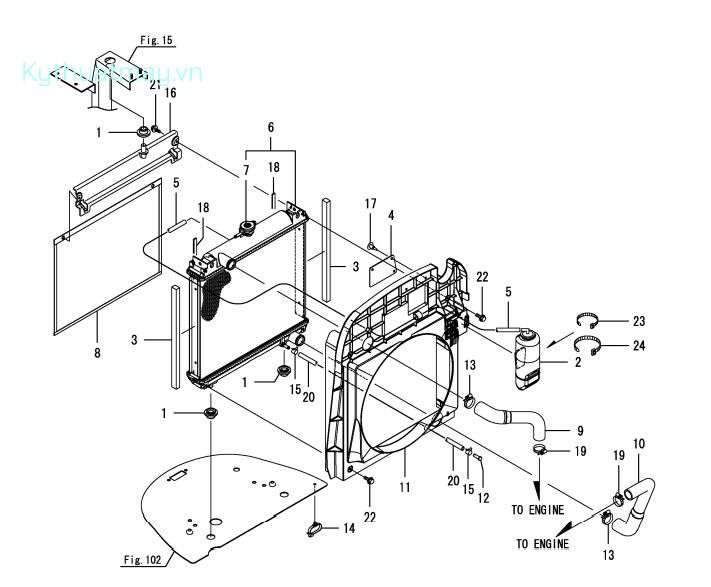

STT	Tên sản phẩm	Mã số	Giá bán
1	RUBBER, RADIATOR	1A8115-00610
2	TANK ASSY, SUB	1A8115-00650	204,000
3	SEAL, RADIATOR	1A8310-00660	14,000
4	COVER, SHROUD	1A8310-00670	45,000
5	PIPE, OVERFLOW	1A8310-00680
6	RADIATOR ASSY,	1A8310-00700	3,347,000
7	CAP, RADIATOR	1A7781-01620	179,000
8	SCREEN ASSY,RADIATOR	1A8310-01210	795,000
9	PIPE, WATER A	1A8310-01410
10	PIPE, WATER B	1A8310-01450
11	SHROUD, FAN	1A8310-01510	489,000
12	PIN, PARALLEL 8X24	198220-37900	70,000
13	CLIP, HOSE 37.0	175022-49750	106,000
14	CLIP, M8 HOLE	1A8275-51670	129,000
15	CLAMP, HOSE 12	114270-59010-1
16	HOOK ASSY, SCREEN	1A8310-60710	348,000
17	CLIP, HOLE CAP	194697-62560	34,000
18	SEAL, CONDENSER	1A7320-87110
19	CLAMP, 35	23000-035000	154,000
20	HOSE, 7.3X 300	23980-730300	136,000
21	BOLT, M6X 12 PLATED	26106-060122	3,000
22	BOLT, M6X 20 PLATED	26106-060202	5,000
23	BAND, RF140	29622-140001	6,000
24	BAND, RF250	29622-250001	11,000

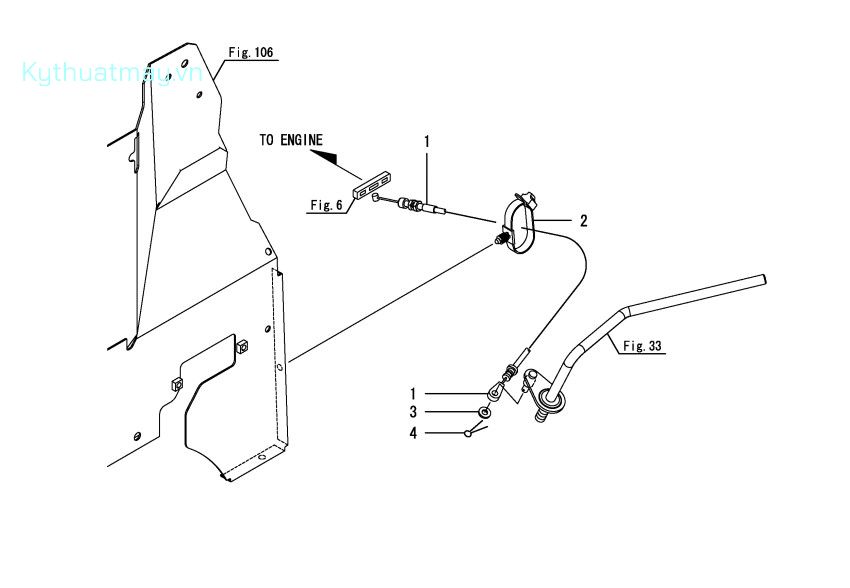

STT	Tên sản phẩm	Mã số	Giá bán
1	CABLE ASSY, CONTROL	1A8310-01150	224,000
2	CLIP, M8 HOLE	1A8275-51670	129,000
3	WASHER, 6	22137-060000	2,000
4	PIN, COTTER 1.6X18	22417-160180

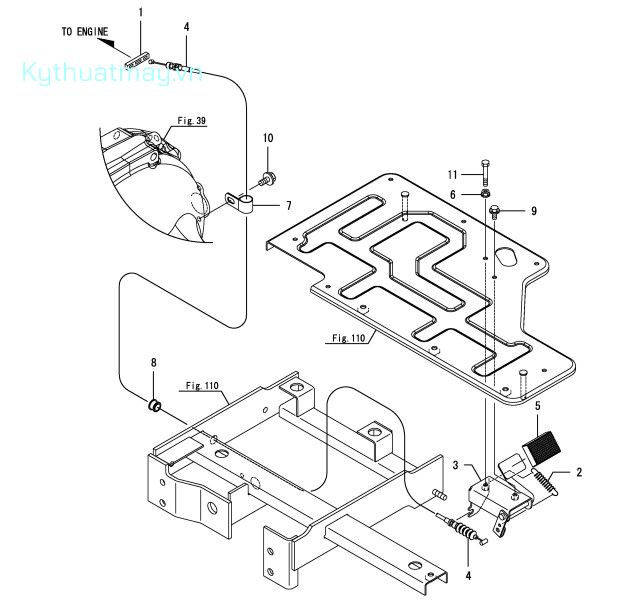

STT	Tên sản phẩm	Mã số	Giá bán
1	RUBBER, WIRE	1A8115-01160	16,000
2	SPRING, RETURN	1A8115-01280	12,000
3	ACCEL UNIT, FOOT	1A8310-01300	334,000
4	CABLE ASSY, CONTROL	1A8310-01350	452,000
5	RUBBER, ACCEL PEDEL	1A8310-01400	39,000
6	NUT, M6	194990-22130	34,000
7	CLIP, HARNESS 18	1E6213-83410
8	GROMMET, 15	197830-85490	44,000
9	BOLT, M6X 12 PLATED	26106-060122	3,000
10	BOLT, M8X 16 PLATED	26106-080162	6,000
11	BOLT, M6X 40 PLATED	26116-060404	30,000

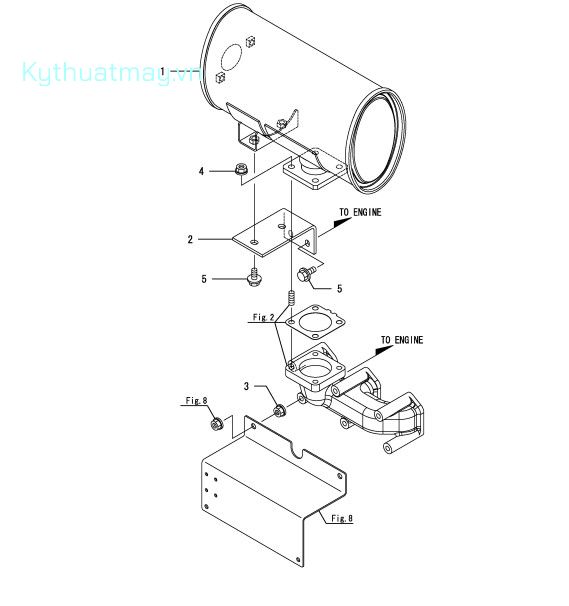

STT	Tên sản phẩm	Mã số	Giá bán
1	SILENCER ASSY	1A8310-03200	2,652,000
2	STAY, SILENDER	1A8310-03280	129,000
3	NUT, M8	194990-22140	44,000
4	NUT, M8	194990-22140	44,000
5	BOLT, M8X 16 PLATED	26106-080162	6,000

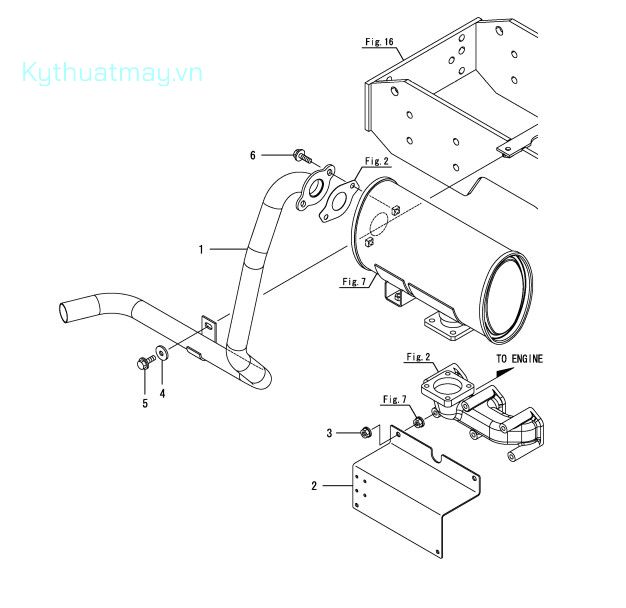

STT	Tên sản phẩm	Mã số	Giá bán
1	PIPE, EXHAUST	1A8310-03511
2	PLATE, SILENCER	1A8310-05510	215,000
3	NUT, M8	194990-22140	44,000
4	WASHER, 8	22157-080000	2,000
5	BOLT, M8X 20 PLATED	26106-080202	6,000
6	BOLT, M8X 20 PLATED	26106-080202	6,000

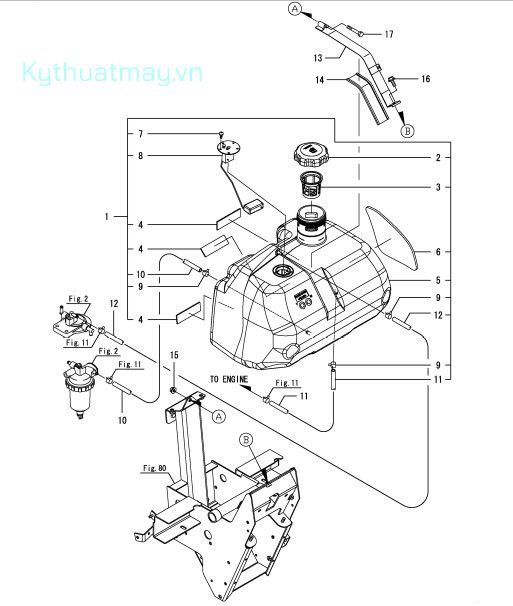

STT	Tên sản phẩm	Mã số	Giá bán
1	TANK ASSY, FUEL	1A8310-04100	5,957,000
2	CAP ASSY, FILLER	1A7870-04030	643,000
3	STRAINER, FUEL TANK	198200-04061	228,000
4	CUSHION, TANK F	198200-04090
5	TANK ASSY, FUEL	1A8310-04110
6	CUSHION, TANK L	198200-04120
7	SCREW, M5X14	1A7180-04180	25,000
8	GAUGE, FUEL	1A7500-56610
9	CLAMP, HOSE 12	114270-59010-1
10	HOSE, 7.3X 500	23980-730500	314,000
11	HOSE, 7.3X 850	23980-730850	425,000
12	HOSE, 7.3X1500	23980-731500
13	BAND ASSY, FUEL TANK	1A8310-04310	164,000
14	RETAINER, BAND	198153-04670
15	NUT, M8	194990-22140	44,000
16	BOLT, M8X 16 PLATED	26106-080162	6,000
17	BOLT, M8X 65 PLATED	26116-080654

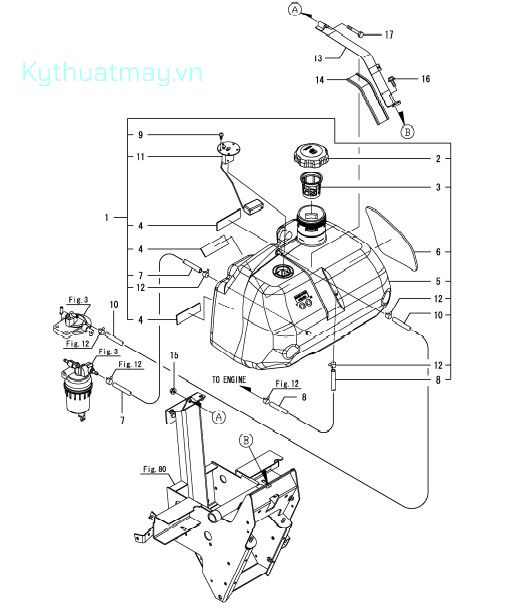

STT	Tên sản phẩm	Mã số	Giá bán
1	TANK ASSY,FO W/GAUGE	1A8310-04150
2	CAP ASSY, FILLER	1A7870-04030	643,000
3	STRAINER, FUEL TANK	198200-04061	228,000
4	CUSHION, TANK F	198200-04090
5	TANK ASSY, FUEL	1A8310-04110
6	CUSHION, TANK L	198200-04120
7	HOSE, FUEL 500	1A8310-04160
8	HOSE, FUEL 850	1A8310-04170
9	SCREW, M5X14	1A7180-04180	25,000
10	HOSE, FUEL 1500	1A8310-04180
11	GAUGE, FUEL	1A7500-56610
12	CLAMP, HOSE 12	114270-59010-1
13	BAND ASSY, FUEL TANK	1A8310-04310	164,000
14	RETAINER, BAND	198153-04670
15	NUT, M8	194990-22140	44,000
16	BOLT, M8X 16 PLATED	26106-080162	6,000
17	BOLT, M8X 65 PLATED	26116-080654

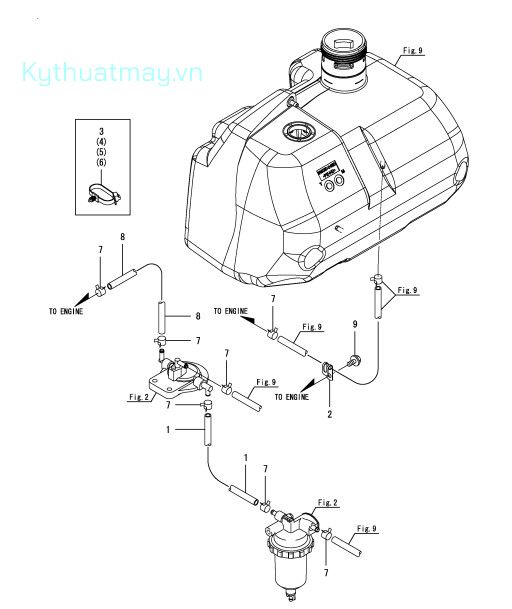

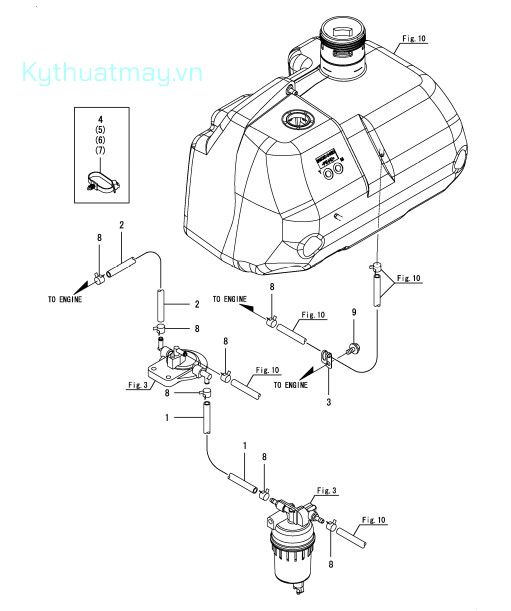

STT	Tên sản phẩm	Mã số	Giá bán
1	HOSE, FUEL	1A8310-04130
2	CLAMP, B	194440-51620	98,000
3	CLIP, M8 HOLE	1A8275-51670	129,000
4	CLIP, M8 HOLE	1A8275-51670	129,000
5	CLIP, M8 HOLE	1A8275-51670	129,000
6	CLIP, M8 HOLE	1A8275-51670	129,000
7	CLAMP, HOSE 12	114270-59010-1
8	HOSE, 7.3X 300	23980-730300	136,000
9	BOLT, M8X 12 PLATED	26106-080122	3,000

STT	Tên sản phẩm	Mã số	Giá bán
1	HOSE, FUEL	1A8310-04140
2	HOSE, FUEL 300	1A7781-04220
3	CLAMP, B	194440-51620	98,000
4	CLIP, M8 HOLE	1A8275-51670	129,000
5	CLIP, M8 HOLE	1A8275-51670	129,000
6	CLIP, M8 HOLE	1A8275-51670	129,000
7	CLIP, M8 HOLE	1A8275-51670	129,000
8	CLAMP, HOSE 12	114270-59010-1
9	BOLT, M8X 12 PLATED	26106-080122	3,000

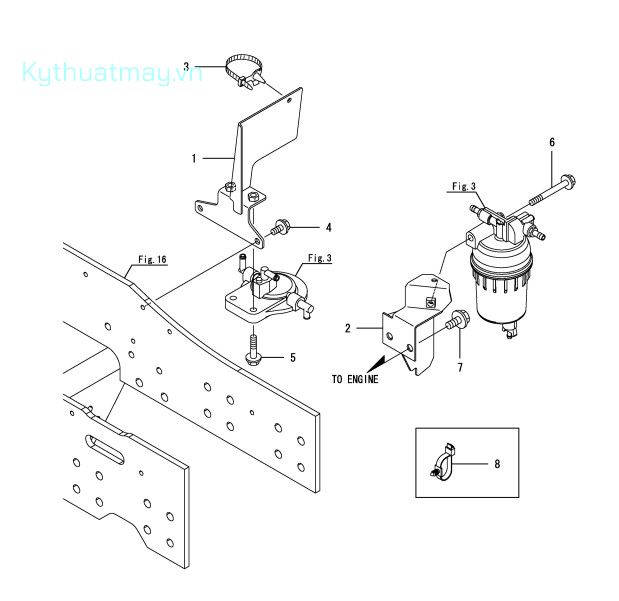

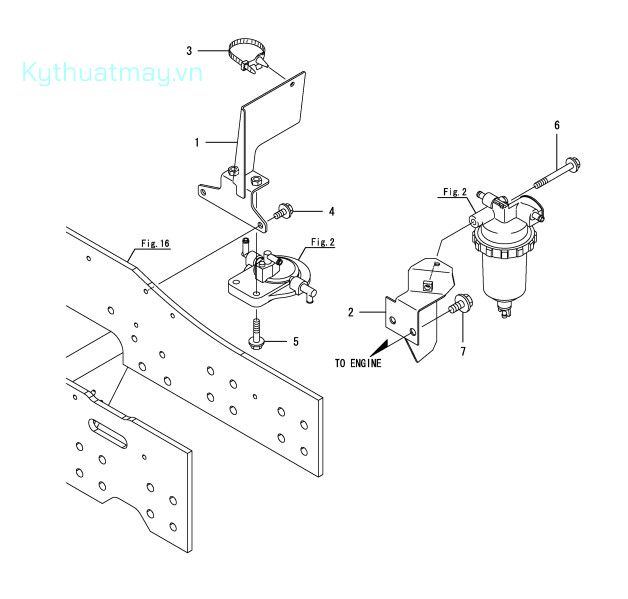

STT	Tên sản phẩm	Mã số	Giá bán
1	STAY ASSY, FILTER	1A8310-11250	328,000
2	STAY,WATER SEPARATOR	1A8310-11310	214,000
3	CLIP, BAND	198448-51910	55,000
4	BOLT, M8X 16 PLATED	26106-080162	6,000
5	BOLT, M8X 35 PLATED	26106-080352	9,000
6	BOLT, M8X 70 PLATED	26106-080702	34,000
7	BOLT, M10X 16 PLATED	26106-100162	30,000

STT	Tên sản phẩm	Mã số	Giá bán
1	STAY ASSY, FILTER	1A8310-11250	328,000
2	STAY,WATER SEPARATOR	1A8310-11350
3	CLIP, BAND	198448-51910	55,000
4	BOLT, M8X 16 PLATED	26106-080162	6,000
5	BOLT, M8X 35 PLATED	26106-080352	9,000
6	BOLT, M8X 70 PLATED	26106-080702	34,000
7	BOLT, M10X 16 PLATED	26106-100162	30,000
8	BAND, RF140	29622-140001	6,000

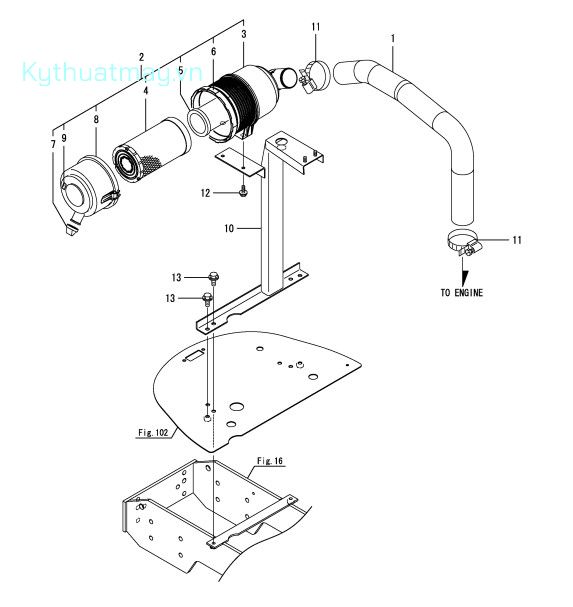

STT	Tên sản phẩm	Mã số	Giá bán
1	PIPE, AIR INTAKE	1A8310-06010
2	CLEANER ASSY, AIR	1A8310-06100
3	BODY ASSY	1A8310-06110
4	ELEMENT, OUTER	119808-12520
5	ELEMENT, INNER	129051-12530	343,000
6	LABEL, ARROW MARK	129418-12530
7	VALVE, UNLODER	119808-12540	523,000
8	COVER ASSY, CLEANER	119866-12541
9	LABEL, MARKING	129612-12650
10	BRACKET ASSY,CLEANER	1A8310-06210	1,223,000
11	CLAMP, 80	23000-080000	223,000
12	BOLT, M8X 16 PLATED	26106-080162	6,000
13	BOLT, M10X 20 PLATED	26106-100202	11,000
