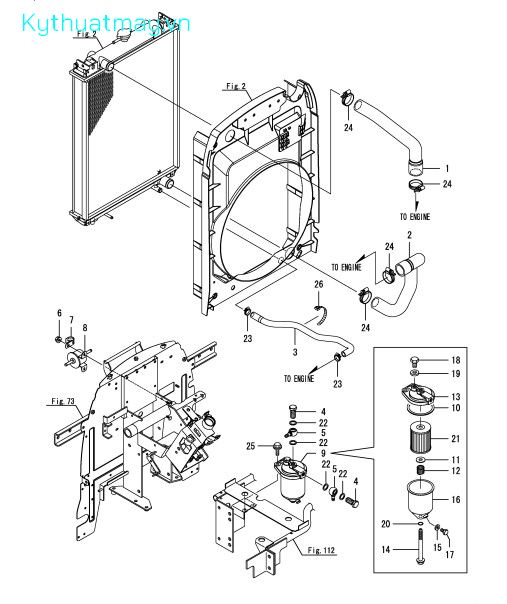

Hệ thống phụ trên động cơ

Hệ thống phụ trên động cơ
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 CW-T, A 1A8296-01211
2 CW-T, B 1A8296-01221
3 CW-T, LO COOLER OUT 1A8296-01241
4 BOLT,JOIMT M8 1E8550-03410
5 JOINT 14 1E8559-03910
6 NUT, M6 194990-22130 34,000
7 CLAMP, B 1A8296-51620 22,000
8 PUMP, FUEL FEED 119225-52102 1,255,000
9 SEPARATOR ASSY,WATER 129065-55750 1,958,000
10 GASKET 123325-35140
11 WASHER 123325-35160 44,000
12 SPRING, FILTER 129065-55170
13 BODY, STRAINER 129495-55610 1,458,000
14 BOLT 129495-55620 859,000
15 GASKET 123672-55760 25,000
16 CASE, SEPARATOR 129065-55760 1,345,000
17 PLUG, DRAIN M8 129065-55770 59,000
18 PLUG, M14 129065-55800 109,000
19 GASKET, PLUG 123678-55890 25,000
20 O-RING, 1AP12.0 24311-000120 2,000
21 ELEMENT, FUEL 41650-550800 411,000
22 WASHER, SEAL 14 22190-140002
23 CLAMP, 25 23000-025000 28,000
24 CLAMP, 48 23000-048000 187,000
25 BOLT, M8X 25 PLATED 26106-080252 11,000
26 BAND, RF250 29622-250001 11,000
1 CW-T, A 1A8296-01211
2 CW-T, B 1A8296-01221
3 CW-T, LO COOLER OUT 1A8296-01241
4 BOLT,JOIMT M8 1E8550-03410
5 JOINT 14 1E8559-03910
6 NUT, M6 194990-22130 34,000
7 CLAMP, B 1A8296-51620 22,000
8 PUMP, FUEL FEED 119225-52102 1,255,000
9 SEPARATOR ASSY,WATER 129065-55750 1,958,000
10 GASKET 123325-35140
11 WASHER 123325-35160 44,000
12 SPRING, FILTER 129065-55170
13 BODY, STRAINER 129495-55610 1,458,000
14 BOLT 129495-55620 859,000
15 GASKET 123672-55760 25,000
16 CASE, SEPARATOR 129065-55760 1,345,000
17 PLUG, DRAIN M8 129065-55770 59,000
18 PLUG, M14 129065-55800 109,000
19 GASKET, PLUG 123678-55890 25,000
20 O-RING, 1AP12.0 24311-000120 2,000
21 ELEMENT, FUEL 41650-550800 411,000
22 WASHER, SEAL 14 22190-140002
23 CLAMP, 25 23000-025000 28,000
24 CLAMP, 48 23000-048000 187,000
25 BOLT, M8X 25 PLATED 26106-080252 11,000
26 BAND, RF250 29622-250001 11,000

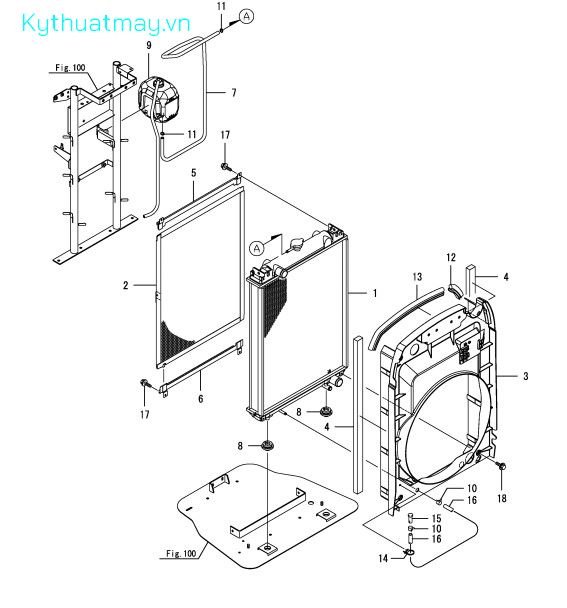

Bộ tản nhiệt

Bộ tản nhiệt
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 RADIATOR ASSY 1A8292-00650
2 SCREEN, RADIATOR 1A8296-01250-1
3 SHROUD, FAN 1A8292-01520 531,000
4 URETHANE,720X30X20 1A8296-01570
5 RAIL, UPPER 1A8296-01602-1
6 RAIL, LOWER 1A8296-01631-1
7 HOSE, OVERFLOW 1A8292-01950
8 CUSHION, RADIATOR 1E8809-04010 30,000
9 SUB TANK ASSY 1E9061-04201 369,000
10 CLAMP, HOSE 12.5 106990-44660 11,000
11 CLAMP, HOSE 12 114270-59010 50,000
12 WEATHER-STRIP, 80 1A8296-61970 25,000
13 WEATHER-STRIP, 410 1A8296-61980 64,000
14 CLIP, BAND 1E9265-84300 84,000
15 PIN, H 8X 20 22487-080200 33,000
16 HOSE, 7.3X 220 23980-730220 94,000
17 BOLT, M6X 12 PLATED 26106-060122 3,000
18 BOLT, M6X 20 PLATED 26106-060202 5,000
1 RADIATOR ASSY 1A8292-00650
2 SCREEN, RADIATOR 1A8296-01250-1
3 SHROUD, FAN 1A8292-01520 531,000
4 URETHANE,720X30X20 1A8296-01570
5 RAIL, UPPER 1A8296-01602-1
6 RAIL, LOWER 1A8296-01631-1
7 HOSE, OVERFLOW 1A8292-01950
8 CUSHION, RADIATOR 1E8809-04010 30,000
9 SUB TANK ASSY 1E9061-04201 369,000
10 CLAMP, HOSE 12.5 106990-44660 11,000
11 CLAMP, HOSE 12 114270-59010 50,000
12 WEATHER-STRIP, 80 1A8296-61970 25,000
13 WEATHER-STRIP, 410 1A8296-61980 64,000
14 CLIP, BAND 1E9265-84300 84,000
15 PIN, H 8X 20 22487-080200 33,000
16 HOSE, 7.3X 220 23980-730220 94,000
17 BOLT, M6X 12 PLATED 26106-060122 3,000
18 BOLT, M6X 20 PLATED 26106-060202 5,000

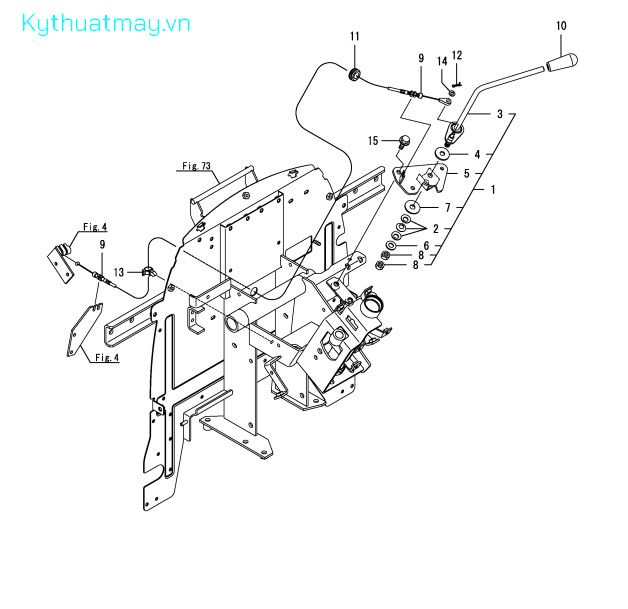

Cần gia tốc

Cần gia tốc
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 LEVER UNIT, ACCEL 1A8296-01100 532,000
2 SPRING, 10 194740-00160 55,000
3 LEVER ASSY, CONTROL 1A8296-01110
4 PLATE, FRICTION 198200-01260 206,000
5 STAY ASSY, LEVER 1A8296-02150
6 WASHER, 10 22137-100000 2,000
7 WASHER, 10 22157-100000 25,000
8 NUT, M10 26716-100002 30,000
9 WIRE ASSY,HAND ACCEL 1A8296-01150 143,000
10 KNOB, ACCEL LEVER 1A8296-01190 22,000
11 GROMMET, D8 1A8296-22520 8,000
12 PIN, SNAP 6 1C730C-52370 14,000
13 CLIP, BAND 1E9265-84300 84,000
14 WASHER, 6 22137-060000 2,000
15 BOLT, M8X 16 PLATED 26106-080162 6,000
1 LEVER UNIT, ACCEL 1A8296-01100 532,000
2 SPRING, 10 194740-00160 55,000
3 LEVER ASSY, CONTROL 1A8296-01110
4 PLATE, FRICTION 198200-01260 206,000
5 STAY ASSY, LEVER 1A8296-02150
6 WASHER, 10 22137-100000 2,000
7 WASHER, 10 22157-100000 25,000
8 NUT, M10 26716-100002 30,000
9 WIRE ASSY,HAND ACCEL 1A8296-01150 143,000
10 KNOB, ACCEL LEVER 1A8296-01190 22,000
11 GROMMET, D8 1A8296-22520 8,000
12 PIN, SNAP 6 1C730C-52370 14,000
13 CLIP, BAND 1E9265-84300 84,000
14 WASHER, 6 22137-060000 2,000
15 BOLT, M8X 16 PLATED 26106-080162 6,000

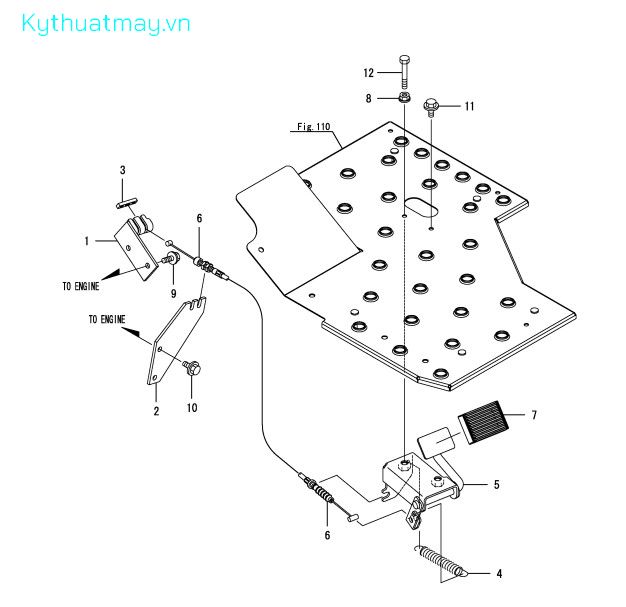

Bàn đạp ga

Bàn đạp ga
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 HOOK ASSY,WIRE ACCEL 1A8296-00210
2 SUPPORT, ACCEL WIRE 1A8296-00240
3 RUBBER, WIRE 1A8296-01160
4 SPRING, RETURN 1A8296-01340
5 CONTROL ASSY, FOOT 1A8296-01350
6 WIRE ASSY,FOOT ACCEL 1A8296-01430 154,000
7 RUBBER, FOOT ACCEL 1A8296-01450 65,000
8 NUT, M6 194990-22130 34,000
9 BOLT, M6X 12 PLATED 26106-060122 3,000
10 BOLT, M6X 12 PLATED 26106-060122 3,000
11 BOLT, M6X 12 PLATED 26106-060122 3,000
12 BOLT, M6X 40 PLATED 26116-060404 30,000
1 HOOK ASSY,WIRE ACCEL 1A8296-00210
2 SUPPORT, ACCEL WIRE 1A8296-00240
3 RUBBER, WIRE 1A8296-01160
4 SPRING, RETURN 1A8296-01340
5 CONTROL ASSY, FOOT 1A8296-01350
6 WIRE ASSY,FOOT ACCEL 1A8296-01430 154,000
7 RUBBER, FOOT ACCEL 1A8296-01450 65,000
8 NUT, M6 194990-22130 34,000
9 BOLT, M6X 12 PLATED 26106-060122 3,000
10 BOLT, M6X 12 PLATED 26106-060122 3,000
11 BOLT, M6X 12 PLATED 26106-060122 3,000
12 BOLT, M6X 40 PLATED 26116-060404 30,000

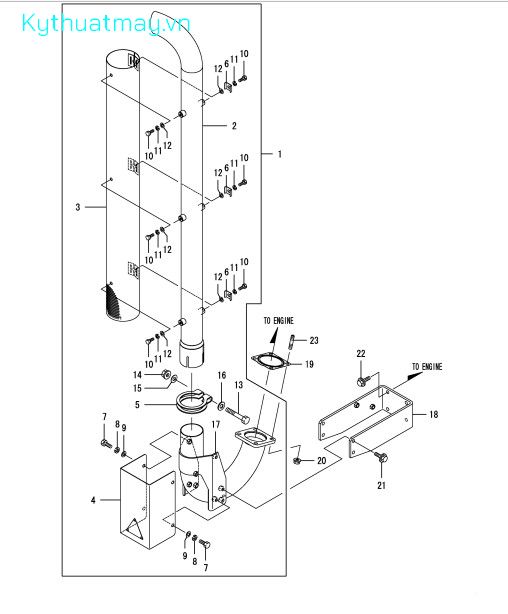

Ống xả

Ống xả
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 PIPE KIT, TAIL 1A8296-03200 4,383,000
2 PIPE ASSY, EXHAUST 1A8296-03100 1,440,000
3 COVER ASSY, EXHAUST 1A8296-03120 483,000
4 COVER ASSY, EXHAUST 1A8296-03160 448,000
5 CLAMP, 1A8296-03250 181,000
6 STAY, COVER 1A8296-03260 98,000
7 BOLT, M8X22 1A8296-03320 33,000
8 WASHER, SPRING 8 1A8296-03330 12,000
9 WASHER, 8 1A8296-03340 12,000
10 BOLT, M6X12 1A8296-03350 55,000
11 WASHER, SPRING 6 1A8296-03360 22,000
12 WASHER, 6 1A8296-03370 22,000
13 BOLT, M10X65 1A8296-03380 33,000
14 NUT, FLANGE 10 1A8296-03390 33,000
15 WASHER, 10 1A8296-03400 22,000
16 WASHER, 10 1A8296-03410 22,000
17 PIPE ASSY,EXHAUST 1A8296-03500 1,327,000
18 BRACKET, PIPE 1A8296-03602
19 GASKET, SILENCER 129930-13201 59,000
20 NUT, M8 194990-22140 44,000
21 BOLT, M8X 16 PLATED 26106-080162 6,000
22 BOLT, M8X 16 PLATED 26106-080162 6,000
23 STUD, M8X 30 26216-080302
1 PIPE KIT, TAIL 1A8296-03200 4,383,000
2 PIPE ASSY, EXHAUST 1A8296-03100 1,440,000
3 COVER ASSY, EXHAUST 1A8296-03120 483,000
4 COVER ASSY, EXHAUST 1A8296-03160 448,000
5 CLAMP, 1A8296-03250 181,000
6 STAY, COVER 1A8296-03260 98,000
7 BOLT, M8X22 1A8296-03320 33,000
8 WASHER, SPRING 8 1A8296-03330 12,000
9 WASHER, 8 1A8296-03340 12,000
10 BOLT, M6X12 1A8296-03350 55,000
11 WASHER, SPRING 6 1A8296-03360 22,000
12 WASHER, 6 1A8296-03370 22,000
13 BOLT, M10X65 1A8296-03380 33,000
14 NUT, FLANGE 10 1A8296-03390 33,000
15 WASHER, 10 1A8296-03400 22,000
16 WASHER, 10 1A8296-03410 22,000
17 PIPE ASSY,EXHAUST 1A8296-03500 1,327,000
18 BRACKET, PIPE 1A8296-03602
19 GASKET, SILENCER 129930-13201 59,000
20 NUT, M8 194990-22140 44,000
21 BOLT, M8X 16 PLATED 26106-080162 6,000
22 BOLT, M8X 16 PLATED 26106-080162 6,000
23 STUD, M8X 30 26216-080302

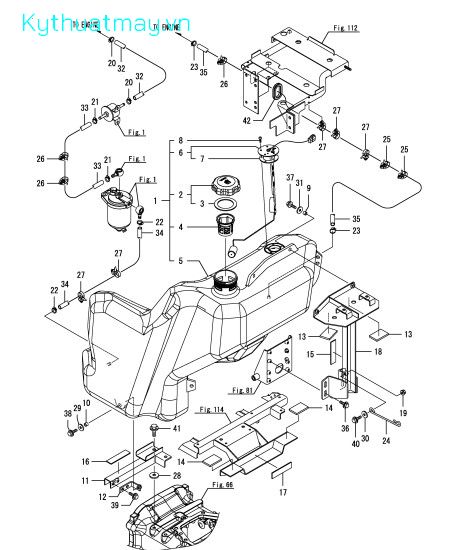

Thùng chứa nhiên liệu

Thùng chứa nhiên liệu
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 TANK KIT, FUEL 1A8296-04000
2 CAP ASSY, FILLER 198200-04031 961,000
3 GASKET, FUEL CAP 198200-04040 762,000
4 STRAINER, FUEL 198200-04061 228,000
5 TANK ASSY, FUEL 1A8296-04110 7,183,000
6 GAUGE UNIT, FUEL 1A8296-56600 1,901,000
7 GASKET, FUEL GAUGE 1A8296-56620
8 SCREW, M5X16 26022-050162 25,000
9 COLLAR, 1A8296-04260
10 COLLAR, 1A8296-04260
11 STAY ASSY,TANK LOWER 1A8296-04500-2
12 BRACKET ASSY,TANK LO 1A8296-04530-1
13 RUBBER, 60X40X6 1A8296-04610 55,000
14 RUBBER, 60X40X6 1A8296-04610 55,000
15 RUBBER, 100X25X3 1A8296-04620 33,000
16 RUBBER, 100X25X3 1A8296-04620 33,000
17 RUBBER, 100X25X3 1A8296-04620 33,000
18 STAY ASSY, TANK REAR 1A8292-04900
19 NUT, M8 194990-22140 44,000
20 CLAMP, HOSE 12 114270-59010 50,000
21 CLAMP, HOSE 12 114270-59010 50,000
22 CLAMP, HOSE 12 114270-59010 50,000
23 CLAMP, HOSE 12 114270-59010 50,000
24 HOOK, TOPLINK 1A8296-71710 59,000
25 CLIP, BAND 1E9265-84300 84,000
26 CLIP, BAND 1E9265-84300 84,000
27 CLIP, BAND 1E9265-84300 84,000
28 WASHER, 10 22137-100000 2,000
29 WASHER, 8 22157-080000 2,000
30 WASHER, 8 22157-080000 2,000
31 WASHER, 8 22157-080000 2,000
32 HOSE, 7.3X 200 23980-730200 255,000
33 HOSE, 7.3X 850 23980-730850 425,000
34 HOSE, 7.3 X 1260 23980-731260 634,000
35 HOSE, 7.3 X 1960 23980-731960 500,000
36 BOLT, M8X 25 PLATED 26106-080252 11,000
37 BOLT, M8X 25 PLATED 26106-080252 11,000
38 BOLT, M8X 25 PLATED 26106-080252 11,000
39 BOLT, M8X 25 PLATED 26106-080252 11,000
40 BOLT, M8X 30 PLATED 26106-080302 9,000
41 BOLT, M10X 20 PLATED 26106-100202 11,000
42 GROMET, 25X5.0X50 29321-255050 95,000
1 TANK KIT, FUEL 1A8296-04000
2 CAP ASSY, FILLER 198200-04031 961,000
3 GASKET, FUEL CAP 198200-04040 762,000
4 STRAINER, FUEL 198200-04061 228,000
5 TANK ASSY, FUEL 1A8296-04110 7,183,000
6 GAUGE UNIT, FUEL 1A8296-56600 1,901,000
7 GASKET, FUEL GAUGE 1A8296-56620
8 SCREW, M5X16 26022-050162 25,000
9 COLLAR, 1A8296-04260
10 COLLAR, 1A8296-04260
11 STAY ASSY,TANK LOWER 1A8296-04500-2
12 BRACKET ASSY,TANK LO 1A8296-04530-1
13 RUBBER, 60X40X6 1A8296-04610 55,000
14 RUBBER, 60X40X6 1A8296-04610 55,000
15 RUBBER, 100X25X3 1A8296-04620 33,000
16 RUBBER, 100X25X3 1A8296-04620 33,000
17 RUBBER, 100X25X3 1A8296-04620 33,000
18 STAY ASSY, TANK REAR 1A8292-04900
19 NUT, M8 194990-22140 44,000
20 CLAMP, HOSE 12 114270-59010 50,000
21 CLAMP, HOSE 12 114270-59010 50,000
22 CLAMP, HOSE 12 114270-59010 50,000
23 CLAMP, HOSE 12 114270-59010 50,000
24 HOOK, TOPLINK 1A8296-71710 59,000
25 CLIP, BAND 1E9265-84300 84,000
26 CLIP, BAND 1E9265-84300 84,000
27 CLIP, BAND 1E9265-84300 84,000
28 WASHER, 10 22137-100000 2,000
29 WASHER, 8 22157-080000 2,000
30 WASHER, 8 22157-080000 2,000
31 WASHER, 8 22157-080000 2,000
32 HOSE, 7.3X 200 23980-730200 255,000
33 HOSE, 7.3X 850 23980-730850 425,000
34 HOSE, 7.3 X 1260 23980-731260 634,000
35 HOSE, 7.3 X 1960 23980-731960 500,000
36 BOLT, M8X 25 PLATED 26106-080252 11,000
37 BOLT, M8X 25 PLATED 26106-080252 11,000
38 BOLT, M8X 25 PLATED 26106-080252 11,000
39 BOLT, M8X 25 PLATED 26106-080252 11,000
40 BOLT, M8X 30 PLATED 26106-080302 9,000
41 BOLT, M10X 20 PLATED 26106-100202 11,000
42 GROMET, 25X5.0X50 29321-255050 95,000

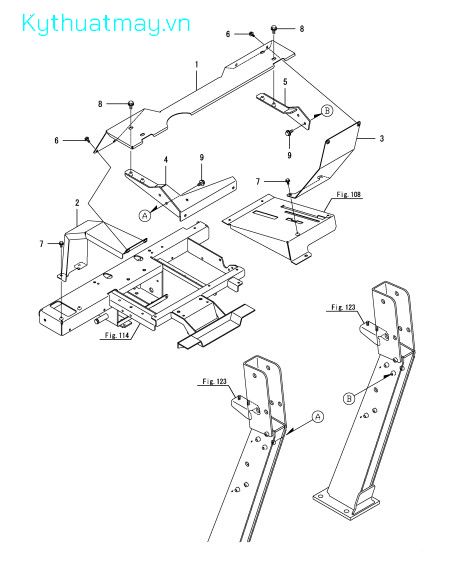

Vỏ thùng dầu

Vỏ thùng dầu
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 M ASSY,FUELTANK CENT 7A8292-04720
2 COVER ASSY,FO TANK L 1A8292-04730
3 COVER ASSY,FO TANK R 1A8292-04750
4 BRACKET ASSY,COVER L 1A8292-04800
5 BRACKET ASSY,COVER R 1A8292-04810
6 BOLT, M6X 12 PLATED 26106-060122 3,000
7 BOLT, M6X 12 PLATED 26106-060122 3,000
8 BOLT, M8X 16 PLATED 26106-080162 6,000
9 BOLT, M8X 16 PLATED 26106-080162 6,000
1 M ASSY,FUELTANK CENT 7A8292-04720
2 COVER ASSY,FO TANK L 1A8292-04730
3 COVER ASSY,FO TANK R 1A8292-04750
4 BRACKET ASSY,COVER L 1A8292-04800
5 BRACKET ASSY,COVER R 1A8292-04810
6 BOLT, M6X 12 PLATED 26106-060122 3,000
7 BOLT, M6X 12 PLATED 26106-060122 3,000
8 BOLT, M8X 16 PLATED 26106-080162 6,000
9 BOLT, M8X 16 PLATED 26106-080162 6,000

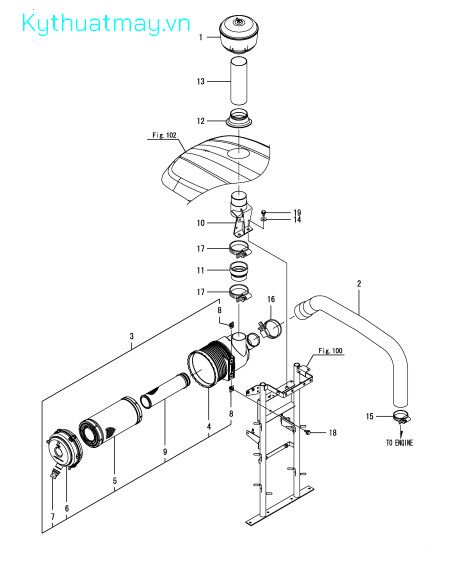

Bộ lọc khí

Bộ lọc khí
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 CLEANER ASSY,PRE 1E6B00-04400 900,000
2 HOSE, AIR INTAKE 1A8296-05121 1,237,000
3 CLEANER ASSY, AIR 1A8292-05501 2,522,000
4 CASE ASSY,AIRCLEANER 1A8292-05511
5 ELEMENT, OUTER 1A8296-12520 1,164,000
6 CAP ASSY,AIR CLEANER 1A8296-12530 300,000
7 VALVE, UNLOADER 1A8296-12540 133,000
8 NUT, SPEED 1A8296-12550 87,000
9 ELEMENT ASSY, INNER 1A8296-12570 436,000
10 STAY ASSY, CLEANER 1A8292-05560 416,000
11 HOSE, PRECLEANER 1A8292-05600 142,000
12 GROMMET, PRECLEANER 1A8292-05650
13 PIPE, PRECLEARNER 1A8292-05660 342,000
14 WASHER, 8 22157-080000 2,000
15 CLAMP, 80 23000-080000 223,000
16 CLAMP, 90 23000-090000 190,000
17 CLAMP, 90 23000-090000 190,000
18 BOLT, M8X 16 PLATED 26106-080162 6,000
19 BOLT, M8X 16 PLATED 26106-080162 6,000
1 CLEANER ASSY,PRE 1E6B00-04400 900,000
2 HOSE, AIR INTAKE 1A8296-05121 1,237,000
3 CLEANER ASSY, AIR 1A8292-05501 2,522,000
4 CASE ASSY,AIRCLEANER 1A8292-05511
5 ELEMENT, OUTER 1A8296-12520 1,164,000
6 CAP ASSY,AIR CLEANER 1A8296-12530 300,000
7 VALVE, UNLOADER 1A8296-12540 133,000
8 NUT, SPEED 1A8296-12550 87,000
9 ELEMENT ASSY, INNER 1A8296-12570 436,000
10 STAY ASSY, CLEANER 1A8292-05560 416,000
11 HOSE, PRECLEANER 1A8292-05600 142,000
12 GROMMET, PRECLEANER 1A8292-05650
13 PIPE, PRECLEARNER 1A8292-05660 342,000
14 WASHER, 8 22157-080000 2,000
15 CLAMP, 80 23000-080000 223,000
16 CLAMP, 90 23000-090000 190,000
17 CLAMP, 90 23000-090000 190,000
18 BOLT, M8X 16 PLATED 26106-080162 6,000
19 BOLT, M8X 16 PLATED 26106-080162 6,000
Chọn mua sản phẩm
: ...
: ...
: ...
:
messenger
zalo
