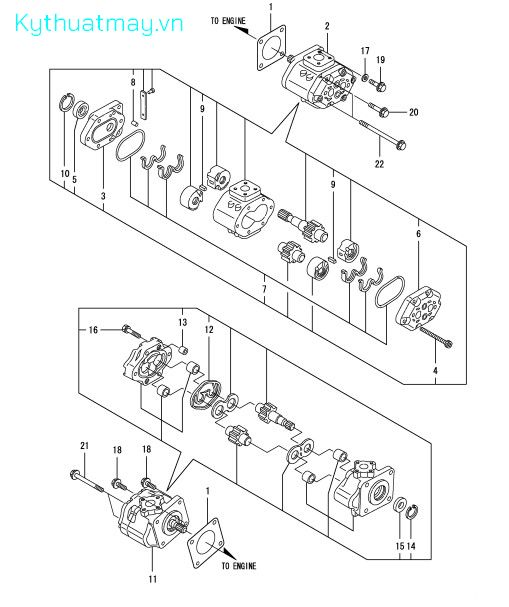

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | GASKET | 124240-01883 | 59,000 | |
| 2 | PUMP, HY/ZFD100/13L | 198240-41110-2 | 15,212,000 | |
| 3 | FLANGE | 194278-41151 | 1,999,000 | |
| 4 | BOLT, M8X83.5 | 198240-41150 | 168,000 | |
| 5 | SEAL, OIL TC173008 | 194278-41160 | ||
| 6 | COVER | 194278-41190 | 1,001,000 | |
| 7 | SEAL KIT | 794275-41200 | 2,155,000 | |
| 8 | PIN, PARALLEL 6X12 | 194065-41210 | 84,000 | |
| 9 | KEY | 194278-41210 | 179,000 | |
| 10 | RING, 30 | 22252-000300 | 34,000 | |
| 11 | PUMP ASSY, HYDRAULIC | 178070-44000 | 13,141,000 | |
| 12 | RING | 178070-10401 | 1,233,000 | |
| 13 | PIN, 11X7 | 194521-41570 | 164,000 | |
| 14 | RING, 32 | 22252-000320 | 12,000 | |
| 15 | SEAL, OIL TC153207 | 24421-153207 | 64,000 | |
| 16 | BOLT, M8X 35 | 26016-080352 | 30,000 | |
| 17 | WASHER, SEAL 8 | 22190-080002 | 44,000 | |
| 18 | BOLT, M8X 25 PLATED | 26106-080252 | 11,000 | |
| 19 | BOLT, M8X 30 PLATED | 26106-080302 | 9,000 | |
| 20 | BOLT, M8X 40 PLATED | 26106-080402 | 30,000 | |
| 21 | BOLT, M8X 80 PLATED | 26106-080802 | 34,000 | |
| 22 | BOLT, M8X120 PLATED | 26106-081202 | 41,000 |
 (1-2)_result.jpg)

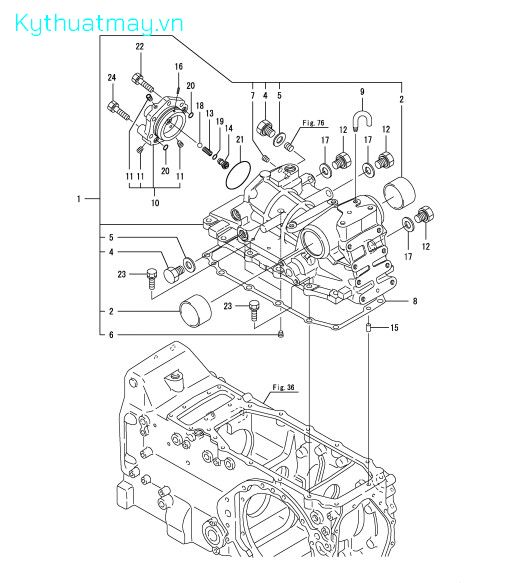

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | HOUSING ASSY | 198133-42102-1 | 45,099,000 | |
| 2 | BUSH, 65X70X40 | 198133-42130 | 1,001,000 | |
| 4 | PLUG, 3/4-16UNF | 198220-45920 | ||
| 5 | GASKET, 19X1.0 | 23414-190000 | 17,000 | |
| 6 | PLUG, R01 | 23876-010000 | 55,000 | |
| 6-1 | PLUG, R01 | 23871-010000 | 44,000 | |
| 7 | PLUG, R02 | 23876-020000 | 64,000 | |
| 7-1 | PLUG, R02 | 23871-020000 | 59,000 | |
| 8 | PACKING, HOUSING | 198240-42130 | 210,000 | |
| 9 | BREATHER, AIR | 194150-42280-X | 176,000 | |
| 10 | HEAD ASSY, CYLINDER | 194640-43201-2 | 6,642,000 | |
| 11 | PLUG, R01 | 23876-010000 | 55,000 | |
| 11-1 | PLUG, R01 | 23871-010000 | 44,000 | |
| 12 | PLUG, 3/4-16UNF | 198220-45920 | ||
| 13 | SPRING | 194555-46380 | 80,000 | |
| 14 | PLUG, CHECK VALVE | 194555-46730 | ||
| 15 | PIN, PARALLEL M10X18 | 22312-100180 | 34,000 | |
| 16 | PIN, SPRING 4.0X16 | 22351-040016 | 25,000 | |
| 17 | GASKET, 19X1.0 | 23414-190000 | 17,000 | |
| 18 | BALL, STEEL 13/32 | 24190-130003 | 5,000 | |
| 19 | O-RING, 1BP12.0 | 24315-000120 | 3,000 | |
| 20 | O-RING, 1BP14.0 | 24315-000140 | 3,000 | |
| 21 | O-RING, 1BG80.0 | 24325-000800 | 27,000 | |
| 22 | BOLT, M12X 35 | 26013-120352 | 22,000 | |
| 23 | BOLT, M12X 35 | 26013-120352 | 22,000 | |
| 24 | BOLT, M12X 55 | 26013-120552 | 59,000 |
 (2-2)_result.jpg)

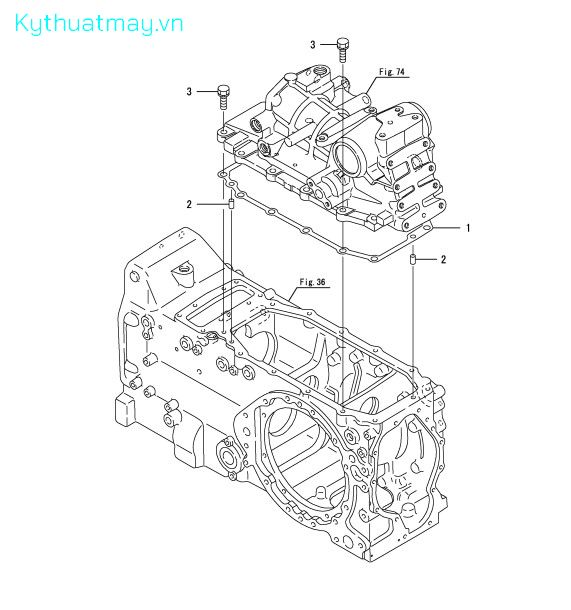

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | PACKING, HOUSING | 198240-42130 | 210,000 | |
| 2 | PIN, PARALLEL M10X18 | 22312-100180 | 34,000 | |
| 3 | BOLT, M12X 35 | 26013-120352 | 22,000 |
_result.jpg)

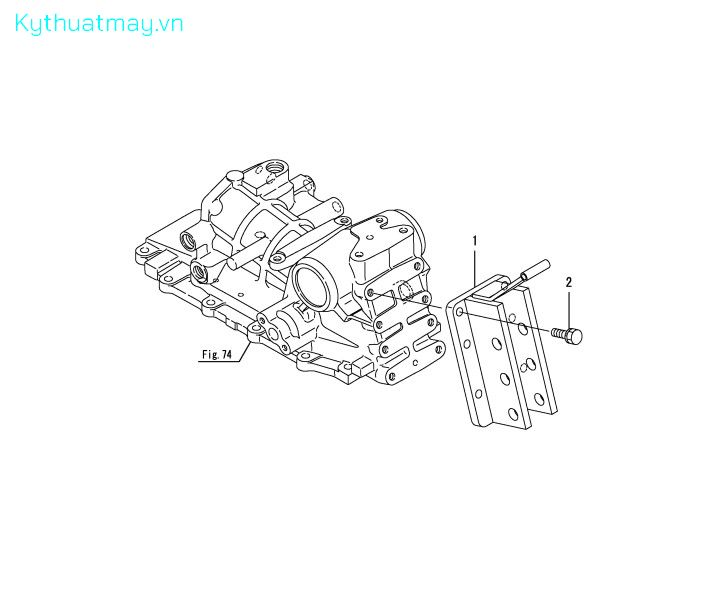

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | HINGE, TOP LINK | 1A7781-42810 | 1,343,000 | |
| 2 | BOLT, M12X 35 | 26013-120352 | 22,000 |
_result.jpg)

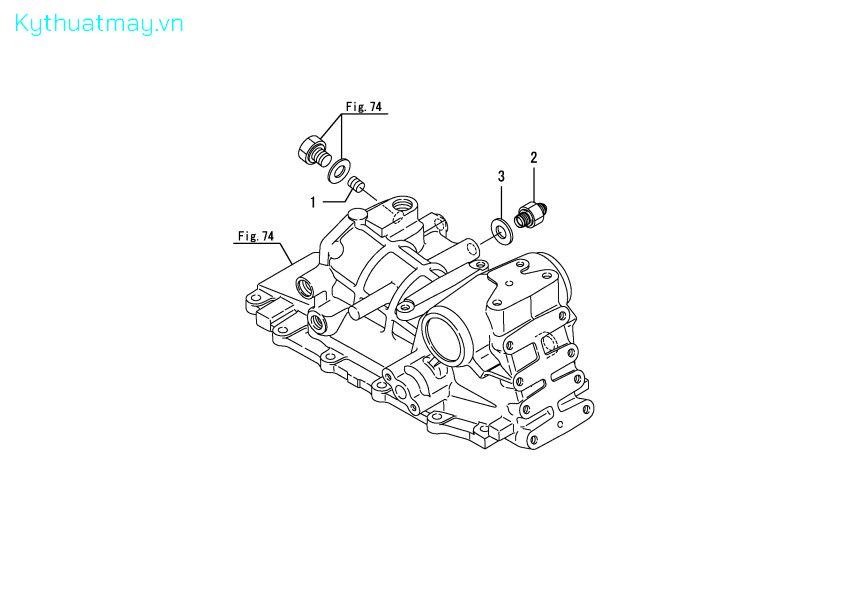

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | PLUG, 1/4 | 198245-42160 | 176,000 | |
| 2 | ADAPTER ASSY, FILTER | 1A7780-45950 | 643,000 | |
| 3 | GASKET, 19X1.0 | 23414-190000 | 17,000 |
_result.jpg)

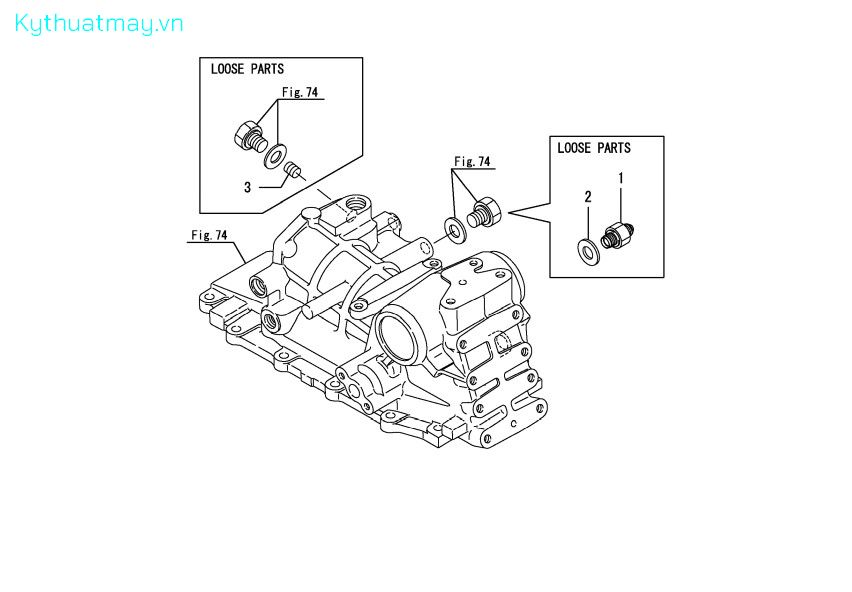

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | ADAPTER ASSY, FILTER | 1A7780-45950 | 643,000 | |
| 2 | GASKET, 19X1.0 | 23414-190000 | 17,000 | |
| 3 | PLUG, 1/4 | 198245-42160 | 176,000 |

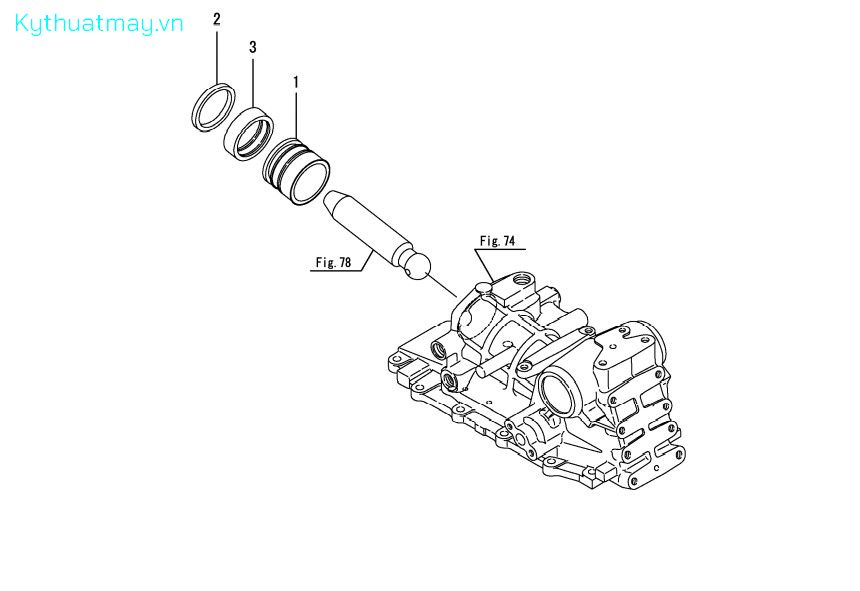

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | PISTON, HYDRAULIC | 198133-43310 | 623,000 | |
| 2 | PACKING | 198133-43330 | 822,000 | |
| 3 | SLEEVE | 198133-43360 | 807,000 |

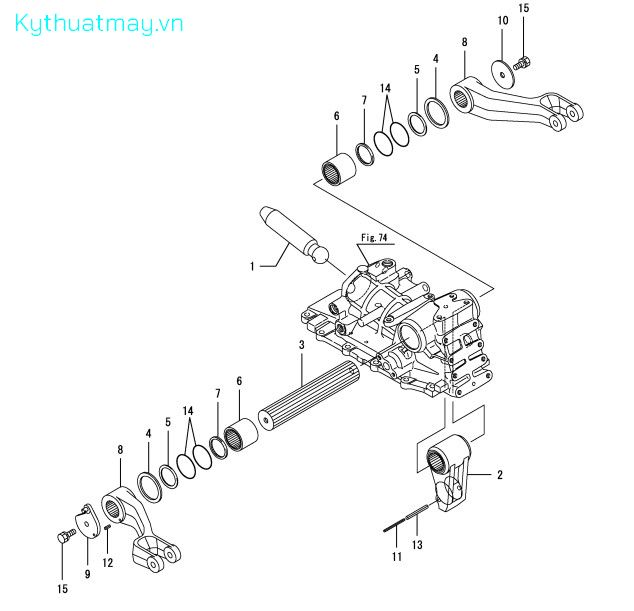

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | ROD, PISTON | 194180-43410 | 8,891,000 | |
| 2 | CRANK, LIFT | 198215-44110 | 9,605,000 | |
| 3 | SHAFT, LIFTING | 198133-44210 | 5,995,000 | |
| 4 | WASHER, 65X82X2 | 1A7640-44230 | 164,000 | |
| 5 | PLATE, 50X64X2 | 1A7640-44240 | 95,000 | |
| 6 | SLEEVE, LIFT SHAFT | 1A7780-44250 | 639,000 | |
| 7 | SEAL, SPLINE | 194640-44261 | 98,000 | |
| 8 | ARM, LIFT | 198133-44410-2 | 9,142,000 | |
| 8-1 | ARM, LIFT | 198133-44411-2 | 9,142,000 | |
| 9 | PLATE, FEEDBACK | 1A7780-44510-2 | 721,000 | |
| 10 | RETAINER, SHAFT | 194640-44540-3 | 321,000 | |
| 11 | PIN, SPRING 5.0X70 | 22351-050070 | 34,000 | |
| 12 | PIN, SPRING 6.0X16 | 22351-060016 | 30,000 | |
| 13 | PIN, SPRING 8.0X70 | 22351-080070 | 50,000 | |
| 14 | O-RING, 1AG65.0 | 24321-000650 | 12,000 | |
| 15 | BOLT, M12X 35 | 26013-120352 | 22,000 |

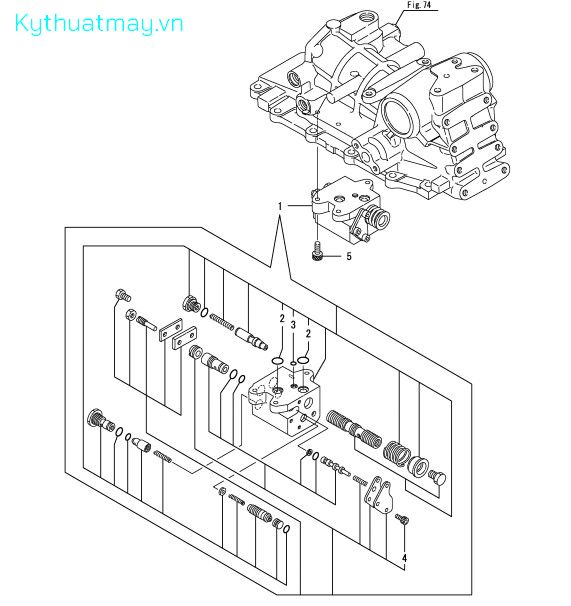

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | CONTROL VALVE(6F-11 | 168246-00110 | 24,532,000 | |
| 2 | O-RING, 1BP14.0 | 194327-45120 | 44,000 | |
| 3 | O-RING, 1BP7.0 | 194327-45130 | 44,000 | |
| 4 | BOLT, M8X 14 | 26450-080142 | 30,000 | |
| 5 | BOLT, M8X 20 | 26450-080202 | 30,000 |

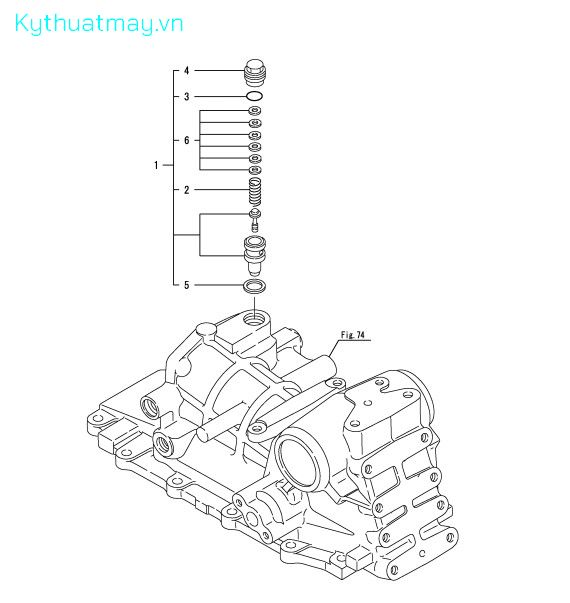

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | VALVE ASSY, RELIEF | 198133-45600 | ||
| 2 | SPRING | 194180-45620 | ||
| 3 | O-RING, 2.5X23 | 194450-45630 | ||
| 4 | PLUG, VALVE | 194450-45640-X | 206,000 | |
| 5 | GASKET, 20X27.8X2 | 194450-45650 | ||
| 6 | SHIM SET | 794464-45660 |

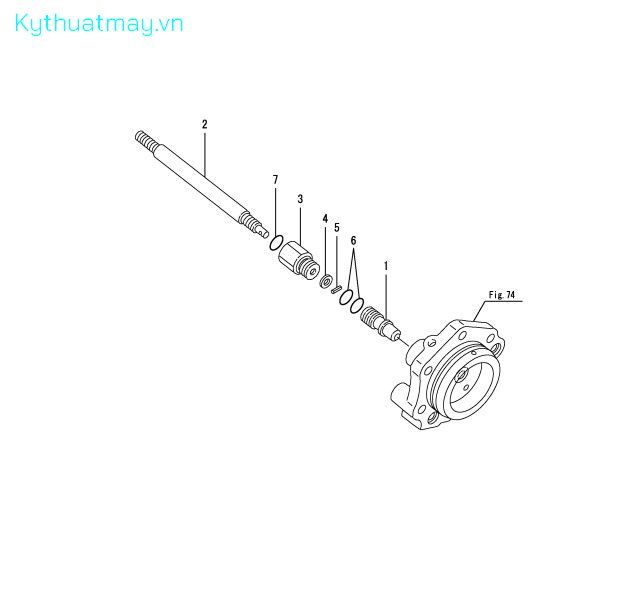

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | VALVE, STOP | 194555-46300 | 523,000 | |
| 2 | BOLT, STOP | 198240-46620 | 348,000 | |
| 3 | HOLDER, VALVE | 194312-46630 | 643,000 | |
| 4 | WASHER, 8 | 22117-080000 | 9,000 | |
| 5 | PIN, SPRING 4.0X12 | 22351-040012 | 25,000 | |
| 6 | O-RING, 1AP11.0 | 24311-000110 | 3,000 | |
| 7 | O-RING, 1AP12.0 | 24311-000120 | 2,000 |

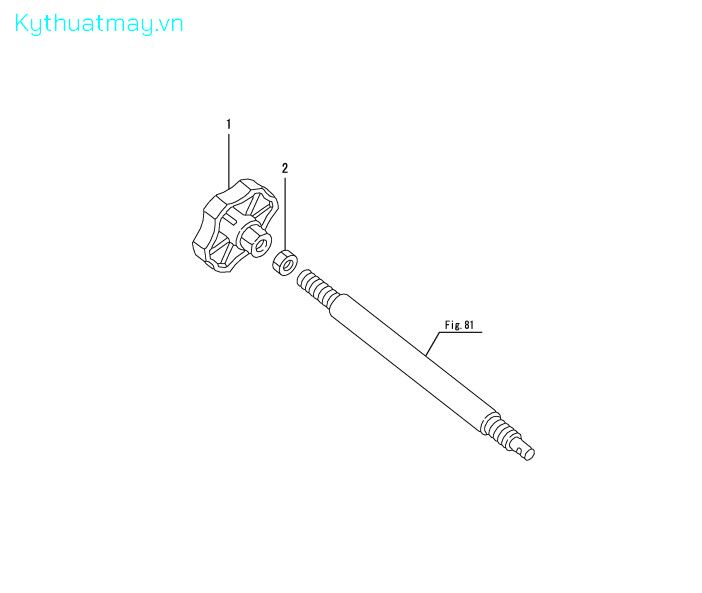

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | KNOB, VALVE | 1A8160-46670 | 186,000 | |
| 2 | NUT, M10 | 26716-100002 | 30,000 |

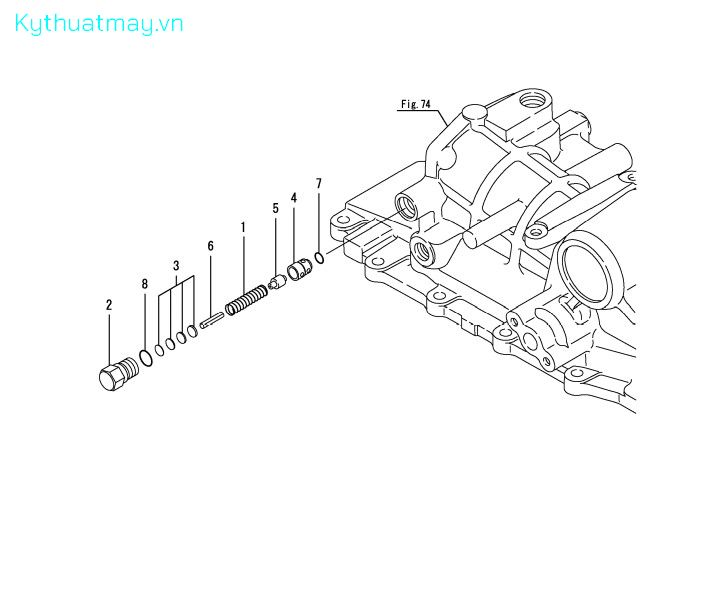

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | SPRING | 1A7680-45320 | 159,000 | |
| 2 | PLUG, SAFETY VALVE | 1A7680-45370 | 482,000 | |
| 3 | SHIM SET | 198220-46400 | 114,000 | |
| 4 | SEAT, SAFETY VALVE | 1A7680-46410 | 922,000 | |
| 5 | POPPET | 194640-46420 | 560,000 | |
| 6 | PIN, SPRING 6.0X30 | 22351-060030 | 30,000 | |
| 7 | O-RING, 1BP12.0 | 24315-000120 | 3,000 | |
| 8 | O-RING, 1BP18.0 | 24315-000180 | 11,000 |

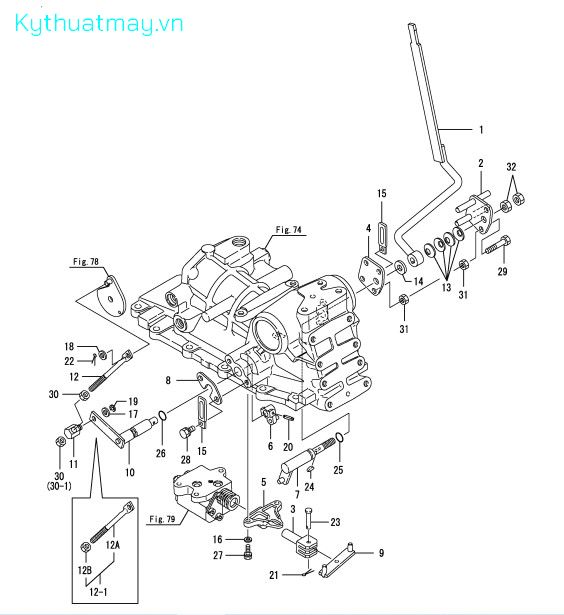

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | LEVER, P CONTROL | 1A7780-47300-1 | 1,921,000 | |
| 2 | PLATE, FRICTION | 198320-47321-2 | 291,000 | |
| 3 | ROD, CONTROL | 198360-47320 | 680,000 | |
| 4 | PLATE | 198320-47330-2 | 159,000 | |
| 5 | PLATE, CONTROL | 198360-47330 | ||
| 6 | ARM, CONTROL | 198254-47370 | ||
| 7 | SHAFT, CONTROL | 198240-47380 | 841,000 | |
| 8 | PLATE, A | 198320-47410-2 | 98,000 | |
| 9 | ROD, CONTROL | 1A7780-47420 | 486,000 | |
| 10 | ARM | 198240-47430-3 | 1,643,000 | |
| 11 | ADJUSTER | 194550-47530 | 224,000 | |
| 12 | ROD, FEEDBACK | 194640-47560 | 747,000 | |
| 12-1 | ROD ASSY, FEEDBACK | 194640-47550 | 240,000 | |
| 12A | ROD, FEEDBACK | 194640-47560 | 747,000 | |
| 12B | NUT, M10 | 26716-100002 | 30,000 | |
| 13 | WASHER, 12 | 194151-47760 | ||
| 14 | PLATE, FRICTION | 194310-47790 | 70,000 | |
| 15 | CLAMP, HARNESS | 194180-51640 | 89,000 | |
| 16 | WASHER, 8 | 22137-080000 | 6,000 | |
| 17 | WASHER, 10 | 22137-100000 | 2,000 | |
| 18 | WASHER, 10 | 22137-100000 | 2,000 | |
| 19 | RING, E- 7 | 22272-000070 | ||
| 20 | PIN, SPRING 5.0X25 | 22351-050025 | 30,000 | |
| 21 | PIN, COTTER 2.0X16 | 22417-200160 | 30,000 | |
| 22 | PIN, COTTER 3.0X20 | 22417-300200 | 25,000 | |
| 22-1 | PIN, COTTER 3.0X20 | 22417-300200 | 25,000 | |
| 23 | PIN, H 8X 35 | 22487-080350 | ||
| 24 | KEY, WOODRUFF 3X13 | 22522-030130 | 11,000 | |
| 25 | O-RING, 1AP15.0 | 24311-000150 | 3,000 | |
| 26 | O-RING, 1AP15.0 | 24311-000150 | 3,000 | |
| 27 | BOLT, M8X 20 | 26013-080202 | 5,000 | |
| 27-1 | BOLT, M8X 20 | 26014-080202 | 6,000 | |
| 28 | BOLT, M10X 16 | 26013-100162 | 30,000 | |
| 29 | BOLT, M10X 50 PLATED | 26116-100504 | 41,000 | |
| 30 | NUT, M10 | 26716-100002 | 30,000 | |
| 30-1 | NUT, M10 | 26716-100002 | 30,000 | |
| 31 | NUT, M10 | 26716-100002 | 30,000 | |
| 32 | NUT, M12 | 26716-120002 | 11,000 |

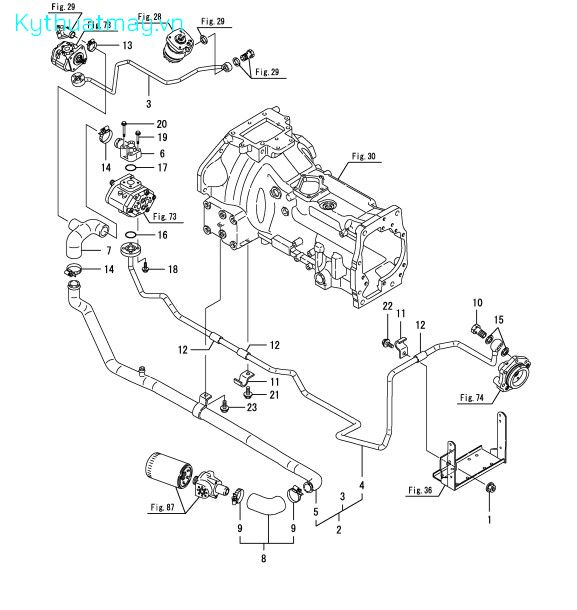

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | NUT, M8 | 194990-22140 | 44,000 | |
| 2 | PIPE KIT | 798253-48080-1 | 6,321,000 | |
| 3 | PIPE, PRESSURE P | 198320-17720-1 | 2,081,000 | |
| 4 | PIPE, PRESSURE | 198250-48100-1 | 5,003,000 | |
| 5 | PIPE, PRESSURE | 198320-48150-1 | 3,249,000 | |
| 6 | FLANGE, PIPE P | 198240-48140 | 1,042,000 | |
| 7 | HOSE, PRESSURE | 198320-48220 | 276,000 | |
| 8 | HOSE, PRESSURE S | 198240-48500 | 680,000 | |
| 9 | CLAMP, 48 | 23000-048000 | 187,000 | |
| 10 | BOLT ASSY, JOINT | 198361-48750 | 1,001,000 | |
| 11 | CLAMP | 198240-48830 | 98,000 | |
| 12 | CLAMP, ABSORBER | 198240-48850 | 50,000 | |
| 13 | CLAMP, 35 | 23000-035000 | 154,000 | |
| 14 | CLAMP, 48 | 23000-048000 | 187,000 | |
| 15 | GASKET, 20X1.0 | 23414-200026 | 17,000 | |
| 16 | O-RING, 1AG25.0 | 24321-000250 | 17,000 | |
| 17 | O-RING, 1AS25.0 | 24341-000250 | 41,000 | |
| 18 | BOLT, M6X 25 | 26018-060252 | 25,000 | |
| 19 | BOLT, M6X 40 PLATED | 26106-060402 | 30,000 | |
| 20 | BOLT, M6X 50 PLATED | 26106-060502 | 8,000 | |
| 21 | BOLT, M8X 16 PLATED | 26106-080162 | 6,000 | |
| 22 | BOLT, M8X 16 PLATED | 26106-080162 | 6,000 | |
| 23 | BOLT, M8X 16 PLATED | 26106-080162 | 6,000 |

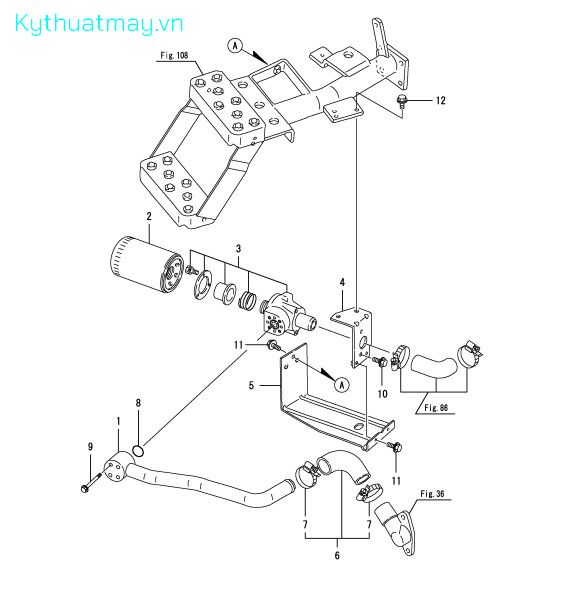

| STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
|---|---|---|---|---|
| 1 | PIPE, PRESSURE | 198240-48300-1 | 1,999,000 | |
| 2 | FILTER, HYDRAULIC | 1A8115-48310 | 390,000 | |
| 3 | COVER ASSY, FILTER | 194555-48350 | 1,163,000 | |
| 4 | BRACKET, FILTER | 198240-48380 | 250,000 | |
| 5 | PROTECTOR, FILTER | 198240-48410-2 | 560,000 | |
| 6 | HOSE, PRESSURE S | 198240-48500 | 680,000 | |
| 7 | CLAMP, 48 | 23000-048000 | 187,000 | |
| 8 | O-RING, 1AG25.0 | 24321-000250 | 17,000 | |
| 9 | BOLT, M6X 60 PLATED | 26106-060602 | 50,000 | |
| 10 | BOLT, M8X 16 PLATED | 26106-080162 | 6,000 | |
| 11 | BOLT, M8X 16 PLATED | 26106-080162 | 6,000 | |
| 12 | BOLT, M8X 20 PLATED | 26106-080202 | 6,000 |
