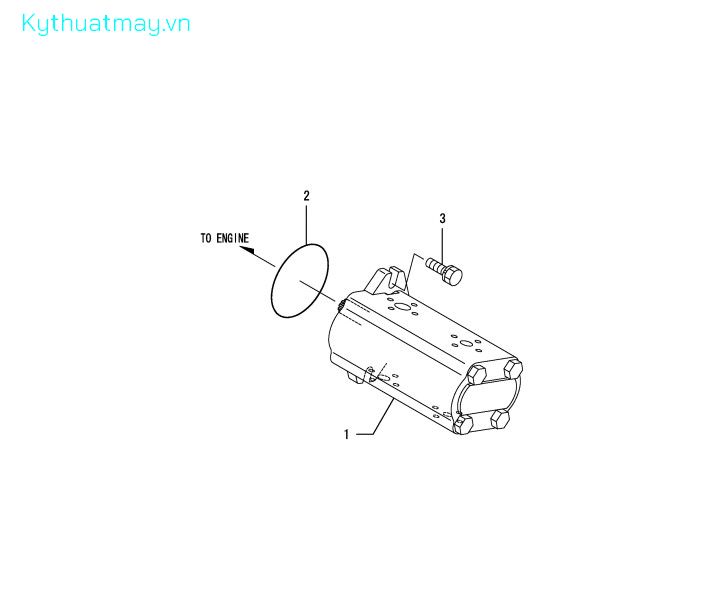

Bơm thủy lực

Bơm thủy lực
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 PUMP, HYD 10-8 1A8296-41110
2 O-RING, 1AG85.0 24321-000850 20,000
3 BOLT, M10X 30 26013-100302 11,000
1 PUMP, HYD 10-8 1A8296-41110
2 O-RING, 1AG85.0 24321-000850 20,000
3 BOLT, M10X 30 26013-100302 11,000

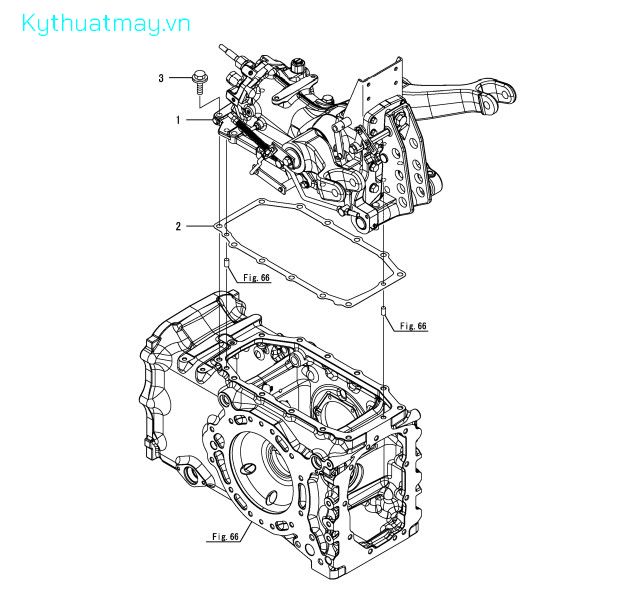

Nâng thủy lực

Nâng thủy lực
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 LIFT ASSY, HYD 1A8292-42050-1
2 GASKET, HYD HOUSING 1A8296-42130 385,000
3 BOLT, M12X 40 PLATED 26106-120402 22,000
1 LIFT ASSY, HYD 1A8292-42050-1
2 GASKET, HYD HOUSING 1A8296-42130 385,000
3 BOLT, M12X 40 PLATED 26106-120402 22,000

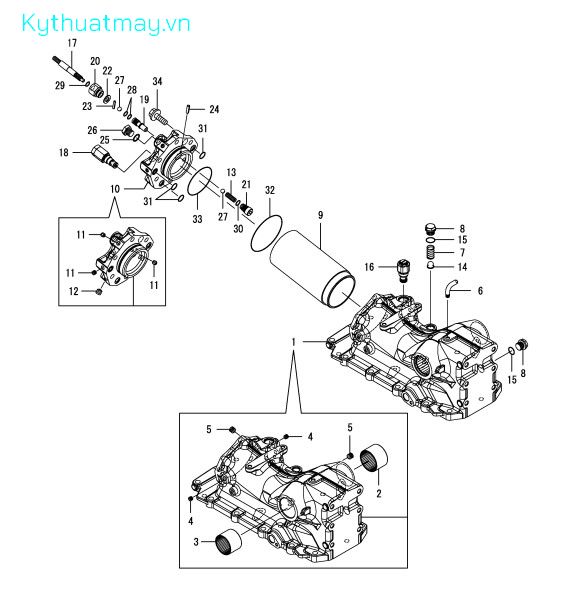

Nâng thủy lực (2)

Nâng thủy lực (2)
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 HOUSING ASSY, CYLIND 1A8292-42100
2 BUSH 1A8296-42140 762,000
3 BUSH 1A8296-42150 721,000
4 PLUG, R01 23876-010000 55,000
5 PLUG, R02 23876-020000 64,000
6 BREATHER 1A8296-42280 1,706,000
7 SPRING, 1A8296-42300
8 PLUG, M20 1A8296-42310 591,000
9 LINER, CYLINDER 1A8296-43110
10 HEAD ASSY, CYLINDER 1A8296-43201 3,277,000
11 PLUG, R01 23876-010000 55,000
1 HOUSING ASSY, CYLIND 1A8292-42100
2 BUSH 1A8296-42140 762,000
12 PLUG, R02 23876-020000 64,000
3 BUSH 1A8296-42150 721,000
13 SPRING, CHECK 1A7180-43340
14 STRAINER, A 1A7180-43730 961,000
4 PLUG, R01 23876-010000 55,000
5 PLUG, R02 23876-020000 64,000
15 PACKING, JASO2017 1A7180-43930
16 VALVE ASSY, RELIEF 1A8292-45600 6,095,000
6 BREATHER 1A8296-42280 1,706,000
17 SHAFT,STOP VALVE 1A8296-46300 249,000
7 SPRING, 1A8296-42300
8 PLUG, M20 1A8296-42310 591,000
9 LINER, CYLINDER 1A8296-43110
18 VALVE ASSY, SAFETY 1A8292-46400 3,579,000
10 HEAD ASSY, CYLINDER 1A8296-43201 3,277,000
19 VALVE, STOP 1A7180-46610 1,897,000
11 PLUG, R01 23876-010000 55,000
20 GUIDE, 1A7180-46651 748,000
21 PLUG, CHECK 1A7180-46660 357,000
12 PLUG, R02 23876-020000 64,000
22 WASHER, 8 22117-080000 9,000
13 SPRING, CHECK 1A7180-43340
23 PIN, SPRING 3.0X16 22351-030016 25,000
14 STRAINER, A 1A7180-43730 961,000
24 PIN, SPRING 4.0X16 22351-040016 25,000
15 PACKING, JASO2017 1A7180-43930
25 GASKET, 17X1.0 23414-170022
16 VALVE ASSY, RELIEF 1A8292-45600 6,095,000
26 PLUG, G3/8 23893-030002 281,000
27 BALL, STEEL 13/32 24190-130003 5,000
17 SHAFT,STOP VALVE 1A8296-46300 249,000
28 O-RING, 1AP11.0 24311-000110 3,000
18 VALVE ASSY, SAFETY 1A8292-46400 3,579,000
29 O-RING, 1AP12.0 24311-000120 2,000
19 VALVE, STOP 1A7180-46610 1,897,000
20 GUIDE, 1A7180-46651 748,000
30 O-RING, 1BP12.0 24315-000120 3,000
21 PLUG, CHECK 1A7180-46660 357,000
31 O-RING, 1BP14.0 24315-000140 3,000
22 WASHER, 8 22117-080000 9,000
32 O-RING, 1AG110.0 24321-001100 33,000
23 PIN, SPRING 3.0X16 22351-030016 25,000
33 O-RING, 1BG85.0 24325-000850 84,000
34 BOLT, M12X 30 PLATED 26106-120302 19,000
24 PIN, SPRING 4.0X16 22351-040016 25,000
25 GASKET, 17X1.0 23414-170022
26 PLUG, G3/8 23893-030002 281,000
27 BALL, STEEL 13/32 24190-130003 5,000
28 O-RING, 1AP11.0 24311-000110 3,000
29 O-RING, 1AP12.0 24311-000120 2,000
30 O-RING, 1BP12.0 24315-000120 3,000
31 O-RING, 1BP14.0 24315-000140 3,000
32 O-RING, 1AG110.0 24321-001100 33,000
33 O-RING, 1BG85.0 24325-000850 84,000
34 BOLT, M12X 30 PLATED 26106-120302 19,000

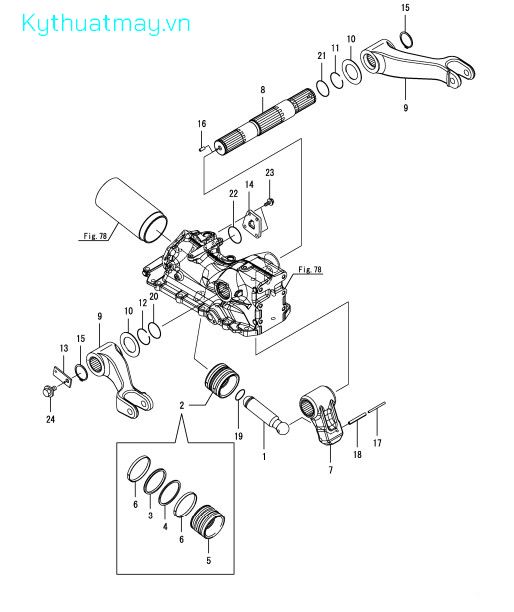

Nâng thủy lực (3)

Nâng thủy lực (3)
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 ROD, PISTON 1A7180-43410 2,839,000
2 PISTON ASSY 1A8296-43970 9,570,000
3 SEAL,PISTON 1A8296-43910 1,272,000
4 RING, BACK UP 1A8296-43920 1,013,000
5 PISTON 1A8296-43980 3,874,000
6 WEARING, 90 1A8296-43990 2,301,000
7 CRANK,LIFT 1A8296-44110
8 SHAFT, LIFT 1A8292-44210
9 ARM, LIFT 1A8296-44410-1
10 WASHER,52X82X2 1A8296-44470 65,000
11 SPACER 1A8296-44480 55,000
12 SPACER 1A8296-44490 55,000
1 ROD, PISTON 1A7180-43410 2,839,000
13 PLATE 1A8296-44510 95,000
14 COVER,SCV 1A8296-46850 281,000
2 PISTON ASSY 1A8296-43970 9,570,000
15 RING, 48 22242-000480 50,000
3 SEAL,PISTON 1A8296-43910 1,272,000
16 PIN, SPRING 5.0X12 22351-050012 30,000
4 RING, BACK UP 1A8296-43920 1,013,000
17 PIN, SPRING 5.0X70 22351-050070 34,000
5 PISTON 1A8296-43980 3,874,000
6 WEARING, 90 1A8296-43990 2,301,000
18 PIN, SPRING 8.0X70 22351-080070 50,000
7 CRANK,LIFT 1A8296-44110
19 O-RING, 1AP36.0 24311-000360 8,000
20 O-RING, 1AG50.0 24321-000500 19,000
8 SHAFT, LIFT 1A8292-44210
21 O-RING, 1AG50.0 24321-000500 19,000
22 O-RING, 1AG55.0 24321-000550 50,000
9 ARM, LIFT 1A8296-44410-1
23 BOLT, M8X 20 PLATED 26106-080202 6,000
10 WASHER,52X82X2 1A8296-44470 65,000
11 SPACER 1A8296-44480 55,000
24 BOLT, M12X 20 PLATED 26106-120202 89,000
12 SPACER 1A8296-44490 55,000
13 PLATE 1A8296-44510 95,000
14 COVER,SCV 1A8296-46850 281,000
15 RING, 48 22242-000480 50,000
16 PIN, SPRING 5.0X12 22351-050012 30,000
17 PIN, SPRING 5.0X70 22351-050070 34,000
18 PIN, SPRING 8.0X70 22351-080070 50,000
19 O-RING, 1AP36.0 24311-000360 8,000
20 O-RING, 1AG50.0 24321-000500 19,000
21 O-RING, 1AG50.0 24321-000500 19,000
22 O-RING, 1AG55.0 24321-000550 50,000
23 BOLT, M8X 20 PLATED 26106-080202 6,000
24 BOLT, M12X 20 PLATED 26106-120202 89,000

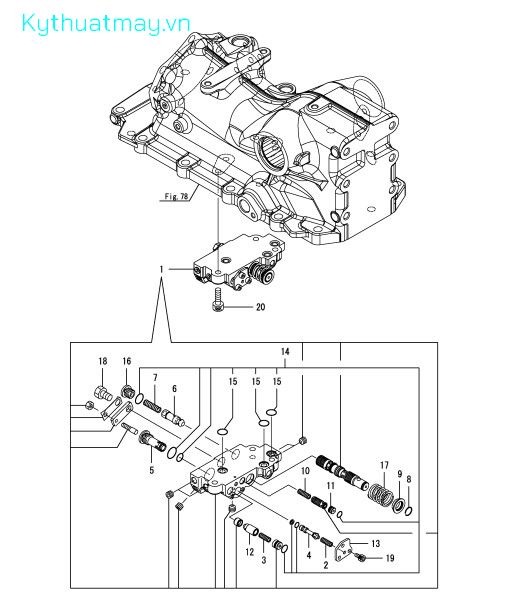

Nâng thủy lực (4)

Nâng thủy lực (4)
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 VALVE ASSY, CONTROL 1A8296-45201 15,790,000
2 SPRING 1A8275-45230
3 SPRING 1A8275-45240
4 SPOOL, MECHANICAL 1A8296-45250 773,000
5 SLEEVE, MECHANICAL 1A8296-45260 1,282,000
6 POPPET, UNLOAD 1A8275-45310 2,040,000
7 SPRING 1A8275-45320 449,000
8 RING, WIRY SNAP 1A8275-45330 273,000
9 SEAT, SPRING 1A8275-45340 1,921,000
10 SPRING 1A8275-45360
11 PLUG 1A8275-45370 841,000
12 POPPET, CHECK 1A8275-45420 2,522,000
13 PLATE 1A8275-45440 643,000
14 SEAL KIT, VALVE 1A8275-45500 4,071,000
1 VALVE ASSY, CONTROL 1A8296-45201 15,790,000
15 O-RING 41851-000110 148,000
2 SPRING 1A8275-45230
16 PLUG, LIFT VALVE 1A7880-45640 1,401,000
3 SPRING 1A8275-45240
17 SPRING 1A8275-45980 449,000
4 SPOOL, MECHANICAL 1A8296-45250 773,000
5 SLEEVE, MECHANICAL 1A8296-45260 1,282,000
18 BOLT M10X 16 26112-100162 30,000
19 BOLT, M5X 10 26450-050102 25,000
6 POPPET, UNLOAD 1A8275-45310 2,040,000
20 BOLT, M8X 25 26450-080252 12,000
7 SPRING 1A8275-45320 449,000
8 RING, WIRY SNAP 1A8275-45330 273,000
9 SEAT, SPRING 1A8275-45340 1,921,000
10 SPRING 1A8275-45360
11 PLUG 1A8275-45370 841,000
12 POPPET, CHECK 1A8275-45420 2,522,000
13 PLATE 1A8275-45440 643,000
14 SEAL KIT, VALVE 1A8275-45500 4,071,000
15 O-RING 41851-000110 148,000
16 PLUG, LIFT VALVE 1A7880-45640 1,401,000
17 SPRING 1A8275-45980 449,000
18 BOLT M10X 16 26112-100162 30,000
19 BOLT, M5X 10 26450-050102 25,000
20 BOLT, M8X 25 26450-080252 12,000

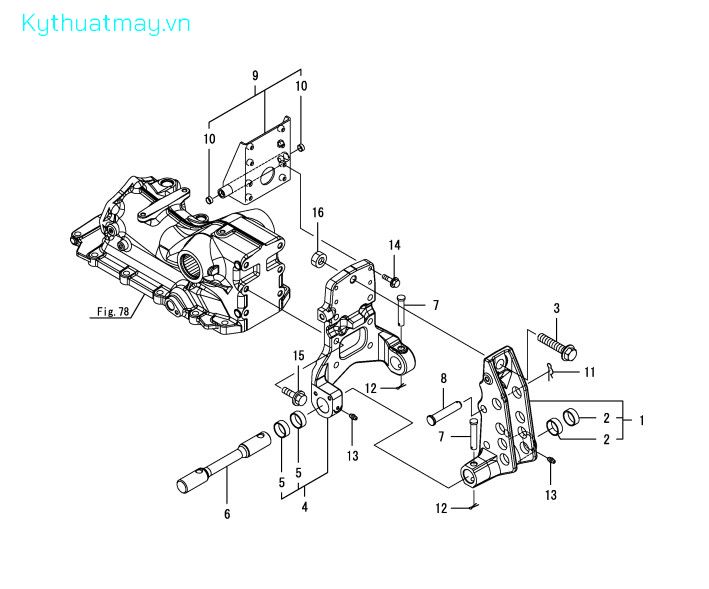

Nâng thủy lực (5)

Nâng thủy lực (5)
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 HINGE ASSY, TOP LINK 1A8292-47610 6,205,000
2 BUSH, 30X12 24550-030120
3 BOLT, M16X80 1A8292-47660 527,000
4 SUPPORT ASSY, HINGE 1A8292-47700 7,159,000
5 BUSH, 30X12 24550-030120
6 BAR, TORSION 1A8292-47750 2,496,000
7 PIN, FLAT HEAD 1A8292-47770 209,000
8 PIN, LOCK 1A8292-47870 432,000
9 SUPPORT ASSY, LINK 1A8292-49570 2,414,000
10 BUSH, 12X 6 24550-012060
11 PIN, SNAP 16 22372-160000 6,000
12 PIN, COTTER 3.2X25 22417-320250 6,000
13 NIPPLE, GREASE M6F 24761-010000 14,000
1 HINGE ASSY, TOP LINK 1A8292-47610 6,205,000
14 BOLT, M8X 30 PLATED 26106-080302 9,000
2 BUSH, 30X12 24550-030120
15 BOLT, M12X 40 PLATED 26106-120402 22,000
3 BOLT, M16X80 1A8292-47660 527,000
16 NUT, LOCK M16 26776-160002 36,000
4 SUPPORT ASSY, HINGE 1A8292-47700 7,159,000
5 BUSH, 30X12 24550-030120
6 BAR, TORSION 1A8292-47750 2,496,000
7 PIN, FLAT HEAD 1A8292-47770 209,000
8 PIN, LOCK 1A8292-47870 432,000
9 SUPPORT ASSY, LINK 1A8292-49570 2,414,000
10 BUSH, 12X 6 24550-012060
11 PIN, SNAP 16 22372-160000 6,000
12 PIN, COTTER 3.2X25 22417-320250 6,000
13 NIPPLE, GREASE M6F 24761-010000 14,000
14 BOLT, M8X 30 PLATED 26106-080302 9,000
15 BOLT, M12X 40 PLATED 26106-120402 22,000
16 NUT, LOCK M16 26776-160002 36,000

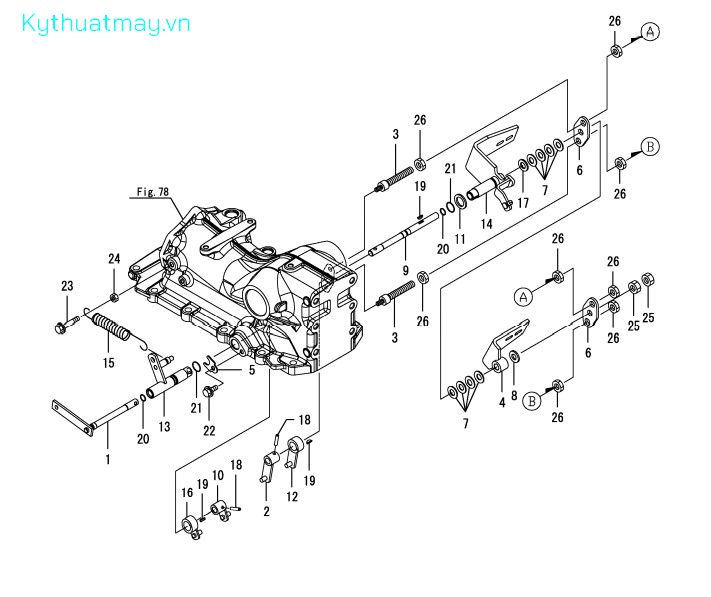

Nâng thủy lực (6)

Nâng thủy lực (6)
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 SHAFT, FEEDBACK 1A8292-47010 1,139,000
2 ARM, CONTROL 1A8296-47140 516,000
3 BOLT, STUD 1A8292-47290
4 LEVER, CONTROL 1A8292-47300 857,000
5 PLATE, KEEP 1A8296-47360 55,000
6 PLATE, RETAIN 1A8292-47370 172,000
7 SPRING,DISK 1A8296-47380
8 PLATE, FRICTION 1A8292-47440 94,000
9 SHAFT, CONTROL P 1A8292-47450 1,231,000
10 ARM, FEEDBACK 1A8292-47470 732,000
11 PLATE, FRICTION 1A8292-47490
12 ARM, CONTROL 1A8292-47520 666,000
13 SHAFT, FEEDBACK D 1A8292-47550 1,831,000
1 SHAFT, FEEDBACK 1A8292-47010 1,139,000
14 LEVER, CONTROL D 1A8292-47900 3,405,000
2 ARM, CONTROL 1A8296-47140 516,000
15 SPRING, RETURN 1A8292-47940
16 ARM, FEEDBACK D 1A8292-47970 682,000
3 BOLT, STUD 1A8292-47290
4 LEVER, CONTROL 1A8292-47300 857,000
17 WASHER, 12 22137-120000 5,000
5 PLATE, KEEP 1A8296-47360 55,000
6 PLATE, RETAIN 1A8292-47370 172,000
18 PIN, SPRING 5.0X25 22351-050025 30,000
19 KEY, WOODRUFF 3X13 22522-030130 11,000
7 SPRING,DISK 1A8296-47380
20 O-RING, 1AP9.0 24311-000090 2,000
21 O-RING, 1AP15.0 24311-000150 3,000
8 PLATE, FRICTION 1A8292-47440 94,000
22 BOLT, M8X 16 PLATED 26106-080162 6,000
9 SHAFT, CONTROL P 1A8292-47450 1,231,000
23 BOLT, M8X 45 PLATED 26106-080452 11,000
10 ARM, FEEDBACK 1A8292-47470 732,000
11 PLATE, FRICTION 1A8292-47490
24 NUT, M8 26716-080002 5,000
12 ARM, CONTROL 1A8292-47520 666,000
13 SHAFT, FEEDBACK D 1A8292-47550 1,831,000
25 NUT, M12 26716-120002 11,000
14 LEVER, CONTROL D 1A8292-47900 3,405,000
26 NUT, LOCK M12 26776-120002 30,000
15 SPRING, RETURN 1A8292-47940
16 ARM, FEEDBACK D 1A8292-47970 682,000
17 WASHER, 12 22137-120000 5,000
18 PIN, SPRING 5.0X25 22351-050025 30,000
19 KEY, WOODRUFF 3X13 22522-030130 11,000
20 O-RING, 1AP9.0 24311-000090 2,000
21 O-RING, 1AP15.0 24311-000150 3,000
22 BOLT, M8X 16 PLATED 26106-080162 6,000
23 BOLT, M8X 45 PLATED 26106-080452 11,000
24 NUT, M8 26716-080002 5,000
25 NUT, M12 26716-120002 11,000
26 NUT, LOCK M12 26776-120002 30,000

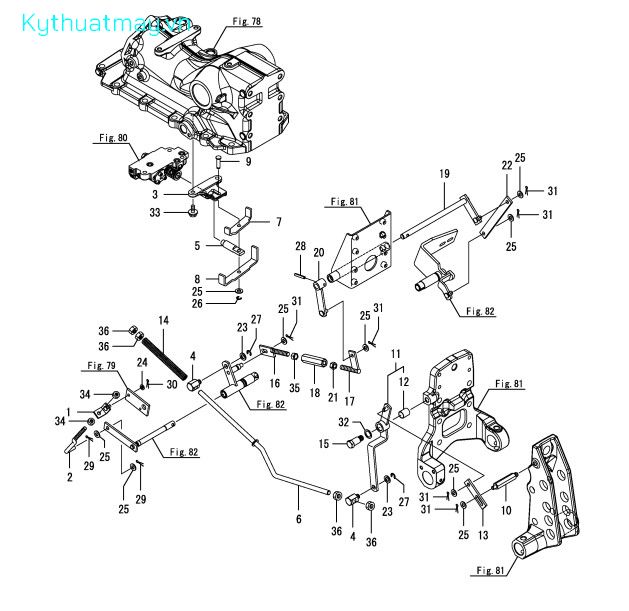

Nâng thủy lực (7)

Nâng thủy lực (7)
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 ADJUSTER ASSY 1A8296-47050 291,000
2 ROD, FEEDBACK P 1A8292-47170 224,000
3 PLATE, CONTROL 1A8296-47330 1,933,000
4 ADJUSTER 1A8292-47410 165,000
5 ROD, CONTROL 1A8296-47410 691,000
6 ROD, FEEDBACK D 1A8292-47420 557,000
7 BAR, CONTROL 1A8296-47420 125,000
8 BAR, CONTROL 1A8292-47500 374,000
9 PIN, HINGE 1A8292-47590 122,000
1 ADJUSTER ASSY 1A8296-47050 291,000
10 PIN, FEEDBACK HINGE 1A8292-47690 159,000
2 ROD, FEEDBACK P 1A8292-47170 224,000
11 ARM ASSY, FEEDBACK D 1A8292-47800 1,390,000
12 BUSH, 15X20 24550-015200 33,000
3 PLATE, CONTROL 1A8296-47330 1,933,000
4 ADJUSTER 1A8292-47410 165,000
13 PLATE, LINK 1A8292-47860 224,000
5 ROD, CONTROL 1A8296-47410 691,000
14 SPRING 1A8292-47960 282,000
15 BOLT, STEPPED M12 1A8292-49330 249,000
6 ROD, FEEDBACK D 1A8292-47420 557,000
7 BAR, CONTROL 1A8296-47420 125,000
16 ROD, LIMIT F 1A8292-49500 324,000
8 BAR, CONTROL 1A8292-47500 374,000
17 ROD, LIMIT R 1A8292-49530 332,000
18 TURNBUCKLE, M10 1A8292-49560 224,000
9 PIN, HINGE 1A8292-47590 122,000
19 SHAFT, LIMIT 1A8292-49620 1,015,000
20 ARM, LIMIT 1A8292-49670 758,000
10 PIN, FEEDBACK HINGE 1A8292-47690 159,000
21 NUT, 10-LH 1A8292-49700 50,000
11 ARM ASSY, FEEDBACK D 1A8292-47800 1,390,000
22 PLATE, LIMIT 1A8292-49710 282,000
12 BUSH, 15X20 24550-015200 33,000
23 WASHER, 10 22117-100000 5,000
24 WASHER, 6 22137-060000 2,000
13 PLATE, LINK 1A8292-47860 224,000
14 SPRING 1A8292-47960 282,000
25 WASHER, 8 22137-080000 6,000
15 BOLT, STEPPED M12 1A8292-49330 249,000
26 RING, E- 6 22272-000060 9,000
16 ROD, LIMIT F 1A8292-49500 324,000
27 RING, E- 7 22272-000070
28 PIN, SPRING 5.0X32 22351-050032 30,000
17 ROD, LIMIT R 1A8292-49530 332,000
18 TURNBUCKLE, M10 1A8292-49560 224,000
29 PIN, COTTER 1.6X16 22417-160160 25,000
30 PIN, COTTER 1.6X16 22417-160160 25,000
19 SHAFT, LIMIT 1A8292-49620 1,015,000
31 PIN, COTTER 2.0X20 22417-200200 8,000
20 ARM, LIMIT 1A8292-49670 758,000
32 GASKET, 15X1.0 23414-150000
21 NUT, 10-LH 1A8292-49700 50,000
33 BOLT, M8X 16 PLATED 26106-080162 6,000
22 PLATE, LIMIT 1A8292-49710 282,000
34 NUT, M8 26716-080002 5,000
23 WASHER, 10 22117-100000 5,000
35 NUT, M10 26716-100002 30,000
24 WASHER, 6 22137-060000 2,000
36 NUT, M10 26716-100002 30,000
25 WASHER, 8 22137-080000 6,000
26 RING, E- 6 22272-000060 9,000
27 RING, E- 7 22272-000070
28 PIN, SPRING 5.0X32 22351-050032 30,000
29 PIN, COTTER 1.6X16 22417-160160 25,000
30 PIN, COTTER 1.6X16 22417-160160 25,000
31 PIN, COTTER 2.0X20 22417-200200 8,000
32 GASKET, 15X1.0 23414-150000
33 BOLT, M8X 16 PLATED 26106-080162 6,000
34 NUT, M8 26716-080002 5,000
35 NUT, M10 26716-100002 30,000
36 NUT, M10 26716-100002 30,000

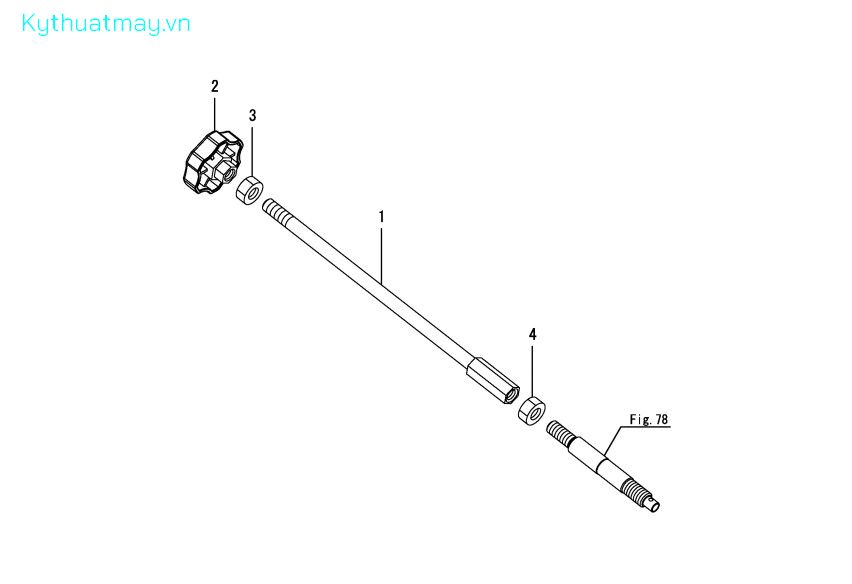

Van chặn

Van chặn
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 SHAFT ASSY,STOP VALV 1A8296-46900 143,000
2 KNOB, STOP VALVE 1A8296-46950 87,000
3 NUT, M10 26716-100002 30,000
4 NUT, M10 26716-100002 30,000
1 SHAFT ASSY,STOP VALV 1A8296-46900 143,000
2 KNOB, STOP VALVE 1A8296-46950 87,000
3 NUT, M10 26716-100002 30,000
4 NUT, M10 26716-100002 30,000

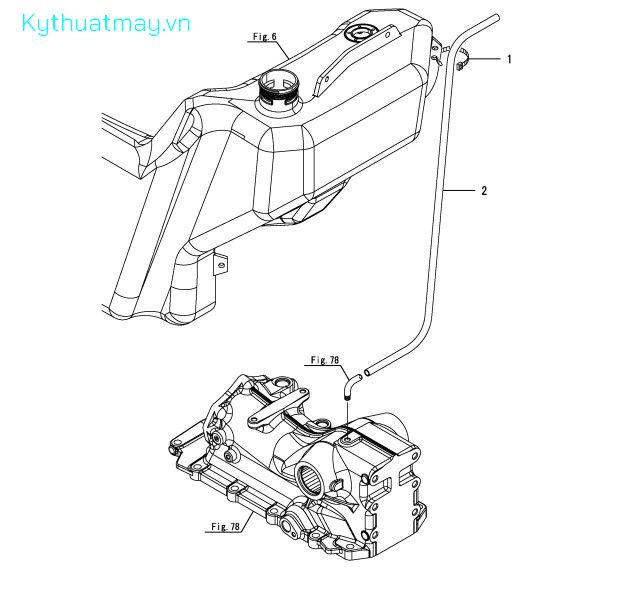

Ống thông hơi

Ống thông hơi
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 CABLE BAND 250 1E8559-84960 25,000
2 PIPE 9X 550 23065-090550
1 CABLE BAND 250 1E8559-84960 25,000
2 PIPE 9X 550 23065-090550

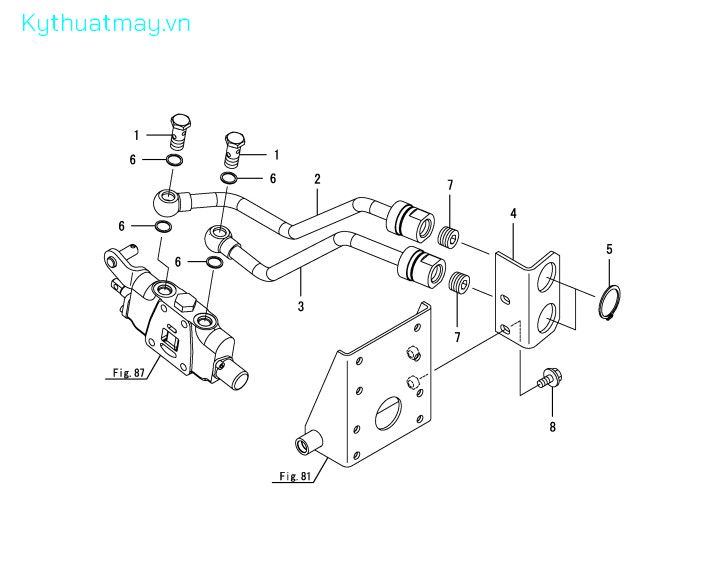

Ống dẫn S.C.V

Ống dẫn S.C.V
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 BOLT, PIPE JOINT9/16 1A8296-46590
2 PIPE, SCV A1 1A8296-46610-1
3 PIPE, SCV B1 1A8296-46650-1
4 STAY, CUPLER 1A8292-46670-1
5 RING, 34 22242-000340 6,000
6 GASKET, 14X1.0 23414-140018
7 PLUG, R04 23871-040000 173,000
8 BOLT, M8X 16 PLATED 26106-080162 6,000
1 BOLT, PIPE JOINT9/16 1A8296-46590
2 PIPE, SCV A1 1A8296-46610-1
3 PIPE, SCV B1 1A8296-46650-1
4 STAY, CUPLER 1A8292-46670-1
5 RING, 34 22242-000340 6,000
6 GASKET, 14X1.0 23414-140018
7 PLUG, R04 23871-040000 173,000
8 BOLT, M8X 16 PLATED 26106-080162 6,000

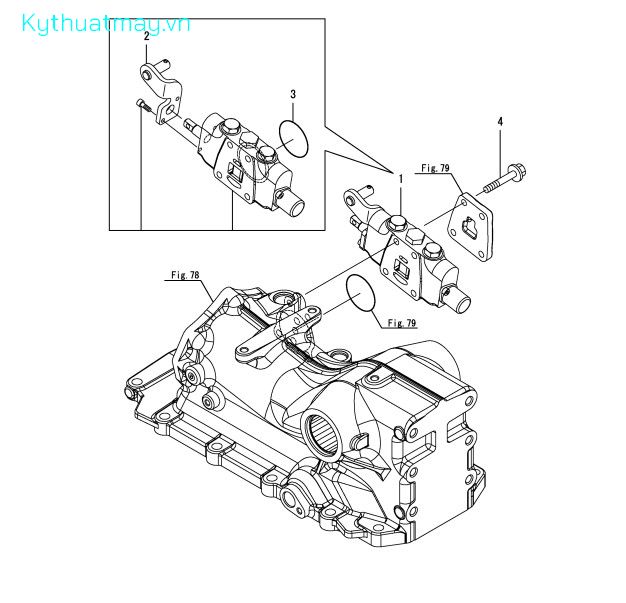

S.C.V

S.C.V
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 VALVE ASSY, SCV 1A8296-46700-1
2 STAY, LEVER 1A8296-46810 715,000
3 O-RING, 1AG50.0 24321-000500 19,000
4 BOLT, M8X 50 PLATED 26106-080502 34,000
1 VALVE ASSY, SCV 1A8296-46700-1
2 STAY, LEVER 1A8296-46810 715,000
3 O-RING, 1AG50.0 24321-000500 19,000
4 BOLT, M8X 50 PLATED 26106-080502 34,000

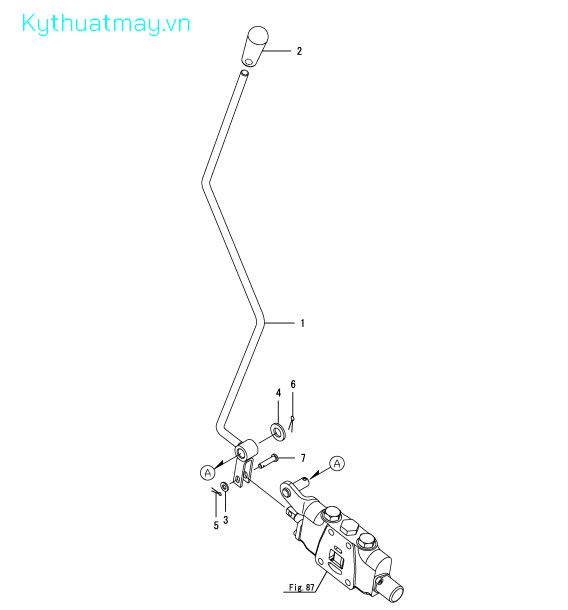

Đòn bẩy S.C.V

Đòn bẩy S.C.V
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 LEVER, SCV 1A8294-46510 366,000
2 KNOB 1A8296-46550 22,000
3 WASHER, 6 22137-060000 2,000
4 WASHER, 12 22137-120000 5,000
5 PIN, COTTER 1.6X16 22417-160160 25,000
6 PIN, COTTER 3.2X25 22417-320250 6,000
7 PIN, H 6X 22 22487-060220 104,000
1 LEVER, SCV 1A8294-46510 366,000
2 KNOB 1A8296-46550 22,000
3 WASHER, 6 22137-060000 2,000
4 WASHER, 12 22137-120000 5,000
5 PIN, COTTER 1.6X16 22417-160160 25,000
6 PIN, COTTER 3.2X25 22417-320250 6,000
7 PIN, H 6X 22 22487-060220 104,000

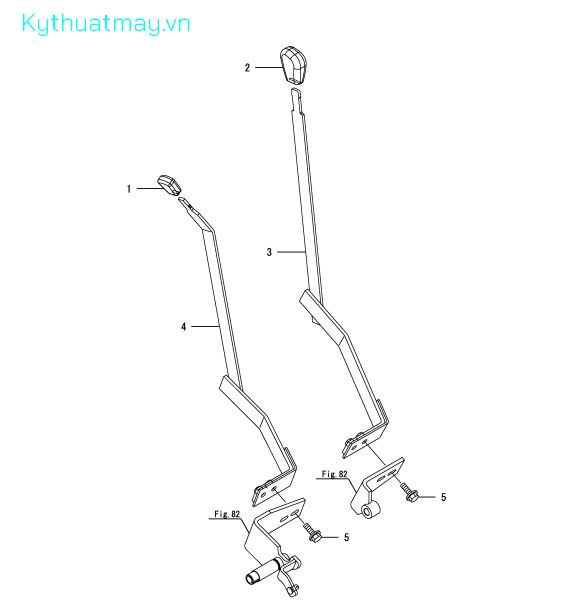

Đòn bẩy thủy lực

Đòn bẩy thủy lực
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 KNOB, 4X13 1C726C-47910 31,000
2 KNOB, BLACK 1A8296-47920 220,000
3 LEVER, CONTROL P 1A8292-49250
4 LEVER, CONTROL D 1A8292-49300
5 BOLT, M8X 25 PLATED 26106-080252 11,000
1 KNOB, 4X13 1C726C-47910 31,000
2 KNOB, BLACK 1A8296-47920 220,000
3 LEVER, CONTROL P 1A8292-49250
4 LEVER, CONTROL D 1A8292-49300
5 BOLT, M8X 25 PLATED 26106-080252 11,000

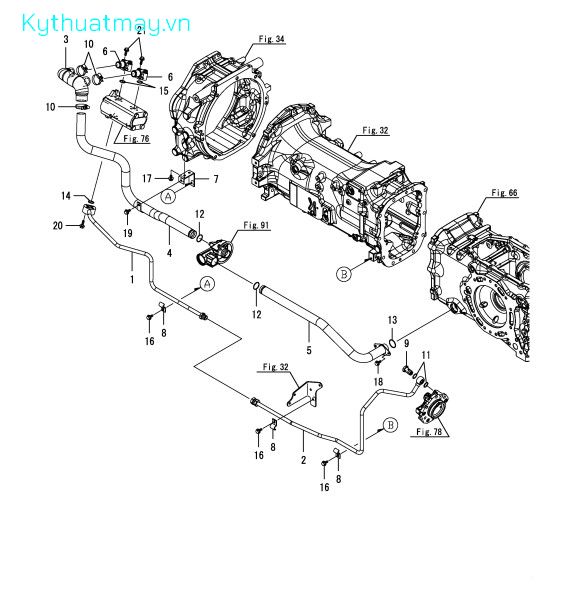

Ống dẫn thủy lực

Ống dẫn thủy lực
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 PIPE, LIFT F 1A8296-48110-1
2 PIPE, LIFT R 1A8296-48170-1
3 PIPE, RUBBER 1A8296-48291 449,000
4 PIPE, SUCTION F 1A8296-48300-1 1,899,000
5 PIPE, SUCTION R 1A8296-48350-1 1,654,000
6 JOINT, PIPE 1A8296-48570-1
7 STAY, PIPE 1A8296-48600-1
8 CLAMP, PIPE 1A8296-48730 33,000
9 BOLT ASSY, JOINT 198361-48750 1,001,000
10 CLAMP, 48 23000-048000 187,000
11 GASKET, 20X1.0 23414-200026 17,000
12 O-RING, 1AP32.0 24311-000320 6,000
13 O-RING, 1AP36.0 24311-000360 8,000
14 O-RING, 1BP22.0 24315-000220 6,000
1 PIPE, LIFT F 1A8296-48110-1
2 PIPE, LIFT R 1A8296-48170-1
15 O-RING, 1AS22.4 24341-000224
3 PIPE, RUBBER 1A8296-48291 449,000
16 BOLT, M8X 16 PLATED 26106-080162 6,000
17 BOLT, M8X 16 PLATED 26106-080162 6,000
4 PIPE, SUCTION F 1A8296-48300-1 1,899,000
18 BOLT, M8X 16 PLATED 26106-080162 6,000
5 PIPE, SUCTION R 1A8296-48350-1 1,654,000
19 BOLT, M8X 16 PLATED 26106-080162 6,000
6 JOINT, PIPE 1A8296-48570-1
20 BOLT, M8X 40 PLATED 26106-080402 30,000
7 STAY, PIPE 1A8296-48600-1
21 BOLT, M8X 45 PLATED 26106-080452 11,000
8 CLAMP, PIPE 1A8296-48730 33,000
9 BOLT ASSY, JOINT 198361-48750 1,001,000
10 CLAMP, 48 23000-048000 187,000
11 GASKET, 20X1.0 23414-200026 17,000
12 O-RING, 1AP32.0 24311-000320 6,000
13 O-RING, 1AP36.0 24311-000360 8,000
14 O-RING, 1BP22.0 24315-000220 6,000
15 O-RING, 1AS22.4 24341-000224
16 BOLT, M8X 16 PLATED 26106-080162 6,000
17 BOLT, M8X 16 PLATED 26106-080162 6,000
18 BOLT, M8X 16 PLATED 26106-080162 6,000
19 BOLT, M8X 16 PLATED 26106-080162 6,000
20 BOLT, M8X 40 PLATED 26106-080402 30,000
21 BOLT, M8X 45 PLATED 26106-080452 11,000

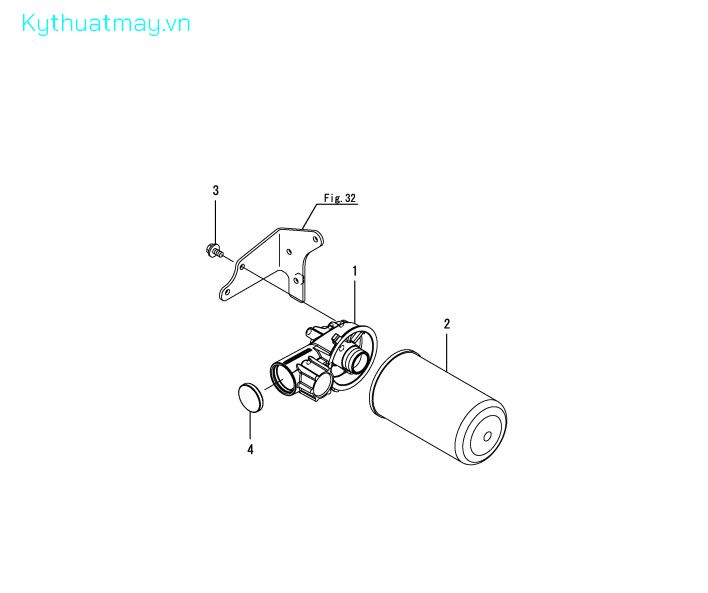

Máy lọc thủy lực

Máy lọc thủy lực
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 HEAD, FILTER 1A8292-48330 735,000
2 FILTER, HYDRAULIC 1A8296-48340 766,000
3 BOLT, M8X 16 PLATED 26106-080162 6,000
4 PLUG, 47 27260-470000 70,000
1 HEAD, FILTER 1A8292-48330 735,000
2 FILTER, HYDRAULIC 1A8296-48340 766,000
3 BOLT, M8X 16 PLATED 26106-080162 6,000
4 PLUG, 47 27260-470000 70,000
Chọn mua sản phẩm
: ...
: ...
: ...
:
messenger
zalo
