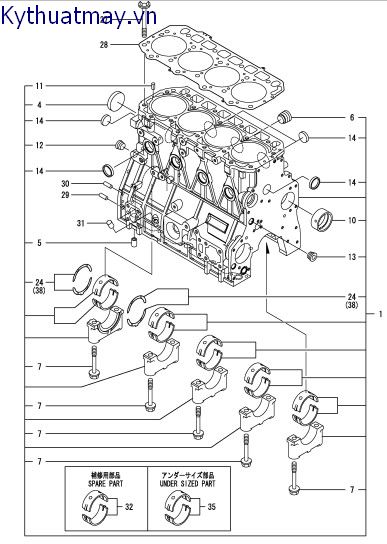

Khối xilanh

Khối xilanh
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 BLOCKASSY, CYLINDER 729963-01560 98,199,000
4 PLUG, 55 129900-01250 223,000
5 PIPE, KNOCK L=25 129956-01710 218,000
6 PLUG, NPTF1 171051-01921 216,000
7 BOLT, METAL CAP 129900-02020 80,000
10 BUSH, CAMSHAFT 129900-02410 247,000
11 PIN, SPRING 6.0X12 22351-060012
12 PLUG, R03 23876-030000 109,000
13 PLUG, R03 23876-030000 109,000
14 PLUG 30 27241-300000 183,000
24 BEARINGASSY, THRUST 129900-02931 344,000
27 BOLT, CYLINDER HEAD 129900-01200 209,000
28 GASKET, HEAD 129907-01331 2,392,000
29 PIN, PARALLEL 8X16 129100-01580 44,000
30 PIN, PARALLEL 8X16 129100-01580 44,000
31 PLUG 119309-01810 75,000
32 METALASSY, MAIN 729900-02801
35 BEARING ASSY, MAIN 129900-02341 1,196,000
38 BEARING, THRUST 0.25 129900-02941 449,000
1 BLOCKASSY, CYLINDER 729963-01560 98,199,000
4 PLUG, 55 129900-01250 223,000
5 PIPE, KNOCK L=25 129956-01710 218,000
6 PLUG, NPTF1 171051-01921 216,000
7 BOLT, METAL CAP 129900-02020 80,000
10 BUSH, CAMSHAFT 129900-02410 247,000
11 PIN, SPRING 6.0X12 22351-060012
12 PLUG, R03 23876-030000 109,000
13 PLUG, R03 23876-030000 109,000
14 PLUG 30 27241-300000 183,000
24 BEARINGASSY, THRUST 129900-02931 344,000
27 BOLT, CYLINDER HEAD 129900-01200 209,000
28 GASKET, HEAD 129907-01331 2,392,000
29 PIN, PARALLEL 8X16 129100-01580 44,000
30 PIN, PARALLEL 8X16 129100-01580 44,000
31 PLUG 119309-01810 75,000
32 METALASSY, MAIN 729900-02801
35 BEARING ASSY, MAIN 129900-02341 1,196,000
38 BEARING, THRUST 0.25 129900-02941 449,000
1 BLOCKASSY, CYLINDER 729963-01560 98,199,000
4 PLUG, 55 129900-01250 223,000
5 PIPE, KNOCK L=25 129956-01710 218,000
6 PLUG, NPTF1 171051-01921 216,000
7 BOLT, METAL CAP 129900-02020 80,000
10 BUSH, CAMSHAFT 129900-02410 247,000
11 PIN, SPRING 6.0X12 22351-060012
12 PLUG, R03 23876-030000 109,000
13 PLUG, R03 23876-030000 109,000
14 PLUG 30 27241-300000 183,000
24 BEARINGASSY, THRUST 129900-02931 344,000
27 BOLT, CYLINDER HEAD 129900-01200 209,000
28 GASKET, HEAD 129907-01331 2,392,000
29 PIN, PARALLEL 8X16 129100-01580 44,000
30 PIN, PARALLEL 8X16 129100-01580 44,000
31 PLUG 119309-01810 75,000
32 METALASSY, MAIN 729900-02801
35 BEARING ASSY, MAIN 129900-02341 1,196,000
38 BEARING, THRUST 0.25 129900-02941 449,000

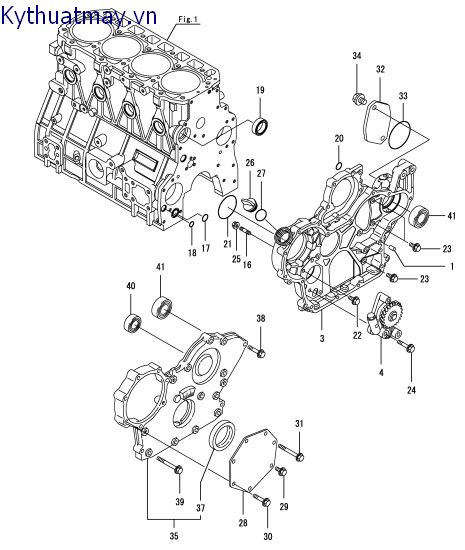

hộp số

hộp số
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 PIN, PARALLEL 8X16 129100-01580 44,000
3 CASE, GEAR 129962-01500 10,819,000
4 PUMPASSY, OIL 129956-32001 4,428,000
16 STUD, M10X 30 26216-100302 50,000
17 O-RING, P20 129900-32030
18 O-RING, P14 129900-32040
19 GASKET, PUMP OUTLET 129927-42140 125,000
20 O-RING, 1AP7.0 24311-000070 6,000
21 O-RING, 1A3075 24351-030750
22 BOLT, M8X 16 PLATED 26106-080162 6,000
23 BOLT, M8X 20 PLATED 26106-080202 6,000
24 BOLT, M8X 45 PLATED 26106-080452 11,000
25 NUT, M10 26306-100002 20,000
26 CAP, FILLER 124160-01751 209,000
27 O-RING, 1AP32.0 24311-000320 6,000
28 COVER, PUMP TIMING 129951-01740 411,000
29 BOLT, M8X 20 PLATED 26106-080202 6,000
30 BOLT, M8X 45 PLATED 26106-080452 11,000
31 BOLT, M8X 75 PLATED 26106-080752 14,000
32 COVER, PUMP 121023-26071 859,000
33 O-RING, 1AG85.0 24321-000850 20,000
34 BOLT, M10X 20 PLATED 26106-100202 11,000
35 COVERASSY, CASE 729907-01559
37 SEAL, OIL 129916-01800 449,000
38 BOLT, M8X 40 PLATED 26106-080402 30,000
39 BOLT, M8X 70 PLATED 26106-080702 34,000
40 BEARING, BALL 6205 129900-14140 411,000
41 BEARING, BALL 6206C3 129900-26250 224,000
1 PIN, PARALLEL 8X16 129100-01580 44,000
3 CASE, GEAR 129962-01500 10,819,000
4 PUMPASSY, OIL 129956-32001 4,428,000
16 STUD, M10X 30 26216-100302 50,000
17 O-RING, P20 129900-32030
18 O-RING, P14 129900-32040
19 GASKET, PUMP OUTLET 129927-42140 125,000
20 O-RING, 1AP7.0 24311-000070 6,000
21 O-RING, 1A3075 24351-030750
22 BOLT, M8X 16 PLATED 26106-080162 6,000
23 BOLT, M8X 20 PLATED 26106-080202 6,000
24 BOLT, M8X 45 PLATED 26106-080452 11,000
25 NUT, M10 26306-100002 20,000
26 CAP, FILLER 124160-01751 209,000
27 O-RING, 1AP32.0 24311-000320 6,000
28 COVER, PUMP TIMING 129951-01740 411,000
29 BOLT, M8X 20 PLATED 26106-080202 6,000
30 BOLT, M8X 45 PLATED 26106-080452 11,000
31 BOLT, M8X 75 PLATED 26106-080752 14,000
32 COVER, PUMP 121023-26071 859,000
33 O-RING, 1AG85.0 24321-000850 20,000
34 BOLT, M10X 20 PLATED 26106-100202 11,000
35 COVERASSY, CASE 729907-01559
37 SEAL, OIL 129916-01800 449,000
38 BOLT, M8X 40 PLATED 26106-080402 30,000
39 BOLT, M8X 70 PLATED 26106-080702 34,000
40 BEARING, BALL 6205 129900-14140 411,000
41 BEARING, BALL 6206C3 129900-26250 224,000
1 PIN, PARALLEL 8X16 129100-01580 44,000
3 CASE, GEAR 129962-01500 10,819,000
4 PUMPASSY, OIL 129956-32001 4,428,000
16 STUD, M10X 30 26216-100302 50,000
17 O-RING, P20 129900-32030
18 O-RING, P14 129900-32040
19 GASKET, PUMP OUTLET 129927-42140 125,000
20 O-RING, 1AP7.0 24311-000070 6,000
21 O-RING, 1A3075 24351-030750
22 BOLT, M8X 16 PLATED 26106-080162 6,000
23 BOLT, M8X 20 PLATED 26106-080202 6,000
24 BOLT, M8X 45 PLATED 26106-080452 11,000
25 NUT, M10 26306-100002 20,000
26 CAP, FILLER 124160-01751 209,000
27 O-RING, 1AP32.0 24311-000320 6,000
28 COVER, PUMP TIMING 129951-01740 411,000
29 BOLT, M8X 20 PLATED 26106-080202 6,000
30 BOLT, M8X 45 PLATED 26106-080452 11,000
31 BOLT, M8X 75 PLATED 26106-080752 14,000
32 COVER, PUMP 121023-26071 859,000
33 O-RING, 1AG85.0 24321-000850 20,000
34 BOLT, M10X 20 PLATED 26106-100202 11,000
35 COVERASSY, CASE 729907-01559
37 SEAL, OIL 129916-01800 449,000
38 BOLT, M8X 40 PLATED 26106-080402 30,000
39 BOLT, M8X 70 PLATED 26106-080702 34,000
40 BEARING, BALL 6205 129900-14140 411,000
41 BEARING, BALL 6206C3 129900-26250 224,000

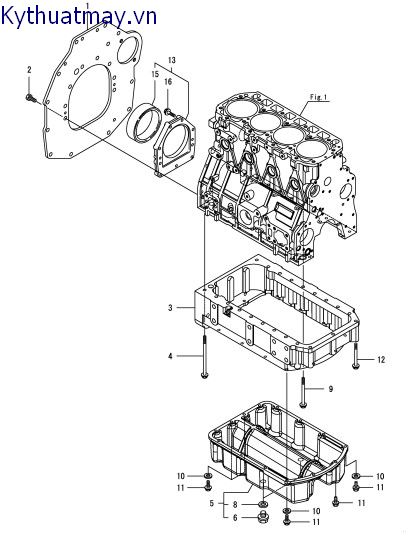

nắp bích gắn lắp và máng dầu

nắp bích gắn lắp và máng dầu
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 FLANGE, MOUNTING 129963-01630 14,426,000
2 BOLT, M10X 20 PLATED 26116-100202 34,000
3 OIL PAN 129956-01730 12,176,000
4 BOLT, M8X150 129972-01731 95,000
5 COVERASSY, OIL PAN 129956-01760 9,784,000
6 PLUG, DRAIN M16 105425-01690
8 WASHER, SEAL 16 22190-160002 50,000
9 BOLT 129693-44310 164,000
10 WASHER, SEAL 8 22190-080002 44,000
11 BOLT, M8X 25 PLATED 26106-080252 11,000
12 BOLT, M8X 85 PLATED 26106-080852 34,000
13 CASEASSY, OIL SEAL 129968-01640 3,499,000
15 SEAL, D115/95XT11 129916-01790 1,158,000
16 BOLT, M8X 30 PLATED 26106-080302 9,000
1 FLANGE, MOUNTING 129963-01630 14,426,000
2 BOLT, M10X 20 PLATED 26116-100202 34,000
3 OIL PAN 129956-01730 12,176,000
4 BOLT, M8X150 129972-01731 95,000
5 COVERASSY, OIL PAN 129956-01760 9,784,000
6 PLUG, DRAIN M16 105425-01690
8 WASHER, SEAL 16 22190-160002 50,000
9 BOLT 129693-44310 164,000
10 WASHER, SEAL 8 22190-080002 44,000
11 BOLT, M8X 25 PLATED 26106-080252 11,000
12 BOLT, M8X 85 PLATED 26106-080852 34,000
13 CASEASSY, OIL SEAL 129968-01640 3,499,000
15 SEAL, D115/95XT11 129916-01790 1,158,000
16 BOLT, M8X 30 PLATED 26106-080302 9,000
1 FLANGE, MOUNTING 129963-01630 14,426,000
2 BOLT, M10X 20 PLATED 26116-100202 34,000
3 OIL PAN 129956-01730 12,176,000
4 BOLT, M8X150 129972-01731 95,000
5 COVERASSY, OIL PAN 129956-01760 9,784,000
6 PLUG, DRAIN M16 105425-01690
8 WASHER, SEAL 16 22190-160002 50,000
9 BOLT 129693-44310 164,000
10 WASHER, SEAL 8 22190-080002 44,000
11 BOLT, M8X 25 PLATED 26106-080252 11,000
12 BOLT, M8X 85 PLATED 26106-080852 34,000
13 CASEASSY, OIL SEAL 129968-01640 3,499,000
15 SEAL, D115/95XT11 129916-01790 1,158,000
16 BOLT, M8X 30 PLATED 26106-080302 9,000

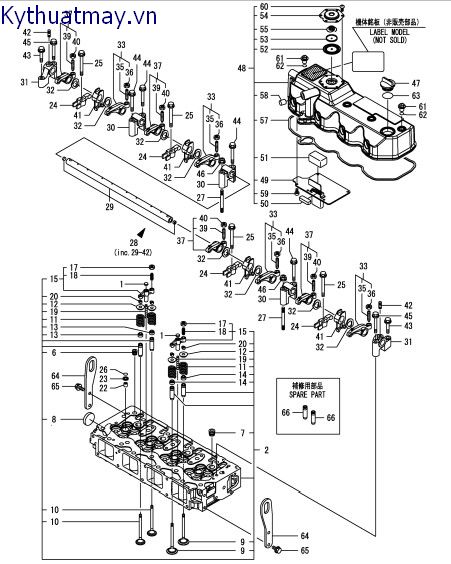

Khóa xilanh

Khóa xilanh
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 SEAT, VALVE BRIDGE 123907-11550
2 HEADASSY, CYLINDER 129907-11700 45,350,000
6 PLUG, R02 23876-020000 64,000
7 PLUG, R03 23876-030000 109,000
8 PLUG, 40 27241-400000
9 VALVE, INTAKE 129907-11100 709,000
10 VALVE, EXHAUST 129907-11110 673,000
11 SPRING, VALVE 129907-11120 155,000
12 RETAINER, SPRING 119620-11180
13 SEAL, VALVE STEM 119803-11340 148,000
14 SEAL, VALVE STEM 124160-11340 134,000
15 BRIDGEASSY, VALVE 129907-11510 1,083,000
17 NUT, M8XP1.0 129150-11750
18 ADJUSTER, BRIDGE 123907-11830 218,000
19 GUIDE, BRIDGE 123907-11820 269,000
20 COTTER, 7 27310-070001 49,000
22 PROTECTOR, NOZZLE 119802-11870 206,000
23 SEAT, NOZZLE 119625-11880
24 RETAINER, NOZZLE 129907-11910
25 BOLT, M8X75 129907-11950 75,000
26 O-RING, 1AP12.0 24311-000120 2,000
27 STUD, M8X80 119593-11301 95,000
28 SUPPORTASSY, ROCKER 129907-11341 13,427,000
29 SHAFT, ROCKERARM 129907-11250 8,070,000
30 SUPPORT, ROCKERA 129907-11260 1,681,000
31 SUPPORT, ROCKER B 129907-11270 1,121,000
32 WASHER, WAVE 123907-11280 41,000
33 ARMASSY, ROCKER 129907-11650 2,242,000
35 SCREW, VALVEADJUST 129150-11230
36 NUT, M8XP1.0 129150-11750
37 ARMASSY, ROCKER 129907-11660 1,794,000
39 SCREW, VALVEADJUST 129150-11230
40 NUT, M8XP1.0 129150-11750
41 RETAINER, NOZZLE 129907-11920 634,000
42 STUD, M8X 22 26226-080222 41,000
43 BOLT, M8X 40 PLATED 26106-080402 30,000
44 BOLT, M8X 60 PLATED 26106-080602 34,000
45 BOLT, M8X 60 PLATED 26106-080602 34,000
46 NUT, M8 26306-080002 20,000
47 CAP, FILLER 124160-01751 209,000
48 BONNETASSY, HEAD 129907-11321 7,892,000
49 PLATE, BAFFLE 129907-03011 2,092,000
50 BAFFLE, BREATHER 129907-03061 209,000
51 BAFFLE, BREATHER 129907-03070 209,000
52 DIAPHRAGM 123907-03100 523,000
53 PLATE 123907-03110 209,000
54 PLATE, BREATHER 123907-03120 362,000
55 SPRING, DIAPHRAGM 123907-03140
57 GASKET, BONNET 129933-11310 673,000
58 PLUG 119640-61400 143,000
59 SCREW, 5X10 22857-500100 25,000
60 SCREW, 5X10 22857-500100 25,000
61 KNOB 124160-11360 114,000
62 O-RING, 1AP12.0 24311-000120 2,000
63 O-RING, 1AP32.0 24311-000320 6,000
64 LIFTER, ENGINE 129907-07900 1,345,000
65 BOLT, M8X 16 PLATED 26106-080162 6,000
66 GUIDE, VALVE 129907-11800 145,000
1 SEAT, VALVE BRIDGE 123907-11550
2 HEADASSY, CYLINDER 129907-11700 45,350,000
6 PLUG, R02 23876-020000 64,000
7 PLUG, R03 23876-030000 109,000
8 PLUG, 40 27241-400000
9 VALVE, INTAKE 129907-11100 709,000
10 VALVE, EXHAUST 129907-11110 673,000
11 SPRING, VALVE 129907-11120 155,000
12 RETAINER, SPRING 119620-11180
13 SEAL, VALVE STEM 119803-11340 148,000
14 SEAL, VALVE STEM 124160-11340 134,000
15 BRIDGEASSY, VALVE 129907-11510 1,083,000
17 NUT, M8XP1.0 129150-11750
18 ADJUSTER, BRIDGE 123907-11830 218,000
19 GUIDE, BRIDGE 123907-11820 269,000
20 COTTER, 7 27310-070001 49,000
22 PROTECTOR, NOZZLE 119802-11870 206,000
23 SEAT, NOZZLE 119625-11880
24 RETAINER, NOZZLE 129907-11910
25 BOLT, M8X75 129907-11950 75,000
26 O-RING, 1AP12.0 24311-000120 2,000
27 STUD, M8X80 119593-11301 95,000
28 SUPPORTASSY, ROCKER 129907-11341 13,427,000
29 SHAFT, ROCKERARM 129907-11250 8,070,000
30 SUPPORT, ROCKERA 129907-11260 1,681,000
31 SUPPORT, ROCKER B 129907-11270 1,121,000
32 WASHER, WAVE 123907-11280 41,000
33 ARMASSY, ROCKER 129907-11650 2,242,000
35 SCREW, VALVEADJUST 129150-11230
36 NUT, M8XP1.0 129150-11750
37 ARMASSY, ROCKER 129907-11660 1,794,000
39 SCREW, VALVEADJUST 129150-11230
40 NUT, M8XP1.0 129150-11750
41 RETAINER, NOZZLE 129907-11920 634,000
42 STUD, M8X 22 26226-080222 41,000
43 BOLT, M8X 40 PLATED 26106-080402 30,000
44 BOLT, M8X 60 PLATED 26106-080602 34,000
45 BOLT, M8X 60 PLATED 26106-080602 34,000
46 NUT, M8 26306-080002 20,000
47 CAP, FILLER 124160-01751 209,000
48 BONNETASSY, HEAD 129907-11321 7,892,000
49 PLATE, BAFFLE 129907-03011 2,092,000
50 BAFFLE, BREATHER 129907-03061 209,000
51 BAFFLE, BREATHER 129907-03070 209,000
52 DIAPHRAGM 123907-03100 523,000
53 PLATE 123907-03110 209,000
54 PLATE, BREATHER 123907-03120 362,000
55 SPRING, DIAPHRAGM 123907-03140
57 GASKET, BONNET 129933-11310 673,000
58 PLUG 119640-61400 143,000
59 SCREW, 5X10 22857-500100 25,000
60 SCREW, 5X10 22857-500100 25,000
61 KNOB 124160-11360 114,000
62 O-RING, 1AP12.0 24311-000120 2,000
63 O-RING, 1AP32.0 24311-000320 6,000
64 LIFTER, ENGINE 129907-07900 1,345,000
65 BOLT, M8X 16 PLATED 26106-080162 6,000
66 GUIDE, VALVE 129907-11800 145,000
1 SEAT, VALVE BRIDGE 123907-11550
2 HEADASSY, CYLINDER 129907-11700 45,350,000
6 PLUG, R02 23876-020000 64,000
7 PLUG, R03 23876-030000 109,000
8 PLUG, 40 27241-400000
9 VALVE, INTAKE 129907-11100 709,000
10 VALVE, EXHAUST 129907-11110 673,000
11 SPRING, VALVE 129907-11120 155,000
12 RETAINER, SPRING 119620-11180
13 SEAL, VALVE STEM 119803-11340 148,000
14 SEAL, VALVE STEM 124160-11340 134,000
15 BRIDGEASSY, VALVE 129907-11510 1,083,000
17 NUT, M8XP1.0 129150-11750
18 ADJUSTER, BRIDGE 123907-11830 218,000
19 GUIDE, BRIDGE 123907-11820 269,000
20 COTTER, 7 27310-070001 49,000
22 PROTECTOR, NOZZLE 119802-11870 206,000
23 SEAT, NOZZLE 119625-11880
24 RETAINER, NOZZLE 129907-11910
25 BOLT, M8X75 129907-11950 75,000
26 O-RING, 1AP12.0 24311-000120 2,000
27 STUD, M8X80 119593-11301 95,000
28 SUPPORTASSY, ROCKER 129907-11341 13,427,000
29 SHAFT, ROCKERARM 129907-11250 8,070,000
30 SUPPORT, ROCKERA 129907-11260 1,681,000
31 SUPPORT, ROCKER B 129907-11270 1,121,000
32 WASHER, WAVE 123907-11280 41,000
33 ARMASSY, ROCKER 129907-11650 2,242,000
35 SCREW, VALVEADJUST 129150-11230
36 NUT, M8XP1.0 129150-11750
37 ARMASSY, ROCKER 129907-11660 1,794,000
39 SCREW, VALVEADJUST 129150-11230
40 NUT, M8XP1.0 129150-11750
41 RETAINER, NOZZLE 129907-11920 634,000
42 STUD, M8X 22 26226-080222 41,000
43 BOLT, M8X 40 PLATED 26106-080402 30,000
44 BOLT, M8X 60 PLATED 26106-080602 34,000
45 BOLT, M8X 60 PLATED 26106-080602 34,000
46 NUT, M8 26306-080002 20,000
47 CAP, FILLER 124160-01751 209,000
48 BONNETASSY, HEAD 129907-11321 7,892,000
49 PLATE, BAFFLE 129907-03011 2,092,000
50 BAFFLE, BREATHER 129907-03061 209,000
51 BAFFLE, BREATHER 129907-03070 209,000
52 DIAPHRAGM 123907-03100 523,000
53 PLATE 123907-03110 209,000
54 PLATE, BREATHER 123907-03120 362,000
55 SPRING, DIAPHRAGM 123907-03140
57 GASKET, BONNET 129933-11310 673,000
58 PLUG 119640-61400 143,000
59 SCREW, 5X10 22857-500100 25,000
60 SCREW, 5X10 22857-500100 25,000
61 KNOB 124160-11360 114,000
62 O-RING, 1AP12.0 24311-000120 2,000
63 O-RING, 1AP32.0 24311-000320 6,000
64 LIFTER, ENGINE 129907-07900 1,345,000
65 BOLT, M8X 16 PLATED 26106-080162 6,000
66 GUIDE, VALVE 129907-11800 145,000

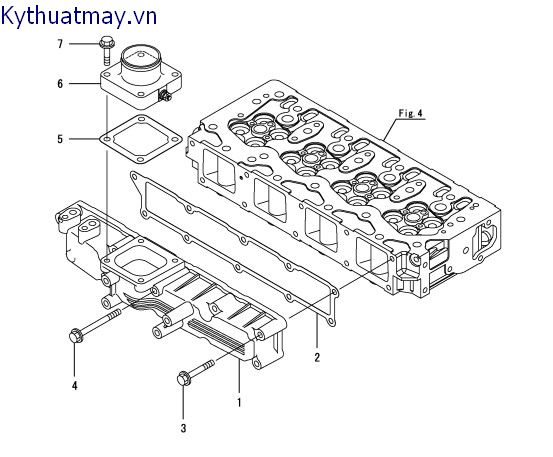

Ống góp hút

Ống góp hút
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 MANIFOLD, INTAKE 129907-12100 6,392,000
2 GASKET, MANIFOLD 129907-12110 359,000
3 BOLT, M8X 55 PLATED 26106-080552 34,000
4 BOLT, M8X 85 PLATED 26106-080852 34,000
5 GASKET,AIR HEATER 121850-77021 198,000
6 HEATER,AIR 12V 129915-77051 1,831,000
7 BOLT, M8X 35 PLATED 26106-080352 9,000
1 MANIFOLD, INTAKE 129907-12100 6,392,000
2 GASKET, MANIFOLD 129907-12110 359,000
3 BOLT, M8X 55 PLATED 26106-080552 34,000
4 BOLT, M8X 85 PLATED 26106-080852 34,000
5 GASKET,AIR HEATER 121850-77021 198,000
6 HEATER,AIR 12V 129915-77051 1,831,000
7 BOLT, M8X 35 PLATED 26106-080352 9,000
1 MANIFOLD, INTAKE 129907-12100 6,392,000
2 GASKET, MANIFOLD 129907-12110 359,000
3 BOLT, M8X 55 PLATED 26106-080552 34,000
4 BOLT, M8X 85 PLATED 26106-080852 34,000
5 GASKET,AIR HEATER 121850-77021 198,000
6 HEATER,AIR 12V 129915-77051 1,831,000
7 BOLT, M8X 35 PLATED 26106-080352 9,000

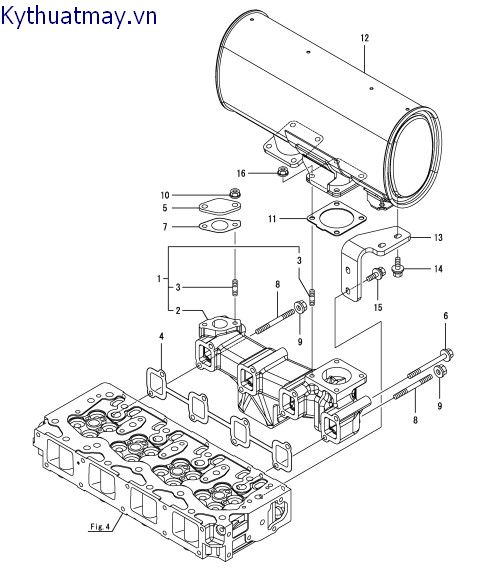

Ống gom khí xả và bộ tiêu âm

Ống gom khí xả và bộ tiêu âm
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 MANIFOLDASSY 129968-13170 11,713,000
2 MANIFOLD, EXHAUST 129968-13120 9,784,000
3 STUD, M8X22 119131-18320 70,000
4 GASKET, MANIFOLD 129900-13251 206,000
5 COVER, EGR 129558-13420 934,000
6 BOLT, M8X90 10.9T 129E00-13650 173,000
7 GASKET 129927-13810 98,000
8 BOLT, COOLER 129693-44300 255,000
9 NUT, M8 26306-080002 20,000
10 NUT, M8 26306-080002 20,000
11 GASKET, SILENCER 129930-13201 59,000
12 SILENCER 129968-13500 19,354,000
13 STAY, SILENCER 129968-13650 1,307,000
14 BOLT, M8X 22 26014-080222 30,000
15 BOLT, M8X 25 26014-080252 30,000
16 NUT, M8 26306-080002 20,000
1 MANIFOLDASSY 129968-13170 11,713,000
2 MANIFOLD, EXHAUST 129968-13120 9,784,000
3 STUD, M8X22 119131-18320 70,000
4 GASKET, MANIFOLD 129900-13251 206,000
5 COVER, EGR 129558-13420 934,000
6 BOLT, M8X90 10.9T 129E00-13650 173,000
7 GASKET 129927-13810 98,000
8 BOLT, COOLER 129693-44300 255,000
9 NUT, M8 26306-080002 20,000
10 NUT, M8 26306-080002 20,000
11 GASKET, SILENCER 129930-13201 59,000
12 SILENCER 129968-13500 19,354,000
13 STAY, SILENCER 129968-13650 1,307,000
14 BOLT, M8X 22 26014-080222 30,000
15 BOLT, M8X 25 26014-080252 30,000
16 NUT, M8 26306-080002 20,000
1 MANIFOLDASSY 129968-13170 11,713,000
2 MANIFOLD, EXHAUST 129968-13120 9,784,000
3 STUD, M8X22 119131-18320 70,000
4 GASKET, MANIFOLD 129900-13251 206,000
5 COVER, EGR 129558-13420 934,000
6 BOLT, M8X90 10.9T 129E00-13650 173,000
7 GASKET 129927-13810 98,000
8 BOLT, COOLER 129693-44300 255,000
9 NUT, M8 26306-080002 20,000
10 NUT, M8 26306-080002 20,000
11 GASKET, SILENCER 129930-13201 59,000
12 SILENCER 129968-13500 19,354,000
13 STAY, SILENCER 129968-13650 1,307,000
14 BOLT, M8X 22 26014-080222 30,000
15 BOLT, M8X 25 26014-080252 30,000
16 NUT, M8 26306-080002 20,000

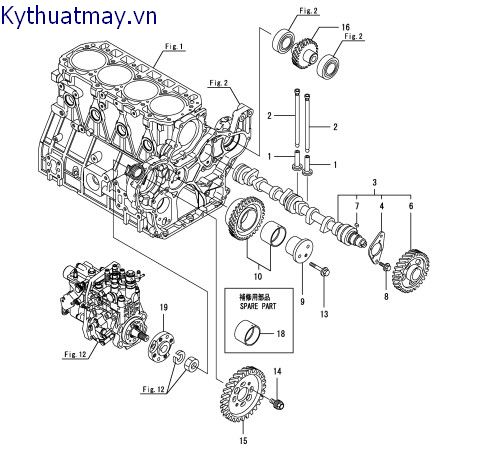

Trục cam và bánh răng dẫn động

Trục cam và bánh răng dẫn động
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 TAPPET 129150-14200 310,000
2 PUSH-ROD 129907-14400 218,000
3 CAMSHAFTASSY 129908-14590 7,820,000
3-1 CAMSHAFTASSY 129932-14590
4 METAL, THRUST 129150-02450 411,000
6 GEAR, CAMSHAFT 129900-14110 6,070,000
7 KEY, 7X 14 22512-070140 44,000
8 BOLT, M8X 14 PLATED 26106-080142 25,000
9 SHAFT, IDLE GEAR 123900-25060 896,000
10 GEARASSY, IDLE 129900-25110 3,357,000
13 BOLT, M8X 55 PLATED 26106-080552 34,000
14 BOLT, PUMP BODY 129953-25300 109,000
15 GEAR, PUMP 129907-25900 3,784,000
16 GEARASSY, PUMP 129900-26020 1,868,000
18 BUSH, IDLE GEAR 129150-25920 187,000
19 FLANGE 158563-51150 1,607,000
1 TAPPET 129150-14200 310,000
2 PUSH-ROD 129907-14400 218,000
3 CAMSHAFTASSY 129908-14590 7,820,000
3-1 CAMSHAFTASSY 129932-14590
4 METAL, THRUST 129150-02450 411,000
6 GEAR, CAMSHAFT 129900-14110 6,070,000
7 KEY, 7X 14 22512-070140 44,000
8 BOLT, M8X 14 PLATED 26106-080142 25,000
9 SHAFT, IDLE GEAR 123900-25060 896,000
10 GEARASSY, IDLE 129900-25110 3,357,000
13 BOLT, M8X 55 PLATED 26106-080552 34,000
14 BOLT, PUMP BODY 129953-25300 109,000
15 GEAR, PUMP 129907-25900 3,784,000
16 GEARASSY, PUMP 129900-26020 1,868,000
18 BUSH, IDLE GEAR 129150-25920 187,000
19 FLANGE 158563-51150 1,607,000
1 TAPPET 129150-14200 310,000
2 PUSH-ROD 129907-14400 218,000
3 CAMSHAFTASSY 129908-14590 7,820,000
3-1 CAMSHAFTASSY 129932-14590
4 METAL, THRUST 129150-02450 411,000
6 GEAR, CAMSHAFT 129900-14110 6,070,000
7 KEY, 7X 14 22512-070140 44,000
8 BOLT, M8X 14 PLATED 26106-080142 25,000
9 SHAFT, IDLE GEAR 123900-25060 896,000
10 GEARASSY, IDLE 129900-25110 3,357,000
13 BOLT, M8X 55 PLATED 26106-080552 34,000
14 BOLT, PUMP BODY 129953-25300 109,000
15 GEAR, PUMP 129907-25900 3,784,000
16 GEARASSY, PUMP 129900-26020 1,868,000
18 BUSH, IDLE GEAR 129150-25920 187,000
19 FLANGE 158563-51150 1,607,000

Trục khuỷu và pittong

Trục khuỷu và pittong
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 CRANKSHAFTASSY 129942-21000 33,709,000
3 GEAR, CRANKSHAFT 129900-21220 3,101,000
4 PIN, CRANK GEAR 121850-21290 44,000
5 PIN, CRANK GEAR 121850-21290 44,000
6 PIN, PARALLEL 10X22 121850-21920 50,000
7 GEAR, BALANCER DRIVE 129956-28321 3,643,000
8 KEY, 7X 14 22512-070140 44,000
9 BOLT 129916-21610 218,000
10 V-PULLEY, CRANKSHAFT 129907-21650 3,101,000
11 GASKET, WASHER 129960-21930 70,000
12 WASHER, V-PULLEY 129960-21940 355,000
13 BOLT, FLYWHEEL 121850-21130 255,000
14 FLYWHEELASSY 129963-21540 19,890,000
16 GEAR, RING 129968-21620 1,383,000
17 BEARING, BALL 6303ZZ 24107-063034 284,000
18 PISTON ASSY 129985-22080 5,106,000
20 RING SET, PISTON 129927-22050 1,532,000
24 PIN, PISTON 120130-22301 1,271,000
25 RING, 30 22252-000300 34,000
26 RODASSY, CONNECTING 129900-23001 7,713,000
29 BOLT, CONNECTING ROD 129900-23200 75,000
30 BEARING, CRANK PIN 129900-23601
32 BEARING, PISTON PIN 129900-23911 359,000
33 BEARING ASSY, 0.25US 129900-23611 934,000
35 PISTON ASSY 129963-22900 4,893,000
37 RING SET, 0.25 OS 129903-22950 1,681,000
1 CRANKSHAFTASSY 129942-21000 33,709,000
3 GEAR, CRANKSHAFT 129900-21220 3,101,000
4 PIN, CRANK GEAR 121850-21290 44,000
5 PIN, CRANK GEAR 121850-21290 44,000
6 PIN, PARALLEL 10X22 121850-21920 50,000
7 GEAR, BALANCER DRIVE 129956-28321 3,643,000
8 KEY, 7X 14 22512-070140 44,000
9 BOLT 129916-21610 218,000
10 V-PULLEY, CRANKSHAFT 129907-21650 3,101,000
11 GASKET, WASHER 129960-21930 70,000
12 WASHER, V-PULLEY 129960-21940 355,000
13 BOLT, FLYWHEEL 121850-21130 255,000
14 FLYWHEELASSY 129963-21540 19,890,000
16 GEAR, RING 129968-21620 1,383,000
17 BEARING, BALL 6303ZZ 24107-063034 284,000
18 PISTON ASSY 129985-22080 5,106,000
20 RING SET, PISTON 129927-22050 1,532,000
24 PIN, PISTON 120130-22301 1,271,000
25 RING, 30 22252-000300 34,000
26 RODASSY, CONNECTING 129900-23001 7,713,000
29 BOLT, CONNECTING ROD 129900-23200 75,000
30 BEARING, CRANK PIN 129900-23601
32 BEARING, PISTON PIN 129900-23911 359,000
33 BEARING ASSY, 0.25US 129900-23611 934,000
35 PISTON ASSY 129963-22900 4,893,000
37 RING SET, 0.25 OS 129903-22950 1,681,000
1 CRANKSHAFTASSY 129942-21000 33,709,000
3 GEAR, CRANKSHAFT 129900-21220 3,101,000
4 PIN, CRANK GEAR 121850-21290 44,000
5 PIN, CRANK GEAR 121850-21290 44,000
6 PIN, PARALLEL 10X22 121850-21920 50,000
7 GEAR, BALANCER DRIVE 129956-28321 3,643,000
8 KEY, 7X 14 22512-070140 44,000
9 BOLT 129916-21610 218,000
10 V-PULLEY, CRANKSHAFT 129907-21650 3,101,000
11 GASKET, WASHER 129960-21930 70,000
12 WASHER, V-PULLEY 129960-21940 355,000
13 BOLT, FLYWHEEL 121850-21130 255,000
14 FLYWHEELASSY 129963-21540 19,890,000
16 GEAR, RING 129968-21620 1,383,000
17 BEARING, BALL 6303ZZ 24107-063034 284,000
18 PISTON ASSY 129985-22080 5,106,000
20 RING SET, PISTON 129927-22050 1,532,000
24 PIN, PISTON 120130-22301 1,271,000
25 RING, 30 22252-000300 34,000
26 RODASSY, CONNECTING 129900-23001 7,713,000
29 BOLT, CONNECTING ROD 129900-23200 75,000
30 BEARING, CRANK PIN 129900-23601
32 BEARING, PISTON PIN 129900-23911 359,000
33 BEARING ASSY, 0.25US 129900-23611 934,000
35 PISTON ASSY 129963-22900 4,893,000
37 RING SET, 0.25 OS 129903-22950 1,681,000

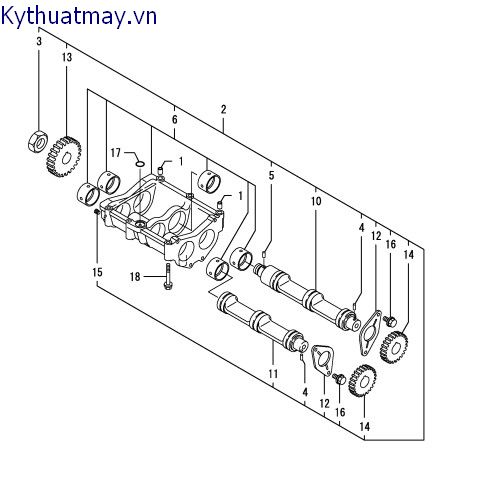

Bộ cân bằng

Bộ cân bằng
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 PIPE, KNOCK 11X12 129795-01960 179,000
2 BALANCERASSY 129956-28009 44,279,000
2-1 BALANCERASSY 129956-28030
3 NUT, END 128610-14120 822,000
4 PIN, CRANK GEAR 121850-21290 44,000
5 PIN, CRANK GEAR 121850-21290 44,000
6 CASEASSY, BALANCER 129956-28019 23,389,000
6-1 CASEASSY, BALANCER 129956-28040
10 SHAFT, BALANCER 129956-28101 7,105,000
11 SHAFT, BALANCER 129956-28111 7,105,000
12 PLATE, THRUST 129956-28180 560,000
13 GEAR, BALANCER DRIVE 129956-28332 2,167,000
14 GEAR, BALANCER 129956-28341 2,167,000
15 PLUG, R005 23876-005000 114,000
16 BOLT, M8X 16 PLATED 26106-080162 6,000
17 O-RING, 1AP20.0 24311-000200 3,000
18 BOLT, M8X 60 PLATED 26106-080602 34,000
1 PIPE, KNOCK 11X12 129795-01960 179,000
2 BALANCERASSY 129956-28009 44,279,000
2-1 BALANCERASSY 129956-28030
3 NUT, END 128610-14120 822,000
4 PIN, CRANK GEAR 121850-21290 44,000
5 PIN, CRANK GEAR 121850-21290 44,000
6 CASEASSY, BALANCER 129956-28019 23,389,000
6-1 CASEASSY, BALANCER 129956-28040
10 SHAFT, BALANCER 129956-28101 7,105,000
11 SHAFT, BALANCER 129956-28111 7,105,000
12 PLATE, THRUST 129956-28180 560,000
13 GEAR, BALANCER DRIVE 129956-28332 2,167,000
14 GEAR, BALANCER 129956-28341 2,167,000
15 PLUG, R005 23876-005000 114,000
16 BOLT, M8X 16 PLATED 26106-080162 6,000
17 O-RING, 1AP20.0 24311-000200 3,000
18 BOLT, M8X 60 PLATED 26106-080602 34,000
1 PIPE, KNOCK 11X12 129795-01960 179,000
2 BALANCERASSY 129956-28009 44,279,000
2-1 BALANCERASSY 129956-28030
3 NUT, END 128610-14120 822,000
4 PIN, CRANK GEAR 121850-21290 44,000
5 PIN, CRANK GEAR 121850-21290 44,000
6 CASEASSY, BALANCER 129956-28019 23,389,000
6-1 CASEASSY, BALANCER 129956-28040
10 SHAFT, BALANCER 129956-28101 7,105,000
11 SHAFT, BALANCER 129956-28111 7,105,000
12 PLATE, THRUST 129956-28180 560,000
13 GEAR, BALANCER DRIVE 129956-28332 2,167,000
14 GEAR, BALANCER 129956-28341 2,167,000
15 PLUG, R005 23876-005000 114,000
16 BOLT, M8X 16 PLATED 26106-080162 6,000
17 O-RING, 1AP20.0 24311-000200 3,000
18 BOLT, M8X 60 PLATED 26106-080602 34,000

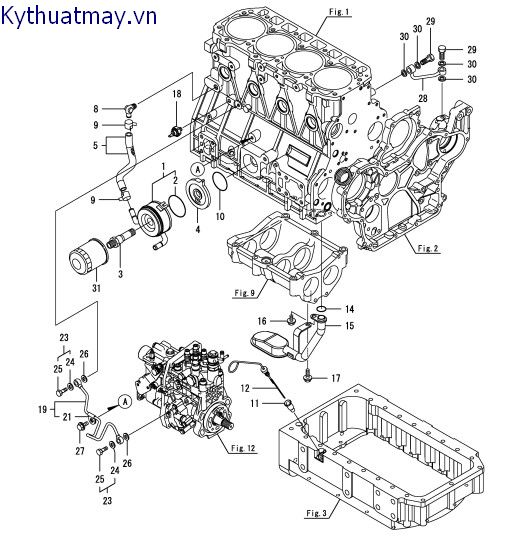

Hệ thống dầu làm mát

Hệ thống dầu làm mát
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 COOLERASSY, OIL 129973-33010 16,283,000
2 O-RING 123912-33050 173,000
3 BOLT, COOLER 123912-33100 1,419,000
4 BRACKET, COOLER 129908-33101 1,121,000
5 HOSEASSY, WATER 129973-49050 634,000
8 ELBOW, PT1/4 129103-49301 634,000
9 CLAMP, 22 23000-022000 143,000
10 O-RING, 1AG60.0 24321-000600 11,000
11 GUIDE, DIPSTICK 119860-34810 560,000
12 DIPSTICK, OIL 129963-34831 747,000
14 O-RING, P20 129900-32030
15 PIPEASSY, OIL INLET 129956-35100 2,803,000
16 BOLT, M8X 14 PLATED 26106-080142 25,000
17 BOLT, M8X 20 PLATED 26106-080202 6,000
18 SWITCH, HYDRAULIC 119761-39450 240,000
19 PIPEASSY, OIL 129907-39061 859,000
21 RETAINER, PIPE 123907-39500 411,000
23 BOLTASSY, JOINT M8 129005-59830 89,000
24 WASHER, SEAL 8 22190-080002 44,000
25 BOLT, JOINT 3 23857-030000 50,000
26 WASHER, SEAL 8 22190-080002 44,000
27 BOLT, M8X 12 PLATED 26106-080122 3,000
28 PIPE, HO PUMP 129930-39050 281,000
29 BOLT, PIPE JOINT 105010-39140 134,000
30 WASHER, SEAL 8 22190-080002 44,000
31 FILTER, D80X100 119005-35170 255,000
1 COOLERASSY, OIL 129973-33010 16,283,000
2 O-RING 123912-33050 173,000
3 BOLT, COOLER 123912-33100 1,419,000
4 BRACKET, COOLER 129908-33101 1,121,000
5 HOSEASSY, WATER 129973-49050 634,000
8 ELBOW, PT1/4 129103-49301 634,000
9 CLAMP, 22 23000-022000 143,000
10 O-RING, 1AG60.0 24321-000600 11,000
11 GUIDE, DIPSTICK 119860-34810 560,000
12 DIPSTICK, OIL 129963-34831 747,000
14 O-RING, P20 129900-32030
15 PIPEASSY, OIL INLET 129956-35100 2,803,000
16 BOLT, M8X 14 PLATED 26106-080142 25,000
17 BOLT, M8X 20 PLATED 26106-080202 6,000
18 SWITCH, HYDRAULIC 119761-39450 240,000
19 PIPEASSY, OIL 129907-39061 859,000
21 RETAINER, PIPE 123907-39500 411,000
23 BOLTASSY, JOINT M8 129005-59830 89,000
24 WASHER, SEAL 8 22190-080002 44,000
25 BOLT, JOINT 3 23857-030000 50,000
26 WASHER, SEAL 8 22190-080002 44,000
27 BOLT, M8X 12 PLATED 26106-080122 3,000
28 PIPE, HO PUMP 129930-39050 281,000
29 BOLT, PIPE JOINT 105010-39140 134,000
30 WASHER, SEAL 8 22190-080002 44,000
31 FILTER, D80X100 119005-35170 255,000
1 COOLERASSY, OIL 129973-33010 16,283,000
2 O-RING 123912-33050 173,000
3 BOLT, COOLER 123912-33100 1,419,000
4 BRACKET, COOLER 129908-33101 1,121,000
5 HOSEASSY, WATER 129973-49050 634,000
8 ELBOW, PT1/4 129103-49301 634,000
9 CLAMP, 22 23000-022000 143,000
10 O-RING, 1AG60.0 24321-000600 11,000
11 GUIDE, DIPSTICK 119860-34810 560,000
12 DIPSTICK, OIL 129963-34831 747,000
14 O-RING, P20 129900-32030
15 PIPEASSY, OIL INLET 129956-35100 2,803,000
16 BOLT, M8X 14 PLATED 26106-080142 25,000
17 BOLT, M8X 20 PLATED 26106-080202 6,000
18 SWITCH, HYDRAULIC 119761-39450 240,000
19 PIPEASSY, OIL 129907-39061 859,000
21 RETAINER, PIPE 123907-39500 411,000
23 BOLTASSY, JOINT M8 129005-59830 89,000
24 WASHER, SEAL 8 22190-080002 44,000
25 BOLT, JOINT 3 23857-030000 50,000
26 WASHER, SEAL 8 22190-080002 44,000
27 BOLT, M8X 12 PLATED 26106-080122 3,000
28 PIPE, HO PUMP 129930-39050 281,000
29 BOLT, PIPE JOINT 105010-39140 134,000
30 WASHER, SEAL 8 22190-080002 44,000
31 FILTER, D80X100 119005-35170 255,000

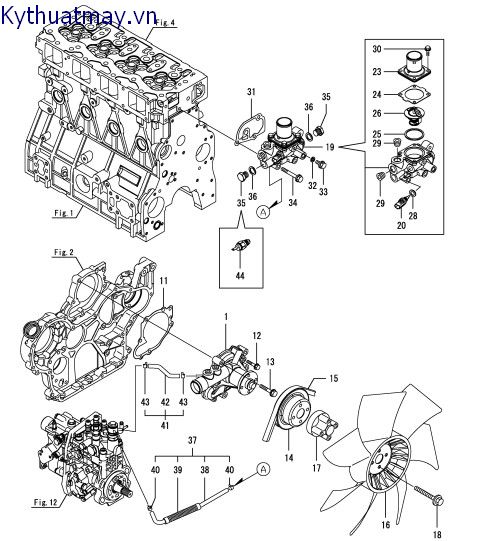

Hệ thống nước làm mát

Hệ thống nước làm mát
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 PUMPASSY, WATER 129907-42002 15,319,000
11 GASKET, WATER PUMP 129900-42020
12 BOLT, M6X 30 PLATED 26106-060302 25,000
13 BOLT, M8X 55 PLATED 26106-080552 34,000
14 V-PULLEY, PUMP 129930-42400 822,000
15 V-BELT, A42 25152-004200 204,000
16 FAN, COOLING D430X7 129907-44740 1,643,000
17 SPACER, FAN 50MM 129973-44760 1,868,000
18 BOLT, M8X 65 PLATED 26106-080652 34,000
19 CASEASSY,THERMOSTAT 129963-49810
20 SENSOR, TEMPERATURE 129927-44900 934,000
23 COVER, THERMOSTAT 129916-49530 1,494,000
24 GASKET, THERMOSTAT 121850-49540 70,000
25 GASKET, THERMOSTAT 121850-49550
26 THERMOSTAT, 71C 121850-49811 822,000
28 WASHER, SEAL 12 22190-120002
29 PLUG, R03 23875-030000 84,000
30 BOLT, M6X 20 PLATED 26106-060202 5,000
31 GASKET, THERMOSTAT 129900-49870
32 GASKET, 8X1.0 23414-080000
33 BOLT, M8X 12 PLATED 26106-080122 3,000
34 BOLT, M8X 60 PLATED 26106-080602 34,000
35 PLUG, M16 121450-42450 134,000
35-1 PLUG, M16 121450-42450 134,000
36 GASKET, 16 124465-44950 50,000
37 HOSEASSY, WATER 129907-49610 1,643,000
38 HOSE, WATER 129907-49710 673,000
39 TUBE, CORRUGATED 129907-49750 231,000
40 CLAMP, HOSE 9 124722-59050 50,000
41 HOSEASSY, WATER 129907-49620 560,000
42 HOSE, WATER 129907-49720 634,000
43 CLAMP, HOSE 9 124722-59050 50,000
44 SWITCH, TEMPERATURE 119761-44901 1,158,000
1 PUMPASSY, WATER 129907-42002 15,319,000
11 GASKET, WATER PUMP 129900-42020
12 BOLT, M6X 30 PLATED 26106-060302 25,000
13 BOLT, M8X 55 PLATED 26106-080552 34,000
14 V-PULLEY, PUMP 129930-42400 822,000
15 V-BELT, A42 25152-004200 204,000
16 FAN, COOLING D430X7 129907-44740 1,643,000
17 SPACER, FAN 50MM 129973-44760 1,868,000
18 BOLT, M8X 65 PLATED 26106-080652 34,000
19 CASEASSY,THERMOSTAT 129963-49810
20 SENSOR, TEMPERATURE 129927-44900 934,000
23 COVER, THERMOSTAT 129916-49530 1,494,000
24 GASKET, THERMOSTAT 121850-49540 70,000
25 GASKET, THERMOSTAT 121850-49550
26 THERMOSTAT, 71C 121850-49811 822,000
28 WASHER, SEAL 12 22190-120002
29 PLUG, R03 23875-030000 84,000
30 BOLT, M6X 20 PLATED 26106-060202 5,000
31 GASKET, THERMOSTAT 129900-49870
32 GASKET, 8X1.0 23414-080000
33 BOLT, M8X 12 PLATED 26106-080122 3,000
34 BOLT, M8X 60 PLATED 26106-080602 34,000
35 PLUG, M16 121450-42450 134,000
35-1 PLUG, M16 121450-42450 134,000
36 GASKET, 16 124465-44950 50,000
37 HOSEASSY, WATER 129907-49610 1,643,000
38 HOSE, WATER 129907-49710 673,000
39 TUBE, CORRUGATED 129907-49750 231,000
40 CLAMP, HOSE 9 124722-59050 50,000
41 HOSEASSY, WATER 129907-49620 560,000
42 HOSE, WATER 129907-49720 634,000
43 CLAMP, HOSE 9 124722-59050 50,000
44 SWITCH, TEMPERATURE 119761-44901 1,158,000
1 PUMPASSY, WATER 129907-42002 15,319,000
11 GASKET, WATER PUMP 129900-42020
12 BOLT, M6X 30 PLATED 26106-060302 25,000
13 BOLT, M8X 55 PLATED 26106-080552 34,000
14 V-PULLEY, PUMP 129930-42400 822,000
15 V-BELT, A42 25152-004200 204,000
16 FAN, COOLING D430X7 129907-44740 1,643,000
17 SPACER, FAN 50MM 129973-44760 1,868,000
18 BOLT, M8X 65 PLATED 26106-080652 34,000
19 CASEASSY,THERMOSTAT 129963-49810
20 SENSOR, TEMPERATURE 129927-44900 934,000
23 COVER, THERMOSTAT 129916-49530 1,494,000
24 GASKET, THERMOSTAT 121850-49540 70,000
25 GASKET, THERMOSTAT 121850-49550
26 THERMOSTAT, 71C 121850-49811 822,000
28 WASHER, SEAL 12 22190-120002
29 PLUG, R03 23875-030000 84,000
30 BOLT, M6X 20 PLATED 26106-060202 5,000
31 GASKET, THERMOSTAT 129900-49870
32 GASKET, 8X1.0 23414-080000
33 BOLT, M8X 12 PLATED 26106-080122 3,000
34 BOLT, M8X 60 PLATED 26106-080602 34,000
35 PLUG, M16 121450-42450 134,000
35-1 PLUG, M16 121450-42450 134,000
36 GASKET, 16 124465-44950 50,000
37 HOSEASSY, WATER 129907-49610 1,643,000
38 HOSE, WATER 129907-49710 673,000
39 TUBE, CORRUGATED 129907-49750 231,000
40 CLAMP, HOSE 9 124722-59050 50,000
41 HOSEASSY, WATER 129907-49620 560,000
42 HOSE, WATER 129907-49720 634,000
43 CLAMP, HOSE 9 124722-59050 50,000
44 SWITCH, TEMPERATURE 119761-44901 1,158,000

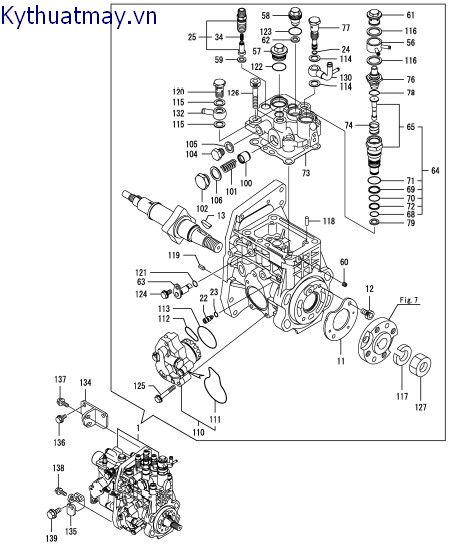

Bơm nhiên liệu

Bơm nhiên liệu
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 PUMPASSY, INJECTION 729963-51410
11 COVER 129928-51900 55,000
12 BOLT, SOCKET M6X10 129008-51920 25,000
13 KEY, FEATHER 5X19 144626-51090 41,000
22 STOPPER, TAPPET 158600-51270 89,000
23 O-RING, 4D S6 158563-51281 27,000
24 O-RING, 4D S6 158563-51281 27,000
25 VALVEASSY, DELIVERY 129509-51390
34 SPRING, DELIVERY 158563-51330 89,000
56 JOINT, COOLING WATER 158553-51551 276,000
57 PLUG, M22 158601-51550 228,000
58 PLUG, M16 129907-51560 411,000
59 GASKET, PLUG 158552-51571
60 PLUG, RACK 158557-51570 59,000
61 PLUG 158601-51570 180,000
62 GASKET, PLUG 129906-51580 89,000
63 LIFTER, LINK 158552-51580 231,000
64 TIMERASSY 119802-51590 2,092,000
65 TIMERASSY 119802-51600 2,092,000
68 O-RING 158553-51670
69 RING, BACKUP 119802-51680 59,000
70 O-RING 119802-51690
71 O-RING, 4D19020 24356-190200
72 RING, BACK UP T2P15 24372-000150 104,000
73 GASKET, HEAD 158560-51600 411,000
74 SPRING, TIMER 158553-51630
76 ELEMENT, THERMOSTAT 158553-51640 1,047,000
77 JOINT, OVERFLOW 158601-51650 303,000
78 O-RING, P14 158553-51660
79 GASKET, TIMER 158553-51680 50,000
100 PISTON,ACCUMLATOR 158601-51770 257,000
101 SPRING, ACCUMULATOR 158552-51781 189,000
102 PLUG, ACCUMULATOR 158601-51790 159,000
104 PLUG, M12 158553-51930 70,000
105 WASHER, SEAL 12 22190-120002
106 WASHER, SEAL 18 22190-180002 55,000
110 PUMPASSY, FUEL FEED 158552-52100 4,107,000
111 O-RING, PUMP INNER 158552-52500
112 O-RING, FEED PUMP 158552-52311 29,000
113 O-RING, 4E S42 158552-52400 21,000
114 WASHER, SEAL 12 22190-120002
115 WASHER, SEAL 12 22190-120002
116 WASHER, SEAL 18 22190-180002 55,000
117 WASHER, SPRING 18 22217-180000 25,000
118 PIN, PARALLEL 5X14 22312-050140 30,000
119 PIN, SPRING 5.0X10 22351-050010 30,000
120 BOLT, JOINT 6 23857-060000 41,000
121 O-RING, 1AP7.0 24311-000070 6,000
122 O-RING, 4D19020 24356-190200
123 O-RING, 4D24021 24356-240210
124 BOLT, M6X 10 PLATED 26106-060102 25,000
125 BOLT, M6X 35 PLATED 26106-060352 30,000
126 BOLT, M10X 45 26450-100452 41,000
127 NUT, LOCK M18 26776-180002 50,000
130 JOINT, OVERFLOW 158552-51670
132 JOINT, PIPE 12 129916-59020 336,000
134 RETAINER, PUMP UPPER 129907-01950 785,000
135 RETAINER, PUMP LOWER 129907-01960 634,000
136 BOLT, M8X 16 PLATED 26106-080162 6,000
137 BOLT, M8X 22 PLATED 26106-080222 8,000
138 BOLT, M8X 22 PLATED 26106-080222 8,000
139 BOLT, M10X 20 PLATED 26106-100202 11,000
1 PUMPASSY, INJECTION 729963-51410
11 COVER 129928-51900 55,000
12 BOLT, SOCKET M6X10 129008-51920 25,000
13 KEY, FEATHER 5X19 144626-51090 41,000
22 STOPPER, TAPPET 158600-51270 89,000
23 O-RING, 4D S6 158563-51281 27,000
24 O-RING, 4D S6 158563-51281 27,000
25 VALVEASSY, DELIVERY 129509-51390
34 SPRING, DELIVERY 158563-51330 89,000
56 JOINT, COOLING WATER 158553-51551 276,000
57 PLUG, M22 158601-51550 228,000
58 PLUG, M16 129907-51560 411,000
59 GASKET, PLUG 158552-51571
60 PLUG, RACK 158557-51570 59,000
61 PLUG 158601-51570 180,000
62 GASKET, PLUG 129906-51580 89,000
63 LIFTER, LINK 158552-51580 231,000
64 TIMERASSY 119802-51590 2,092,000
65 TIMERASSY 119802-51600 2,092,000
68 O-RING 158553-51670
69 RING, BACKUP 119802-51680 59,000
70 O-RING 119802-51690
71 O-RING, 4D19020 24356-190200
72 RING, BACK UP T2P15 24372-000150 104,000
73 GASKET, HEAD 158560-51600 411,000
74 SPRING, TIMER 158553-51630
76 ELEMENT, THERMOSTAT 158553-51640 1,047,000
77 JOINT, OVERFLOW 158601-51650 303,000
78 O-RING, P14 158553-51660
79 GASKET, TIMER 158553-51680 50,000
100 PISTON,ACCUMLATOR 158601-51770 257,000
101 SPRING, ACCUMULATOR 158552-51781 189,000
102 PLUG, ACCUMULATOR 158601-51790 159,000
104 PLUG, M12 158553-51930 70,000
105 WASHER, SEAL 12 22190-120002
106 WASHER, SEAL 18 22190-180002 55,000
110 PUMPASSY, FUEL FEED 158552-52100 4,107,000
111 O-RING, PUMP INNER 158552-52500
112 O-RING, FEED PUMP 158552-52311 29,000
113 O-RING, 4E S42 158552-52400 21,000
114 WASHER, SEAL 12 22190-120002
115 WASHER, SEAL 12 22190-120002
116 WASHER, SEAL 18 22190-180002 55,000
117 WASHER, SPRING 18 22217-180000 25,000
118 PIN, PARALLEL 5X14 22312-050140 30,000
119 PIN, SPRING 5.0X10 22351-050010 30,000
120 BOLT, JOINT 6 23857-060000 41,000
121 O-RING, 1AP7.0 24311-000070 6,000
122 O-RING, 4D19020 24356-190200
123 O-RING, 4D24021 24356-240210
124 BOLT, M6X 10 PLATED 26106-060102 25,000
125 BOLT, M6X 35 PLATED 26106-060352 30,000
126 BOLT, M10X 45 26450-100452 41,000
127 NUT, LOCK M18 26776-180002 50,000
130 JOINT, OVERFLOW 158552-51670
132 JOINT, PIPE 12 129916-59020 336,000
134 RETAINER, PUMP UPPER 129907-01950 785,000
135 RETAINER, PUMP LOWER 129907-01960 634,000
136 BOLT, M8X 16 PLATED 26106-080162 6,000
137 BOLT, M8X 22 PLATED 26106-080222 8,000
138 BOLT, M8X 22 PLATED 26106-080222 8,000
139 BOLT, M10X 20 PLATED 26106-100202 11,000
1 PUMPASSY, INJECTION 729963-51410
11 COVER 129928-51900 55,000
12 BOLT, SOCKET M6X10 129008-51920 25,000
13 KEY, FEATHER 5X19 144626-51090 41,000
22 STOPPER, TAPPET 158600-51270 89,000
23 O-RING, 4D S6 158563-51281 27,000
24 O-RING, 4D S6 158563-51281 27,000
25 VALVEASSY, DELIVERY 129509-51390
34 SPRING, DELIVERY 158563-51330 89,000
56 JOINT, COOLING WATER 158553-51551 276,000
57 PLUG, M22 158601-51550 228,000
58 PLUG, M16 129907-51560 411,000
59 GASKET, PLUG 158552-51571
60 PLUG, RACK 158557-51570 59,000
61 PLUG 158601-51570 180,000
62 GASKET, PLUG 129906-51580 89,000
63 LIFTER, LINK 158552-51580 231,000
64 TIMERASSY 119802-51590 2,092,000
65 TIMERASSY 119802-51600 2,092,000
68 O-RING 158553-51670
69 RING, BACKUP 119802-51680 59,000
70 O-RING 119802-51690
71 O-RING, 4D19020 24356-190200
72 RING, BACK UP T2P15 24372-000150 104,000
73 GASKET, HEAD 158560-51600 411,000
74 SPRING, TIMER 158553-51630
76 ELEMENT, THERMOSTAT 158553-51640 1,047,000
77 JOINT, OVERFLOW 158601-51650 303,000
78 O-RING, P14 158553-51660
79 GASKET, TIMER 158553-51680 50,000
100 PISTON,ACCUMLATOR 158601-51770 257,000
101 SPRING, ACCUMULATOR 158552-51781 189,000
102 PLUG, ACCUMULATOR 158601-51790 159,000
104 PLUG, M12 158553-51930 70,000
105 WASHER, SEAL 12 22190-120002
106 WASHER, SEAL 18 22190-180002 55,000
110 PUMPASSY, FUEL FEED 158552-52100 4,107,000
111 O-RING, PUMP INNER 158552-52500
112 O-RING, FEED PUMP 158552-52311 29,000
113 O-RING, 4E S42 158552-52400 21,000
114 WASHER, SEAL 12 22190-120002
115 WASHER, SEAL 12 22190-120002
116 WASHER, SEAL 18 22190-180002 55,000
117 WASHER, SPRING 18 22217-180000 25,000
118 PIN, PARALLEL 5X14 22312-050140 30,000
119 PIN, SPRING 5.0X10 22351-050010 30,000
120 BOLT, JOINT 6 23857-060000 41,000
121 O-RING, 1AP7.0 24311-000070 6,000
122 O-RING, 4D19020 24356-190200
123 O-RING, 4D24021 24356-240210
124 BOLT, M6X 10 PLATED 26106-060102 25,000
125 BOLT, M6X 35 PLATED 26106-060352 30,000
126 BOLT, M10X 45 26450-100452 41,000
127 NUT, LOCK M18 26776-180002 50,000
130 JOINT, OVERFLOW 158552-51670
132 JOINT, PIPE 12 129916-59020 336,000
134 RETAINER, PUMP UPPER 129907-01950 785,000
135 RETAINER, PUMP LOWER 129907-01960 634,000
136 BOLT, M8X 16 PLATED 26106-080162 6,000
137 BOLT, M8X 22 PLATED 26106-080222 8,000
138 BOLT, M8X 22 PLATED 26106-080222 8,000
139 BOLT, M10X 20 PLATED 26106-100202 11,000

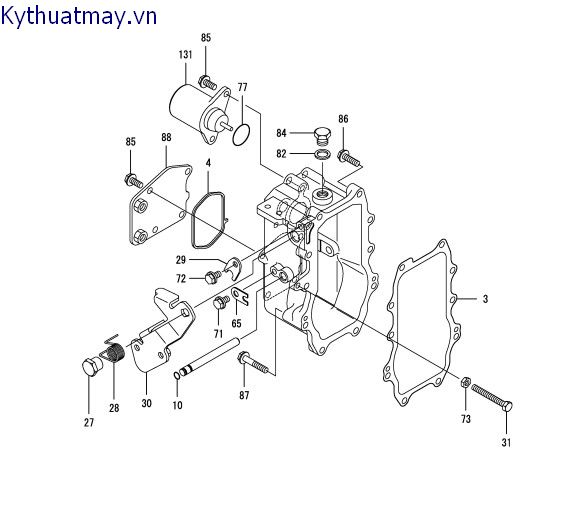

Bơm cao áp

Bơm cao áp
STT Tên sản phẩm Mã số Giá bán Đặt hàng
3 GASKET 158560-61050 189,000
4 GASKET, CASE 158560-61071 89,000
10 O-RING, S6 129155-51280
27 NUT, CONTROL LEVER 129255-61410 80,000
28 SPRING, RETURN 119807-61420
29 STOPPER, SHAFT 158560-61430 84,000
30 LEVER, REGULATOR 129963-61440 934,000
31 BOLT, IDLE LIMIT 129155-61460 235,000
65 STOPPER, SHAFT 119660-61901 55,000
71 BOLT, M6X 10 PLATED 26106-060102 25,000
72 BOLT, M6X 10 PLATED 26106-060102 25,000
73 NUT, LOCK M6 26756-060002
77 O-RING 158552-61900 12,000
82 WASHER, SEAL 16 22190-160002 50,000
84 PLUG, 16 23887-160002 59,000
85 BOLT, M6X 14 PLATED 26106-060142 3,000
86 BOLT, M6X 25 PLATED 26106-060252 5,000
87 BOLT, M6X 40 PLATED 26106-060402 30,000
88 COVER, GOVERNOR CASE 123945-61060 449,000
131 SOLENOID, STOP 119233-77932 3,363,000
3 GASKET 158560-61050 189,000
4 GASKET, CASE 158560-61071 89,000
10 O-RING, S6 129155-51280
27 NUT, CONTROL LEVER 129255-61410 80,000
28 SPRING, RETURN 119807-61420
29 STOPPER, SHAFT 158560-61430 84,000
30 LEVER, REGULATOR 129963-61440 934,000
31 BOLT, IDLE LIMIT 129155-61460 235,000
65 STOPPER, SHAFT 119660-61901 55,000
71 BOLT, M6X 10 PLATED 26106-060102 25,000
72 BOLT, M6X 10 PLATED 26106-060102 25,000
73 NUT, LOCK M6 26756-060002
77 O-RING 158552-61900 12,000
82 WASHER, SEAL 16 22190-160002 50,000
84 PLUG, 16 23887-160002 59,000
85 BOLT, M6X 14 PLATED 26106-060142 3,000
86 BOLT, M6X 25 PLATED 26106-060252 5,000
87 BOLT, M6X 40 PLATED 26106-060402 30,000
88 COVER, GOVERNOR CASE 123945-61060 449,000
131 SOLENOID, STOP 119233-77932 3,363,000
3 GASKET 158560-61050 189,000
4 GASKET, CASE 158560-61071 89,000
10 O-RING, S6 129155-51280
27 NUT, CONTROL LEVER 129255-61410 80,000
28 SPRING, RETURN 119807-61420
29 STOPPER, SHAFT 158560-61430 84,000
30 LEVER, REGULATOR 129963-61440 934,000
31 BOLT, IDLE LIMIT 129155-61460 235,000
65 STOPPER, SHAFT 119660-61901 55,000
71 BOLT, M6X 10 PLATED 26106-060102 25,000
72 BOLT, M6X 10 PLATED 26106-060102 25,000
73 NUT, LOCK M6 26756-060002
77 O-RING 158552-61900 12,000
82 WASHER, SEAL 16 22190-160002 50,000
84 PLUG, 16 23887-160002 59,000
85 BOLT, M6X 14 PLATED 26106-060142 3,000
86 BOLT, M6X 25 PLATED 26106-060252 5,000
87 BOLT, M6X 40 PLATED 26106-060402 30,000
88 COVER, GOVERNOR CASE 123945-61060 449,000
131 SOLENOID, STOP 119233-77932 3,363,000

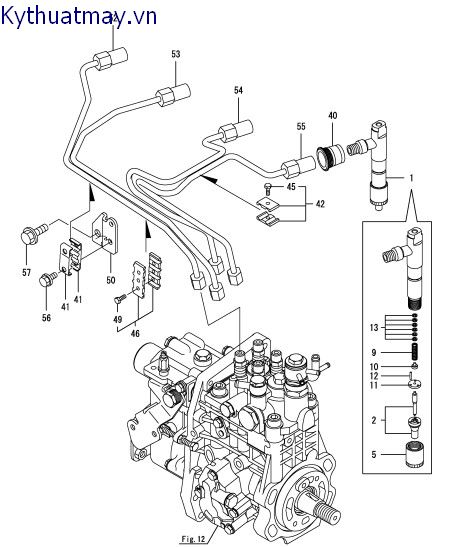

Kim phun

Kim phun
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 VALVEASSY,INJECTION 729907-53100
2 VALVEASSY,INJECTION 129907-53000 2,092,000
5 NUT, NOZZLE 114250-53080 251,000
9 SPRING, NOZZLE 114250-53120
10 SEAT, SPRING 114250-53130 59,000
11 SPACER, VALVE STOP 114250-53140 199,000
12 PIN, POSITIONING 114250-53210 41,000
13 SHIM SET 119803-53400 523,000
40 SEAL, PIPE 123907-11601 307,000
41 RETAINER 122780-59100 179,000
42 RETAINER, PIPE 119305-59120 164,000
45 BOLT, M4X14 129150-59131 34,000
46 RETAINER, PIPE 129550-59120 269,000
49 BOLT, M4X14 129150-59131 34,000
50 SUPPORT, PIPE CLAMP 129907-59710 673,000
52 PIPEASSY, INJECTION 129907-59810 859,000
53 PIPEASSY, INJECTION 129907-59820 859,000
54 PIPEASSY, INJECTION 129907-59830 859,000
55 PIPEASSY, INJECTION 129907-59840 859,000
56 BOLT, M6X 16 PLATED 26106-060162 25,000
57 BOLT, M8X 18 PLATED 26106-080182 25,000
1 VALVEASSY,INJECTION 729907-53100
2 VALVEASSY,INJECTION 129907-53000 2,092,000
5 NUT, NOZZLE 114250-53080 251,000
9 SPRING, NOZZLE 114250-53120
10 SEAT, SPRING 114250-53130 59,000
11 SPACER, VALVE STOP 114250-53140 199,000
12 PIN, POSITIONING 114250-53210 41,000
13 SHIM SET 119803-53400 523,000
40 SEAL, PIPE 123907-11601 307,000
41 RETAINER 122780-59100 179,000
42 RETAINER, PIPE 119305-59120 164,000
45 BOLT, M4X14 129150-59131 34,000
46 RETAINER, PIPE 129550-59120 269,000
49 BOLT, M4X14 129150-59131 34,000
50 SUPPORT, PIPE CLAMP 129907-59710 673,000
52 PIPEASSY, INJECTION 129907-59810 859,000
53 PIPEASSY, INJECTION 129907-59820 859,000
54 PIPEASSY, INJECTION 129907-59830 859,000
55 PIPEASSY, INJECTION 129907-59840 859,000
56 BOLT, M6X 16 PLATED 26106-060162 25,000
57 BOLT, M8X 18 PLATED 26106-080182 25,000
1 VALVEASSY,INJECTION 729907-53100
2 VALVEASSY,INJECTION 129907-53000 2,092,000
5 NUT, NOZZLE 114250-53080 251,000
9 SPRING, NOZZLE 114250-53120
10 SEAT, SPRING 114250-53130 59,000
11 SPACER, VALVE STOP 114250-53140 199,000
12 PIN, POSITIONING 114250-53210 41,000
13 SHIM SET 119803-53400 523,000
40 SEAL, PIPE 123907-11601 307,000
41 RETAINER 122780-59100 179,000
42 RETAINER, PIPE 119305-59120 164,000
45 BOLT, M4X14 129150-59131 34,000
46 RETAINER, PIPE 129550-59120 269,000
49 BOLT, M4X14 129150-59131 34,000
50 SUPPORT, PIPE CLAMP 129907-59710 673,000
52 PIPEASSY, INJECTION 129907-59810 859,000
53 PIPEASSY, INJECTION 129907-59820 859,000
54 PIPEASSY, INJECTION 129907-59830 859,000
55 PIPEASSY, INJECTION 129907-59840 859,000
56 BOLT, M6X 16 PLATED 26106-060162 25,000
57 BOLT, M8X 18 PLATED 26106-080182 25,000

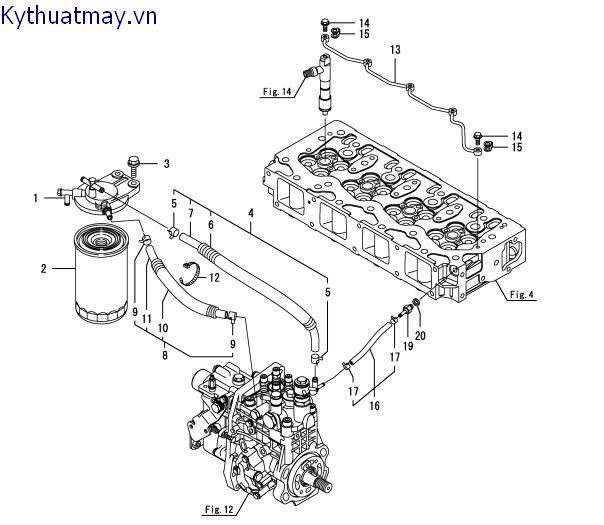

Ống nhiên liệu

Ống nhiên liệu
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 BRACKET, FILTER 129642-55611 1,643,000
2 FILTER, FUEL 129907-55810 569,000
3 BOLT, M8X 30 PLATED 26106-080302 9,000
4 HOSEASSY, FUEL 129457-59010
5 CLAMP, HOSE 11.5 124766-59050 51,000
6 TUBE, CORRUGATED 15 129957-59120 173,000
7 HOSE, FUEL 105025-59750 114,000
8 HOSEASSY, FUEL 129981-59010 411,000
9 CLAMP, HOSE 11.5 124766-59050 51,000
10 TUBE, CORRUGATED 15 129950-59221 281,000
11 HOSE, FUEL 129980-59510 183,000
12 BAND, NYLON 121750-59890 59,000
13 PIPEASSY, RETURN 129907-59140 1,794,000
14 BOLT, PIPE JOINT M6 123907-59540 114,000
15 GASKET, FUEL RETURN 123907-59550 139,000
16 HOSEASSY, RETURN 129486-59551
17 CLAMP, HOSE 9 124722-59050 50,000
19 JOINT, HOSE 123907-59560
20 WASHER, SEAL 8 22190-080002 44,000
1 BRACKET, FILTER 129642-55611 1,643,000
2 FILTER, FUEL 129907-55810 569,000
3 BOLT, M8X 30 PLATED 26106-080302 9,000
4 HOSEASSY, FUEL 129457-59010
5 CLAMP, HOSE 11.5 124766-59050 51,000
6 TUBE, CORRUGATED 15 129957-59120 173,000
7 HOSE, FUEL 105025-59750 114,000
8 HOSEASSY, FUEL 129981-59010 411,000
9 CLAMP, HOSE 11.5 124766-59050 51,000
10 TUBE, CORRUGATED 15 129950-59221 281,000
11 HOSE, FUEL 129980-59510 183,000
12 BAND, NYLON 121750-59890 59,000
13 PIPEASSY, RETURN 129907-59140 1,794,000
14 BOLT, PIPE JOINT M6 123907-59540 114,000
15 GASKET, FUEL RETURN 123907-59550 139,000
16 HOSEASSY, RETURN 129486-59551
17 CLAMP, HOSE 9 124722-59050 50,000
19 JOINT, HOSE 123907-59560
20 WASHER, SEAL 8 22190-080002 44,000
1 BRACKET, FILTER 129642-55611 1,643,000
2 FILTER, FUEL 129907-55810 569,000
3 BOLT, M8X 30 PLATED 26106-080302 9,000
4 HOSEASSY, FUEL 129457-59010
5 CLAMP, HOSE 11.5 124766-59050 51,000
6 TUBE, CORRUGATED 15 129957-59120 173,000
7 HOSE, FUEL 105025-59750 114,000
8 HOSEASSY, FUEL 129981-59010 411,000
9 CLAMP, HOSE 11.5 124766-59050 51,000
10 TUBE, CORRUGATED 15 129950-59221 281,000
11 HOSE, FUEL 129980-59510 183,000
12 BAND, NYLON 121750-59890 59,000
13 PIPEASSY, RETURN 129907-59140 1,794,000
14 BOLT, PIPE JOINT M6 123907-59540 114,000
15 GASKET, FUEL RETURN 123907-59550 139,000
16 HOSEASSY, RETURN 129486-59551
17 CLAMP, HOSE 9 124722-59050 50,000
19 JOINT, HOSE 123907-59560
20 WASHER, SEAL 8 22190-080002 44,000

Bộ khởi động

Bộ khởi động
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 STARTERASSY 129900-77040 22,175,000
2 ARMATUREASSY 129900-77120 13,997,000
3 BEARING, BALL 171008-77410 370,000
4 BEARING, BALL 171008-77420 896,000
5 YOKEASSY 129900-77130 5,214,000
6 COILASSY, FIELD 129900-77140 2,952,000
7 BRUSH 129900-77450
8 SCREW, CORE SET 171008-77450 41,000
9 COVER, REAR 129900-77150 634,000
10 HOLDERASSY, BRUSH 129900-77160 822,000
11 SPRING, BRUSH X2130631300 89,000
12 BRUSH 129900-77450
13 CLUTCHASSY 129900-77170 4,071,000
14 CLUTCHASSY 129900-77180 5,892,000
15 BEARING, BALL 4 129900-77190 634,000
16 BEARING, BALL X2114955020 1,233,000
17 SHAFT, PINION 129900-77270 2,952,000
18 STOPPER SET, PINION 171008-77670 180,000
22 SWITCHASSY, MAGNET 129900-77280 4,714,000
23 CASE, GEAR 129900-77290 3,571,000
24 RETAINER, BEARING 129900-77380 411,000
25 LEVERASSY, SHIFT 129900-77390 449,000
26 COVER KIT, DUST 129900-77420 411,000
27 SCREW, M4X10 129900-77430 41,000
28 BOLT, THROUGH 129685-77640 59,000
29 COVER, TERMINAL 171008-77750 148,000
30 BOLT, M12X 20 PLATED 26116-120202 34,000
31 PIN, PARALLEL 8X16 129100-01580 44,000
32 BRACKET, STARTER 129960-77410 1,047,000
33 BOLT, M10X 20 PLATED 26206-100202 34,000
1 STARTERASSY 129900-77040 22,175,000
2 ARMATUREASSY 129900-77120 13,997,000
3 BEARING, BALL 171008-77410 370,000
4 BEARING, BALL 171008-77420 896,000
5 YOKEASSY 129900-77130 5,214,000
6 COILASSY, FIELD 129900-77140 2,952,000
7 BRUSH 129900-77450
8 SCREW, CORE SET 171008-77450 41,000
9 COVER, REAR 129900-77150 634,000
10 HOLDERASSY, BRUSH 129900-77160 822,000
11 SPRING, BRUSH X2130631300 89,000
12 BRUSH 129900-77450
13 CLUTCHASSY 129900-77170 4,071,000
14 CLUTCHASSY 129900-77180 5,892,000
15 BEARING, BALL 4 129900-77190 634,000
16 BEARING, BALL X2114955020 1,233,000
17 SHAFT, PINION 129900-77270 2,952,000
18 STOPPER SET, PINION 171008-77670 180,000
22 SWITCHASSY, MAGNET 129900-77280 4,714,000
23 CASE, GEAR 129900-77290 3,571,000
24 RETAINER, BEARING 129900-77380 411,000
25 LEVERASSY, SHIFT 129900-77390 449,000
26 COVER KIT, DUST 129900-77420 411,000
27 SCREW, M4X10 129900-77430 41,000
28 BOLT, THROUGH 129685-77640 59,000
29 COVER, TERMINAL 171008-77750 148,000
30 BOLT, M12X 20 PLATED 26116-120202 34,000
31 PIN, PARALLEL 8X16 129100-01580 44,000
32 BRACKET, STARTER 129960-77410 1,047,000
33 BOLT, M10X 20 PLATED 26206-100202 34,000
1 STARTERASSY 129900-77040 22,175,000
2 ARMATUREASSY 129900-77120 13,997,000
3 BEARING, BALL 171008-77410 370,000
4 BEARING, BALL 171008-77420 896,000
5 YOKEASSY 129900-77130 5,214,000
6 COILASSY, FIELD 129900-77140 2,952,000
7 BRUSH 129900-77450
8 SCREW, CORE SET 171008-77450 41,000
9 COVER, REAR 129900-77150 634,000
10 HOLDERASSY, BRUSH 129900-77160 822,000
11 SPRING, BRUSH X2130631300 89,000
12 BRUSH 129900-77450
13 CLUTCHASSY 129900-77170 4,071,000
14 CLUTCHASSY 129900-77180 5,892,000
15 BEARING, BALL 4 129900-77190 634,000
16 BEARING, BALL X2114955020 1,233,000
17 SHAFT, PINION 129900-77270 2,952,000
18 STOPPER SET, PINION 171008-77670 180,000
22 SWITCHASSY, MAGNET 129900-77280 4,714,000
23 CASE, GEAR 129900-77290 3,571,000
24 RETAINER, BEARING 129900-77380 411,000
25 LEVERASSY, SHIFT 129900-77390 449,000
26 COVER KIT, DUST 129900-77420 411,000
27 SCREW, M4X10 129900-77430 41,000
28 BOLT, THROUGH 129685-77640 59,000
29 COVER, TERMINAL 171008-77750 148,000
30 BOLT, M12X 20 PLATED 26116-120202 34,000
31 PIN, PARALLEL 8X16 129100-01580 44,000
32 BRACKET, STARTER 129960-77410 1,047,000
33 BOLT, M10X 20 PLATED 26206-100202 34,000

Máy phát

Máy phát
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 BOLT, M10X30 129795-01900 59,000
2 GENERATOR, 12V-40A 119751-77200 18,641,000
3 COVER X0215512440 1,494,000
4 FRAMEASSY, DRIVE X1214001430 6,499,000
5 BEARING, BALL 119620-79200 318,000
6 PLATE, RETAINER 119620-79210 154,000
7 SCREW 119620-79220 50,000
8 STUD 119620-79230 173,000
9 FRAMEASSY X1215011050 1,532,000
10 NUT X9490561001 41,000
11 ROTORASSY 119620-77380 4,285,000
12 BEARING, BALL 119620-79240 598,000
13 COVER, BEARING 119620-79250 75,000
14 PULLEY, GENERATOR 119620-77461 896,000
15 NUT 119620-77471 84,000
16 COLLAR 119620-77490 187,000
17 REGULATORASSY 129423-77710 8,677,000
18 HOLDERASSY 119620-79260 3,571,000
19 HOLDERASSY, BRUSH 129052-79270 1,121,000
20 BRUSHASSY, SUB 119620-77480 159,000
21 SPRING 119620-79280
22 SCREW 119620-79290 44,000
23 SCREW 119620-79300 44,000
24 BOLT 119620-79310 50,000
25 SCREW, W/WASHER 119620-79320 41,000
26 BOLT 119620-79330 59,000
27 BUSH, INSULATION 119620-79340 218,000
28 NUT 119620-79350 50,000
29 WASHER, THRUST 119620-79360 209,000
30 NUT, M10 26306-100002 20,000
31 BLOCKASSY,ADJUSTER 119624-77351 523,000
33 BOLT, M8X100 PLATED 26106-081004 119,000
34 NUT, M8 26306-080002 20,000
35 ADJUSTER, BELT 129972-77360 2,242,000
36 BOLT, M8X 25 26014-080252 30,000
37 BOLT, M8X 45 PLATED 26106-080452 11,000
1 BOLT, M10X30 129795-01900 59,000
2 GENERATOR, 12V-40A 119751-77200 18,641,000
3 COVER X0215512440 1,494,000
4 FRAMEASSY, DRIVE X1214001430 6,499,000
5 BEARING, BALL 119620-79200 318,000
6 PLATE, RETAINER 119620-79210 154,000
7 SCREW 119620-79220 50,000
8 STUD 119620-79230 173,000
9 FRAMEASSY X1215011050 1,532,000
10 NUT X9490561001 41,000
11 ROTORASSY 119620-77380 4,285,000
12 BEARING, BALL 119620-79240 598,000
13 COVER, BEARING 119620-79250 75,000
14 PULLEY, GENERATOR 119620-77461 896,000
15 NUT 119620-77471 84,000
16 COLLAR 119620-77490 187,000
17 REGULATORASSY 129423-77710 8,677,000
18 HOLDERASSY 119620-79260 3,571,000
19 HOLDERASSY, BRUSH 129052-79270 1,121,000
20 BRUSHASSY, SUB 119620-77480 159,000
21 SPRING 119620-79280
22 SCREW 119620-79290 44,000
23 SCREW 119620-79300 44,000
24 BOLT 119620-79310 50,000
25 SCREW, W/WASHER 119620-79320 41,000
26 BOLT 119620-79330 59,000
27 BUSH, INSULATION 119620-79340 218,000
28 NUT 119620-79350 50,000
29 WASHER, THRUST 119620-79360 209,000
30 NUT, M10 26306-100002 20,000
31 BLOCKASSY,ADJUSTER 119624-77351 523,000
33 BOLT, M8X100 PLATED 26106-081004 119,000
34 NUT, M8 26306-080002 20,000
35 ADJUSTER, BELT 129972-77360 2,242,000
36 BOLT, M8X 25 26014-080252 30,000
37 BOLT, M8X 45 PLATED 26106-080452 11,000
1 BOLT, M10X30 129795-01900 59,000
2 GENERATOR, 12V-40A 119751-77200 18,641,000
3 COVER X0215512440 1,494,000
4 FRAMEASSY, DRIVE X1214001430 6,499,000
5 BEARING, BALL 119620-79200 318,000
6 PLATE, RETAINER 119620-79210 154,000
7 SCREW 119620-79220 50,000
8 STUD 119620-79230 173,000
9 FRAMEASSY X1215011050 1,532,000
10 NUT X9490561001 41,000
11 ROTORASSY 119620-77380 4,285,000
12 BEARING, BALL 119620-79240 598,000
13 COVER, BEARING 119620-79250 75,000
14 PULLEY, GENERATOR 119620-77461 896,000
15 NUT 119620-77471 84,000
16 COLLAR 119620-77490 187,000
17 REGULATORASSY 129423-77710 8,677,000
18 HOLDERASSY 119620-79260 3,571,000
19 HOLDERASSY, BRUSH 129052-79270 1,121,000
20 BRUSHASSY, SUB 119620-77480 159,000
21 SPRING 119620-79280
22 SCREW 119620-79290 44,000
23 SCREW 119620-79300 44,000
24 BOLT 119620-79310 50,000
25 SCREW, W/WASHER 119620-79320 41,000
26 BOLT 119620-79330 59,000
27 BUSH, INSULATION 119620-79340 218,000
28 NUT 119620-79350 50,000
29 WASHER, THRUST 119620-79360 209,000
30 NUT, M10 26306-100002 20,000
31 BLOCKASSY,ADJUSTER 119624-77351 523,000
33 BOLT, M8X100 PLATED 26106-081004 119,000
34 NUT, M8 26306-080002 20,000
35 ADJUSTER, BELT 129972-77360 2,242,000
36 BOLT, M8X 25 26014-080252 30,000
37 BOLT, M8X 45 PLATED 26106-080452 11,000
Chọn mua sản phẩm
: ...
: ...
: ...
:
messenger
zalo
