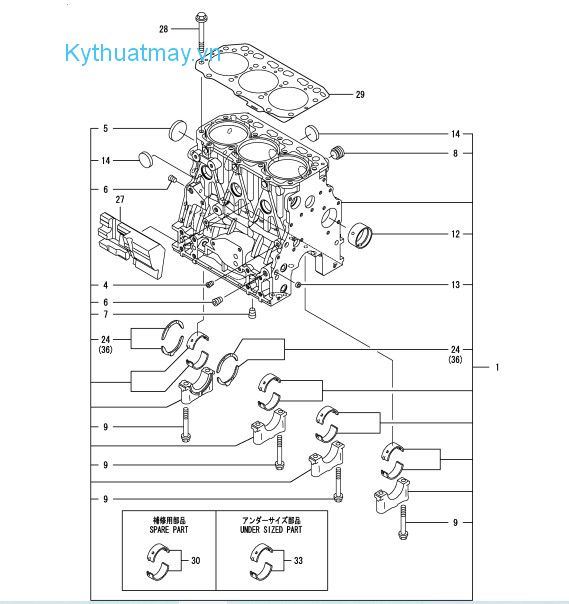

Hộp xilanh

Hộp xilanh
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 BLOCKASSY, CYLINDER 729005-01560
4 PLUG, PT1/8 124060-01050 55,000
5 PLUG, 50 129001-01250 148,000
6 PLUG, PT1/4 124160-01910 55,000
7 PLUG, PT1/4 124160-01910 55,000
8 PLUG, NPTF1 171051-01921 216,000
9 BOLT, METAL CAP 129150-02020 202,000
12 BUSH, CAMSHAFT 129795-02412 255,000
13 PLUG, 12 27241-120000 44,000
14 PLUG 30 27241-300000 183,000
24 BEARING, THRUST 129150-02931 325,000
27 SPACER 129004-01190 1,047,000
28 BOLT, HEAD 129150-01200 223,000
29 GASKET, HEAD 129001-01340 1,494,000
30 BEARING, MAIN 129001-02931 1,121,000
33 BEARING, 0.25 US 129150-02871
36 BEARING, THRUST 0.25 129150-02941 411,000

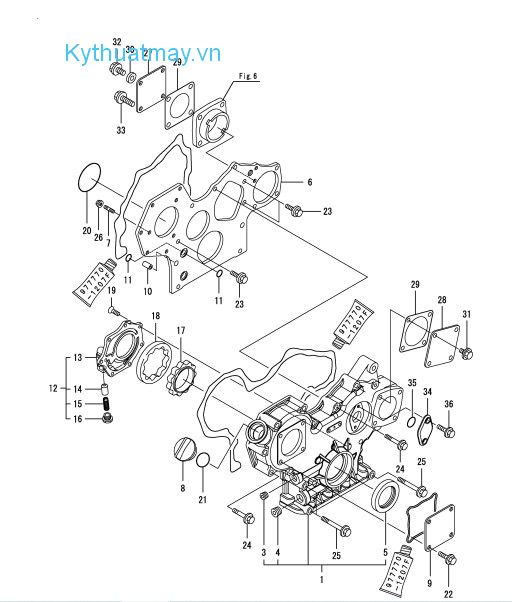

Vỏ hộp số

Vỏ hộp số
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 CASEASSY, GEAR 729235-01500 10,891,000
3 PLUG, R03 23876-030000 109,000
4 PLUG, R04 23876-040000 125,000
5 SEAL, OIL 119934-01800 288,000
6 FLANGE, GEAR CASE 129004-01520 6,499,000
7 STUD, M8X25 119802-01561 59,000
8 COVER, FILLER 124160-01751 209,000
9 COVER 124240-01871 164,000
10 PIPE, KNOCK L=18 129795-01950 193,000
11 O-RING, P16 119609-32040 44,000
12 COVERASSY 119802-32100 2,316,000
13 COVER 119802-32070 2,054,000
14 VALVE, RELIEF 129900-32130 235,000
15 SPRING 129418-32320 139,000
16 PLUG 129001-32330 134,000
17 ROTOR, INNER 119802-32111 1,196,000
18 ROTOR, OUTER 119802-32120 1,121,000
19 SCREW, M6X16 119802-32130 25,000
20 O-RING 121850-51960 59,000
21 O-RING, 1AP32.0 24311-000320 6,000
22 BOLT, M8X 16 PLATED 26106-080162 6,000
23 BOLT, M8X 16 PLATED 26106-080162 6,000
24 BOLT, M8X 55 PLATED 26106-080552 34,000
25 BOLT, M8X 85 PLATED 26106-080852 34,000
26 NUT, M8 26306-080002 20,000
27 COVER 124240-01871 164,000
28 COVER 124240-01871 164,000
29 GASKET, HO-P 129C26-01890 55,000
30 WASHER, SEAL 8 22190-080002 44,000
31 BOLT, M8X 16 PLATED 26106-080162 6,000
32 BOLT, M8X 20 PLATED 26106-080202 6,000
33 BOLT, M8X 30 PLATED 26106-080302 9,000
34 COVER 121023-01551 247,000
35 O-RING, 1AS24.0 24341-000240 34,000
36 BOLT, M6X 16 PLATED 26106-060162 25,000

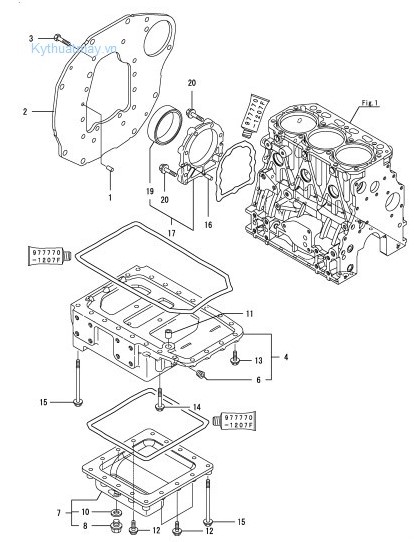

Bích lắp ráp

Bích lắp ráp
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 PIN, 8X16 129100-01580 44,000
2 FLANGE, MOUNTING 129267-01620
3 BOLT, M10X 20 PLATED 26206-100202 34,000
4 SUMPASSY, OIL 129052-01692
6 PLUG, PT1/4 124160-01910 55,000
7 COVERASSY,OIL PAN 129267-01710
8 PLUG, DRAIN 12 129054-01640
10 WASHER, SEAL 12 22190-120002
11 PIPE, KNOCK 14X18 129555-01750 104,000
12 BOLT, M8X 25 PLATED 26106-080252 11,000
13 BOLT, M8X 25 PLATED 26106-080252 11,000
14 BOLT, M8X 50 PLATED 26106-080502 34,000
15 BOLT, M8X120 PLATED 26106-081202 41,000
16 PIN, 8X16 129100-01580 44,000
17 CASEASSY, OIL SEAL 129648-01600 2,466,000
19 SEAL, OIL 129648-01780 1,233,000
20 BOLT, M8X30 129486-01670 41,000

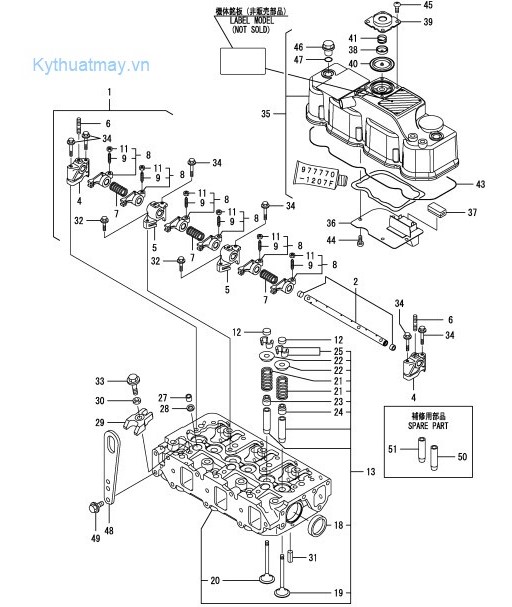

Nắp xilanh

Nắp xilanh
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 SHAFTASSY, ROCKER 129004-11241
2 SHAFT, ROCKERARM 129004-11251
4 SUPPORT, ROCKERARM 119802-11260 634,000
5 SUPPORT, ROCKERARM 119802-11270 634,000
6 STUD 119802-11280
7 SPRING 129150-11280 143,000
8 ARM, ROCKER 129004-11650 785,000
9 SCREW, VALVEADJUST 129150-11230
11 NUT, M8 129150-11750
12 CAP, VALVE 129150-11370 84,000
13 HEADASSY, CYLINDER 129005-11700
18 PLUG, 40 27241-400000
19 VALVE, INTAKE 129005-11100 709,000
20 VALVE, EXHAUST 129100-11112 709,000
21 SPRING, VALVE 129795-11120
22 RETAINER, SPRING 129795-11180
23 SEAL, VALVE STEM 121400-11340 154,000
24 SEAL, VALVE STEM 124460-11340 154,000
25 COTTER, 8 27310-080001
27 PROTECTOR, NOZZLE 119802-11870 206,000
28 SEAT, NOZZLE 119625-11880
29 RETAINER, NOZZLE 129004-11900 709,000
30 WASHER, INJECTOR 120270-54410 119,000
31 PIN, SPRING 6.0X12 22351-060012
32 BOLT, M8X 25 PLATED 26106-080252 11,000
33 BOLT, M8X 35 PLATED 26106-080352 9,000
34 BOLT, M8X 50 PLATED 26106-080502 34,000
35 BONNETASSY, HEAD 129055-11350
36 PLATE 129004-03010 2,092,000
37 BAFFLE, BREATHER 129150-03070 104,000
38 PLATE 119802-03110 134,000
39 COVER, DIAPHRAGM 119802-03121 362,000
40 DIAPHRAGM 119802-03130 257,000
41 SPRING, DIAPHRAGM 119802-03141 41,000
43 GASKET, BONNET 129004-11310
44 SCREW, 5X10 22857-500100 25,000
45 SCREW, 5X10 22857-500100 25,000
46 KNOB 124160-11360 114,000
47 O-RING, 1AP12.0 24311-000120 2,000
48 LIFTER 129900-07900 182,000
49 BOLT, M8X 16 PLATED 26106-080162 6,000
50 GUIDE, VALVE 120130-11860 486,000
51 GUIDE, VALVE 129150-11810 307,000

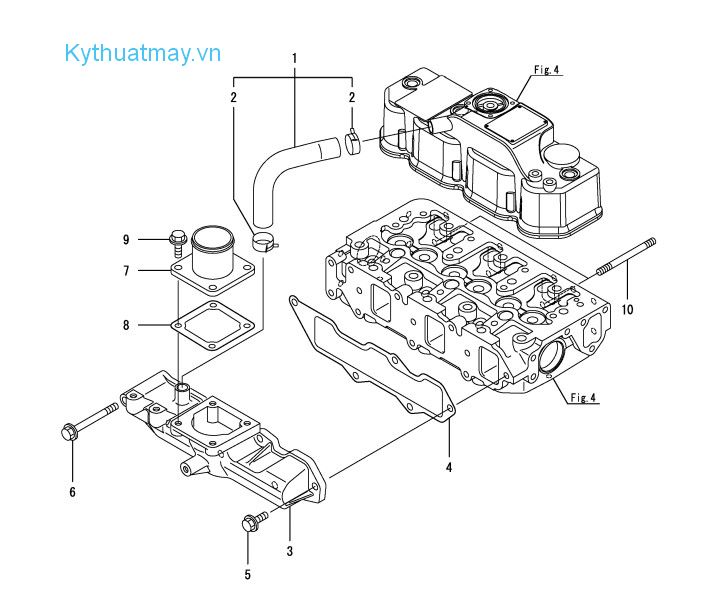

Cụm ống hút

Cụm ống hút
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 PIPE , BREATHER 129005-03080 560,000
2 CLIP,HOSE 21.5 129410-03990 55,000
3 MANIFOLD,AIR INTAKE 129005-12101
4 GASKET, MANIFOLD 129001-12110
5 BOLT, M8X 20 PLATED 26106-080202 6,000
6 BOLT, M8X 80 PLATED 26106-080802 34,000
7 JOINT, MANIFOLD 129486-12581 1,345,000
8 GASKET 129150-77511 59,000
9 BOLT, M8X 20 PLATED 26106-080202 6,000
10 STUD, M8X95 129263-13220 98,000

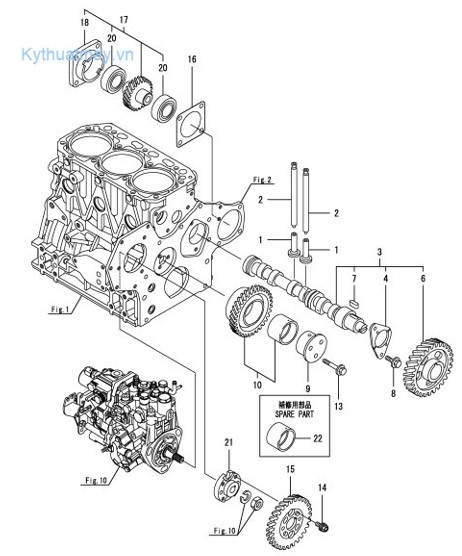

Trục cam

Trục cam
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 TAPPET 129150-14200 310,000
2 ROD, PUSH L=178 129150-14400
3 CAMSHAFTASSY 129129-14580
4 BEARING, THRUST 129150-02450 411,000
6 GEAR, CAMSHAFT 129150-14101 3,250,000
7 KEY, 7X 14 22512-070140 44,000
8 BOLT, M8X 14 PLATED 26106-080142 25,000
9 SHAFT, IDLE 119802-25051 1,233,000
10 GEARASSY, IDLE 119802-25101 3,535,000
13 BOLT, M8X 40 PLATED 26106-080402 30,000
14 BOLT 129150-25301 154,000
15 GEAR, PUMP 119802-25901 3,784,000
16 GASKET 129150-01881 75,000
17 DRIVEASSY, PUMP 129150-26000 5,214,000
18 BRACKET, PUMP 129150-26050 1,794,000
20 BEARING, BALL 6006Z 24105-060064 194,000
21 FLANGE 158552-51151 1,009,000
22 BUSH, IDLE GEAR 119802-25071 634,000

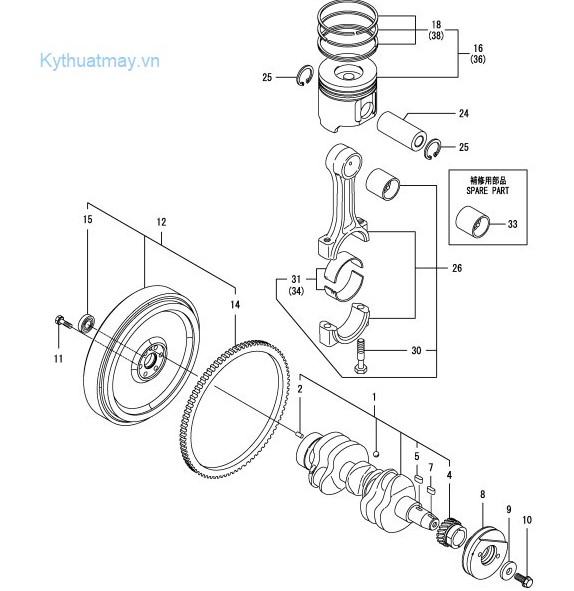

Tay quay, trục khuỷu

Tay quay, trục khuỷu
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 CRANKSHAFTASSY 129004-21002
2 PIN, 8X16 129100-01580 44,000
4 GEAR, CRANKSHAFT 119802-21202 2,652,000
5 KEY, 7X 14 22512-070140 44,000
7 KEY, 7X 14 22512-070140 44,000
8 V-PULLEY, 120 129055-21650
9 WASHER 129795-21661 159,000
10 BOLT 121850-21680 206,000
11 BOLT, FLYWHEEL 121111-21501 70,000
12 FLYWHEELASSY 129267-21560
14 GEAR, RING 124550-21600 3,250,000
15 BEARING, 6302UUC3 24104-063020 194,000
16 PISTON ASSY 129005-22080 3,999,000
18 RING SET, PISTON 129005-22500 1,271,000
24 PIN, PISTON D26 L70 129202-22300 673,000
25 RING, 26 22252-000260 20,000
26 RODASSY, CONNECTING 729402-23100 5,392,000
30 BOLT, CONNECTING ROD 121550-23200 173,000
31 BEARING, CRANK PIN 129150-23601 598,000
33 BEARING, PISTON PIN 129100-23910 318,000
34 BEARING, 0.25 US 129150-23611 709,000
36 PISTON ASSY, 0.25 OS 129005-22900 4,143,000
38 RING SET, 0.25 OS 129005-22950 1,532,000

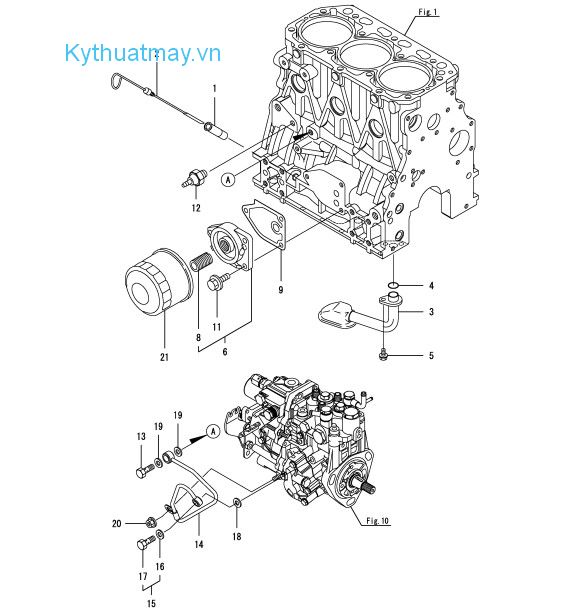

Hệ thống dầu

Hệ thống dầu
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 GUIDE, DIPSTICK 121520-34810 168,000
2 DIPSTICK, OIL 129263-34811
3 PIPEASSY, OIL INLET 129052-35090
4 O-RING, 1AP16.0 24311-000160 3,000
5 BOLT, M6X 12 PLATED 26106-060122 3,000
6 BRACKETASSY, FILTER 119802-35100
8 STUD 129100-35140 206,000
9 GASKET 129150-35111 55,000
11 BOLT, M8X 20 PLATED 26106-080202 6,000
12 SWITCH, 0.5KG 114250-39450 187,000
13 BOLT, PIPE JOINT M10 124160-39140 104,000
14 PIPEASSY, OIL 119802-39450 785,000
15 BOLTASSY, JOINT M8 129005-59830 89,000
16 WASHER, SEAL 8 22190-080002 44,000
17 BOLT, JOINT 3 23857-030000 50,000
18 WASHER, SEAL 8 22190-080002 44,000
19 WASHER, SEAL 10 22190-100002 50,000
20 NUT, M6 26366-060002 3,000
21 FILTER,LO 129150-35170 216,000

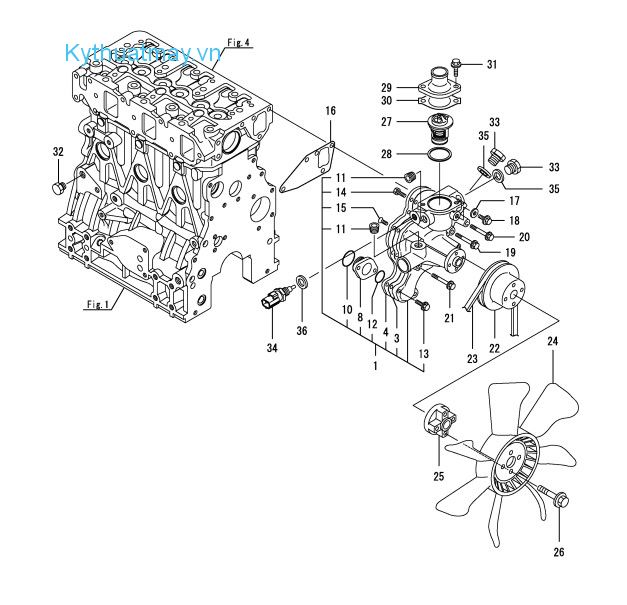

Hệ thống nước làm mát

Hệ thống nước làm mát
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 PUMPASSY, WATER 129054-42003
3 GASKET 129457-42050
4 PLATE 129457-42121
8 FLANGE 129150-42301 411,000
10 O-RING 129054-42320 59,000
11 PLUG, R03 129916-49740 189,000
12 O-RING, 524031 24358-240310 180,000
13 BOLT, M6X 20 PLATED 26106-060202 5,000
14 BOLT, M6X 16 PLATED 26116-060162 25,000
15 SCREW, M6X16 26577-060162 25,000
16 GASKET, WATER PUMP 129486-42050 125,000
17 GASKET, 8X1.0 23414-080000
18 BOLT, M8X 12 PLATED 26106-080122 3,000
19 BOLT, M8X 55 PLATED 26106-080552 34,000
20 BOLT, M8X 60 PLATED 26106-080602 34,000
21 BOLT, M8X 70 PLATED 26106-080702 34,000
22 V-PULLEY, D=120 129550-42350
23 V-BELT, A39 25132-003900 312,000
24 FAN, COOLING 129556-44740 634,000
25 SPACER, FAN 171353-44760
26 BOLT, M6X 40 PLATED 26106-060402 30,000
27 THERMOSTAT, 71 129155-49801 747,000
28 GASKET, THERMOSTAT 129150-49811 59,000
29 COVER, THERMOSTAT 129350-49530 1,158,000
30 GASKET 129795-49551 75,000
31 BOLT, M8X 22 PLATED 26106-080222 8,000
32 PLUG, DRAIN 171056-49120 298,000
33 PLUG, M16 121450-42450 134,000
34 SENSOR.THERMO CW 129927-44900 934,000
35 GASKET, 16 124465-44950 50,000
36 WASHER, SEAL 12 22190-120002

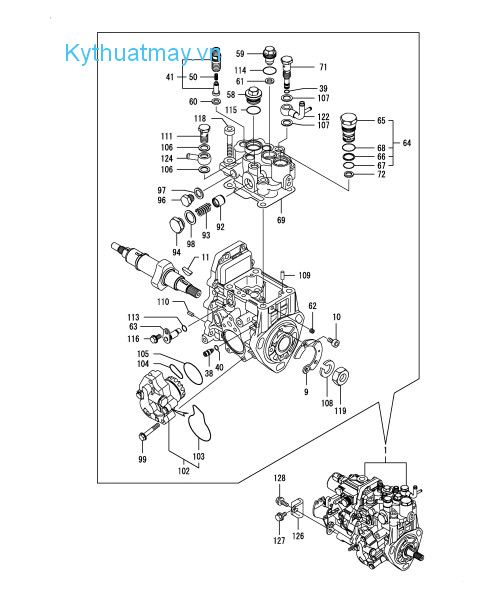

Bơm cao áp

Bơm cao áp
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 FIEASSY 729267-51361 15,319,000
9 COVER, GEAR CASE 129008-51900 164,000
10 BOLT, M6X10 129008-51920 25,000
11 KEY, 4X16 119802-51090 44,000
38 STOPPER, TAPPET 158600-51270 89,000
39 O-RING, 4D S6 158563-51281 27,000
40 O-RING, 4D S6 158563-51281 27,000
41 VALVEASSY, DELIVERY 129509-51390
50 SPRING, DELIVERY 158563-51330 89,000
58 PLUG 158601-51550 228,000
59 PLUG, BARREL 119802-51560 411,000
60 GASKET 158552-51571
61 GASKET 158552-51571
62 PLUG 158557-51570 59,000
63 LIFTER 158552-51580 231,000
64 PLUG SET,TIMER 129271-51590 1,307,000
65 PLUG,TIMER 129271-51600 284,000
66 RING, BACK UP 119802-51680 59,000
67 O-RING 119802-51690
68 O-RING, 4D19020 24356-190200
69 GASKET 158552-51600
71 JOINT, OVER FLOW 158601-51650 303,000
72 GASKET 158553-51680 50,000
92 PISTON 158601-51770 257,000
93 SPRING 158552-51781 189,000
94 PLUG 158601-51790 159,000
96 PLUG, M12 158553-51930 70,000
97 WASHER, SEAL 12 22190-120002
98 WASHER, SEAL 18 22190-180002 55,000
99 BOLT 158553-51770 25,000
102 PUMPASSY, FUEL FEED 158552-52100 4,107,000
103 O-RING 158552-52500
104 O-RING 158552-52311 29,000
105 O-RING, 4E S42 158552-52400 21,000
106 WASHER, SEAL 12 22190-120002
107 WASHER, SEAL 12 22190-120002
108 WASHER, SPRING 14 22217-140000 5,000
109 PIN, PARALLEL 5X14 22312-050140 30,000
110 PIN, SPRING 5.0X10 22351-050010 30,000
111 BOLT, JOINT 6 23857-060000 41,000
113 O-RING, 1AP7.0 24311-000070 6,000
114 O-RING, 4D19018 24356-190180 109,000
115 O-RING, 4D19020 24356-190200
116 BOLT, M6X 10 PLATED 26106-060102 25,000
118 BOLT, M8X 45 26450-080452 55,000
119 NUT, LOCK M14 26776-140002 34,000
122 JOINT, OVER FLOW 158552-51670
124 JOINT, PIPE 12 129916-59020 336,000
126 RETAINER, PUMP 119802-51250
127 BOLT, M8X 16 PLATED 26106-080162 6,000
128 BOLT, M8X 20 PLATED 26106-080202 6,000

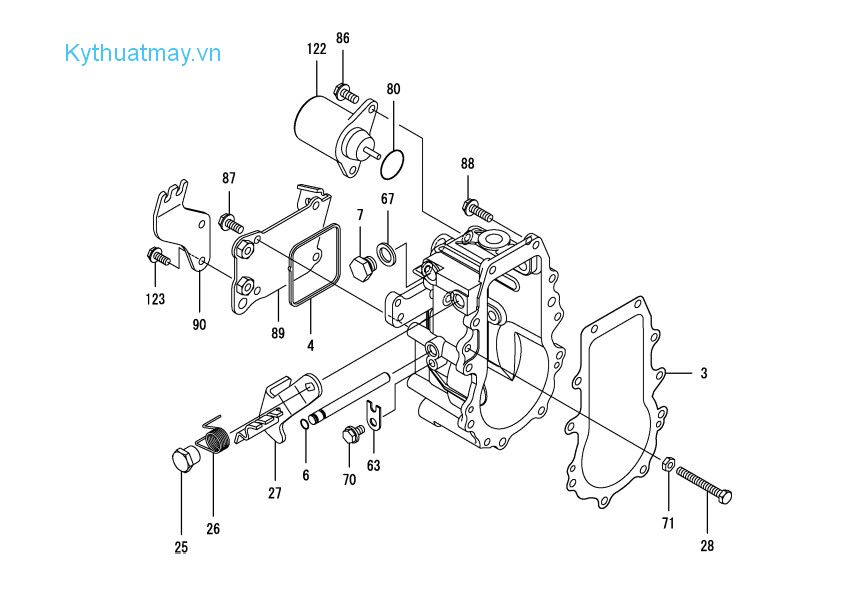

Cụm điều chỉnh

Cụm điều chỉnh
STT Tên sản phẩm Mã số Giá bán Đặt hàng
3 GASKET 158553-61050 189,000
4 GASKET 158553-61070 89,000
6 O-RING, S6 129155-51280
7 PLUG, M12 158553-51930 70,000
25 NUT, LOCK 129255-61410 80,000
26 SPRING, RETURN 119807-61420
27 LEVERASSY,REGULATOR 119852-61440 411,000
28 BOLT, IDLE 129155-61460 235,000
63 RETAINER, SHAFT 119660-61901 55,000
67 WASHER, SEAL 12 22190-120002
70 BOLT, M6X 10 PLATED 26106-060102 25,000
71 NUT, LOCK M6 26756-060002
80 O-RING 158552-61900 12,000
86 BOLT, M6X 14 PLATED 26106-060142 3,000
87 BOLT, M6X 14 PLATED 26106-060142 3,000
88 BOLT, M6X 20 PLATED 26106-060202 5,000
89 COVER, GOVERNOR CASE 158552-61061 449,000
90 SUPPORT, WIRE 119852-61080 173,000
122 SOLENOID, STOP 119233-77932 3,363,000
123 BOLT, M6X 14 PLATED 26106-060142 3,000

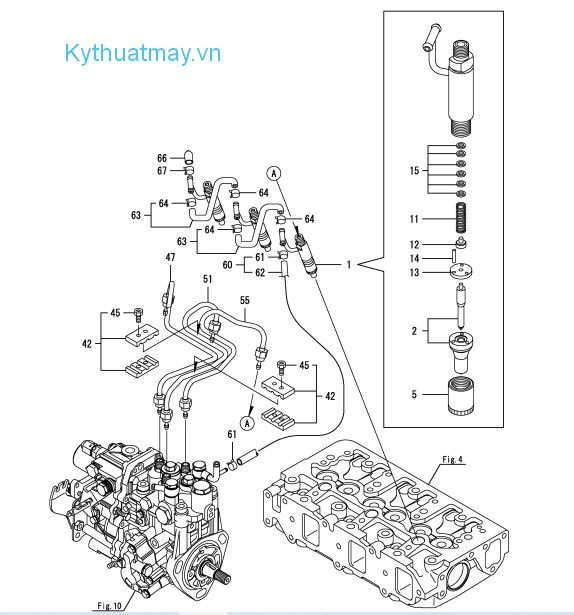

Van cao áp

Van cao áp
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 VALVEASSY,INJECTION 729004-53200
2 VALVEASSY,INJECTION 129004-53001 794,000
5 NUT, NOZZLE D16.95 114250-53080 251,000
11 SPRING, NOZZLE 114250-53120
12 SEAT, SPRING 114250-53130 59,000
13 PLATE 114250-53140 199,000
14 PIN 114250-53210 41,000
15 SHIM SET 119803-53400 523,000
42 RETAINER, PIPE 129150-59120 104,000
45 BOLT, M4X14 129150-59131 34,000
47 PIPEASSY, INJECTION 129004-59811
51 PIPEASSY, INJECTION 129004-59821
55 PIPEASSY, INJECTION 129004-59831
60 PIPEASSY, RETURN 119802-59550
61 CLIP, HOSE 9 124722-59050 50,000
62 PIPE, FUEL RETURN 119802-59560 859,000
63 PIPEASSY, RETURN 129486-59551
64 CLIP, HOSE 9 124722-59050 50,000
66 CAP 119593-59581 98,000
67 CLIP, HOSE 10 124060-77680 41,000

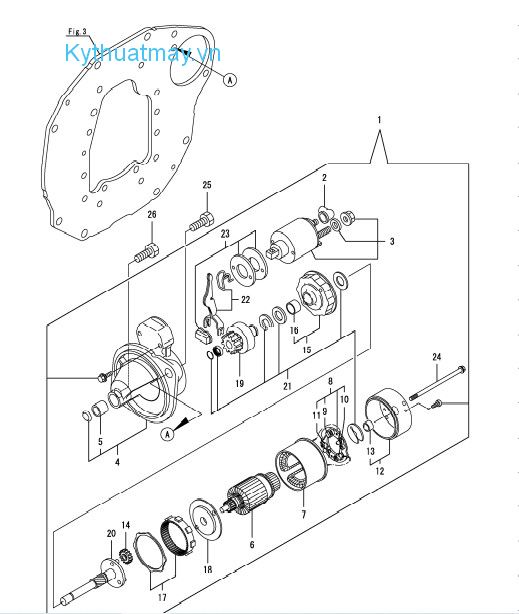

Bộ khởi động động cơ

Bộ khởi động động cơ
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 STARTER, CR1.2 129052-77010 18,390,000
2 COVER, TERMINAL X2114274200
3 SWITCHASSY, MAGNET 129052-77040
4 HOUSING ASSY, GEARS 129052-77030
5 BEARING, STARTER X2114535200
6 ARMATUREASSY 129698-77101
7 YOKEASSY 129698-77110 1,009,000
8 HOLDERASSY, BRUSH 129698-77120 1,345,000
9 BRUSH 129698-77130 1,345,000
10 BRUSH SET 129698-77140 1,345,000
11 SPRING, BRUSH 129698-77150 216,000
12 COVERASSY 129698-77161 362,000
13 BEARING, COVER 129698-77170
14 GEAR, PLANETARY 118400-77170
15 BRACKET, CENTER 129698-77180 449,000
16 BRACKET, CENTER 129698-77190 298,000
17 GEAR, INTERNAL 129698-77200
18 BRACKET 129698-77210
19 PINION ASSY 129698-77220
20 SHAFT, PINION 129698-77230
21 WASHER SET 129698-77250 190,000
22 LEVER SET, SHIFT 129698-77270
23 COVER KIT, DUST 129698-77280
24 BOLT, THROUGH 124195-77770 50,000
25 BOLT 129155-77060 75,000
26 BOLT, M12X 20 PLATED 26116-120202 34,000

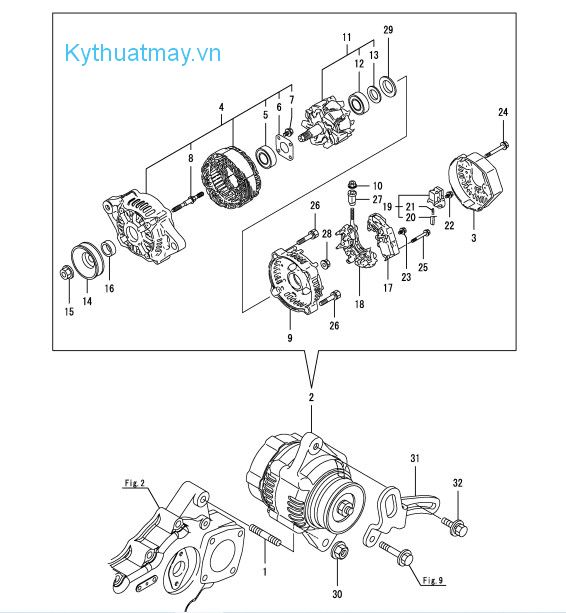

Bộ phát điện

Bộ phát điện
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 STUD 129795-01900 59,000
2 GENERATOR, 12V-40AP 119751-77200 18,641,000
3 COVER X0215512440 1,494,000
4 FRAMEASSY, DRIVE X1214001430 6,499,000
5 BEARING, BALL 119620-79200 318,000
6 PLATE, RETAINER 119620-79210 154,000
7 SCREW 119620-79220 50,000
8 STUD 119620-79230 173,000
9 FRAMEASSY X1215011050 1,532,000
10 NUT X9490561001 41,000
11 ROTORASSY 119620-77380 4,285,000
12 BEARING, BALL 119620-79240 598,000
13 COVER 119620-79250 75,000
14 PULLEY 119620-77461 896,000
15 NUT 119620-77471 84,000
16 COLLAR 119620-77490 187,000
17 REGULATORASSY 129423-77710 8,677,000
18 HOLDER 119620-79260 3,571,000
19 HOLDER, BRUSH 129052-79270 1,121,000
20 BRUSHASSY 119620-77480 159,000
21 SPRING 119620-79280
22 SCREW 119620-79290 44,000
23 SCREW 119620-79300 44,000
24 BOLT 119620-79310 50,000
25 SCREW 119620-79320 41,000
26 BOLT 119620-79330 59,000
27 BUSH, INSULATION 119620-79340 218,000
28 NUT 119620-79350 50,000
29 WASHER, THRUST 119620-79360 209,000
30 NUT, M10 26306-100002 20,000
31 ADJUSTER 129263-77330
32 BOLT,ADJUSTER 119810-77340 50,000
Chọn mua sản phẩm
: ...
: ...
: ...
:
messenger
zalo
