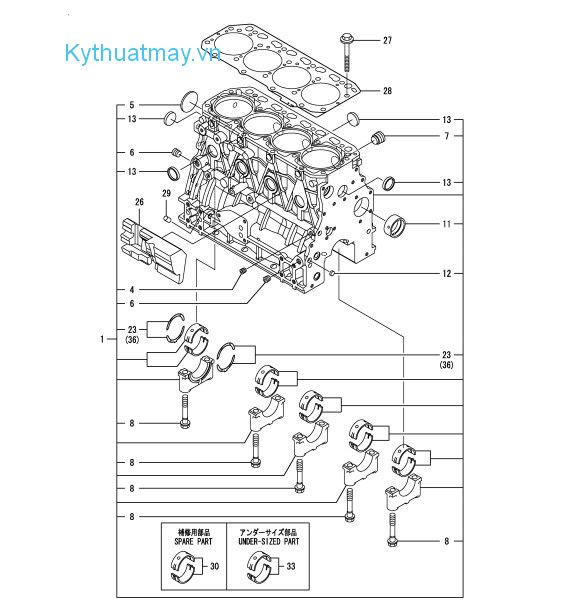

Khối xilanh

Khối xilanh
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 BLOCKASSY, CYLINDER 729659-01570 100,699,000
4 PLUG, PT1/8 124060-01050 55,000
5 PLUG, 50 129001-01250 148,000
6 PLUG, PT1/4 124160-01910 55,000
7 PLUG, NPTF1 171051-01921 216,000
8 BOLT, METAL CAP 129150-02020 202,000
11 BUSH, CAMSHAFT 129795-02412 255,000
12 PLUG, 12 27241-120000 44,000
13 PLUG 30 27241-300000 183,000
23 BEARING, THRUST 129150-02931 325,000
26 SPACER 129004-01190 1,047,000
27 BOLT, HEAD 129150-01200 223,000
28 GASKET, HEAD 129407-01340 2,392,000
29 PLUG 119309-01810 75,000
30 BEARING, MAIN 129001-02931 1,121,000
33 BEARING, 0.25 US 129150-02871
36 BEARING, THRUST 0.25 129150-02941 411,000

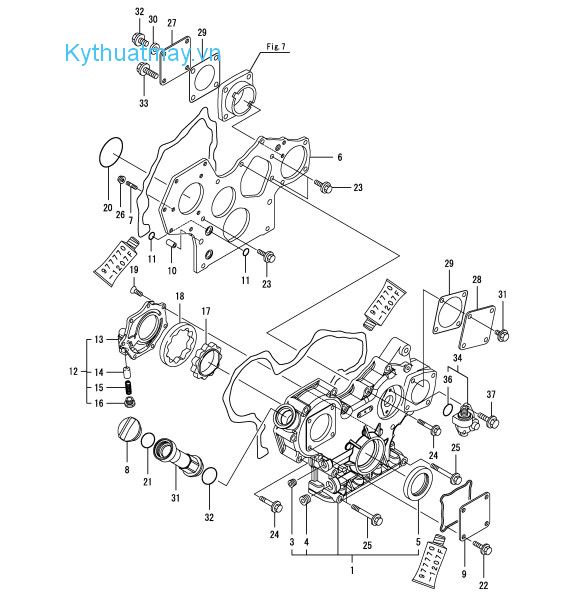

Vỏ hộp số

Vỏ hộp số
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 CASEASSY, GEAR 729235-01500 10,891,000
3 PLUG, R03 23876-030000 109,000
4 PLUG, R04 23876-040000 125,000
5 SEAL, OIL 119934-01800 288,000
6 FLANGE, GEAR CASE 129004-01520 6,499,000
7 STUD, M8X25 119802-01561 59,000
8 COVER, FILLER 124160-01751 209,000
9 COVER 124240-01871 164,000
10 PIPE, KNOCK L=18 129795-01950 193,000
11 O-RING, P16 119609-32040 44,000
12 COVERASSY 119802-32100 2,316,000
13 COVER 119802-32070 2,054,000
14 VALVE, RELIEF 129900-32130 235,000
15 SPRING 129418-32320 139,000
16 PLUG 129001-32330 134,000
17 ROTOR, INNER 119802-32111 1,196,000
18 ROTOR, OUTER 119802-32120 1,121,000
19 SCREW, M6X16 119802-32130 25,000
20 O-RING 121850-51960 59,000
21 O-RING, 1AP32.0 24311-000320 6,000
22 BOLT, M8X 16 PLATED 26106-080162 6,000
23 BOLT, M8X 16 PLATED 26106-080162 6,000
24 BOLT, M8X 55 PLATED 26106-080552 34,000
25 BOLT, M8X 85 PLATED 26106-080852 34,000
26 NUT, M8 26306-080002 20,000
27 COVER 124240-01871 164,000
28 COVER 124240-01871 164,000
29 GASKET 124240-01883 59,000
30 WASHER, SEAL 6 22190-080002 44,000
31 BOLT, M8X 16 PLATED 26106-080162 6,000
32 BOLT, M8X 20 PLATED 26106-080202 6,000
33 BOLT, M8X 30 PLATED 26106-080302 9,000
34 GEAR 129150-91400 859,000
36 O-RING, 1AS24.0 24341-000240 34,000
37 BOLT, M6X 16 PLATED 26106-060162 25,000

Bích lắp ráp

Bích lắp ráp
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 PIN, M8X16 129100-01580 44,000
2 FLANGE, MOUNTING 129126-01600 17,747,000
3 BOLT, M10X 20 PLATED 26206-100202 34,000
4 SUMP, OIL 129550-01702 8,499,000
5 SUMPASSY, OIL 129659-01740 5,928,000
6 PLUG, 16 105425-01690
8 WASHER, SEAL 16 22190-160002 50,000
9 PIPE, KNOCK 14X18 129555-01750 104,000
10 BOLT, M8X 25 PLATED 26106-080252 11,000
11 BOLT, M8X 50 PLATED 26106-080502 34,000
12 BOLT, M8X100 PLATED 26106-081002 41,000
13 BOLT, M8X120 PLATED 26106-081202 41,000
14 PIN, M8X16 129100-01580 44,000
15 CASEASSY, OIL SEAL 129648-01600 2,466,000
17 SEAL, OIL 129648-01780 1,233,000
18 BOLT, M8X30 129486-01670 41,000

Nắp xilanh

Nắp xilanh
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 SHAFTASSY, ROCKER 129601-11241 10,498,000
2 SHAFT, ROCKERARM 129601-11251 2,054,000
4 SUPPORT, ROCKERARM 119802-11260 634,000
5 SUPPORT, ROCKERARM 119802-11270 634,000
6 SPRING 129150-11280 143,000
7 ARM, ROCKER 129004-11650 785,000
8 SCREW, VALVEADJUST 129150-11230
10 NUT, M8 129150-11750
11 STUD, M8X 18 26226-080182 30,000
12 CAP, VALVE 129150-11370 84,000
13 HEADASSY, CYLINDER 129602-11700
18 PLUG, 40 27241-400000
19 VALVE, INTAKE 129005-11100 709,000
20 VALVE, EXHAUST 129100-11112 709,000
21 SPRING, VALVE 129795-11120
22 RETAINER, SPRING 129795-11180
23 SEAL, VALVE STEM 121400-11340 154,000
24 SEAL, VALVE STEM 124460-11340 154,000
25 COTTER, 8 27310-080001
27 PROTECTOR, NOZZLE 119802-11870 206,000
28 SEAT, NOZZLE 119625-11880
29 RETAINER, NOZZLE 129004-11900 709,000
30 WASHER, INJECTOR 120270-54410 119,000
31 PIN, SPRING 6.0X12 22351-060012
32 BOLT, M8X 25 PLATED 26106-080252 11,000
33 BOLT, M8X 35 PLATED 26106-080352 9,000
34 BOLT, M8X 50 PLATED 26106-080502 34,000
35 BONNETASSY, HEAD 129652-11350 5,820,000
36 PLATE 129004-03010 2,092,000
37 BAFFLE, BREATHER 129150-03070 104,000
38 PLATE 119802-03110 134,000
39 COVER, DIAPHRAGM 119802-03121 362,000
40 DIAPHRAGM 119802-03130 257,000
41 SPRING, DIAPHRAGM 119802-03141 41,000
43 GASKET, BONNET 129601-11310 709,000
44 SCREW, 5X10 22857-500100 25,000
45 SCREW, 5X10 22857-500100 25,000
46 KNOB 124160-11360 114,000
47 O-RING, 1AP12.0 24311-000120 2,000
48 LIFTER 129900-07900 182,000
49 BOLT, M8X 14 PLATED 26106-080142 25,000
50 GUIDE, VALVE 120130-11860 486,000
51 GUIDE, VALVE 129150-11810 307,000

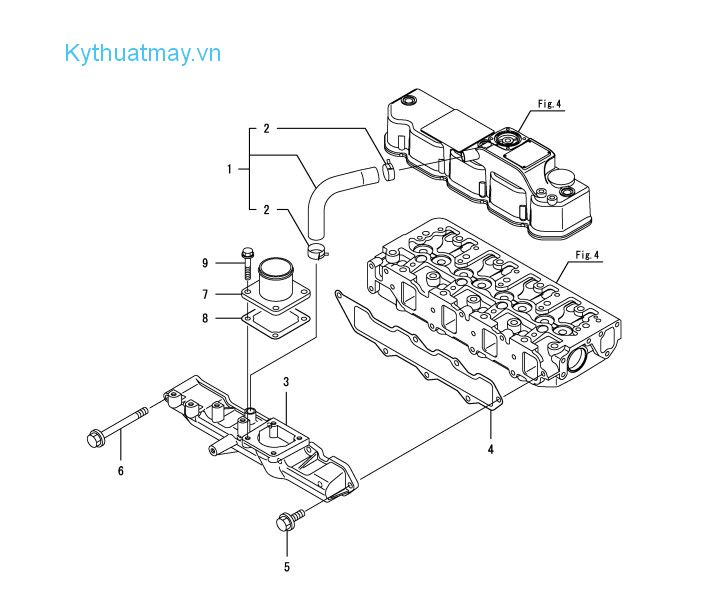

Cụm ống hút

Cụm ống hút
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 PIPE , BREATHER 129005-03080 560,000
2 CLIP 129410-03990 55,000
3 MANIFOLD,AIR INTAKE 129602-12101 6,214,000
4 GASKET, MANIFOLD 129407-12110 209,000
5 BOLT, M8X 20 PLATED 26106-080202 6,000
6 BOLT, M8X 80 PLATED 26106-080802 34,000
7 JOINT, MANIFOLD 129486-12581 1,345,000
8 GASKET 129150-77511 59,000
9 BOLT, M8X 20 PLATED 26106-080202 6,000

Ống xả

Ống xả
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 GASKET 129550-13110 148,000
2 MANIFOLDASSY 129659-13130 7,142,000
4 PIN, SPRING 4.0X12 22351-040012 25,000
5 STUD, M8X90 129263-13210 95,000
6 BOLT, M8X60 10.9T 119802-13640 95,000
7 BOLT, M8X75 10.9T 119802-13660 143,000
8 STUD, M8X22 119131-18320 70,000
9 NUT, M8 26306-080002 20,000
10 SILENCER 129659-13531 17,176,000
11 GASKET, SILENCER 129107-13540
12 STAY, SILENCER 129659-13680 1,009,000
13 BOLT, M8X 22 26014-080222 30,000
14 BOLT, M8X 25 26014-080252 30,000
15 BOLT, M8X 40 PLATED 26106-080402 30,000
16 NUT, M8 26306-080002 20,000

Trục cam

Trục cam
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 TAPPET 129150-14200 310,000
2 ROD, PUSH L=178 129150-14400
3 CAMSHAFTASSY 729402-14580 7,249,000
4 BEARING, THRUST 129150-02450 411,000
6 GEAR, CAMSHAFT 129150-14101 3,250,000
7 KEY, 7X 14 22512-070140 44,000
8 BOLT, M8X 14 PLATED 26106-080142 25,000
9 SHAFT, IDLE 119802-25051 1,233,000
10 GEARASSY, IDLE 119802-25101 3,535,000
13 BOLT, M8X 40 PLATED 26106-080402 30,000
14 BOLT 129150-25301 154,000
15 GEAR, PUMP 119802-25901 3,784,000
16 GASKET 129150-01881 75,000
17 DRIVEASSY, PUMP 129150-26000 5,214,000
18 BRACKET, PUMP 129150-26050 1,794,000
20 BEARING, BALL 6006Z 24105-060064 194,000
21 BUSH, IDLE GEAR 119802-25071 634,000

Tay quay, trục khuỷu

Tay quay, trục khuỷu
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 CRANKSHAFTASSY 129657-21002 32,530,000
2 PIN, M8X16 129100-01580 44,000
4 GEAR, CRANKSHAFT 119802-21202 2,652,000
5 PIN 121850-21290 44,000
6 GEAR, BALANCER 129400-28121 2,765,000
7 KEY, 7X 14 22512-070140 44,000
9 KEY, 7X 14 22512-070140 44,000
10 V-PULLEY, 120 119852-21650 3,101,000
11 WASHER 129795-21661 159,000
12 BOLT 121850-21680 206,000
13 BOLT, FLYWHEEL 124160-21501 98,000
14 FLYWHEELASSY 129659-21581 19,283,000
16 GEAR, RING 124550-21600 3,250,000
17 BEARING, 6302UUC3 24104-063020 194,000
18 PISTON ASSY 129005-22080 3,999,000
20 RING SET, PISTON 129005-22500 1,271,000
26 PIN, PISTON D26 L70 129202-22300 673,000
27 RING, 26 22252-000260 20,000
28 RODASSY, CONNECTING 729402-23100 5,392,000
32 BOLT, CONNECTING ROD 121550-23200 173,000
33 BEARING, CRANK PIN 129150-23601 598,000
35 BEARING, PISTON PIN 129100-23910 318,000
36 BEARING, 0.25 US 129150-23611 709,000
38 PISTON ASSY, 0.25 OS 129005-22900 4,143,000
40 RING SET, 0.25 OS 129005-22950 1,532,000

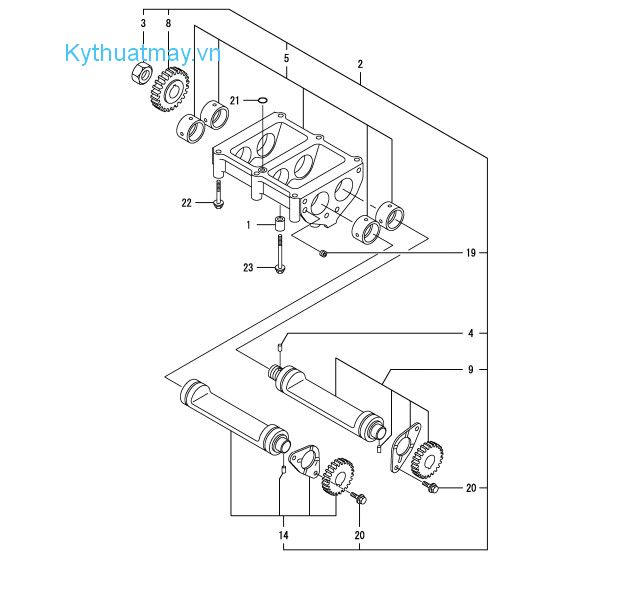

Con lắc

Con lắc
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 PIPE, KNOCK 129795-01960 179,000
2 BALANCERASSY 129457-28000 27,139,000
3 NUT 128170-14150 203,000
4 PIN 121850-21290 44,000
5 CASEASSY, BALANCER 129457-28011 11,927,000
8 GEAR, BALANCER 129400-28150 1,681,000
9 SHAFTASSY, BALANCER 729490-28510 7,463,000
14 SHAFTASSY, BALANCER 729490-28520 7,855,000
19 PLUG, R005 23876-005000 114,000
20 BOLT, M8X 14 PLATED 26106-080142 25,000
21 O-RING, 1AP14.0 24311-000140 3,000
22 BOLT, M8X 60 PLATED 26106-080602 34,000
23 BOLT, M8X 80 PLATED 26106-080802 34,000

Hệ thống dầu

Hệ thống dầu
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 DIPSTICK, OIL 129457-34800 449,000
2 GUIDE, DIPSTICK 121520-34810 168,000
3 GASKET 129150-35042
4 PIPEASSY, OIL INLET 129550-35090 785,000
9 BOLT, M8X 12 PLATED 26106-080122 3,000
10 BOLT, M8X 35 PLATED 26106-080352 9,000
11 BRACKETASSY, FILTER 119802-35100
13 STUD 129100-35140 206,000
14 GASKET 129150-35111 55,000
16 BOLT, M8X 20 PLATED 26106-080202 6,000
17 SWITCH, 0.5KG 114250-39450 187,000
18 BOLT, PIPE JOINT M10 124160-39140 104,000
19 PIPEASSY, OIL 119802-39450 785,000
20 BOLTASSY, JOINT M8 129005-59830 89,000
21 WASHER, SEAL 6 22190-080002 44,000
22 BOLT, JOINT 3 23857-030000 50,000
23 WASHER, SEAL 6 22190-080002 44,000
24 WASHER, SEAL 10 22190-100002 50,000
25 NUT, M6 26366-060002 3,000
26 FILTER 129150-35153

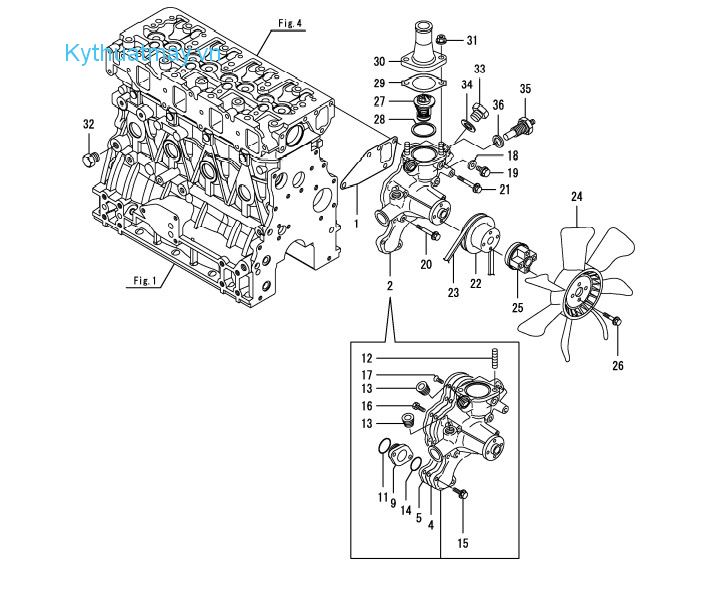

Hệ thống nước làm mát

Hệ thống nước làm mát
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 GASKET, WATER PUMP 129486-42050 125,000
2 PUMPASSY, WATER 129659-42050 13,676,000
4 GASKET 129150-42059 560,000
5 PLATE 129263-42120 1,083,000
9 FLANGE 129150-42301 411,000
11 O-RING 129054-42320 59,000
12 STUD, M8X30 129555-44750 44,000
13 PLUG, R03 129916-49740 189,000
14 O-RING, 524031 24358-240310 180,000
15 BOLT, M6X 20 PLATED 26106-060202 5,000
16 BOLT, M6X 16 PLATED 26116-060162 25,000
17 SCREW, M6X15 26577-060152 25,000
18 GASKET, 8X1.0 23414-080000
19 BOLT, M8X 12 PLATED 26106-080122 3,000
20 BOLT, M8X 55 PLATED 26106-080552 34,000
21 BOLT, M8X 60 PLATED 26106-080602 34,000
22 V-PULLEY, D=110 129403-42380 310,000
23 V-BELT, A40 25132-004000 235,000
24 FAN, COOLING D380 129655-44740 1,233,000
25 SPACER, FAN L38.5 129030-44760 1,271,000
26 BOLT, M6X 50 PLATED 26106-060502 8,000
27 THERMOSTAT, 71 129155-49801 747,000
28 GASKET, THERMOSTAT 129150-49811 59,000
29 GASKET 129795-49551 75,000
30 COVER, THERMOSTAT 129350-49560 1,233,000
31 NUT, M8 26306-080002 20,000
32 PLUG, DRAIN 171056-49120 298,000
33 PLUG, M16 121450-42450 134,000
34 GASKET, 16 124465-44950 50,000
35 SENSOR 124250-49351 747,000
36 GASKET 129150-49360 44,000

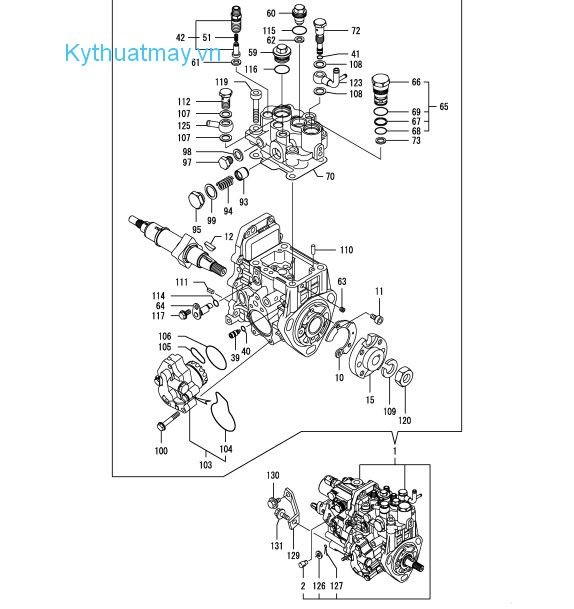

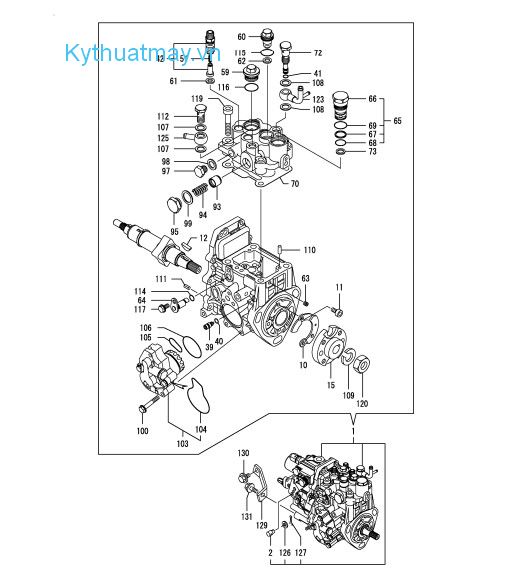

Bơm cao áp

Bơm cao áp
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 INJECTION PUMPASSY 729659-51360
2 ADJUSTER 194150-01370 119,000
10 COVER, GEAR CASE 129008-51900 164,000
11 BOLT, M6X10 129008-51920 25,000
12 KEY, 4X16 119802-51090 44,000
15 FLANGE 158552-51151 1,009,000
39 STOPPER, TAPPET 158600-51270 89,000
40 O-RING, 4D S6 158563-51281 27,000
41 O-RING, 4D S6 158563-51281 27,000
42 VALVEASSY, DELIVERY 129509-51390
51 SPRING, DELIVERY 158563-51330 89,000
59 PLUG 158601-51550 228,000
60 PLUG, BARREL 119802-51560 411,000
61 GASKET 158552-51571
62 GASKET 158552-51571
63 PLUG 158557-51570 59,000
64 LIFTER 158552-51580 231,000
65 PLUG SET,TIMER 129271-51590 1,307,000
66 PLUG,TIMER 129271-51600 284,000
67 RING, BACK UP 119802-51680 59,000
68 O-RING 119802-51690
69 O-RING, 4D19020 24356-190200
70 GASKET 158552-51600
72 JOINT, OVER FLOW 158601-51650 303,000
73 GASKET 158553-51680 50,000
93 PISTON 158601-51770 257,000
94 SPRING 158552-51781 189,000
95 PLUG 158601-51790 159,000
97 PLUG, M12 158553-51930 70,000
98 WASHER, SEAL 12 22190-120002
99 WASHER, SEAL 18 22190-180002 55,000
100 BOLT 158553-51770 25,000
103 PUMPASSY, FUEL FEED 158552-52100 4,107,000
104 O-RING 158552-52500
105 O-RING 158552-52311 29,000
106 O-RING, 4E S42 158552-52400 21,000
107 WASHER, SEAL 12 22190-120002
108 WASHER, SEAL 12 22190-120002
109 WASHER, SPRING 14 22217-140000 5,000
110 PIN, PARALLEL M5X14 22312-050140 30,000
111 PIN, SPRING 5.0X10 22351-050010 30,000
112 BOLT, JOINT 6 23857-060000 41,000
114 O-RING, 1AP7.0 24311-000070 6,000
115 O-RING, 4D19018 24356-190180 109,000
116 O-RING, 4D19020 24356-190200
117 BOLT, M6X 10 PLATED 26106-060102 25,000
119 BOLT, M8X 45 26450-080452 55,000
120 NUT, LOCK M14 26776-140002 34,000
123 JOINT, OVER FLOW 158552-51670
125 JOINT, PIPE 12 129916-59020 336,000
126 WASHER, 8 22137-080000 6,000

Bơm cao áp (2-2)

Bơm cao áp (2-2)
STT Tên sản phẩm Mã số Giá bán Đặt hàng
127 PIN, COTTER 1.6X18 22417-160180
129 RETAINER, PUMP 129601-51250 785,000
130 BOLT, M8X 16 PLATED 26106-080162 6,000
131 BOLT, M8X 20 PLATED 26106-080202 6,000

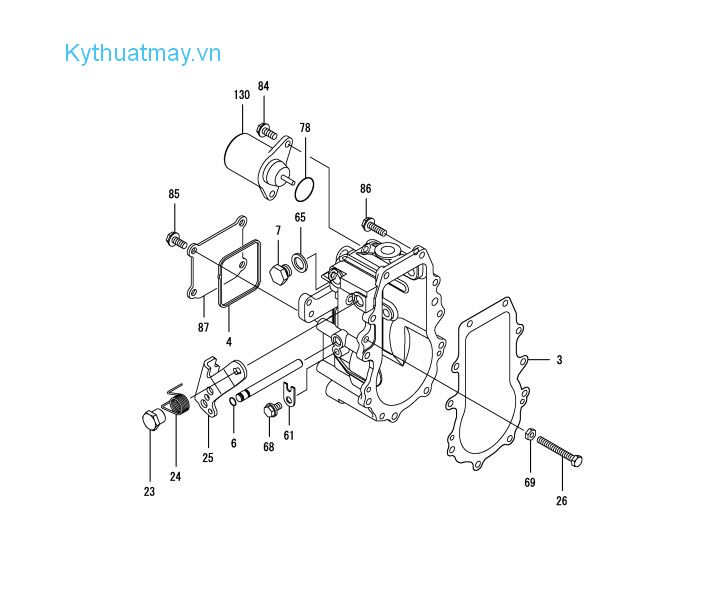

Cụm điều chỉnh

Cụm điều chỉnh
STT Tên sản phẩm Mã số Giá bán Đặt hàng
3 GASKET 158553-61050 189,000
4 GASKET 158553-61070 89,000
6 O-RING, S6 129155-51280
7 PLUG, M12 158553-51930 70,000
23 NUT, LOCK 129255-61410 80,000
24 SPRING, RETURN 119807-61420
25 LEVER, REGULATOR 158552-61441 183,000
26 BOLT, IDLE 129155-61460 235,000
61 RETAINER, SHAFT 119660-61901 55,000
65 WASHER, SEAL 12 22190-120002
68 BOLT, M6X 10 PLATED 26106-060102 25,000
69 NUT, LOCK M6 26756-060002
78 O-RING 158552-61900 12,000
84 BOLT, M6X 14 PLATED 26106-060142 3,000
85 BOLT, M6X 14 PLATED 26106-060142 3,000
86 BOLT, M6X 20 PLATED 26106-060202 5,000
87 COVER, GOVERNOR CASE 129642-61060 231,000
130 SOLENOID, STOP 119653-77950 2,952,000

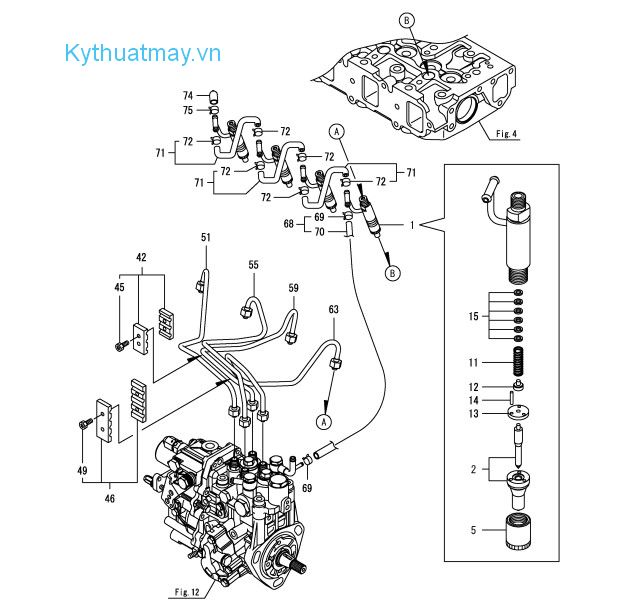

Van cao áp

Van cao áp
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 VALVEASSY,INJECTION 729004-53101 4,749,000
2 VALVEASSY,INJECTION 129004-53001 794,000
5 NUT, NOZZLE D16.95 114250-53080 251,000
11 SPRING, NOZZLE 114250-53120
12 SEAT, SPRING 114250-53130 59,000
13 PLATE 114250-53140 199,000
14 PIN 114250-53210 41,000
15 SHIM SET 119803-53400 523,000
42 RETAINER, PIPE 129150-59120 104,000
45 BOLT, M4X14 129150-59131 34,000
46 RETAINER, PIPE 129550-59120 269,000
49 BOLT, M4X14 129150-59131 34,000
51 PIPEASSY, INJECTION 129601-59810 859,000
55 PIPEASSY, INJECTION 129601-59820 859,000
59 PIPEASSY, INJECTION 129601-59830 859,000
63 PIPEASSY, INJECTION 129601-59840 859,000
68 PIPEASSY, RETURN 119802-59550
69 CLIP, HOSE 9 124722-59050 50,000
70 PIPE, FUEL RETURN 119802-59560 859,000
71 PIPEASSY, RETURN 129486-59551
72 CLIP, HOSE 9 124722-59050 50,000
74 CAP 119593-59581 98,000
75 CLIP, HOSE 10 124060-77680 41,000

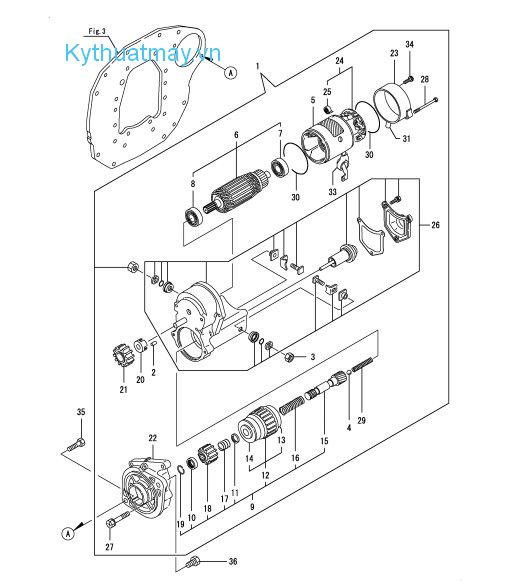

Bộ khởi động động cơ

Bộ khởi động động cơ
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 STARTER, RA1.4 129407-77010 7,142,000
2 ROLLER X0283060061 34,000
3 NUT X9490561370 50,000
4 BALL X9491200240 25,000
5 YOKEASSY 129407-77210 7,071,000
6 ARMATUREASSY 129407-77220 7,678,000
7 BEARING 129129-77230 310,000
8 BEARING 129129-77240 374,000
9 STARTER 129407-77250 8,177,000
10 NUT X0280210230 64,000
11 RETAINER X0283270140 80,000
12 CLUTCHASSY 129407-77390 4,928,000
13 BEARING, BALL 129129-77440 634,000
14 BEARING, BALL 129129-77450 523,000
15 SHAFT 129129-77400 1,756,000
16 SPRING, COIL 129129-77410
17 SPRING, COIL X9491703371 34,000
18 PINION, STARTER 129129-77420 1,831,000
19 RING 129129-77430 148,000
20 RETAINER 129129-77260 209,000
21 PINION 129129-77270 2,765,000
22 HOUSING 129407-77280 2,952,000
23 FRAME 129407-77290 1,569,000
24 HOLDERASSY 129407-77300 1,383,000
25 SPRING X9491730461 44,000
26 SWITCHASSY 129407-77310 7,999,000
27 BOLT 129129-77320 114,000
28 BOLT 129407-77330 159,000
29 SPRING 129129-77340
30 O-RING 129129-77350 119,000
31 COVER 129129-77362 223,000
33 CAP 129129-77380 139,000
34 SCREW 129129-77460 95,000
35 BOLT 129155-77060 75,000
36 BOLT, M12X 20 PLATED 26116-120202 34,000

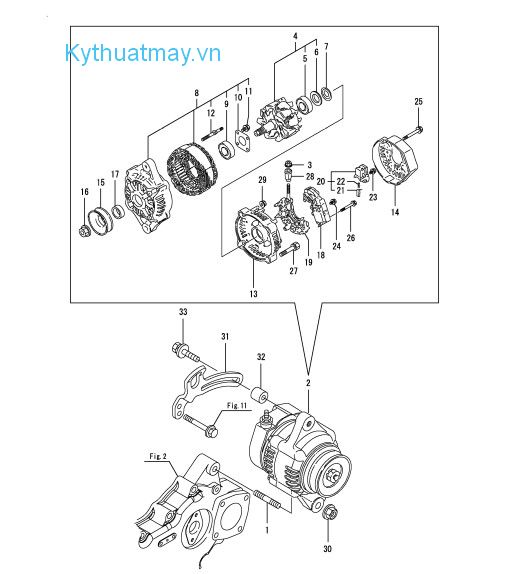

Bộ phát điện

Bộ phát điện
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 STUD 129795-01900 59,000
2 GENERATOR, 40A 119620-77201
3 NUT X9490561001 41,000
4 ROTORASSY 119620-77380 4,285,000
5 BEARING, BALL 123501-79240 310,000
6 COVER 119620-79250 75,000
7 WASHER, THRUST 119620-79360 209,000
8 FRAMEASSY, DRIVE 119620-77421 6,392,000
9 BEARING, BALL 119620-79200 318,000
10 PLATE, RETAINER 119620-79210 154,000
11 SCREW 119620-79220 50,000
12 STUD 119620-79230 173,000
13 FRAMEASSY 119620-77440 1,607,000
14 COVER 119620-77450 859,000
15 PULLEY 119620-77461 896,000
16 NUT 119620-77471 84,000
17 COLLAR 119620-77490 187,000
18 REGULATORASSY 119620-77710 5,713,000
19 HOLDER 119620-79260 3,571,000
20 HOLDER, BRUSH 119620-79270 634,000
21 BRUSHASSY 119620-77480 159,000
22 SPRING 119620-79280
23 SCREW 119620-79290 44,000
24 SCREW 119620-79300 44,000
25 BOLT 119620-79310 50,000
26 SCREW 119620-79320 41,000
27 BOLT 119620-79330 59,000
28 BUSH, INSULATION 119620-79340 218,000
29 NUT 119620-79350 50,000
30 NUT, M10 26306-100002 20,000
31 ADJUSTER 129107-77330 336,000
32 SPACER 124732-77340 119,000
33 BOLT,ADJUSTER L=50 129972-77341 209,000
Chọn mua sản phẩm
: ...
: ...
: ...
:
messenger
zalo
